Appendix B
Rack installation
guide
AA G701 - EN.book Page 99 Monday, March 17, 2003 4:24 PM
This appendix shows you how to install the
ASM and RDM software package.
AA G701 - EN.book Page 100 Monday, March 17, 2003 4:24 PM
105
System rack installation
Aside from its tower configuration, the Altos G701 server system can
also be mounted in a rack-model position. A rack mount kit is
available for customers who want to convert a tower-mounted system
to rack-model design. To purchase a rack mount kit, contact your local
Acer representative or order directly from http://www.acer.com.

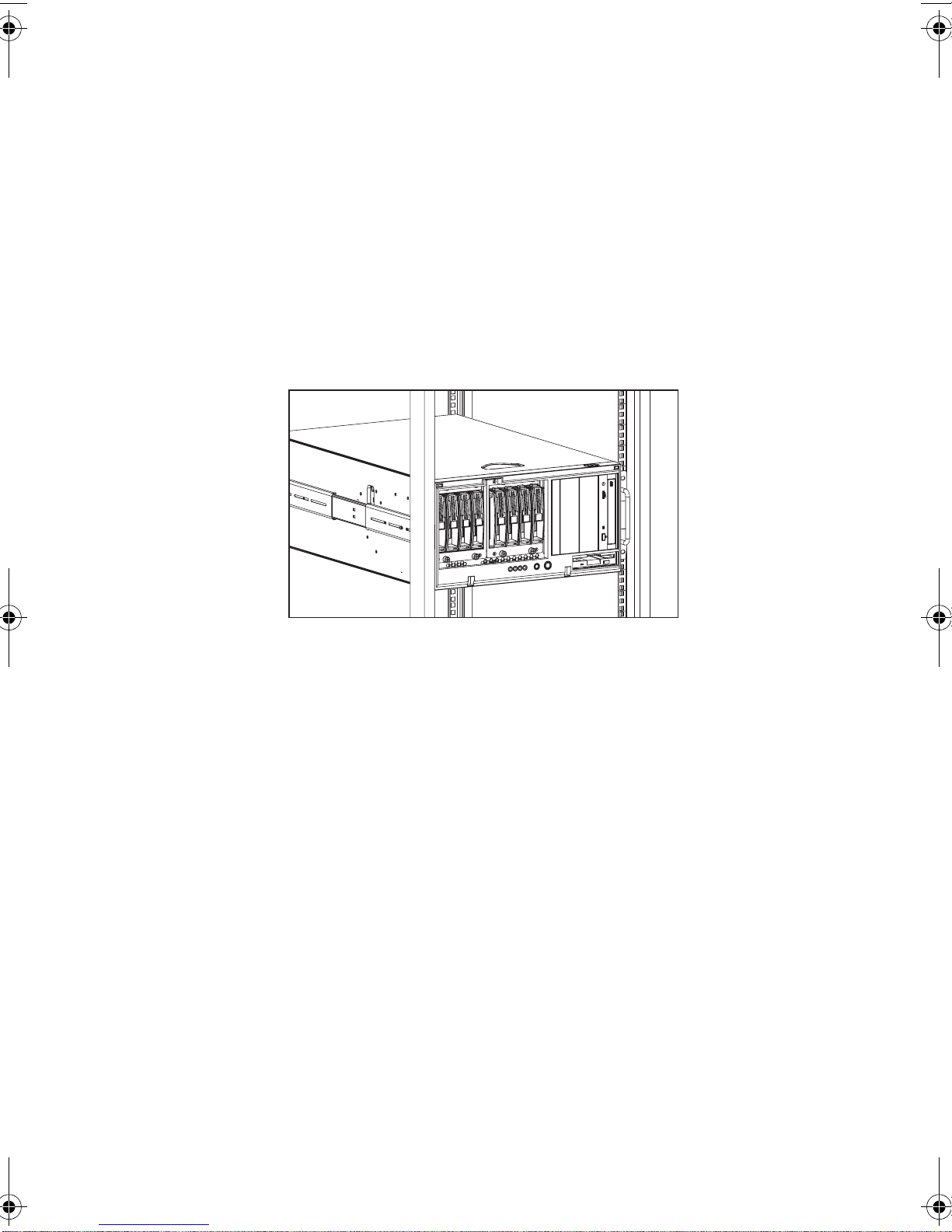

The figure below shows the Altos G701 server in a rack-mount position.
AA G701 - EN.book Page 101 Monday, March 17, 2003 4:24 PM
Appendix B Rack installation guide
102
Vertical mounting hole pattern
The four vertical rails of a rack contain mounting holes arranged in a
manner shown in the figure below:
The system occupies 5U in the rack. Count the U positions and hole
numbers from the bottom up.
Note: The unit of measurement used in this document is "U"
(1U = 1.75 inches or 44.45 mm). The total sum of the heights of all
components in the rack measured in "U" cannot exceed the
height of the rack. For more information, refer to the
documentation that came with your system rack.
The distance from the center of two holes with closer spacing to the
center of the next pair is equivalent to 1U.
When installing components, you must start your measurement from
the center of the two holes with closer spacing. Otherwise, the screw
holes on the component may not match those on the rack.
AA G701 - EN.book Page 102 Monday, March 17, 2003 4:24 PM
103
Screw types for rack installation
The following screws are used in the assembly of the Acer Altos G701
and other rack-mountable components.
Screw type and
part number Figure Usage
#8-32 x 0.25 inch Securing the inner mounting
rails to the server
M4 x L8
86.6A536.8R0
Washer
88.21341.605
Nut
87.11042.670
Securing the mounting brackets
to the inner sliding piece
M5 x L5 Securing system components
M6 x L10
86.6A52A.100 Securing the cable carrier and
the mounting rails to the rack
Hex head
6-32 L.25 Attaching the side handles to
the server
Cage nut Supports the M6 metal screws
for securing server components
to the rack
AA G701 - EN.book Page 103 Monday, March 17, 2003 4:24 PM
Appendix B Rack installation guide
104
Installing cage nuts
Cage nuts are use to secure systems and other components to the
vertical rails in the rack.
To install cage nuts:
1 Insert the lower lip of the cage nut over the bottom of the
opening at the back of a rail.
2 Insert the small end of the cage-nut installation tool through the
opening in front of the rail and hook the tool over the top lip of
the cage nut as shown below.
3 Push in the cage nut while rotating the tool up and pulling the
tool back toward you until the top lip of the cage nut snaps into
position.
4 Repeat this process to install the other cage nuts in their
appropriate locations.
AA G701 - EN.book Page 104 Monday, March 17, 2003 4:24 PM
105
Installing the system into the rack
To install the system into the rack:
1 Remove the front bezel from the server. Refer to “Removing the
front bezel” on page 33 for instructions.

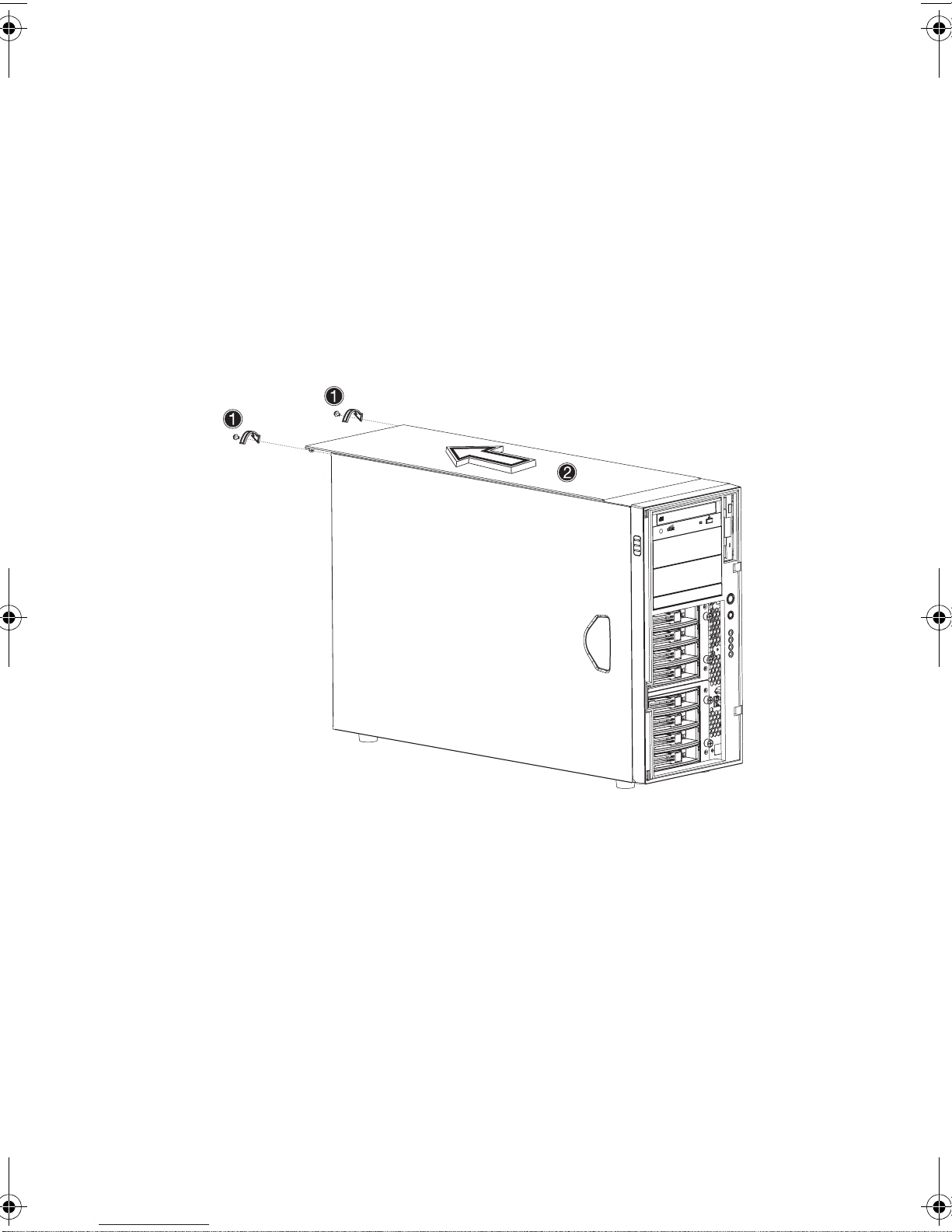

2 Remove the top panel of the server.
(1) Use a screw driver to remove the two rear screws holding the
top panel to the chassis.
(2) Slide the top panel backward to detach it from the chassis.
3 Remove the rubber foot stands from the server.
(1) Lay the server on its side on a flat, stable surface.
(2) Use the flat side of a screw driver to remove the plug from
the foot stands. Keep these plugs for later use.
AA G701 - EN.book Page 105 Monday, March 17, 2003 4:24 PM
Appendix B Rack installation guide
106
(3) Pull out the rubber stands from the server.
There are two sets of rack bracket and mounting rail. The rack
brackets are used to attached the mounting rails to the server. Each
bracket is composed of three pieces: a detachable inner rail and a fixed
middle and outer rails. The mounting rails allow the system to slide in
and out of the rackmount for maintenance purposes.
4 Remove the inner rail from the rack brackets.
(1) Extend the inner rail until the rail release latch clicks.
(2) Hold down the latch then slip the inner rail out.
AA G701 - EN.book Page 106 Monday, March 17, 2003 4:24 PM
107
Do the same thing to the other rack bracket.
5 Attach the inner rails to the top and bottom side of the server.
(1) Align the inner rail to the five screw holes located on the
bottom side of the server.
(2) Secure the rail to the server using M4 x L5 screws.
Attach the other inner rail to the top side of the server.
AA G701 - EN.book Page 107 Monday, March 17, 2003 4:24 PM
Appendix B Rack installation guide
108
6 Attach the two side handles to the server using four hex head
screws for each handle.
7 Set the server aside.
8 Attach the rack brackets to the mounting rails.
a Align the rack brackets to the mounting rail until the six screw
holes become visible.
b Secure the rack bracket to the mounting rail using M4 x L8
screws. Tighten the screws loose enough to allow length
adjustment when installing the mounting rails to the rack.
AA G701 - EN.book Page 108 Monday, March 17, 2003 4:24 PM
