Precautions ........................................................................................... 2

Introduction

Product Features ................................................................................... 3

Package Overview ................................................................................ 4

Product Overview ................................................................................. 5

Installation

Connecting the Projector ...................................................................... 7

Powering On/Off the Projector .............................................................. 8

Adjusting the Projected Image............................................................... 10

User Controls

Panel Control & Remote Control ........................................................... 12

On-Screen Display Menus ..................................................................... 14

Appendices

Troubleshooting .................................................................................... 21

Changing the Lamp ............................................................................... 24

Specifications ........................................................................................ 25

Compatibility Modes.............................................................................. 26

Table of Contents

English

Precautions

Follow all warnings, precautions and maintenance as recommended in this

user’s manual to maximize the life of your unit.

Do:

Turn off the product before cleaning.

Use a soft cloth moistened with mild detergent to clean the display housing.

Disconnect the power plug from AC outlet if the product is not being used for a

long period of time.

Don’t:

Block the slots and openings on the unit provided for ventilation.

Use abrasive cleaners, waxes or solvents for your cleaning.

Use under the following conditions:

- Extremely hot, cold or humid environment.

- In areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- Place in direct sunlight.

Usage Notice

Warning-Do not look into the lens. The bright light may hurt your eyes.

Warning-To reduce the risk of fire or electric shock, do not expose this

product to rain or moisture.

Warning-Please do not open or disassemble the product as this may

cause electric shock.

Warning-When changing the lamp, please allow unit to cool down, and

follow all changing instructions.

Warning-This product will detect the life of the lamp itself. Please be

sure to change the lamp when it shows warning messages.

Warning-After changing a new lamp, please reset the lamp life from

OSD menu.

Warning-Before switching off the product, please keep the cooling fan

running for a few minutes.

Warning-When connecting the projector to computer, please turn on

the projector first.

Warning-When the lamp reaches the end of its life, it will burn out and

may make a loud popping sound. If this happens, the projector will not

turn back on until the lamp module has been replaced. To replace the

lamp, follow the procedures listed under “Changing the Lamp”.

English

Product Features

This product is a SVGA single chip 0.7” DLP Projector. The outstanding

features of it are listed as follows:

True SVGA, 800 x 600 addressable pixels

3.3 lbs. (1.5 kgs) lightweight compact design

Single chip DLPtechnology

XGA compression and VGA, SVGA re-sizing

130 Watts user replaceable P-VIP lamp

Mac/NEC PC-98/FM Towns compatible

NTSC/NTSC4.43/PAL/PAL-M/PAL-N/SECAM and HDTV (720P,480i/P)

compatible

Full function remote control

High definition TV compatibility

User friendly Multilingual on-screen display menu

Advanced electronic keystone correction

User friendly control panel with backlight

Luxurious carrying case included

Introduction

English

Package Overview

This projector comes with all the items shown below. Check to make sure

your unit is complete. Contact your dealer immediately if anything is

missing.

Projector Power Cord

S-Video Cable Audio Cable

VGA Signal Cable

Remote ControlCarrying Case

Composite Video Cable

RCA to D-Sub Cable

Quick Start Card

Battery x 2 User’s Guide

English

Product Overview

Speaker

Focus Ring

Remote Control

Receiver

Zoom Ring

Zoom Lens

Power Connector

Elevator Button

Connection Ports

HDTV/Component

Video & Computer

Input Connector

S-video Input

Connector

Audio Input

Connector

Composite Video

Input Connector

Panel Control

Power On / StandbyMenu

(On/Off)

Enter /

Resync

Source

Four Directional

Select Keys

MuteVolume

Lamp

Warning LED

Main Unit

Panel Control

Temperature

Warning LED

English

Remote Control

Source

Resync

Reset

Freeze

Keystone Correction

Power / Standby

Volume ( + / - )

Mute

Four Directional

Select Keys

Enter

Zoom In / Zoom Out

English

Connecting the Projector

Installation

To ensure the projector works well with your computer, please configure the

display mode of your graphic card to make it less than or equal to 800 X 600

resolution. Make sure timimg of the display mode is compatible with the

projector. Refer to the“Compatibility Modes”section on page 26.

Power Cord

S-Video Output

S-Video

Cable

Video Output

Audio Output

VGA Signal Cable

RGB Port

RGBPort

RCA to D-Sub Cable

Composite Video Cable

RCA Audio Cable

VGA Signal Cable

Digital Tuner Output

Antenna

English

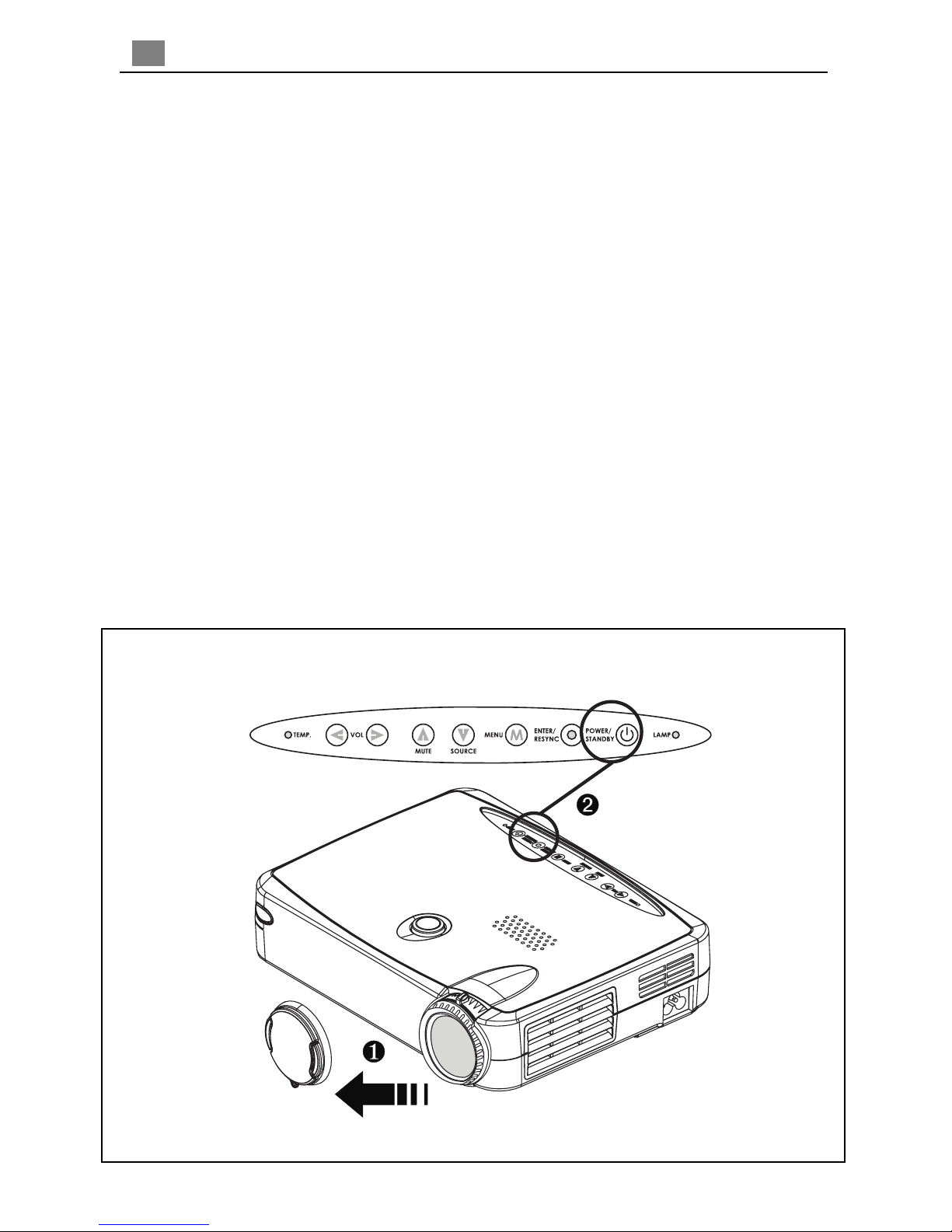

Powering On the Projector

1. Remove the lens cap.

2. Ensure that the power cord and signal cable are securely connected.

3. The “Power/Standby” indicator will flash.And press the “Power/Standby”

button again to start on your projector. The startup screen will display and

count down for 20 seconds and the Power/ Standby indicator will light solid

amber.

4. Turn on your source (computer, notebook, or video player ,etc.). The projec-

tor will detect your source automatically.

* If the screen displays “No Signal” , please make sure the signal cables

are securely connected.

* If you connect multiple sources at the same time, use the “Source”

button on the Remote Control or Panel Control to switch.

* Turn on the projector first and then the computer.

Power On/Off the Projector

Lens cap

Power /

Standby

English

Powering Off the Projector

1. Press the “Power/Standby” button to turn off the projector lamp.

2. After pressing the “Power/Standby” button, you will see a message “Power off

the lamp?” on the on-screen display. Press the “Power/Standby” button again to

confirm. Otherwise the message will disappear after 5 seconds.

3. “Power/Standby” LED indicator will flash amber for about 30 seconds.

4. Disconnect the power cord from the electrical outlet and the projector.

* When the “LAMP” indicator lights solid orange; please change the lamp

module immediately.

* When the “TEMP” indicator lights solid orange, it indicates the projector

has been overheated. The display will automatically shut itself down.

Under normal conditions, the display can be switched on again for your

presentation. If the problem persists, you should contact your local dealer or

our service center.

* No matter the video source is input or not, if you press“Power/Standby” by

accident, a “Power off the lamp ?” sign will display in screen. You can clear

the turn-off message by pressing any function key. Or you can just ignore

this message without pressing any function key; the message will disappear

after 5 seconds and restore to previous status.

English

Adjusting the Projected Image

Adjusting the Projector Height

The projector is equipped with an elevator foot for adjusting the projector height.

To raise the projector:

1. Press the elevator button .

2. Raise the projector to the desired display angle , then release the button to

lock the elevator foot into position.

3. Use to fine-tune height adjustment.

To lower the projector:

1. Press the elevator button.

2. Lower down the projector, then release the button to lock the elevator foot into

position.

3. Use to fine-tune height adjustment.

Elevator

Button

Elevator Foot
