The Acer Projector Gateway (APG) is a smart, integrated system that enhances

presentations via your Acer projector. The APG provides versatile source

connectivity, the latest eProjection Management tools, support for video

playback via the built-in decoder and more.

APG features:

•High-performance wireless projection via a built-in access point featuring a

lossless CODEC or an RJ-45 port for wired connections.

•Playback of any audio content through the projector's built-in speakers for

added effect.

•Visitors can easily launch Acer eProjection Management automatically by

inserting the Acer Plug-and-Show token (using the Windows autorun

function) into the source’s USB port, or by installing the software via an

Internet browser. A driver disc is not required.

•Presents a user-friendly graphic interface for simple setup and operation.

•Allows presenters to connect to the Internet or corporate Intranet to

retrieve interactive content during presentations.

•Supports up to four presentations at the same time under split-screen

projection mode.

•Supports remote control functions for projector operation.

•Makes wireless or wired connections via 802.11b/g, 802.11b/g/n or an

Ethernet 10/100-based network.

•Acer Projector Gateway Web Management enables a web-based control of

Acer projector for both Windows and Mac OS.

•Wireless network security (WEP, WPA-PSK, WPA2-PSK).

•MobiShow technology allows wireless projection from a Wi-Fi-enabled

smartphone.

•Acer Multiple Projector Control Center is a PC utility which allows one PC

to control all projectors that are connected to a LAN.

•Crestron compliance.

•Media playback via a USB port.

English

Guide to components

This table discusses the hardware features of the APG:

Note: The APG provides advanced projector functions when you

enter supervisor mode. Set a supervisor password and enable full

control of system settings with the convenience of remote control.

Note: The antenna is only required for wireless models.

Note: The antenna is not required when a USB Wi-Fi dongle

(optional) installed.

Important: Acer recommends setting up the projector name (SSID)

and supervisor password when using the projector for the first

time.

Note: Projector name (SSID) is only required for wireless models.

#Component Description

1 WLAN antenna

connector

Connects to a wireless LAN antenna.

(only for wireless models)

2 Mini USB Projects PC screen via mini USB.

3 USB port Connects to a USB flash drive for multimedia playback.

Or connects to a USB Wi-Fi dongle (optional).

4 Reset button Resets the APG.

5 Power indicator Indicates the APG’s power status.

6 LAN port Connects to an Ethernet 10/100-based network.

356

English

System Requirements

•Acer eProjection Management software installed or Acer PnS token ready.

Note: Acer PnS token is an optional accessory.

•Computer CPU - Intel Pentium III-800 MHz (or greater).

•Computer memory - 256 MB of RAM required, 512 MB or more

recommended.

•Hard disk - 10 MB of available hard disk space.

•Display - Super VGA supporting 800 x 600, 16-bit high color or higher-

resolution display recommended (PC and display).

•Ethernet adapter (10/100 Mb/s) for an Ethernet connection.

•Video application - Upgrading to Windows Media Player (WMP) v.10 or

above is recommended.

OS support

•Windows Microsoft Windows 2000 with Service Pack 4 or later.

•Windows XP Home or Professional 32-bit Service Pack 3 or later.

•Windows Vista 32- and 64-bit Service Pack 2 or later.

•Macintosh OS V10.5 and above.

•Windows 7 32- and 64-bit.

Browser support

•Microsoft Internet Explorer 6.0 / 7.0 and above.

•Firefox 1.5 / 2.0 and above.

•Safari 4.0 and above.

English

Connect to the projector

Before you begin projecting, you will need to do the following things:

Turn on and connect to the network

Press the Power button on the bundled remote control or the device to turn on

your Acer projector and enable the WLAN (only for wireless models or models a

USB Wi-Fi dongle installed). Connecting the projector to the LAN for a wired

connection is also recommended.

LAMP TEMP

SOURCE

RESYNC

POWER

RESET

USB A1 USB A2

USB B

Cable / ADSL

Modem Internet

APG / AP

DHCP Server

English

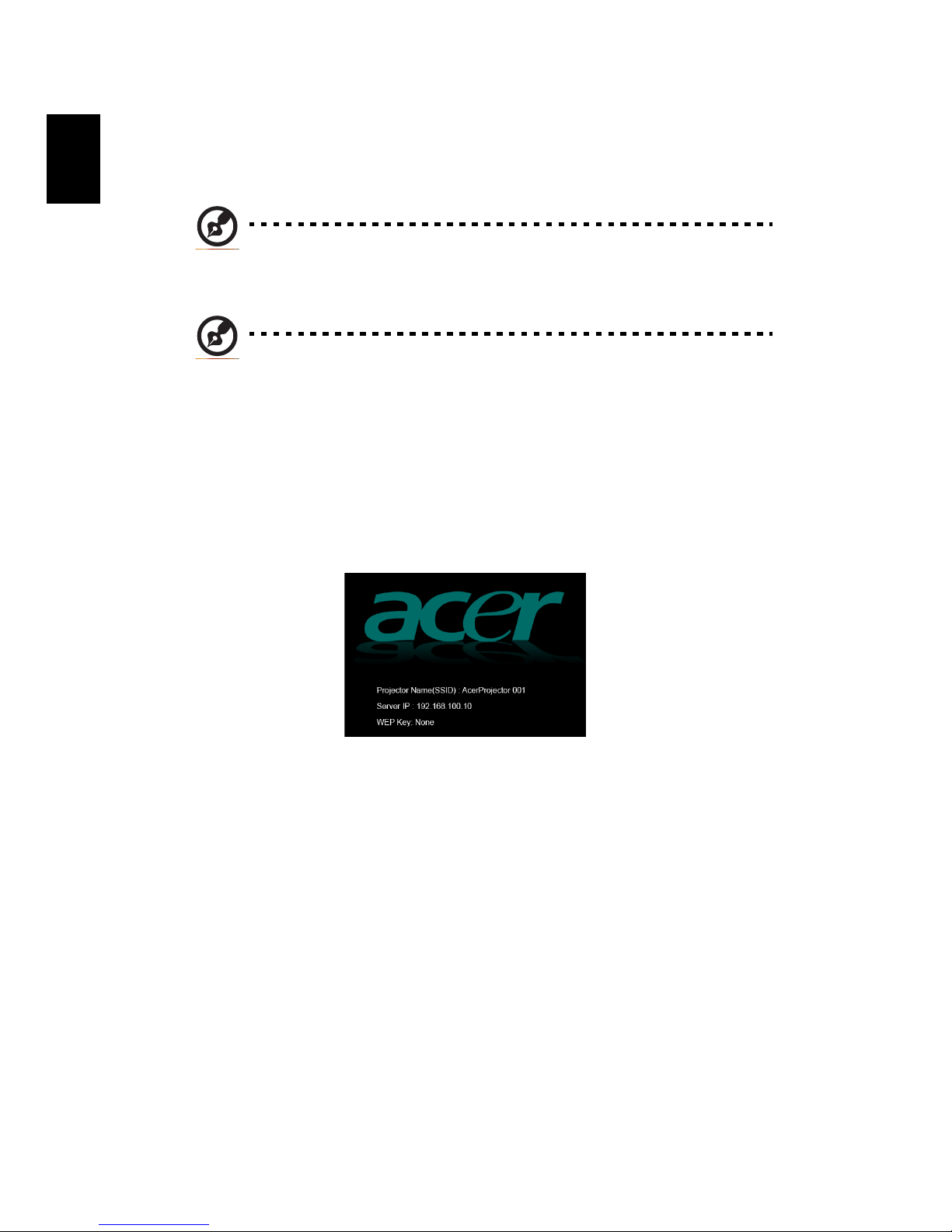

Check the information on the splash screen

Take note of the important information on the splash screen. The splash screen

displays the following items: Projector ID (a), Acer logo (b), network

information (c) and instructions (d).

Projector ID (displayed only when available)

This 4-digit number will not be displayed on the top left of the splash screen

until this option is enabled by the supervisor in the Configure tab under Acer

eProjection Management. The four digits are given randomly for projector

identification. For more information, please see General Settings on page 27.

Projector Name (SSID)

The Projector Name and initial Service Set ID (SSID) can be added by the

supervisor on the Configure tab of Acer eProjection Management. For more

information, please see Network Settings on page 28.

Server IP

The Server IP indicates the IP address your projector uses to connect to a wired

or wireless network. It will be 192.168.100.10 for general wireless and wired

connections. The Server IP will be assigned by the wired network with DHCP

enabled. For more information, please see Network Settings on page 28.

Security: (None, WEP, WPA-PSK, WPA2-PSK)

Wired Equivalent Privacy or Wireless Encryption Protocol (WEP) is a scheme to

secure wireless networks. It is part of the IEEE 802.11 wireless networking

English

standard. WPA-PSK (Wi-Fi Protected Access - pre-shared key) and WPA2-PSK are

other individual encryption methods with higher level security. The option is

enabled by the supervisor in the Configure tab under Acer eProjection

Management. For more information, please see Security Settings on page 29.

Note: Projector name (SSID) and security are only required for

wireless models.

Note: When turning the LAN or Wi-Fi on via the projector OSD,

please remember to change the projector source to "LAN/WiFi".

Use the keypad or remote control to change the projector source.

Follow the instructions on the splash screen to

connect and project

1 Make a note of the Projector ID, Projector Name (SSID), Server IP and

Security option on the splash screen. A secure key needs to be used when

Security is enabled.

English

2 Enable your WLAN and select the access point labeled AcerProjector or

AcerProjectorXXXX to connect wirelessly. Connect the projector to your

LAN for a wired connection.

3 Open the Internet browser (see note). Click Download Acer eProjection

Management on the welcome page, and then click Run to launch the

Welcome to the Acer Projector Gateway Setup Wizard. The installation will

proceed automatically. Make sure the installation is complete.

Note: If you do not see the welcome page or cannot connect to

the wired network, please enter the Server IP address (the second

Internet

English

item listed under the Acer logo on the splash screen) into your

browser’s address bar.

Note: Ensure that you have administrator-level permission on your

computer so that you can install the software.

Note: If you receive any security warnings, click OK to proceed

with the installation procedure.

Note: The Acer eProjection Management shortcut will be created

in desktop when the installation is complete.

Note: Visitors can also insert the optional Acer PnS token using the

Windows autorun function into a USB port of your system.

Note: If your PC cannot perform the autorun function of the PnS

token, please execute AcerProjectorGatewayW5.exe from the PnS

token manually.

English

Note: You can make a PnS token by yourself by clicking the Make

PnS Token button from the CD welcome page. The Acer PnS

Token is a standard accessory on some projector models.

4 Acer eProjection Management will execute automatically and search for

your Acer projector.

Note: Make sure your personal firewall does not block the Acer

eProjection Management application.

5 When the search is complete, a login dialog box will open to ask you to

enter the User name and Projector ID (if needed) to log in to your Acer

Projector.

6 The UI will look as it does below when your source successfully connects

and begins projecting in 1024 x 768 mode.

English

Note: For the best projection performance, Acer recommends

adjusting your resolution to 1024 x 768.
