1. Reset: Press to reset if HDMI extender
doesn’t work properly
2. HDMI In:
Connect with HDMI source device
3. IR OUT: Connect with IR Blaster cable
4. Power Jack: Connect with power adapter
5. Power LED:
On when the device is powered
6. RJ45: Link to the RX via a Cat5e/6 cable
7. Activity LED:
Bilnks during data transmission
8. LINK LED: On when the TX/RX connected
Features
• Supports HDMI 1.3, HDCP 1.4
• Supports 1080p@60Hz
• Extend over a Cat5e/6 cable up to 120m
• Support IR frequence 20-60kHz
Package contents
• HDMI HDbitT Extender TX & RX
• Power adapter DC 5V/1A x2
• IR Blaster cable
• IR Receiver cable
• Quick Start Guide

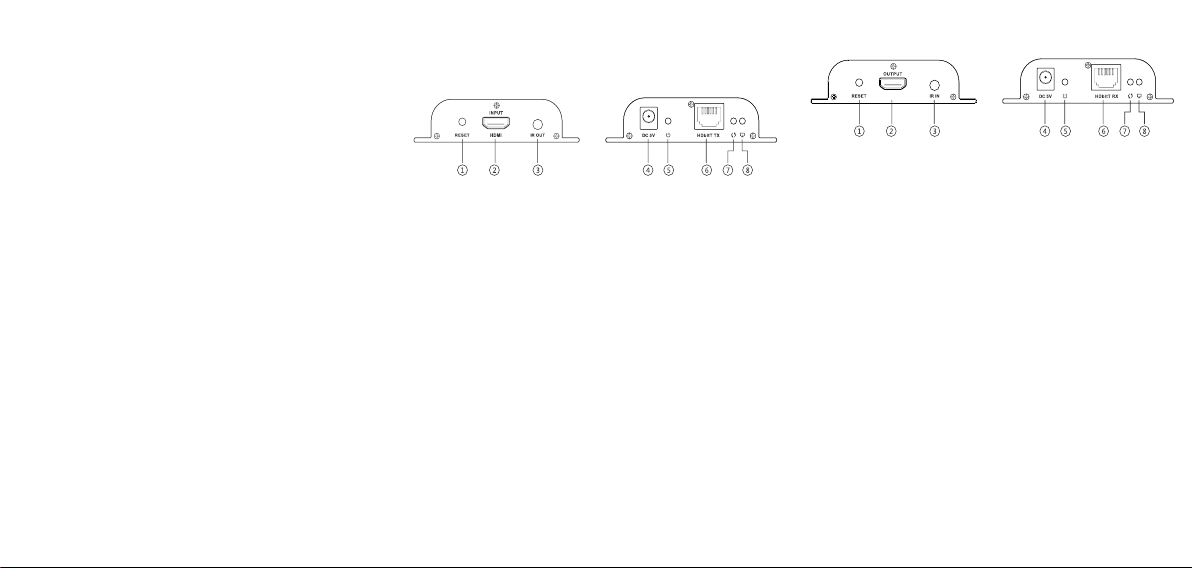

Layout
Transmitter
Receiver
1. Reset: Press to reset if HDMI extender
doesn’t work properly
2. HDMI Out:
Connect with HDMI display
3. IR IN: Connect with IR Receiver cable
4. Power Jack: Connect with power adapter
5. Power LED:
On when the device is powered
6. RJ45: Link to the TX via a Cat5e/6 cable
7. Activity LED:
Bilnks during data transmission
8. LINK LED: On when the TX/RX connected
HDMI Over Cat6
Extender with IR - 120m
Quick Start Guide
Application
1. Point to point: Up to 120m over Cat6 cable
2. One to many: By using Ethernet switch,
one sender to severl receivers.
(Signal broadcast in network, recommend
don’t mix with data network)
