ABSCO SHEDS 3030RS-PTX Manuel utilisateur
Absco Industries Assembly Instruction Manual
ABSCO RURAL SHED
MODEL: 3030RS-PTX
9’ 9 5/16” W x 9’ 9 5/16” D x 8’ 7/16” H
Model: 3030RS-PTX 19/07/2019 1.10 1
Download the Absco
Sheds Assembly App
for instructional videos
MANU FA CT URED
IN A US TR ALIA
SNAPTiTE
Assemb ly
AU: 1800 029 701
N Z: 0800 466 444
www.abscosheds.com.au
CONCRETE SLAB
PAGE 1
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30302G 26/02/14
10' 2 3⁄64"
10' 2 3⁄64"
FRONT: 9' 10 7⁄64"
SIDE: 9' 10 7⁄64"
HEIGHT: 6' 10 43⁄64"
Absco Premier Garden Shed
Assembly Instructions
Model: J30302G
We thank you for choosing an Australian Made Shed. For further assistance please
visit our detailed instructional video library at
www.abscosheds.com.au/USA
At ABSCO Industries we are always looking to be number ONE, so please let us
know what you think of our instructions. Feedback makes us better.
WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A REBATED
EDGE 1" DEEP AROUND THE PERIMETER
CONCRETE
SLAB
REBATED EDGE
CHANNEL
CONCRETE SLAB
3" WIDE
REBATE
THIS WILL HELP
WATER EGRESS FROM
THE BASE OF THE SHED
Absco Industries Assembly Instruction Manual
ABSCO RURAL SHED
MODEL: 3030RS-PTX
9’ 9 5/16” W x 9’ 9 5/16” D x 8’ 7/16” H
Model: 3030RS-PTX 19/07/2019 1.10 2
GENERAL INSTRUCTIONS
• Before commencing any assembly, read through these instructions in detail to gain a thorough
understanding of assembly methods and associated details.
• Unpack the carton and carefully identify and check off all the parts against the parts described
and illustrated on "COMPONENTS PACKING LIST" pages.
• Local authority approval must be obtained prior to construction of the shed. Once you have
selected your site you will need to lodge a site plan to your local council.
SITE PREPARATION
• The site for the shed must be level. An uneven surface may result in misalignment of parts.
• The shed shall be erected on top of a reinforced concrete slab and anchored down appropriately.
If using a rebated slab ensure that all frame uprights are trimmed to suit rebate. It is
recommended that engineering services are engaged for further or alternate foundation
specifications.

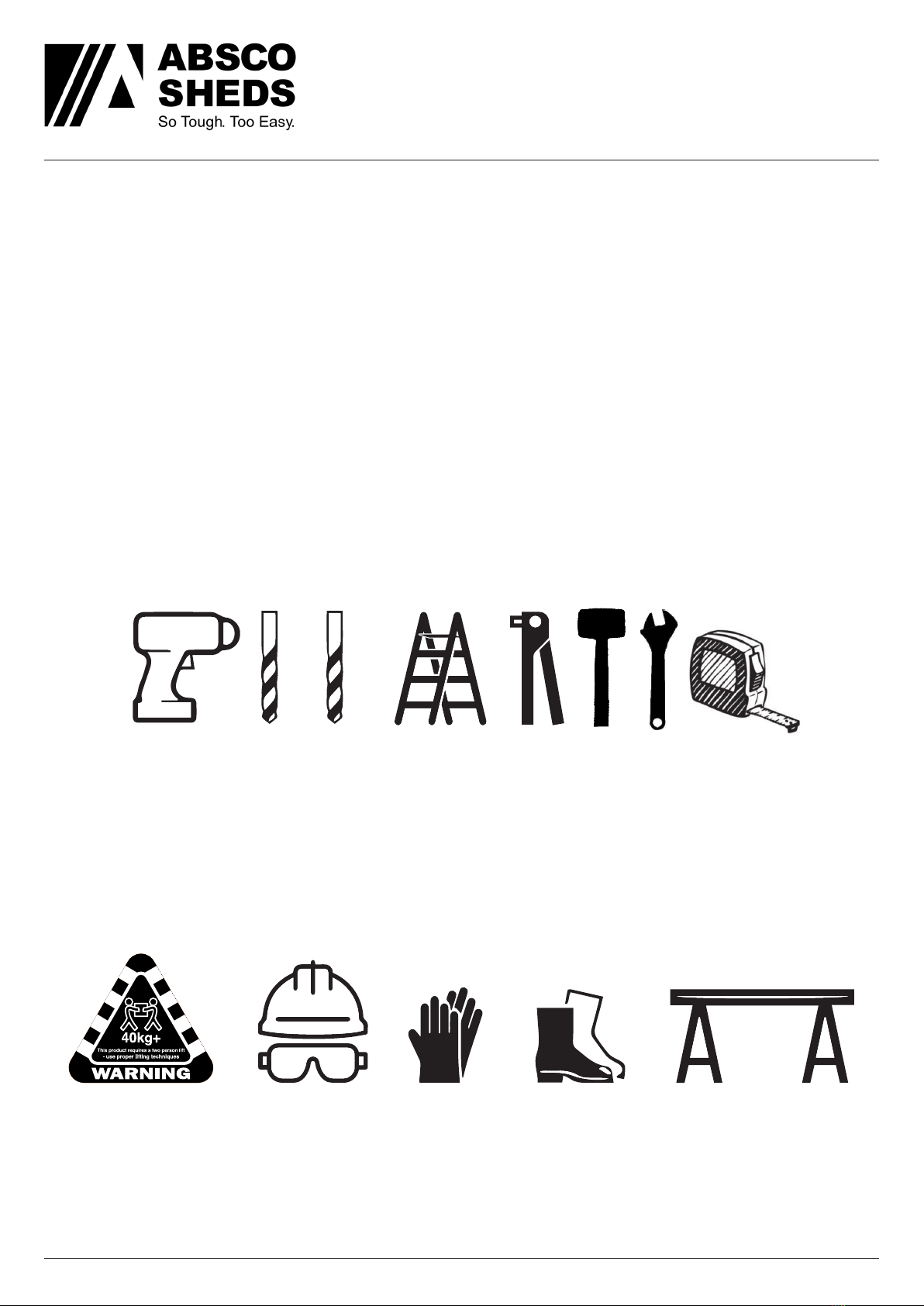

TOOLS REQUIRED
SAFETY NOTES
• Some parts may have sharp edges. It is advisable to wear gloves when handling these items and
safety glasses if drilling holes. Sensible shoes are highly recommended.
• Do not erect your shed in windy conditions.
• It is highly recommended to erect the shed with two or more people.
RECOMMENDED
3mm drill bit
10mm drill bit
metal/masonry
1/8” 13/32”
Metal
Masonry
Pop riveter
(Supplied)
6’ Min
Absco Industries Assembly Instruction Manual
ABSCO RURAL SHED
MODEL: 3030RS-PTX
9’ 9 5/16” W x 9’ 9 5/16” D x 8’ 7/16” H
Model: 3030RS-PTX 19/07/2019 1.10 3
COMPONENT PACKING LIST
Check off all components.
SHEET PACK- 3030RSSP
QTY COMPONENT
DESCRIPTION
PART
No. CHK QTY COMPONENT
DESCRIPTION
PART
No. CHK
8
STEEL SHEET
5’ 2 3/16” LONG
2’ 6 7/16” WIDE
158S 4
STEEL SHEET
7’ 1/4” LONG
2’ 6 7/16” WIDE
214
2
STEEL SHEET
7’ 10 1/2” LONG
2’ 6 7/16” WIDE
2400L 2
STEEL SHEET
7’ 10 1/2” LONG
2’ 6 7/16” WIDE
2400R
2
STEEL SHEET
7’ 5 3/8” LONG
2’ 6 7/16” WIDE
2270L 2
STEEL SHEET
7’ 5 3/8” LONG
2’ 6 7/16” WIDE
2270R
GUTTER AND TRIM
QTY COMPONENT
DESCRIPTION
PART
No. CHK QTY COMPONENT
DESCRIPTION
PART
No. CHK
4
BARGE
CAPPING
L=5’ 2 3/8”
TR06 1 RIDGE CAPPING
L=5’ 2 3/8” TR08
2GUTTER
L=5’ 2 3/8” TR22 4 GUTTER
STOP END TR25
2
DOWNPIPE
4” x 3”
L = 7’ 10 1/2”
TR10 4 DOWNPIPE
STRAP TR29
6
GUTTER
BRACKET RWG06 2DOWNPIPE
DROP RWG18
Absco Industries Assembly Instruction Manual
ABSCO RURAL SHED
MODEL: 3030RS-PTX
9’ 9 5/16” W x 9’ 9 5/16” D x 8’ 7/16” H
Model: 3030RS-PTX 19/07/2019 1.10 4
COMPONENT PACKING LIST
Check off all components.
FRAME PACK - 3030RSFP
QTY COMPONENT
DESCRIPTION
PART
No. CHK QTY COMPONENT
DESCRIPTION
PART
No. CHK
14
FRAME
SECTION
L = 9’ 8 “
C2946 2
FRAME
SECTION
L = 7’ 6 3/8”
C2295
2
FRAME
SECTION
L = 7’ 7 1/8”
J2315 6
FRAME
SECTION
L = 6’ 9 1/8”
C2060
4
FRAME
SECTION
L = 4’ 7 11/16”
K1415 4
FRAME
SECTION
L = 3 15/16”
C0100
4
FRAME
SECTION
L = 4’ 10 11/16”
M1490
3
EDGE BEAM
OUTER
L= 3’ 2 11/16”
ZACO213 2
EDGE BEAM
INNER
L= 4’ 10 1/16”
ZACO214
C C
C
CK
J
M
FITTINGS & ACCESSORIES
QTY COMPONENT
DESCRIPTION
PART
No. CHK QTY COMPONENT
DESCRIPTION
PART
No. CHK
1INSTRUCTION
MANUAL IM 2EDGE BEAM
END CAP ZACO155
14 ROOF PURLIN
BRACKET BKT11 9MULTIPURPOSE
BRACKET BKT17
4
PURLIN
CONNECTION
PLATE
ZACO200 100 4-3 SS
POP RIVET FAST009
450
WAFER HEAD
TEK SCREW
10G-16x16
FAST014 400
HEX HEAD
TEK SCREW
10G-16x16
FAST035
150 NEOPRENE
WASHER FAST043 1POP RIVET GUN
Absco Industries Assembly Instruction Manual
ABSCO RURAL SHED
MODEL: 3030RS-PTX
9’ 9 5/16” W x 9’ 9 5/16” D x 8’ 7/16” H
Model: 3030RS-PTX 19/07/2019 1.10 5
Frame Section Identification Guide
There are several types of frame section, each featuring a different combination of notches and/or
holes. Frame sections are coded with a letter representing the type of frame section, followed by
the length of the frame section in millimeters.
EG: C2960 = Straight cut both ends with overall length of 2960mm (9’ 8 9/16”)
C-TYPE - Straight cut at both ends
J-TYPE - Straight cut at one end: 13/16” tab
notch with holes at other end
K-TYPE - 13/16” tab notch with holes at both
ends
L-TYPE - Straight cut at one end: 1 3/4” lip
notch at other end.
N-TYPE - Straight cut at one end: 1 3/4” lip
notch/13/16” tab notch with holes at other end
P-TYPE - 1 3/4” lip notch/13/16” tab notch with
holes at both ends.
R-TYPE - 1 3/4” lip notch/13/16” tab notch with
holes at one end: 3 9/16” lip notch at other end.
S-TYPE - Variable notching and/or holes nominated in parts checklist
M-TYPE - 1 3/4” lip notch at both ends
Absco Industries Assembly Instruction Manual
ABSCO RURAL SHED
MODEL: 3030RS-PTX
9’ 9 5/16” W x 9’ 9 5/16” D x 8’ 7/16” H
Model: 3030RS-PTX 19/07/2019 1.10 6
Guide for Connecting Frame Sections
Absco sheds’ frame assemblies are supplied with
10-16x16 self drilling wafer head phillips drive tek
screws
The wafer head minimises distortion to the sheet
cladding once it is fitted to the frame
Ensure that driver bits used to fasten these screws
is phillips drive, as similar alternatives (EG. Pozi
drive) increases the risk of stripping the head of
these screws.
Some holes are pre-punched in Absco sheds’ frame
sections, however the wide range of positions that
most fasteners are required for means that the
remainder have to be drilled as per the connection
being made
A 3mm drill bit is supplied for pre-drilling holes
where self drilling screws may be more difficult to
establish holes with (EG. Fitment of purlin brackets).
Absco sheds’ frame sections are manufactured
from light gauge steel, enabling for the notched
ends or lengths of one frame section to be spread
over the sides of another frame section, boxed
frame section or H-section.
Absco sheds’ frame sections are designed to nest
into one another to create boxed frame sections
Boxed frame sections are only required in some
parts of the entire frame assembly
Boxed frame sections are fastened together using
the FAST014 tek screws supplied at 11 13/16”
centres along the length of each boxed frame
section
Some connections are designed to fasten more than two parts together. Connections may also not
feature a defined alignment or physical stop.
For these reasons, focus on arranging all parts of a frame assembly or subassembly together (to
the overall sizes and check measurements nominated) using minimal screws. This allows for easier
adjustment to various connections which may be necessary to achieve the overall dimensions and
check measurements that are nominated.
Fit the remaining screws once the frame assembly or subassembly is assembled as per the overall
dimensions and check measurements that are nominated
Boxing Frame Sections
A B
HIGH SIDE A
HIGH SIDE B
LOW SIDE B
LOW SIDE A FAST014
FAST014
HIGH SIDE
HIGH SIDE
(PRINT)
(PRINT)
LOW SIDE
LOW SIDE
Absco Industries Assembly Instruction Manual
ABSCO RURAL SHED
MODEL: 3030RS-PTX
9’ 9 5/16” W x 9’ 9 5/16” D x 8’ 7/16” H
Model: 3030RS-PTX 19/07/2019 1.10 7
Overview Of Internal Frame
Absco Industries Assembly Instruction Manual
ABSCO RURAL SHED
MODEL: 3030RS-PTX
9’ 9 5/16” W x 9’ 9 5/16” D x 8’ 7/16” H
Model: 3030RS-PTX 19/07/2019 1.10 8

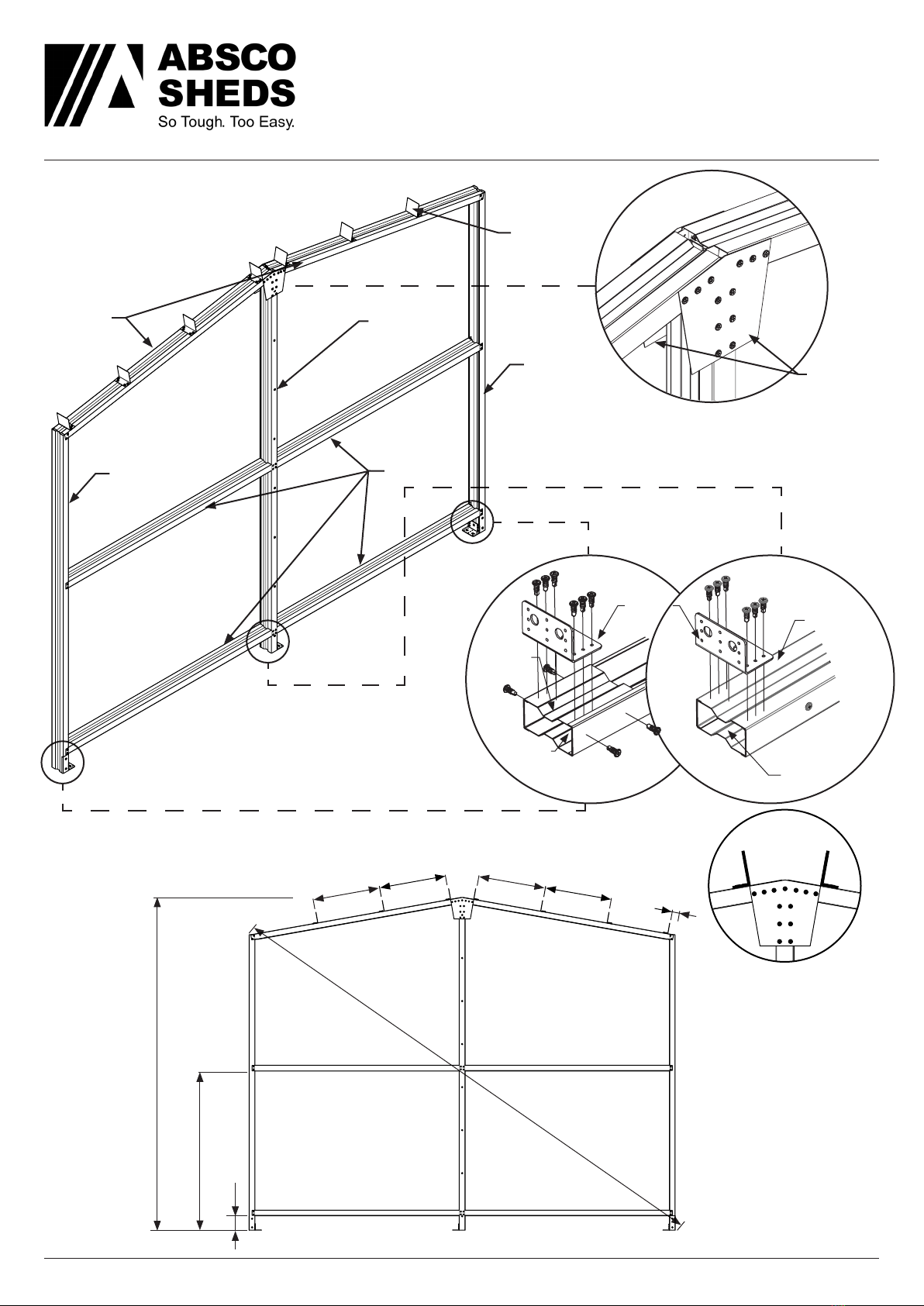

Side Wall Frame Assembly
2 required.
BOXED SECTIONS
3 15/16”
1’ 6 1/2” 1’ 6 1/2”
1’ 6 1/2” 1’ 6 1/2”
2”*
3’ 7 11/16”
7’ 7 5/16” to apex
11’ 10 5/16”
C2060
K1465
J2315
C2295
Boxed
M1490
BKT17
C0100
C2295
C2060
J2315
C2060
ZACO200
BKT11
Align centre BKT11
with edge of
ZACO200 as shown.
*NOTE:
One side will have
a fourth bracket
to mount the rear
purlin. It is flipped
around so the purlin
is positioned on the
outside.
Absco Industries Assembly Instruction Manual
ABSCO RURAL SHED
MODEL: 3030RS-PTX
9’ 9 5/16” W x 9’ 9 5/16” D x 8’ 7/16” H
Model: 3030RS-PTX 19/07/2019 1.10 9

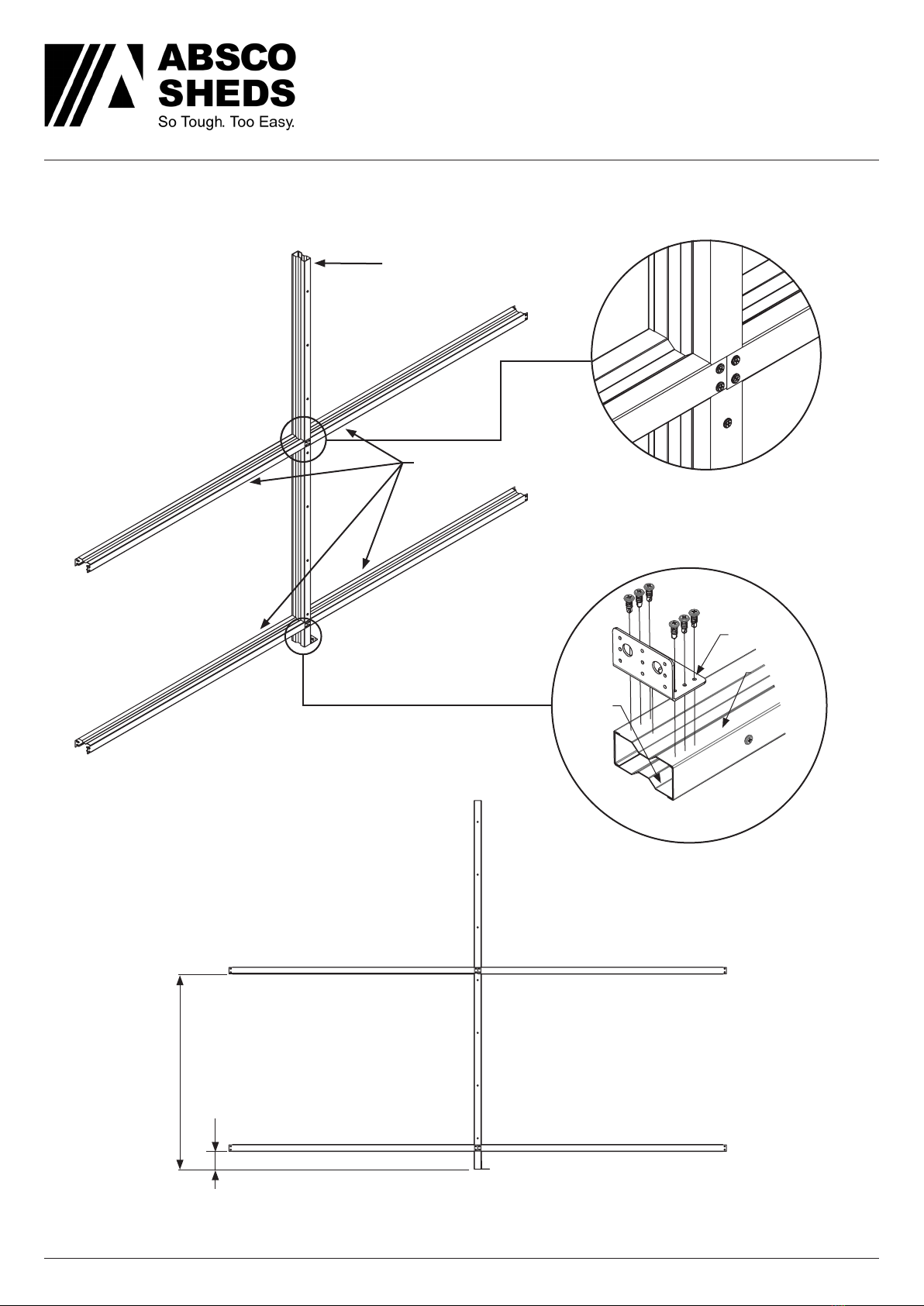

Rear Frame Assembly
1 required. 2x C2060
Boxed
3 15/16”
3’ 7 11/16”
BKT17
C2020
K1415
C2020
BOXED SECTION
Absco Industries Assembly Instruction Manual
ABSCO RURAL SHED
MODEL: 3030RS-PTX
9’ 9 5/16” W x 9’ 9 5/16” D x 8’ 7/16” H
Model: 3030RS-PTX 19/07/2019 1.10 10
Prepare Edge Beam
Prepare Purlins
Assemble the Outer beam and Inner beams on the
ground first using wafer head tek screws (FAST014) at 5
7/8” spacings.
Remove the left and right outer beams (ZACO213) be-
fore installing to the wall frames.
This will makes fastening the easier as the holes will al-
ready be there and will align.
7 required
Box two (C2946) to make a purlin. Fasten with tek screws
(FAST014) at 11 13/16” spacings on both sides as shown.
Outer edge
beam
(ZACO213)
Inner edge
beam
(ZACO214)
ZACO213 x3
ZACO214 x2 Secure top and
bottom flanges at
5 7/8” centres
9’ 8 1/8”
Remove left and
right ZACO213,
ready for assembly
