ABQINDUSTRIAL TotalCheck Manuel utilisateur

TotalCheck

MOISTURE METER/THERMO-HYGROMETER

Owner’s Manual

Version 3.02

For Total Check Meters starting with Serial #12468

Delmhorst Instrument Co.

Rev 13

June 11, 2014

Distributed by: ABQ Industrial LP USA

Tel: +1 (281) 516-9292 / (888) 275-5772 eFax: +1 (866) 234-0451

Web: https://www.abqindustrial.net E-mail: [email protected]

Page 2 of 32

TABLE OF CONTENTS

PAGE

GENERAL DESCRIPTION & FEATURES 4

OPERATING INSTRUCTIONS 5

NAVIGATION 5

INSTALLING THE BATTERY 5

TO POWER THE METER ON 7

METER USE 7

BASIC & ENHANCED MODES 7

USING THE METER IN BASIC MODE 7

To Take Pins Readings in Basic Mode 7

To Set the Alarm in Basic Pin Mode 8

To Change the Temperature Correction 9

To Take Scan Readings in Basic Mode 9

To Set the Alarm in Basic Scan Mode 10

To Take TEMP/RH Readings in Basic Mode 10

To Reset the Meter to Default Settings in Basic Mode 11

USING THE METER IN ENHANCED MODE 11

Job Definition 11

To Create or Modify a Job in Pin Mode 12

To Set Temperature Correction 13

To Set the Alarm in Enhanced Pin Mode 13

To Take Pin Readings in Enhanced Mode 13

To Take Scan Readings in Enhanced Mode 14

To Set the Alarm in Enhanced Scan Mode 15

To Take TEMP/RH Readings in Enhanced Mode 15

MAIN MENU OPTIONS 16

Storage 16

View Statistics 16

Stored Readings 17

Clear Memory 19

Restore Defaults 19

IR LINK 20

SETUP MENU 22

Page 3 of 32

TAKING A READING – PRACTICAL APPLICATIONS 24

Testing Wood 24

Paint Failure & Moisture 25

EIFS 25

Using the 0-100 Numerical Reference Scale 26

Testing Concrete Slabs for Flooring Applications 26

Measuring RH in Concrete Slabs 27

Testing Insulation 27

Testing Drywall 29

Care of Your Meter 29

Service for Your Meter 30

Warranty 31

Species List 32

Page 4 of 32

GENERAL DESCRIPTION/FEATURES:

Thank you for your purchase of Delmhorst Instrument Co.’s TotalCheckhandheld

combination moisture meter/thermo-hygrometer. TotalCheck provides the user with a

host of data acquisition capabilities, and offers the latest in features and functionality.

Even with its wide range of functions, TotalCheck is intuitive and easy to operate. We

recommend that you read the following pages in detail to take full advantage of all that

TotalCheck has to offer.

Outstanding Features:

•Pin mode

oWood scale (Douglas Fir) – 5%-60% MC

oWood species corrections for 69 species

oTemperature corrections over the range of 0°-255°-F (-18° -124°C)

oDrywall scale - 0.1% - 6% MC

oReference scale (0-100) for non-wood building materials

•Scan Mode

oReference scale – 0-300

•Thermo-hygrometer

oRH Sensor -- includes RH/T-S3for ASTM F-2170 in-situ testing of

concrete slabs. RH/T-S1 available for general industrial ambient

applications.

oMeasures RH over the range of 0-100% (with accuracy of +/- 2% over

10%-90%)

oMeasures temperature over the range of -40°F-255°F with accuracy of +/-

1.8°F over -4°F to 158F (range of -40°C - 124°C with accuracy of +/- 1°C

over -20° to 70°C)

oCalculates Dew Point over the range of -40°F - 176°F (-40°C - 80°C)

oCalculates GPP (Grains Per Pound) when in Fahrenheit mode over the

range of 0.1-3820 GPP

oCalculates GPK (Grains Per Kilogram) when in Celcius mode over the

range of 0.01-545 GPK

•General Features:

oConnector for external Electrodes

oOn-screen reading recall of up to 1400 readings

oDate and time stamp for each stored reading

oJob groupings

oOptional infrared linking capability w/ application software

o9V battery included

o1-year warranty

oCarrying Case included

Page 5 of 32

OPERATING INSTRUCTIONS

-USER GUIDE-

This guide provides step-by-step instructions on powering up, using and powering down

the meter.

NAVIGATION:

The meter uses an on-screen, menu-driven approach to navigate through the meter

features, allowing for an intuitive understanding of keypad functions. Each screen

presents the user with a number of selectable options. One of the options is always

selected and the user can move (navigate) the selection to any other available option.

The keypad is aimed at providing navigational control, and not at accessing specific

features. There are four directional keys aligned intuitively around a middle (fifth) key

(see Figure 1): Above (UP), below (DOWN), to the right (RIGHT) and to the left (LEFT).

The middle key is used to SELECT the option highlighted on the screen. For purposes

of this owner’s manual, the five keys will be referred to as     and SELECT.

Fig. 1 Keypad Layout

INSTALLING THE BATTERY:

The battery compartment is located on the underside of the case, at the bottom of the

handle.

1. Open the battery compartment by sliding the lid back while pressing on the release

indent.

Page 6 of 32

2. Ensure correct polarity, and push the battery in flush with the bottom board until the

connectors snap together on both sides. Use only Duracell or Energizer alkaline

9V.

3. Replace the battery compartment lid.

IMPORTANT NOTE:

DO NOT REMOVE THE BATTERY WITHOUT TURNING THE METER OFF FIRST.

BATTERY REMOVAL WHILE THE METER IS ON MAY CAUSE LOSS OF STORED

READINGS AND MAY CORRUPT THE STORAGE MEMORY. IF THIS OCCURS,

CERTAIN FUNCTIONS (SUCH AS STATISTICS, READING RECALL, ETC) WILL FAIL

AND LOCK UP THE METER. If the battery is removed by accident while the meter is

ON, and if the readings already stored are important, DO NOT store additional readings.

Turn the meter back on and perform a PC download. Beware that any readings stored

during the power cycle that included the battery removal WILL NOT be available and

CANNOT be recovered. Once the download is complete, perform a meter reset by

choosing “RESTORE DEFAULTS” in the Storage Menu. If a download is not necessary,

go directly to “RESTORE DEFAULTS”.

LOW BATTERY:

The meter features a battery status monitor, designed to warn the user as well as protect

measurement accuracy from impending battery failure conditions. The battery warning is

triggered by either continuous or temporary low voltage conditions. Visible (a battery

icon on the top right side of the display) and audible (buzzer warble) indicators

accompany a battery warning.

Once a permanent low battery condition is detected, all measurement functions are

disabled. Enough power remains for other menu functions, including a PC download,

although almost any user action at this time causes a low-battery warning to be

generated. The battery should be replaced immediately. If the battery reaches critical

levels, the meter will refuse to stay on at power-up.

This gradual warning system is intended to provide the user advanced battery status

notice and give ample time for replacement before operational limitations occur.

Page 7 of 32

NOTE: Stored readings are not lost during battery replacement or low battery conditions.

Current meter settings are maintained as well.

TO POWER THE METER ON:

To turn the meter on, press and hold the SELECT button for approx. 2 seconds.

The first screen will temporarily display the meter name and the software revision level.

Refer to this revision level whenever you call Customer Service.

The next screen is the MAIN MENU. Use the     keys to select the desired

function/mode and then press SELECT to activate the function.

METER USE

BASIC AND ENHANCED MODES:

TotalCheck may be used as a BASIC meter, which allows the user to begin taking

readings in either the scan mode or pin mode, without having to set up a job definition.

BASIC mode does not allow for data collection and is the default mode of the meter

upon power up.

Or, TotalCheck may be used in ENHANCED mode, which requires the user to set job

definitions and materials for each location within a job. The meter also stores each

reading in ENHANCED mode to allow for on screen reading recall or download to a PC.

USING THE METER IN BASIC MODE:

TotalCheck is shipped from the factory set to BASIC mode. Use this option if you wish

to use the meter for scan or pin readings without having to set up a job.

Although Basic Mode does not allow for data acquisition, it does allow the user to set the

type of material being tested, and set the alarm to sound if a pre-established %MC is

exceeded.

TO TAKE PIN READINGS IN BASIC MODE:

1. From the BASIC Main Menu, use the  key to highlight PIN MODE. Then,

use the SELECT key to enter the pin mode.

2. The meter will display the main %MC READ screen, as shown below:

Page 8 of 32

3. Use the key to highlight the default material (Douglas Fir) if you wish to

change it to a different material. Press the SELECT key to get into the SELECT

MATERIAL sub menu.

4. Use the   keys to highlight the material you are testing. Press the

SELECT key to choose that material. This will bring you back to the main %MC

READ screen.

5. Use the   keys to highlight the pin type selection. Press the SELECT key

to toggle between 4-pin (non-insulated) pins and 2-pin (insulated) pins.

You may begin taking readings by inserting the pins into the material and

pressing the SELECT key. This will display a %MC reading. If you wish to hold

a reading on screen, press the SELECT key again; otherwise remove the pins

from the material being tested and take another reading.

TO SET THE ALARM IN BASIC PIN MODE:

1. If you wish to set the alarm to beep after a pre-selected %MC value is reached,

use the   keys from the %MC screen to highlight the ALARM. Press the

SELECT key to enter the alarm sub menu.

2. The default status of the alarm is “OFF.” Press the SELECT key to turn it on.

3. After the alarm is turned on, use the   keys to scroll up or down to a

higher or lower alarm value.

4. After you have selected the alarm value, use the key to highlight DONE.

Press SELECT to get back to the %MC READ screen.

Page 9 of 32

Default alarm settings in pin mode are as follows for different materials:

All wood materials: 15%

Drywall: 1.0%

Concrete: 68 (on the 0-100 relative scale)

Note: The default alarm setting in scan mode is 300.

TO CHANGE THE TEMPERATURE CORRECTION:

TotalCheck defaults to a temperature of 70ºF. As wood temperature increases, its

electrical resistance decreases and indicated moisture content rises. Lower wood

temperatures result in lower indicated moisture content. A correction is necessary if the

wood temperature is outside the range of 50ºF (10ºC) to 90ºF (32ºC). Set the

temperature accordingly and the meter will make the correction.

1. To change temperature use the   keys from the %MC READ screen to

highlight the TEMPERATURE, T: 70ºF. Press the SELECT button to get into the

TEMPERATURE sub menu.

2. To scroll through the temperature settings, use the   keys to scroll up or

down to a higher or lower temperature value. Temperature values will change in

5°F increments.

3. To change between ºC and ºF press SELECT key when the COMP TEMP is

highlighted.

4. After you have selected the appropriate temperature setting, use the key to

highlight DONE. This will bring you back to the %MC READ screen and you may

begin taking readings.

TO TAKE SCAN READINGS IN BASIC MODE:

1. From the BASIC Main Menu, use the   key to highlight SCAN MODE.

Then, use the SELECT key to get into the SCAN mode main menu.

The meter will display the main SCAN mode main menu, as shown below:

Page 10 of 32

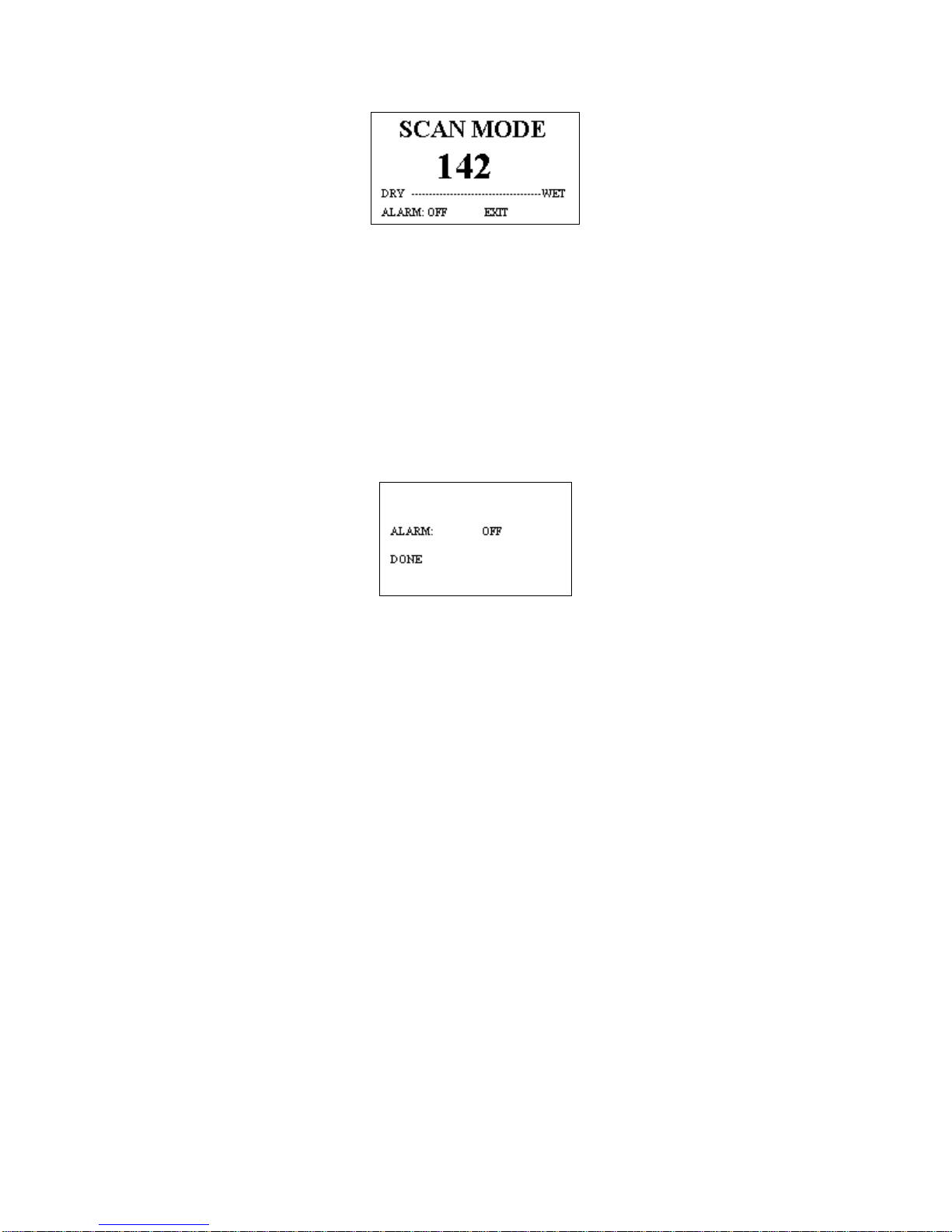

2. You may begin taking readings by firmly pressing the back of the meter onto

the material. This will display a relative reading that ranges between 0 and 300.

TO SET THE ALARM IN BASIC SCAN MODE:

1. If you wish to set the alarm to beep after a pre-selected relative value is

reached, use the   keys from the SCAN screen to highlight the ALARM.

Press the SELECT key to enter the alarm sub menu.

2. The default status of the alarm is “OFF.” Press the SELECT key to turn it on.

3. After the alarm is turned on, use the   keys to scroll up or down to a

higher or lower alarm value.

4. After you have selected the alarm value, use the key to highlight DONE.

Press SELECT to get back to the SCAN screen.

Note: Default alarm settings for SCAN mode is 300.

TO TAKE TEMP/RH READINGS IN BASIC MODE:

Before entering the RH-T mode, firmly insert the RH/T-S1 sensor into the top of the

meter, making sure to align the pin-out on the DIN connector.

1. From the BASIC Main Menu, use the   key to highlight RH-T MODE.

Then, press the SELECT key to get into the RH-T mode main menu.

The meter will display the main RH-T mode main menu, as shown below:

Table des matières

Autres manuels ABQINDUSTRIAL Instrument de mesure

ABQINDUSTRIAL

ABQINDUSTRIAL Dakota Ultrasonics ZX-2 Manuel utilisateur

ABQINDUSTRIAL

ABQINDUSTRIAL RP6 Manuel utilisateur

ABQINDUSTRIAL

ABQINDUSTRIAL DCF-3000EZ-E Manuel utilisateur

ABQINDUSTRIAL

ABQINDUSTRIAL Western Instruments WC-8 Manuel utilisateur

ABQINDUSTRIAL

ABQINDUSTRIAL DELMHORST J-2000 Manuel utilisateur

ABQINDUSTRIAL

ABQINDUSTRIAL DD-100 Manuel utilisateur

ABQINDUSTRIAL

ABQINDUSTRIAL SKIPPER 5 Manuel utilisateur

ABQINDUSTRIAL

ABQINDUSTRIAL HORIBA U-50 Series Manuel utilisateur

ABQINDUSTRIAL

ABQINDUSTRIAL TI-25PX Manuel utilisateur

ABQINDUSTRIAL

ABQINDUSTRIAL GalvanoTest 3000 Manuel d'utilisation et d'entretien

ABQINDUSTRIAL

ABQINDUSTRIAL DT-5TG Manuel utilisateur

ABQINDUSTRIAL

ABQINDUSTRIAL HT-4000 Manuel utilisateur

ABQINDUSTRIAL

ABQINDUSTRIAL TI-25MX Manuel utilisateur

ABQINDUSTRIAL

ABQINDUSTRIAL TI-25MXT Manuel utilisateur

ABQINDUSTRIAL

ABQINDUSTRIAL TI-25MX Manuel utilisateur

ABQINDUSTRIAL

ABQINDUSTRIAL TI-007DLX Manuel utilisateur

ABQINDUSTRIAL

ABQINDUSTRIAL LS-36-LED Manuel utilisateur

ABQINDUSTRIAL

ABQINDUSTRIAL Checkline TI-25DLXT Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
