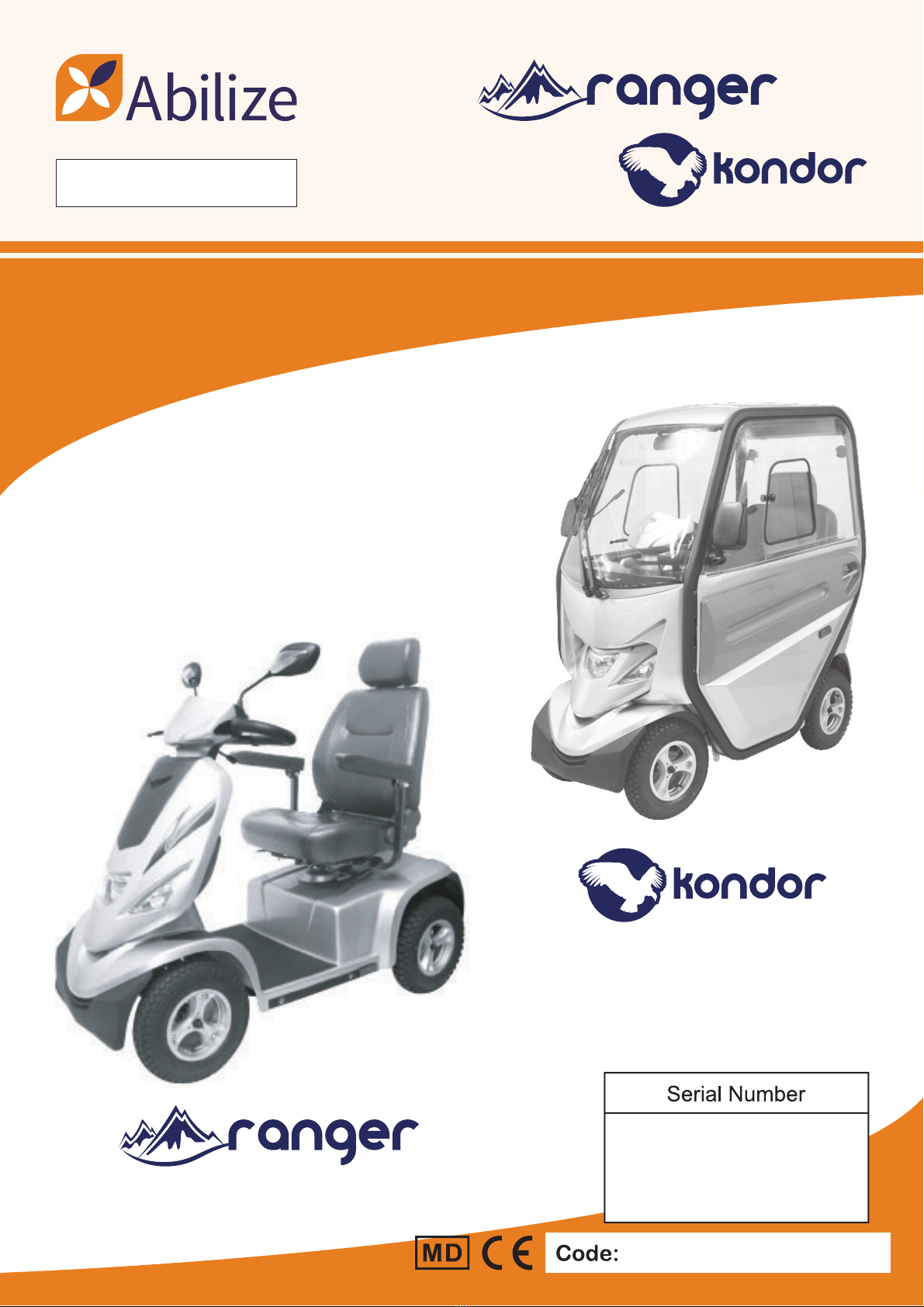

Abilize ranger Manuel utilisateur
Instruction Booklet &
MS03010008 / MS05010001
Introduction
Important Precautions
Safety Warnings & Instruction Labels
,GHQWL¿FDWLRQRI3DUWV
Charging the Batteries
Troubleshooting
Disassembling your Scooter
Functions
Kondor Cabin Variation
Safety Information and
Electromagnetic Interference (EMI)
6SHFL¿FDWLRQV
Warranty
Table of Contents
03
04
05
06
09
10
12
14
20
22
24
25
2
Thank you and congratulations on purchasing your new Abilize Mobility Scooter.
It is designed to provide you with transportation ability indoors and outdoors.
We pride ourselves on providing safe and comfortable products. Our goal is to ensure your
complete satisfaction. We sincerely hope you enjoy your Abilize Mobility Scooter.
Please read and observe all warnings and instructions provided in owner’s manual before
you operate the various functions of this scooter. Also, please retain this booklet for future
reference.
IF YOU HAVE ANY QUESTIONS, YOU CAN CONTACT:
UK Authorised Dealer
Information of European Representation
MedNet EC-REP GmbH
Borkstrasse 10,
48163 Muenster,
Germany
3
UK Authorised Dealer
UK Authorised Dealer
0333 015 5000
www.CareCo.co.uk
CareCo (UK) Limited,
1 Turing Court, Great Notley,
Braintree, CM77 7AT
CareCo (UK) Limited,
1 Turing Court,
Great Notley,
Braintree,
CM77 7AT
UKRP
MediMap Ltd, 2 The Drift,
Thurston, Suffolk, IP31 3RT
4
Important Precautions:
• Only one person at a time can ride the Scooter.
• Maximum load is 181KG / 400 lbs (Ranger), 200KG / 440lbs (Kondor).
•7XUQNH\RႇEHIRUHJHWWLQJRQRURႇ
• Always drive carefully and be aware of others using the same area.
• Always use pedestrian crossings wherever possible. Take extreme care when crossing roads.
• Do not drive on slope exceeding 9 degrees, and take extreme care when turning on a slope.
• Do not use full power when turning on a sharp corner.
• Take great care and drive in a low speed when reversing, riding downhill or on an uneven
surface, and climbing curbs.
•Please use the lowest speed when driving through a descending road or uneven terrain. If
VSHHGLVWRRIDVWOHDYH\RXUKDQGVRႇWKHKDQGOHEDUDQGOHWWKHVFRRWHUVWRS0DNHVXUH\RX
are safe and start again.
•7KHZHLJKWFDSDFLW\OLPLWFDQEHGLႇHUHQWGHSHQGLQJRQUDPSGHJUHH
•Aslow speed must always be used when ascending, descending or traversing a slope or
incline and also on uneven terrain, ramps and soft or loose surfaces, such as gravel or grass.
•To prevent any danger, do not turn around at high speed while ascending or descending
a ramp.
•Scooter may not operate well in high humidity.
• Do not leave the powered scooter in a rain storm of any kind.
•Direct exposure to rain or dampness will cause the scooter to malfunction electrically and
mechanically; may cause the powered scooter to prematurely rust.
•Never put scooter in neutral when driving on slopes.
•)ROORZWUDႈFODZVZKHQULGLQJRXWVLGH
• Do not sit on the scooter if taking on moving transport vehicles such as trains.
The following labels are positioned on your scooter, they communicate important warnings or
instructions regarding the safe operation of your scooter. Please carefully read all labels before driving.
Please read the instruction booklet carefully before using your scooter. Do not
drive the scooter on slippery surfaces or on slopes over 8 degrees. Do not drive on
highways, crowded roads, or unfamiliar areas. Do not turn at high speeds. Do not
wash with water or leave scooter in a humid environment as water can damage the
electronic parts.
Do not hang baggage or other objects on the tiller / tiller adjustment lever.
Information Sticker states the date of manufacture and serial number of the scooter.
Tiller angle adjustment.
N-D Lever Adjustment label which instructs freewheel mode operation.
Wiring diagram Label.
Ensure your hands are away from any moving parts before activating the door.
The DC 24/2A port is for LED reading light use ONLY.
Do not use the port to charge scooter or any other devices.
Tie-down points of the scooter. Do not sit on the scooter if taking on moving transport
vehicles. Tie-down points of the scooter. Do not sit on the scooter if taking on moving
transport vehicles.
Safety Warnings & Instruction Labels
WARNING! Do not operate longer than 20 minutes at one time, to cool completley after use.
Air Heater (6) (Optional)
With fresh air / heating air (for defrost or demist). Push the switch to position (6) for fresh air,
*Please do not put your hands near the vent after extended periods of time for heating air.
5
6
Before attempting to drive this scooter on your own, it is important that you familiarise
yourself with the controls and how to operate them. (Please refer to page 20 for Kondor
Cabin Scooter’s parts)
Figure 1 - Front View
Figure 2 - Top Control Panel Figure 3 - Back View
Hand Brake Angle Armrest
Adjustment
Rear Mirror
Left Turn
Indicator
Right Turn
Indicator
Power
Indicator
Headlight
Indicator
High Speed
Indicator
Wig Wag Captain Seat
Tiller Angle Adjustment Seat Back Angle
Adjustment
Rear Bag
Seat Adjustment Lever Rear Bumper
N-D Lever
Rear Indicator
5HDU5HÀHFWRU
Anti-Tip Wheels
Please turn to the next page for more information.
Swivel Lever
Headlight
Indicators
Front Bumper
Tiller Storage Compartment
6LGH5HÀHFWRUV
- Clock
- Temperature
- Speedometer
- ODO
- Trip Meter
Function of parts:
Main key switch (A)
• Turn the key to the right to turn the scooter on.
•7XUQWKHNH\WRWKHOHIWWRWXUQWKHVFRRWHURႇ
CAUTION: Always ensure that the scooter is
VZLWFKHGRႇEHIRUHJHWWLQJRQRURႇWKHVFRRWHU
and before removing any items from the scooter.
CAUTION: Turning the scooter OFF whilst driving
will bring the scooter to an abrupt stop.
Top Control Panel Symbols and meanings:
-Hazard light (B):6ZLWFKRQE\SUHVVLQJRQFHDQGRႇE\SUHVVLQJDVHFRQGWLPH:KHQ
\RXSUHVVRQFHWKHULJKWDQGOHIWOLJKWVDQGSDUNLQJLQGLFDWRUZLOOVWDUWWRÀDVKDQGZDUQLQJ
WRQHVZLOOVRXQG7KHKD]DUGOLJKWVZLOOFRQWLQXHWRÀDVKHYHQRIWKHNH\LVVZLWFKHGRႇ7KH
only way to stop the lights and sound is to press the hazard button a second time.
- Change mode by pressing once (C):
- Press the horn button (D): Once to sound warning tone when necessary.
- ‘Left Turn Signal (E): Press the Left Indicator button once to activate the front and rear
LQGLFDWRUVDQGZDUQLQJVRXQGV3UHVVWKHEXWWRQDVHFRQGWLPHWRVZLWFKWKHLQGLFDWRUVRႇ¶
- ‘Right Turn Signal (G): Press the Right Indicator button once to activate the front and rear
LQGLFDWRUVDQGZDUQLQJVRXQGV3UHVVWKHEXWWRQDVHFRQGWLPHWRVZLWFKWKHLQGLFDWRUVRႇ¶
- ‘Headlight (F):3UHVVKHDGOLJKWEXWWRQRQFHWRVZLWFKRQDQGDVHFRQGWLPHWRVZLWFKRႇ¶
- ‘Acceleration (H): Press acceleration button once to increase speed - option of 5 speeds
DYDLODEOH¶
- ‘Deceleration (J): Press deceleration button once to decrease speed - option of 5 speeds
DYDLODEOH¶
- ‘Hi/Lo Button (I): Press H/L Speed button once and the high/low speed indicator light
will come on which means you are driving in high speed mode. Press a second time and
the light will go out which means you are driving in low speed mode. (Hi/Lo speed will vary
GHSHQGLQJRQ\RXUFXUUHQWVSHHGVHWWLQJV¶
7
A
BH
CI
D
EFG
J
Tiller Storage Compartment (K):
Provides you spacious room for storage.
Hand Brake (L). Hold brake (L), when immediate stop is required.
CAUTION: If you have to brake in an emergency, simply release
the Throttle and hold the hand brake which will bring you to a halt!
Wigwag Lever Operation:
Pull the right-hand drive lever (N) carefully to travel forwards.
Pull the left-hand drive lever (M) carefully to travel in reverse.
(This can be reversed if required by local dealer.) Releasing both, engages automatic brake.
These are also your accelerators - The further you depress them, the faster you go. (Subject to the
position of the Rabbit / Turtle control).
CAUTION: Keep LCD display panel and Wigwag Lever dry. If panel and Wigwag Lever get
wet, allow to dry out before using.
Steering Adjustment:
Press angle adjustment (N)
down to achieve a comfortable
steering angle.
CAUTION: Do not make
adjustments whilst driving.
Ensure steering is at optimum
angle before and after use.
Seat Adjustment (P):
Pull the Seat Adjustment Lever (Q) to disengage the seat (P). Slide the seat forwards or
backwards into the required position. Let go of the lever (Q) again to lock the seat into its required
position.
CAUTION: Seat position should be set as far forward as is comfortable to prevent the
scooter tipping over.
&$87,212QFHRQWKHVFRRWHUVLW¿UPO\RQWKHVHDWGRQRWVWDQGRQWKHIRRWUHVWDVWKLV
could cause the scooter to tip over causing damage.
Angle Armrest Adjustment (R):
Pull the lever (S) and adjust the armrest to the required angle.
CAUTION: Pull the armrest up
ZKHQJHWWLQJRQRURႇWKHVFRRWHU
Do not hang heavy items on the
armrests as this could cause the
scooter to tip over. Basket
assembling and disassembling:
8
K
L
M
N
O
Q
R
S
P
Seat Swivel Adjustment:
Pull the lever (T) upwards to disengage and rotate seat (P) to required angle, Let go of the lever
(T) to lock the seat into its required position.
Seat Back Angle Adjustment:
Pull the lever (U) upwards to adjust
Pull the lever (U) upwards to adjust
EDFNUHVW¶VDQJOHWKHQUHOHDVHWKH
lever when adjusted to required
position, then release the lever when
adjusted to required position.
CAUTION: For safety reasons the backrest’s position must remain vertical before driving.
Seat Height Adjustment:
1. Remove seat (P) and rear shroud (Z).
2. Remove screw, nut and washer from seat post (V).
3. Adjust seat post (V) to desired height, and attached tightly with screw, nut and washers.
4. Then assemble the rear shroud (Z), seat (P) back to its original position.
(Height cannot be adjusted for the Kondor model)
Seat Electrical Lifter (Optional):
1. Press seat lifter button lightly (W) to raise the seat. Press lightly, to lower the seat.
CAUTION:
• Do not operate this function on a slope, or in motion or under unstable condition.
• The main purpose of this function is to assist you to reach certain height.
• Seat’s position must remain at the lowest before driving.
• Do not set N-D lever at N, before setting the seat at lowest position.
• Please keep the center of gravity of the scooter in the middle, to prevent the scooter
tipping over.
N-D Lever Adjustment:
When scooter has stopped or is
experiencing problems, press the
unlocking knob on the N-D lever (X).
Push the N-D lever forwards this
will allow you to push the scooter
by hand.
&$87,21)UHHZKHHORSHUDWLRQLVRQO\UHFRPPHQGHGRQÀDWVXUIDFHVQHYHURQVORSHV
1HYHUOHDYH\RXUVFRRWHURQDVORSHZLWKLWVHQJLQHVZLWFKHGRႇ$OZD\VVZLWFKWKHHQJLQH
on immediately after pushing the scooter.
CAUTION: The scooter won’t operate if it is
set at (N) position, to restore to it’s normal status,
\RXPXVWVZLWFKWKHSRZHURႇDQGDGMXVWWR'
position, then switch the power on.
s
9
U
T
P
V
W
P
DN
X
V
Proportion Speed Reduction:
1. The scooter is equipped with proportional speed reduction. It will automatically reduce speed
when encountering a corner, reducing speed corresponding to the angle of turn.
2. For safety reasons, when pushing the scooter by hand, if the pre-determined speed is
exceeded, the controller automatically switches on and brakes the scooter.
CAUTION: Avoid shifting your center of gravity as well as abrupt changes of direction when
the scooter is in motion.
CAUTION: Reduce speed before negotiating corners! Only accelerate when you have
¿QLVKHGWXUQLQJWKHFRUQHU
Tie-Down Hook:
To enable you to transport your scooter safely and
securely there are 2 additional tie down hooks located
on the underside of the scooter.
&$87,21:KHQ¿[HGRQDWUDQVSRUWDWLRQV\VWHP1'OHYHU;PXVWORFDWHGDW'SRVLWLRQ
The scooter must not be occupied or used as a seat on a moving vehicle whilst being
transported.
Charging the Batteries:
%DWWHULHVPXVWEHFKDUJHGEHIRUHXVLQJWKHVFRRWHUIRUWKH¿UVWWLPHDQGVKRXOGEHUHFKDUJHGDIWHU
each days use.
&$87,21(DFKFRXQWU\PD\VXSSO\GLႇHUHQWFKDUJHU7KHFKDUJLQJSURFHGXUHPD\EH
GLႇHUHQWIURPEHORZ,I\RXUHTXLUHPRUHGHWDLOVSOHDVHFRQWDFW\RXUDXWKRUL]HGGHDOHU
Be sure the scooter key is in the OFF position before charging.
Operating Instruction:
1. Always ensure the battery charger output voltage is the same as the connecting battery.
2. Plug in the power cord.
3. Connect the battery charger to the battery.
4. Start charging refer to charge levels indicated below.
y
y
y
y
y
y
y
y
Plug In:
Unplug:
Indicator:
1. Green Flash : Power On
2. Orange Flash : Pre-Charge
3. Orange : Charging
4. Green & Orange Flash : Charged 80%
5. Green : Full Charge
6. Red Flash : Defect
10
Y
E
A
C
B
D
Autres manuels pour ranger
1
Ce manuel convient aux modèles suivants
3
Table des matières
Autres manuels Abilize Scooter
Manuels Scooter populaires d'autres marques
First Choice Mobility
First Choice Mobility Roma Medical Corella S741 Manuel utilisateur
Carrera
Carrera impel Manuel utilisateur
Afikim
Afikim Superlight SL-3 Manuel utilisateur
CareCo
CareCo ZOOM Manuel utilisateur
Douglas
Douglas Vespa G.S. Manuel utilisateur
Gazelle
Gazelle with BOSCH System Manuel utilisateur
