IOT OPTIONS FOR ACS880 INDUSTRIAL DRIVES
InRouter 615
Commissioning guide
Contents
1. Introduction................................................................................................................................... 2
2. Scope of the document................................................................................................................ 2
3. Connecting the cabling ................................................................................................................ 2
4. Logging in and setting up the modem....................................................................................... 5
5. Cybersecurity disclaimer ........................................................................................................... 13
INROUTER 615
STATUS
Approved
SECURITY LEVEL
Public
DOCUMENT ID.
3AXD50000837939
REV.
A
LANG.
en
PAGE
2/13
© Copyright 2021 ABB. All rights reserved.
1. Introduction
InRouter 615 is a 4G to Ethernet (4 port) modem/router. This step-by-step guide instructs
how to set up the modem securely for IoT gateway (NETA-21) connections. For technical data
and the manufacturer’s documentation, refer to www.inhandnetworks.com.
2. Scope of the document
This document is intended for use at ABB internal factory line, where the modem and the
NETA-21 gateway are commissioned. The instructions can also be used for commissioning at
the customer’s site.
Note: To do the commissioning, the customer needs a SIM card with the mobile data
service enabled and a data plan to avoid data charges from the teleoperator.
Warning!
Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to
the equipment can occur. If you are not a qualified electrical professional, do not do
installation, commissioning, or maintenance work.
Repeat the Electrical safety precautions steps in the drive safety instructions before you start
the work.
This document provides cybersecurity related deployment advice, but please note also the
Cybersecurity disclaimer (Chapter 5).
3. Connecting the cabling
Connect the power, antenna and ethernet cabling to the modem.
1. Insert the SIM card into the modem.
Note: If the SIM card’s PIN code is enabled, several start- ups may lock the SIM card.
Use a SIM card with the PIN code disabled or insert the SIM card just before step 3
“Set up the SIM card” in Chapter 4.
2. Connect the antenna
INROUTER 615
STATUS
Approved
SECURITY LEVEL
Public
DOCUMENT ID.
3AXD50000837939
REV.
A
LANG.
en
PAGE
3/13
© Copyright 2021 ABB. All rights reserved.
Connect the SMA antenna connector and tighten the connector by hand.
3. Plug in the power connector.
Connect 24V DC power to the power plug according to the markings on the modem.
4. Connect the NETA-21 to the modem and power it up.
a) Connect the NETA-21 ETH2 port to InRouter port 1.
b) Power on the NETA-21 and wait 1 minute before connecting the PC.
INROUTER 615
STATUS
Approved
SECURITY LEVEL
Public
DOCUMENT ID.
3AXD50000837939
REV.
A
LANG.
en
PAGE
4/13
© Copyright 2021 ABB. All rights reserved.
5. Connect the PC Ethernet.
Connect the commissioning PC with an Ethernet cable to Ethernet port 4 (technically any
available port 1, 2, 3, 4 works).
Note: Leave the “WAN” port of the modem disconnected.
INROUTER 615
STATUS
Approved
SECURITY LEVEL
Public
DOCUMENT ID.
3AXD50000837939
REV.
A
LANG.
en
PAGE
5/13
© Copyright 2021 ABB. All rights reserved.
4. Logging in and setting up the modem
The following steps describe the basic settings of the InRouter for remote connectivity. The
settings allow the NETA-21 gateway to push data to the Internet. For advanced configuration
options, see the manufacturer’s documentation at inhandgo.com.
1. First login
a) When the PC is connected to the modem (step 5 on page 4), navigate to
http://192.168.2.1.
b) Login with the default credentials:
–Username: adm
–Password: 123456.
Note: This password works only for the first login. You will change the password to
the MAC address in step 5.b).
c) After a successful login, you should see the modem configuration front page:
INROUTER 615
STATUS
Approved
SECURITY LEVEL
Public
DOCUMENT ID.
3AXD50000837939
REV.
A
LANG.
en
PAGE
6/13
© Copyright 2021 ABB. All rights reserved.
2. Set the time and date.
a) Click the Sync time button to synchronize the time from the PC to the modem.
b) Verify that the Router time field shows the correct date and time.
3. Set up the SIM card.
This step enables the Internet connectivity. Do step 5 immediately after this step, to block
any unwanted external connections from the Internet.
Note: This step is done quite early, just to avoid locking up the SIM card with too
many reboots, if there is a PIN code enabled on the SIM card.
On the production line where several modems are being set up using one SIM card,
we recommend using a SIM card which has PIN code checking disabled. A customer
SIM card may have a preferred PIN code.
a) On the Network menu, select Dialup:
INROUTER 615
STATUS
Approved
SECURITY LEVEL
Public
DOCUMENT ID.
3AXD50000837939
REV.
A
LANG.
en
PAGE
7/13
© Copyright 2021 ABB. All rights reserved.
b) Set up the teleoperator specific settings. These depend on the SIM card. (It is possible
that the username and password fields are empty, and that the APN is “internet” or
something else specific to the network provider). The modem provides predefined
settings for some teleoperators. Other settings can be left as default.
4. Update the firmware
a) Check if there are any pending firmware updates.
Note: Refer to the manufacturer’s website
https://inhandgo.com/pages/download-center for the location of the latest
modem firmware.

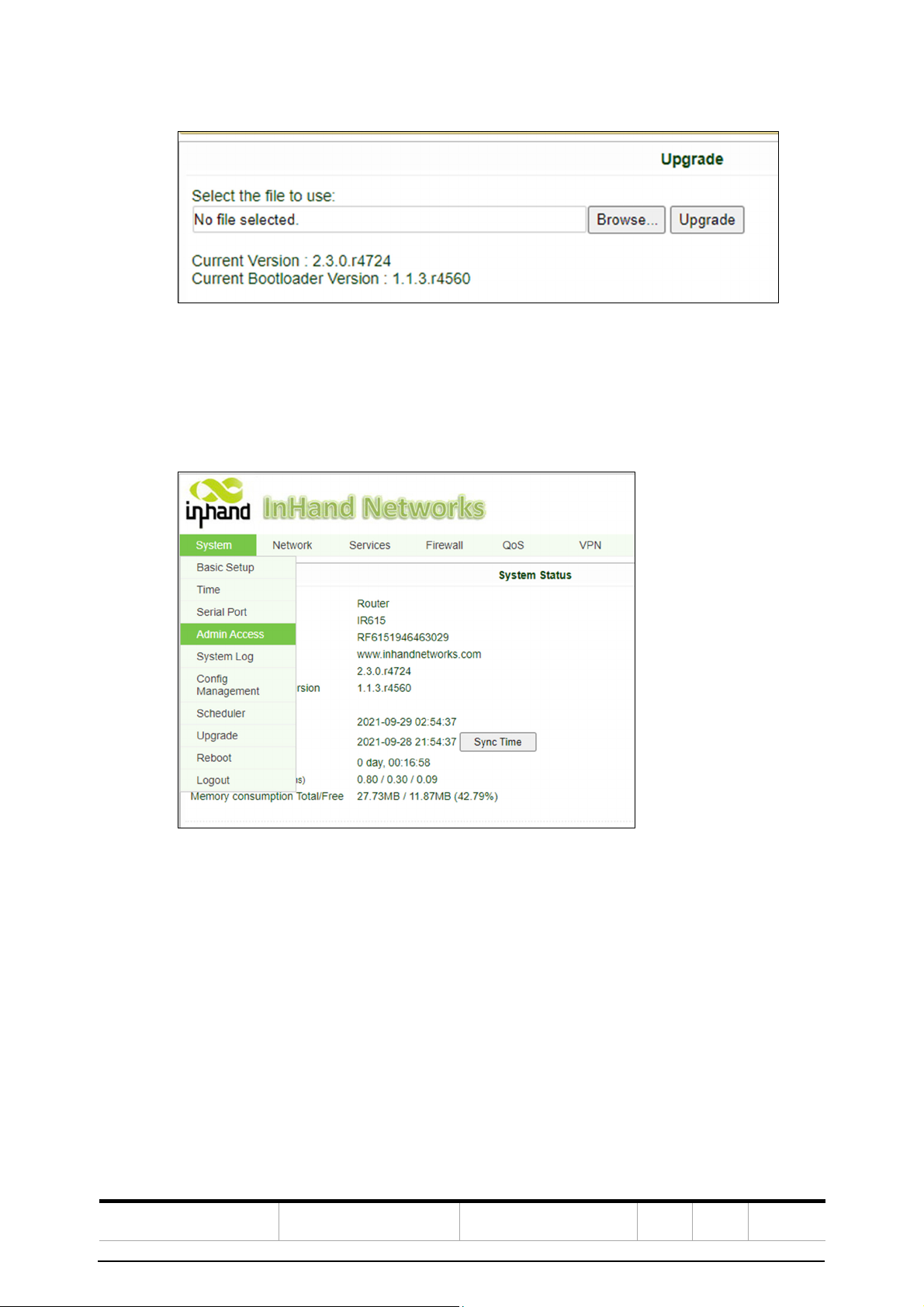

b) Select System -> Upgrade to do the updates:
INROUTER 615
STATUS
Approved
SECURITY LEVEL
Public
DOCUMENT ID.
3AXD50000837939
REV.
A
LANG.
en
PAGE
8/13
© Copyright 2021 ABB. All rights reserved.
c) Click Browse…, select an upgrade file and click Upgrade.
5. Set the password and disable unnecessary services (hardening).
This step is done to protect the modem from external threats in case the customer’s SIM
card provide access from the Internet toward the modem. SIM cards with public/static IP
addresses are not needed or recommended.
a) In the System menu, select Admin Access:
The figure below shows the default settings of the Admin Access window (before
modifications):
INROUTER 615
STATUS
Approved
SECURITY LEVEL
Public
DOCUMENT ID.
3AXD50000837939
REV.
A
LANG.
en
PAGE
9/13
© Copyright 2021 ABB. All rights reserved.
b) Configure the following:
1. Old password: enter the default password 123456
2. New password: locate the type label of the router and use the “MAC” address as the
new password, including capital letters and special characters, for example
00:18:05:11:01:B4-B5 in the figure below.
3. Uncheck (disable) HTTP
4. Check (enable) the HTTPS (preferably also only “Local access” not “Remote Access”)
5. Uncheck (disable) TELNET
6. Uncheck (disable) Console
See the example below.
c) Click Apply.
INROUTER 615
STATUS
Approved
SECURITY LEVEL
Public
DOCUMENT ID.
3AXD50000837939
REV.
A
LANG.
en
PAGE
10/13
© Copyright 2021 ABB. All rights reserved.
Applying the settings will take a moment:
You will be redirected to the login page. Make sure that the web address starts with https://.
You will see a web browser warning about a self-signed certificate.
d) Click Advanced (in Microsoft Edge browser).
