ABB CP600-Pro Manuel utilisateur

—

QUICK START GUIDE

Control Panels CP600-Pro

CP6605, CP6607, CP6610, CP6615, CP6621

StockCheck.com

CONTROL PANELS CP600-PRO

3ADR010161, 1, en_US 3

Contents

Introduction..................................................................................................................................... 4

Safety guide......................................................................................................................................5

1Before you start......................................................................................................................... 6

2Hardware connection ................................................................................................................ 6

3Basic settings............................................................................................................................. 6

3.1 Set IP address.............................................................................................................................. 6

3.2 Other settings ..............................................................................................................................7

4Software Installation..................................................................................................................7

5Download your first project ......................................................................................................7

StockCheck.com

43ADR010161, 1, en_US

Introduction

The quick start guide describes thesteps to downloadPanelBuilderprojectto CP600-Pro de-

vices.

The document refers to the followingmodels:

CP6605 Control Panel,TFT graphical display,multi-touchscreen,5”,800x 480 pixel

CP6607 Control Panel, TFT graphical display, multi-touchscreen,7”, 800x 480 pixel

CP6610 Control Panel, TFT graphical display, multi-touchscreen, 10.1”, 1280 x 800pixel

CP6615 Control Panel, TFT graphical display, multi-touchscreen, 15.6”, 1366 x 768pixel

CP6621 Control Panel, TFT graphical display, multi-touchscreen, 21.5”, 1920 x 1080 pixel

StockCheck.com

CONTROL PANELS CP600-PRO

3ADR010161, 1, en_US 5

Safety guide

The manual contains safety standards that must berespected for the personal safety and to

avoid damage.

Indications of attention are divided into three levels of severity:

DANGER: indicates a failure to observesafety rules and such failure may causedeath or seri-

ous injuries.

ATTENTION: indicates a failureto observe safety rules and that deficiency may cause dam-

age.

CAUTION: indicates a failureto observesafety rules and that deficiencymay cause defectsto

the equipment or inconsistencies.

StockCheck.com

63ADR010161, 1, en_US

1Before you start

Beforeyou start, please read the installationinstruction (3ADR010103, included in the prod-

uct package) and the operating instruction (3ADR010108) carefully.

2Hardware connection

Before you start, followingequipment should be prepared:

1. CP600-Pro HMI

2. Computer with Windows OS (refer

to manual 3ADR059001M0210,

“getting started”)

3. 24 VDC power supply

4. Ethernet cable

3Basic settings

Click on System Settings whenCP600-Pro HMI is powered on for the first time.

3.1 Set IP address

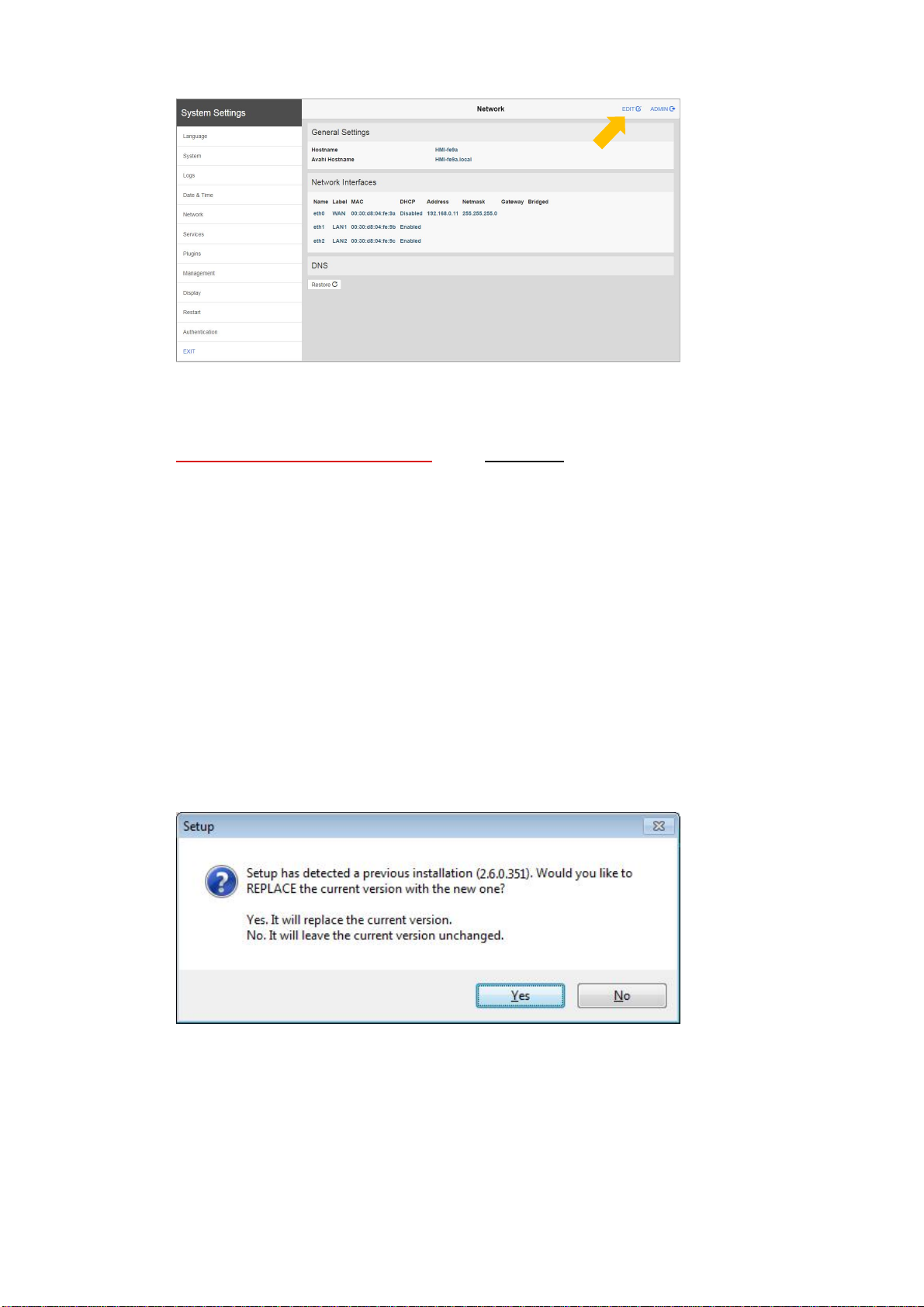

Click on Network tap and then click on EDIT to set the IP address.

StockCheck.com

CONTROL PANELS CP600-PRO

3ADR010161, 1, en_US 7

NOTE: To setup the communication betweenHMI,the computer and the HMI shall be inthe

samesubnet.

When the IP address is set,theHMI is also accessible on web browser via the link,

https://192.168.0.11/machine_config,where 192.168.0.11 istheIP address.The default

Username / Passwordis admin / admin.

NOTE: It is highly recommended to modify the default Username / Password.immediately.

3.2 Other settings

For thedetails of other settings, please refer to thehelp contents of PB610Panel Builder 600

under the path: User’s Manual/System Settings/Linux Devices

4Software Installation

Pleasefollowtheinstructions to install PB610 Panel Builder 600, referto manual

3ADR059001M0210.

If there is a previous versionof Panel Builder installedon yourPC andyou wantto keepboth

version, please click No

NOTE: Please make sure you have the right license

5Download your first project

Demo projects are prepared to help you get familiar with PanelBuilder andCP600-Pro fea-

tures. Pleasefindthe demo projectsof your CP600-Pro HMI via below link:

StockCheck.com

83ADR010161, 1, en_US

http://new.abb.com/plc/control-panels/cp600-pro/software

Check under Downloads for Software for Demo projects.

To download theproject to HMI, clickon the menu Run/Download To Target.

Or you can findthe button on the ribbon.

You can enter the target IP address manually, or you can click on thediscovery button to list

all detected IP addressesin thesame network.

Click Download, andthen PB610 Panel Builder 600willswitch the CP600-Pro to Configuration

Mode andtransfer thefiles.

NOTE: If the Runtime is not installed to CP600-Pro, PB610 Panel Builder 600 will promote to

Install Runtime
