ABB CP405 Manuel utilisateur

—

QUICK START GUIDE

Control Panels CP405

Control Panels CP408

Quickstart 1 CP405, CP408

Content

Introduction ...............................................................................................................2

Before You Start........................................................................................................2

2.1 Hardware Connection ........................................................................................................2

2.2 Software Installation ..........................................................................................................4

3Application Examples - Data Display ......................................................................6

Revision History......................................................................................................13

Quickstart 2 CP405, CP408

Introduction

This documentation describes the steps to create a simple CP400PB (Panel Builder 400) project. The

description includes hardware, configuration and programming of CP405/CP408 and AC500-eCo in

order to communicate with each other.

Before You Start

2.1 Hardware Connection

Before you start, following equipments should be prepared:

1. Personal Computer

2. 24V DC power supply

3. AC500-eCo PM554

4. TA562-RS(-RTC) (RS485 serial adapter for

COM2 interface)

5. CP405/CP408 control panel

6. TK504 (PLC programming cable for COM2)

7. USB programming cable type A to type B

(Between CP405/CP408 and PC)

8. TK407 communication cable

(Between AC500-eCo and CP405/CP408)

9. PS501 Control Builder Plus installation

(TK504 driver included)

10. CP400PB (Panel Builder400) installation

(USB programming cable type A to type B

driver included)

Make sure all above listed items are available, then follow the steps below.

Quickstart 3 CP405, CP408

1. Connect CP405/CP408 (5) with AC500-eCo (3). Pinning of TK407 (8) is shown below.

COM1 of AC500-eCo COM1 of CP405/CP408

2. Connect CP405/CP408 (5) with PC (1).

3. Connect AC500-eCo (3) with PC (1) with TK504 (6).

4. Connect 24VDC power supply (2) to CP405/CP408 (5) and AC500-eCo (3).

Quickstart 4 CP405, CP408

NOTE

System requirements for using CP400PB (Panel Builder 400):

Driver will be installed automatically for:

Windows 2000TM SP4

Windows XPTM SP2

Windows Server 2003TM

Windows VistaTM

Driver needs to be installed manually, see Chapter 2.2:

Windows 7TM

2.2 Software Installation

Install the driver for panel in Windows 7 system as below.

1. Install CP400PB (Panel Builder 400) and CBP (Control Builder Plus) software. For further details,

please see AC500-eCo Starter Kits: 2CBA125031M0201

2. After USB programming cable is plugged in PC for the first time, Windows will detect it automatically.

Right click ABB CP40x HMI to update the software.

Quickstart 5 CP405, CP408

3. Browse the driver software.

4. Finish the installation.

5. Check if driver is installed correctly in Device Manager.

Choose whether

Win32bit or Win64bit,

depending on your

computer system

Quickstart 6 CP405, CP408

3Application Examples - Data Display

Open Panel Builder software to configure the setting on CP400PB.

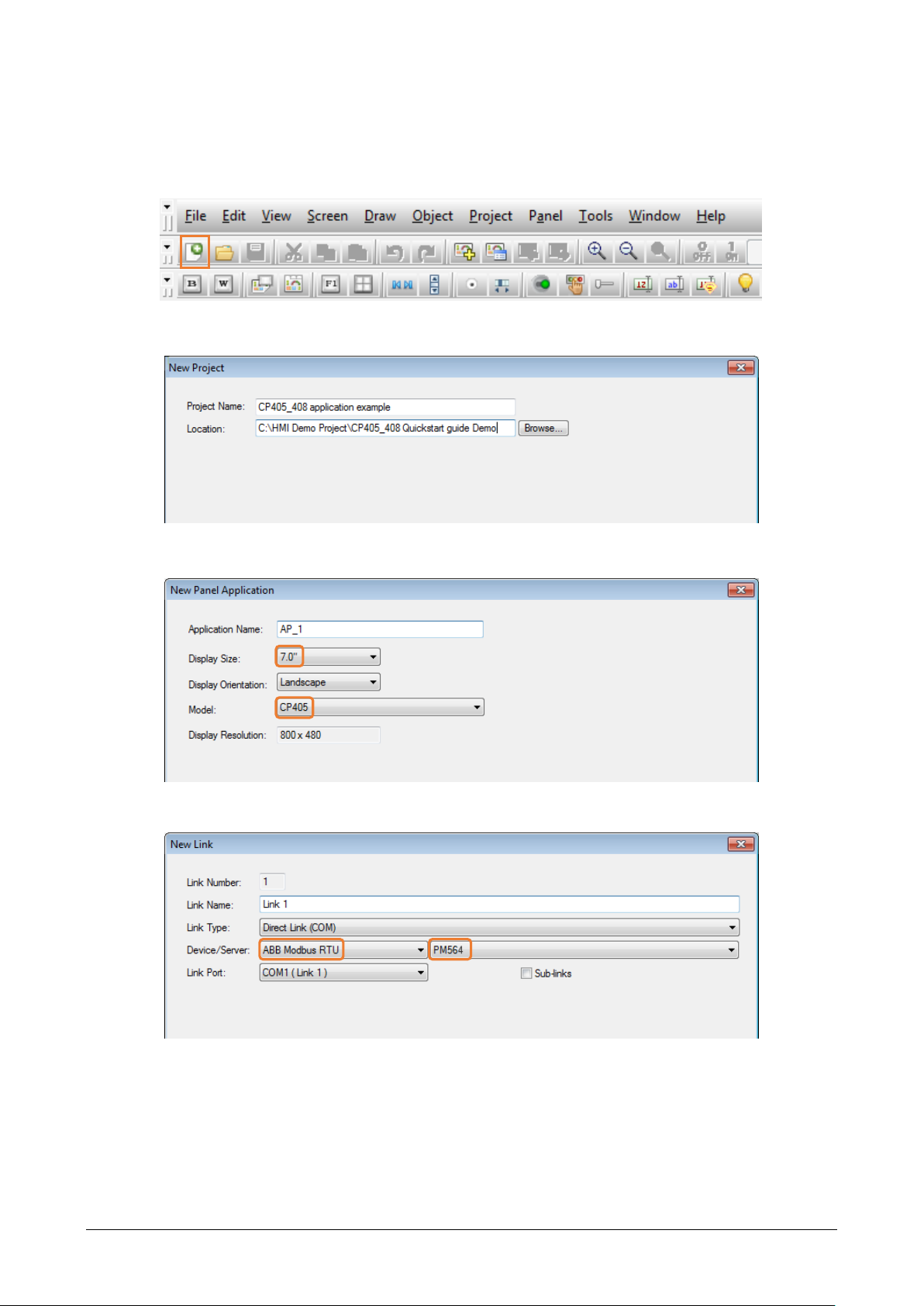

1. Open CP405/CP408 configuration environment and creat a new project.

2. Input project name and location. Then click Next.

3. Choose corresponding CP405/CP408 type. Then click Next.

4. Set ABB Modbus RTU as communication service. Then click Next.

Quickstart 7 CP405, CP408

5. Configure the Link parameter of CP405/CP408, which shall be consistent with the used parameter

settings in AC500-eCo.

Parameter setting for

control panel on

CP400PB

Parameter settings

for AC500-eCo on

CBP

Quickstart 8 CP405, CP408

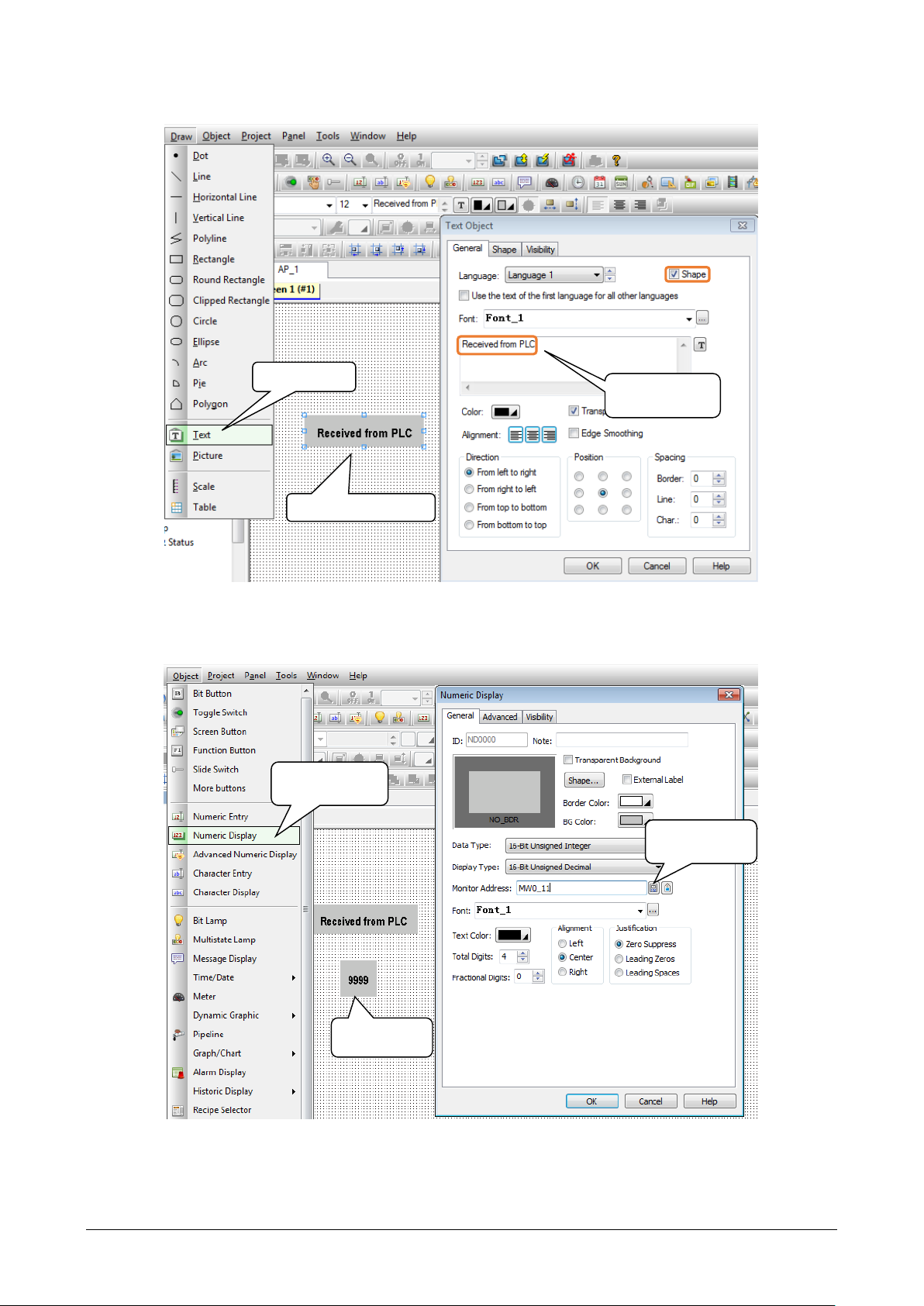

6. Draw a text label and edit the current text.

7. Draw a numeric display label to display the data received from AC500-eCo.Choose the data type

(Monitored variable type), display type and monitor address.

1. Choose Text

3. Input the text

and check Shape

2. Double click the label

1. Choose

Numeric Display

2. Double click

the label

3. Input Monitor

Address

Quickstart 9 CP405, CP408

8. Draw and specify a numeric display label to display the data sent to AC500-eCo.

9. Draw and specify a numeric display label to display the error record (how many times data received

from AC500-eCo is not equal to data send to AC500-eCo).
