VoIP Aastra 6739i User Guide

University of Calgary

Voice Services

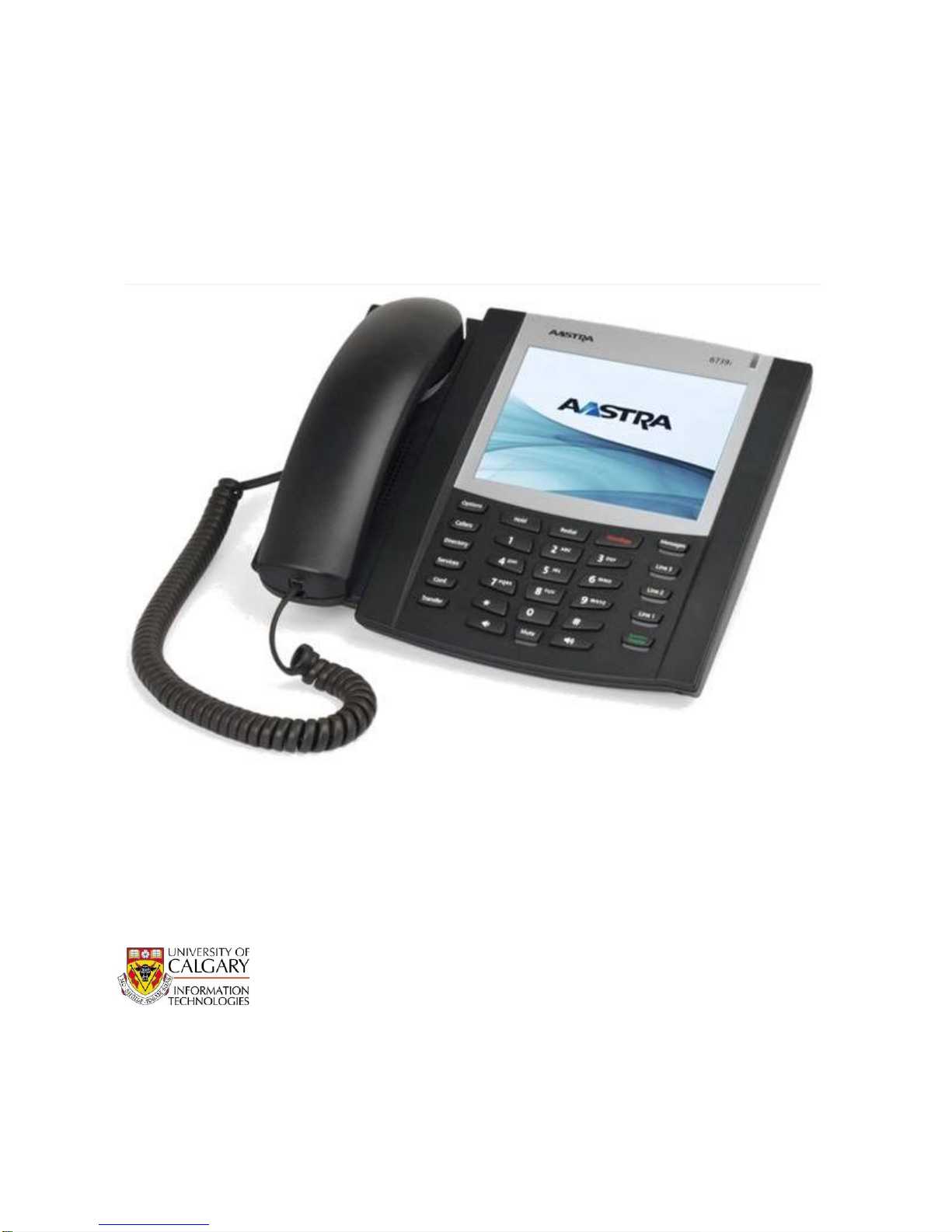

Aastra 6739i User Guide

Nov 20122 of 7Network Services

Contents

Voicemail..............................................................................................................3

Access: From your office......................................................................................3

Access: From any phone......................................................................................3

Voice Mail Options.................................................................................................3

Access: Internet....................................................................................................5

Calling Features ...................................................................................................5

Call Transfer/Conference Call ..............................................................................5

Do Not Disturb (DND)...........................................................................................5

Call Forwarding ....................................................................................................6

Phone Options......................................................................................................6

Tone Selection......................................................................................................6

Display Properties……………………………………………………………………….6

Speakerphone/Headset Setup..............................................................................6

Directory List.........................................................................................................7

Callers List............................................................................................................7

Re-Start VoIP Phone............................................................................................7

Aastra 6739i User Guide

Nov 20123 of 7Network Services

Voicemail

Access: From your office

1. Press the VoiceMail button on your phone and it will dial (403) 210-7720

2. When prompted for your password, enter your password.

By default your password is the last four digits of your phone number plus four zeros. For

example, phone number (403) 220-1234 will have 12340000 as the voice mail password.

Access: From any phone

1. If you’re checking your voicemail from a phone other than you own e.g. from off Campus, dial

403-210-7721. You will be prompted for your mailbox number. Enter your 7-digit phone number.

2. When prompted for your password, enter your password.

By default your password is the last four digits of your phone number plus four zeros

For example, phone number (403) 220-1234 will have 12340000 as the voice mail password

Voice Mail Options

Upon your first login you should:

1. record your name

2. create your away message (notifies callers you are away from your desk)

3. change your busy message (notifies callers you are on the phone)

4. change your voicemail password

The following is a guide to navigating the voicemail menus of the VoIP service:

Press 1 for new messages

Press 3 to go to Advanced Options

Press 5 to Repeat the Message

Press 6 Listen to the next message

Press 7 to Delete/Undelete the current message

Press 8 to Forward the current message

Note: Users can only forward voice messages from one campus VoIP phone to another

campus VoIP phone. However, the same voice messages are sent to your email

account as a sound file and can be forwarded to any other email account.

Press 9 to Save the current message

Press * for Help

Press # to Exit

Press 2 to change folders

Aastra 6739i User Guide

Nov 20124 of 7Network Services

Press 0 for the New Messages Folder

Press 1 for the Old Messages Folder

Press 2 Work Messages Folder

Press 3 Family Messages Folder

Press 4 Friends Messages Folder

Press 3 advanced options

Press 5 to leave a voicemail

Note: This option is only available to leave voice messages for another campus VoIP phone

user.

Enter the phone number when prompted

Leave your message

Hang up or press # to return to the main menu

Press 0 for mailbox options

Press 1 to record your Unavailable Message

Record and press # to finish

Press 1 to accept the recording

Press 2 to listen to the recording

Press 3 to re-record the message

Press 2 to record your Busy Message

Record and press # to finish

Press 1 to accept the recording

Press 2 to listen to the recording

Press 3 to re-record the message

Press 3 to record your Name

Record and press # to finish

Press 1 to accept the recording

Press 2 to listen to the recording

Press 3 to re-record the message

Press 4 to record your Extended Absence greeting (e.g. away on holidays)

Note: Users must delete the extended absence greeting when they return to regular

business. This will allow callers to leave a message for the user when they are

Unavailable or Busy on another call.

Press 1 to record your Extended Absence greeting

Record and press # to finish

Press 1 to accept the recording

Press 2 to listen to the recording (used to delete extended

absence greeting)

Press 3 to re-record the message

Press 2 to erase your Extended Absence greeting

Press 5 to change password

Aastra 6739i User Guide

Nov 20125 of 7Network Services

Type in the new password and # to finish

Repeat to confirm

* to return to the main menu

# to return to the voicemail menu

Access Voicemail using the Internet

1. Go to https://voicesip.ucalgary.ca/

2. The mailbox number will be the 7 digits of your phone number (without the area code or dashes)

Enter your password. By default your password is the last four digits of your phone number plus

four zeros

For example, phone number (403) 220-1234 will have 12340000 as the voice mail password

Visit http://ucalgary.ca/it/telephone/voicemail/vvm for more information regarding VoIP

Voicemail web-based utility

Calling Features

Call Transfer/Conference Call

When you are connected to a call with someone:

1. Press the transfer button if you want to transfer the call to someone else. Dial the

number of the person you wish to transfer the call to and wait until they pickup. Press the

transfer button again to complete the transfer.

2. Press the conference button if you want to establish a conference call. Dial the number

of the person you want to conference your current call with and wait until they pickup.

Note: when using the Conference call feature, it is a 3-way call. Each VoIP set can add another

person into the call.

Do Not Disturb (DND)

When this feature is activated all calls will be sent directly to your voicemail.

1. Activate DND mode:

Press the DND button on the Touch Screen. A red light around the DND button will

indicate that this feature is activated.

2. Deactivate DND mode:

While in DND mode, press the DND button on the Touch Screen to deactivate DND

mode. The indicator light will turn off.

Aastra 6739i User Guide

Nov 20126 of 7Network Services

Call Forwarding

1. Press the Services button

2. Press the Call Forward button on the Touch Screen. Click the Edit button.

3. Choose a Call Forward mode to edit (Call forward ALL, BUSY or NO ANSWER). Select On or

Off for these modes.

4. Touch the white text field on the screen to enter the number to forward calls to by using the

number keypad. Click Enter on the screen to save changes

5. The NO ANSWER Mode (option 3) allows you to control the number of rings before the call is

forwarded

6. Click Enter on the Touch Screen when settings are complete

Phone Options

Tone and Audio Selection

1. Press the Options List button

2. Press the Audio button on the Touch Screen.

Select one of the five options e.g. Ring Tone to change the default.

If using a headset with the 6739i press the Headset Device button on the Touch Screen

to select the correct mode for the headset.

Display Properties

1. Press the Options button

2. Press the Display button on the Touch Screen

3. Select one of the two options to control screen brightness and backlight display timer.

Speakerphone/Headset Setup

1. Press the Options button

2. Press the Audio button on the Touch Screen

3. Press the Audio mode button on the screen

4. Select which audio mode you require.

Call Forward-

Mode

Description

All On

Phone forwards all incoming calls immediately to the specified

destination.

Busy

Phone forwards incoming calls if the line is already in use.

No Answer

Phone forwards the call if it is not answered in the specified

number of rings.

Aastra 6739i User Guide

Nov 20127 of 7Network Services

Audio Mode

Description

Speaker

Only the speakerphone will be activated

when the hands-free key is pressed

Headset

Only the Headset will be activated when

the hands-free key is pressed

Speaker/Headset

The first time the hands-free key is

pressed the Speaker will be activated, the

second time, the Headset will be activated.

They will alternate each time you press the

hands-free key is pressed

Headset/Speaker

The first time the hands-free key is

pressed the Headset will be activated, the

second time, the Speaker will be activated.

They will alternate each time you press the

hands-free key is pressed

Directory List

1. Press the Dir button on your phone.

2. Press the add new contact button on the Touch Screen

3. Touch the white text field on the screen and enter a First and Last name for the contact using

the keyboard on the screen. Press Enter when done.

4. To enter a number press the Add number button on the screen. Touch the white text field on

the screen.

5. Use the number key pad to enter the number. Press Enter when done.

Callers List

This phone feature will display a history of people that called your number. This list will store up to 200

calls.

1. Press the Callers List button. You can scroll through the list of callers.

2. Select a number and Highlight it by touching that button on the Touch Screen.

3. You can choose to Dial the number or Add to Directory.

To clear the call history log on your phone:

1. Press the Callers List button on your phone

2. Press the Delete button on the Touch Screen. Choose Delete highlighted caller (from previous

screen page) or Delete All callers from list.

Re-Start VoIP Phone

1. Press the Options button

2. Press the Restart button on the Touch Screen. Press Yes on the screen.

DO NOT unplug the phone during the restart.
