A4Tech Note-Cam PK-35N Manuel utilisateur
Note-Cam
User smanual
Model :PK-35N
www.a4tech.com
1
Contentspage
Introduction 2
Systems Requirements 2
Package Include2
USB PC Camera 3
Specification4
Installing Cameras Driver 4
Checking connection of your camera13
Uninstalling Driver 14
VP-EYE program15
Troubleshooting22
2
lIntroduction
Welcome to the World ofDigital Imaging.
The followinginformationwill guide you to install anduse the PC
Camera to its full capabilities.
lSystem s requirements
Personal Computer, Laptop, Desktop, or IBM Compatible
Computer with Pentium166MHzminimum, and with an active
USB (universal serial bus) port.
Windows 98/ME/2000/XP,CD-ROM drive, color monitor, mouse
and keyboard. For videoconference, Internet connection must
be equipped.
lPackage includes
PC Camera
(With USB cable)
CD Installation Disc And
Manual
3
lUSB PC Camera
lSpecification
Image Sensor: 1/4 CMOS,640×480pixels
Frame Rate:
30fps@640x480, @600x800, @320x240,
@160x120
Lens: F=2.4, f=4.9mm
ViewAngle: 54 degree
Focus Range: Automatic focus, 10cmto infinity
Exposure Control: Automatic
White Balance: Automatic
Still ImageCapture
Res.:
800x600，640X480，352x288，320x240，176x144，
160x120
4
Flicker Control: 50Hz, 60Hz and None
Computer Port USB port
lInstalling camera s driver
Driver s Installation Instruction for Windows 98/ME/2000/XP
NOTE: Please Uninstall All Previous InstalledWEBCAM
BEFORE InstallingA4 TECH ViewCAM. DO NOTCONNECT
A4 TECH ViewCAM TOTHE COMPUTER UNTILITS DRIVER
IS INSTALLED!
1. Insert the included CD into the CD-ROM: The Auto-run
Menu Window will popup,movethe mouse cursorto and
clickon “Install viewCAM”.

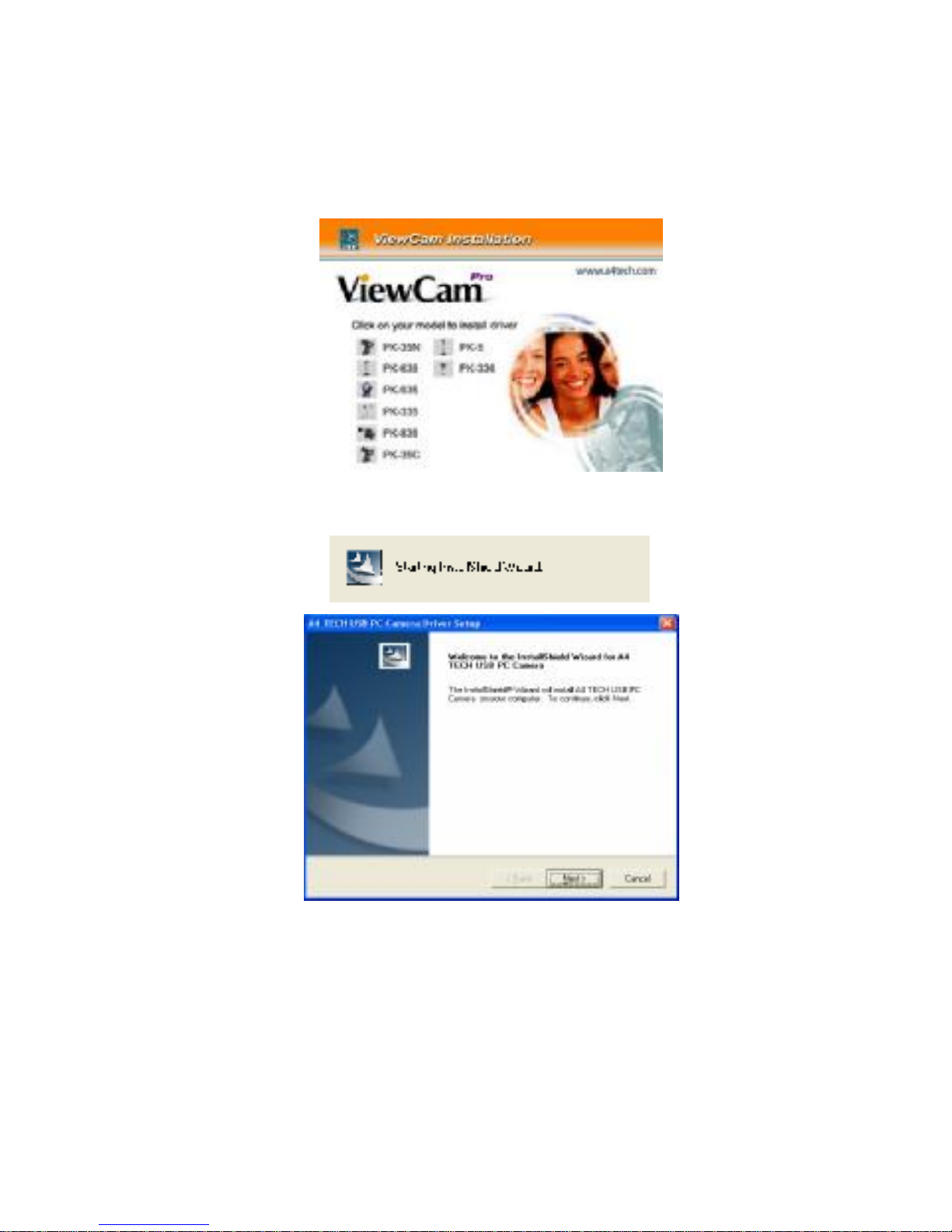

2. Please select your ViewCAM model and clickon the product
5
imageto install (As theright image). Then dialoguebox will
appear on the computer screen as below:
3. Follow theon screeninstructionto complete the installation
process
6
4. When the Installation Process is completed
5. Click “Finish”to complete installation. Now,the shortcut
AmcapandZoomimages will appear on thecomputer
desktop
6. Plugthe PC CamerasUSB cable to the computer sUSB
Port, and restart your computer.
Amcap Usage
After installationof view cam driver, you can pre-view imageand
set the adjustmentsfor theproperties sheet throughthe image
application software which comes with the product.
7
Image-preview
Click button on the desktop and theAmcap image
application will pop-up or from “start”to “application”“A4TECH
USB PC Camera H”，and click “Amcap”bymouse the
application image will appear shown as below
8
if Amcap imagefails to appear，please select the preview below
“Options “shown as follows :
Device description
Go to “Devices”and select “A4 Tech USB PC Camera H”.
(Refer to below diagram)
9
Properties page configuration
Go to “Options”, then select “Video Capture Filter…”(Refer to
below diagram)
The Properties configuration page will pop-up as below:
