TOTAL HOT WATER SUPPLY SYSTEM USING VF™BOILERS

With Ac-U-Temp, A. O. Smith makes it as easy as possible to install a complete packaged hot

water supply system, combining high-efﬁciency VF™boilers with storage tanks up to 10,000

gallons. Each Ac-U-Temp system is custom-made to your speciﬁcations for each application

and shipped fully assembled, pre-piped and pre-wired. All the installer has to do is make the

ﬂue, gas, electrical and water connections, so installations are easy.

Consult your A. O. Smith representative for more information

on the wide range of available boiler/storage tank combinations

using the Ac-U-Temp system.

VF MODULATING BOILERS

UP TO 88% THERMAL EFFICIENCY

•A. O. Smith’s most efﬁcient hot water supply boilers

•Available inputs: 500,000, 750,000, 1,000,000 BTUs

•Flexible conventional-vent or sealed-combustion

direct-vent options

•For complete information on VF Hot Water Supply

Boilers, consult VF Speciﬁcation Sheet

GLASS-LINED STORAGE TANKS

•Standardcapacities up to 1,000 gallons

•Custom tanks available up to 10,000 gallons

•Standard tanks are factory jacketed and insulated –

bareuninsulated tanks also available

•Optional cement or epoxy-lined tanks available

•For complete information on standard and optional

tanks, consult tank Speciﬁcation Sheet

MULTIPLE BOILER SYSTEMS

•Ac-U-Temp systems can be designed with multiple

boilers to provide 50% to 100% back-up

•Multi-boiler systems can be sequenced to meet

changing system demands

•Sequenced multi-boiler systems with small storage

tanks are ideal for applications with relatively constant

hot water demands

•Optional sequenced control panel available

MULTIPLE TANK SYSTEMS

•Ac-U-Temp systems can be designed with multiple

tanks for applications with low ceiling heights or other

unique installation challenges

VWT-500

through

VWT-1000

April 2007

Page 1 of 4

ACMSS00507

Page 2 of 4

MODEL

NUMBER INCHES

DIMENSIONS

LENGTH

(C2) WIDTH

(C1) HEIGHT

(D) INLET SIZE GAS INLET

VW-500 Inches 30 30 60 2 1

CM 76.2 76.2 152.4 5.1 2.5

VW-750 Inches 30 30 66 2 1

CM76.2 76.2 167.6 5.1 2.5

VW-1000 Inches 3030752 1

CM 76.2 76.2 190.5 5.1 2.5

MODEL

NUMBER INCHES

DIMENSIONS

HEIGHT

(A) WIDTH

(B1) INLET

HEIGHT (B2) INLET SIZE OUTLET SIZE

AJ-80A Inches 66-1/4 28 15 2 2

CM 168.3 71.1 38.1 5.1 5.1

AJV-120A Inches 66 28 15 2 2

CM 167.6 76.2 167.6 5.1 2.5

AJV-140A Inches 88 30 19-1/2 2-1/2 2-1/2

CM 223.5 76.2 49.5 6.4 6.4

AJV-200A Inches 84 36 21 2-1/2 2-1/2

CM 213.4 91.4 53.3 6.4 6.4

AJV-250A Inches 96 36 21 2-1/2 2-1/2

CM 243.8 91.4 53.3 6.4 6.4

AJV-350A Inches 99 42 22-1/2 2-1/2 2-1/2

CM 251.5 106.7 57.2 6.4 6.4

AJV-400A Inches 92 42 22-1/2 2-1/2 2-1/2

CM 233.7 106.7 57.2 6.4 6.4

AJV-500TA Inches 101 48 24 3 3

CM 256.5 121.9 61 6.4 6.4

AJV-500A Inches 86 54 25-1/5 3 3

CM 218.4 137.2 64.8 6.4 6.4

AJV-750A Inches 118 54 24-1/2 3 3

CM 299.7 137.2 62.2 6.4 6.4

AJV-1000A Inches 150 54 25-1/2 3 3

CM 381 137.2 64.8 6.4 6.4

BOILER DATA

VERTICAL STORAGE VESSEL DATA

MODEL

NUMBER INCHES

DIMENSIONS

LENGTH

(A1) OUTLET DIM

(A2) WIDTH

(B1) HEIGHT

(B2) INLET

HEIGHT (B3) INLET

SIZE OUTLET

SIZE

AJH-200 Inches 77 59 36 41 11 2-1/2 2-1/2

CM 195.6 149.9 91.4 104.1 27.9 6.4 6.4

AJH-350 Inches 93 72-1/2 42 47 14 2-1/2 2-1/2

CM 236.2 184.2 106.7 119.4 35.6 6.4 6.4

AJH-350 Inches 99 72-1/2 42 47 14 3 3

CM 251.5 184.2 106.7 119.4 35.6 7.6 7.6

AJH-350 Inches 94 73 48 53 14 3 3

CM 238.8 185.4 121.9 134.6 35.6 7.6 7.6

AJH-350 Inches 79 56-1/2 54 59 14 3 3

CM 200.7 143.5 137.2 149.9 35.6 7.6 7.6

AJH-350 Inches 111 88-1/2 54 59 14 3 3

CM 281.9 224.8 137.2 149.9 35.6 7.6 7.6

AJH-350 Inches 143 120-1/2 54 59 14 3 3

CM 363.2 306.1 137.2 149.9 35.6 7.6 7.6

HORIZONTAL STORAGE VESSEL DATA

Commercial Gas Boilers

ACMSS00507

Page 3 of 4

The above are standard available conﬁgurations.Custom conﬁgurations designed to your speciﬁcations are available.Contact your local

A.O.Smith Sales Representative for assistance.

TOTAL HOT WATER SUPPLY SYSTEM USING VF™BOILERS

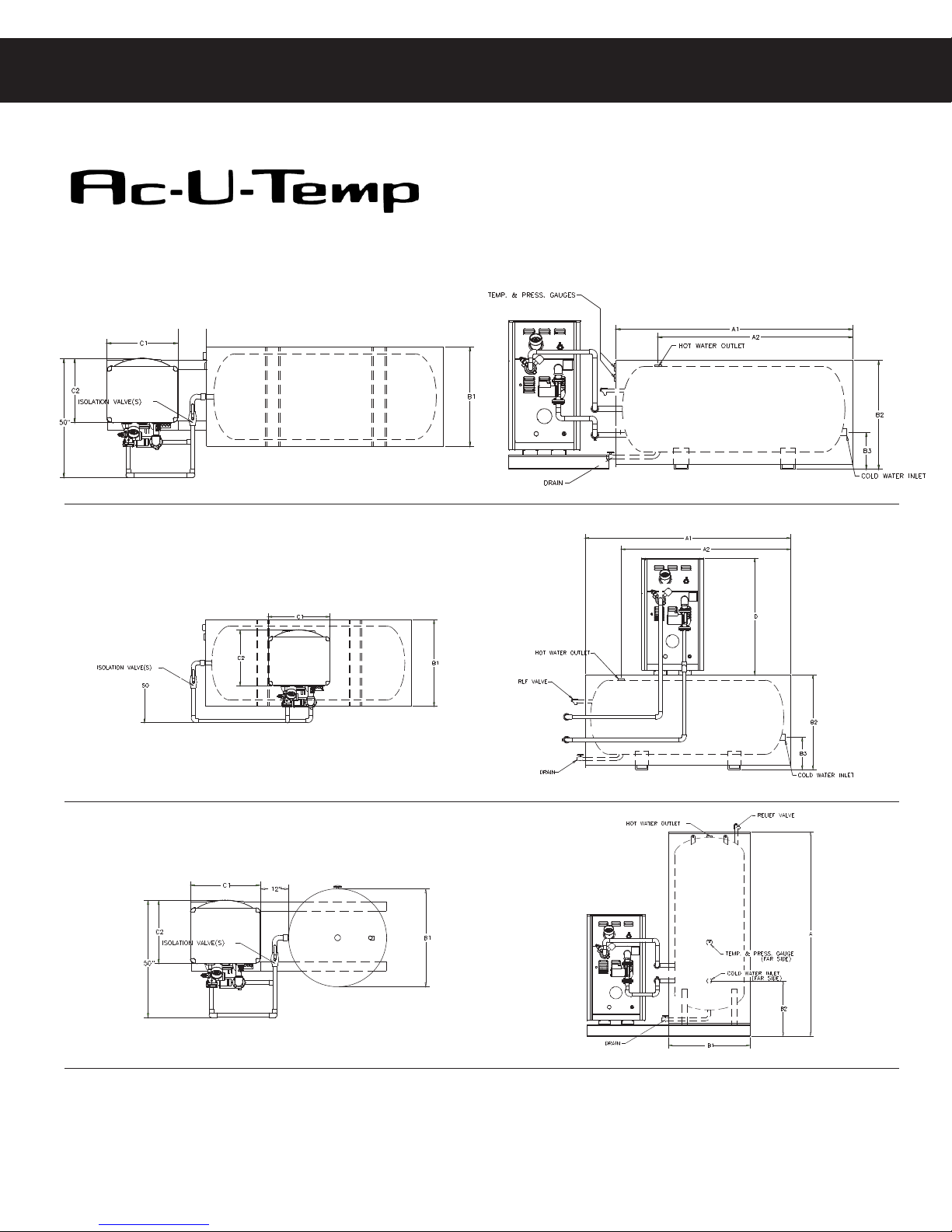

Conﬁguration H

Conﬁguration P

Conﬁguration V

Commercial Gas Boilers

ACMSS00507

Page 4 of 4

DUAL-ENERGY SOURCE OPTION

•Storage tanks can be speciﬁed with an optional

heat exchanger for winter heating using on-site

hydronic heating boiler(s), switching to domestic

hot water boiler(s) for summertime operation

•Water-to-water or steam-to-water heat exchangers

available in single-wall or double-wall design

•Complete control packages can be factory-installed

for “hook up and run” simplicity

PROFESSIONAL START-UP SERVICE FURNISHED

•Assures optimum performance for each installation

MEETS ASHRAE/IESNA 90.1-1999

5 YEAR VF BOILER HEATEXCHANGER WARRANTY

5YEAR STORAGE TANK WARRANTY

•For complete information, consult written warranty or

contact A. O. Smith

OTHER FEATURES:

ASME TEMPERATURE AND PRESSURE RELIEF

VALVE #125

TANK TEMPERATURE SENSOR AND

THERMOMETER

ISOLATION VALVES (BALL VALVES)

125 PSI TANK WORKING PRESSURE

ALL-BRONZE CIRCULATING PUMP

LARGE SYSTEMS SHIPPED WITH SPLIT/

BOLT TOGETHER SKIDS FOR EASE OF

SHIPPING AND INSTALLATION

OTHER OPTIONS:

150 AND 160 PSI TANK WORKING PRESSURES

11˝ X 15˝ MANHOLES

Tank Type (A=Skid Mounted, J=Jacketed, V=Vertical, H= Horizontal)

TOTAL HOT WATER SUPPLY SYSTEM USING VF™BOILERS

SUGGESTED SPECIFICATION

Hot Water Supply System - shall consist of A. O. SMITH Ac-U-Temp factory assembled unit Model No. __________. System

shall be completely factory assembled and shall include the A.O. SMITH VF hot water supply boiler(s), with input

of ____ BTU/H for (natural/propane) ____ gas and recovery capacity of _______ gph, and the A.O. SMITH glass-lined

(cement/epoxy) hot water storage tank with ____ gallons capacity for ________ mounting (vertical-horizontal). System

shall include properly sized circulator, inlet and outlet thermometers, tank temperature thermometer, relief valve, and tank

temperaturecontrol. Entire system shall be rigidly mounted on welded steel skid base and shipped assembled to job site

(Ac-U-Temp systems employing tanks too large for shipping as an assembled unit, will be shipped with the tank mounted

on a split bolt-together skid). See VF Boiler Speciﬁcation Sheet for boiler details. See A.O.Smith Storage Speciﬁcation

sheets for storage tank details.

Hot water supply boiler(s) and storage tank(s) shall have a 5 year limited warranty against corrosion as outlined in the

written warranty

500 Tennessee Waltz Pkwy, Ashland City, TN 37015

For Technical Information and Automated Fax Service,call 800-527-1953.

A.O.Smithreserves theright tomake productchanges orimprovements withoutprior notice.

www.hotwater.com
