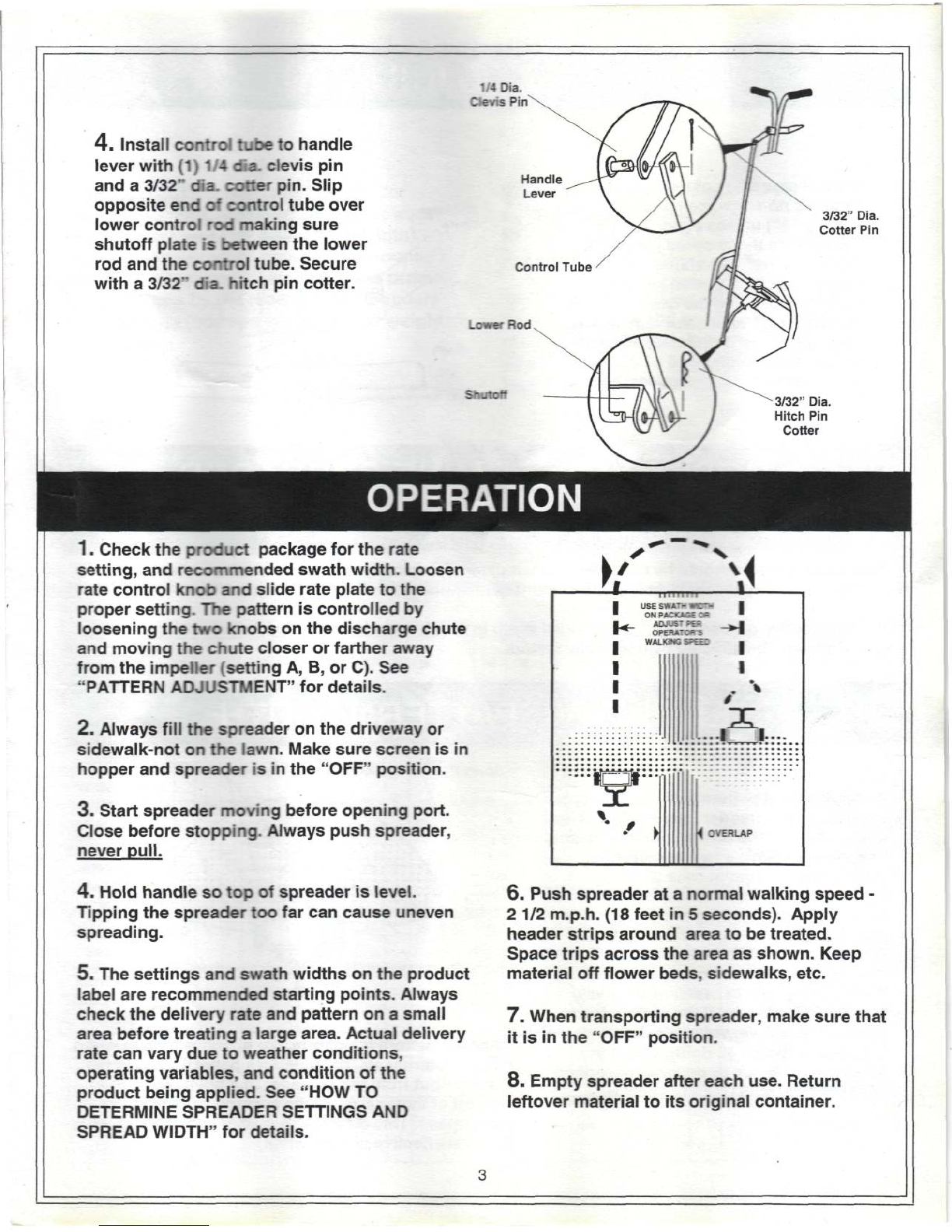

1/4
Dia.
Clevis
Pin
4.
Install
controltube
to
handle
leverwith
(1)1/4
cSa.
clevis
pin
and
a
3/32"
dia.
cotter
pin.
Slip
opposite
endof
control
tubeover
lower
control
rod
makingsure
shutoffplate
is
between
the
lower
rod
andthe
control
tube.Secure
with
a
3/32"
dia.
hitch
pin
cotter.
5--::-
Handle
Lever
Control
Tube
Rod
3/32"
Dia.
Cotter
Pin
3/32"
Dia.
Hitch
Pin
Cotter
OPERATION
1.
Check
the
productpackage
forthe
rate
setting,
and
recommendedswath
width.
Loosen
rate
controlknob
and
sliderateplate
tothe
proper
setting.
The
pattern
is
controlled
by
loosening
thetwo
knobs
onthe
dischargechute
and
moving
the
chutecloser
or
farther
away
from
the
impeller
(setting
A,B,orC).See
"PATTERN
ADJUSTMENT"
for
details.
2.
Always
fill
the
spreader
onthe
driveway
or
sidewalk-not
onthe
lawn.Makesurescreen
isin
hopper
and
spreader
isinthe
"OFF"position.
3.
Startspreadermovingbeforeopeningport.
Close
beforestopping.Alwayspushspreader,
never
pull.
4.
Hold
handle
sotopof
spreader
is
level.
Tipping
the
spreader
toofarcan
causeuneven
spreading.
5.The
settings
and
swath
widths
onthe
product
label
are
recommendedstartingpoints.
Always
check
the
delivery
rate
and
pattern
ona
small
area
beforetreating
a
largearea.Actualdelivery
rate
can
vary
dueto
weatherconditions,
operating
variables,
and
condition
ofthe
productbeingapplied.
See
"HOW
TO
DETERMINE
SPREADER
SETTINGS
AND
SPREAD
WIDTH"
for
details.
I
USE
SWA
1
ON
PAC«
m~,
ADJUS
l^~
OP6FU
•
WALKIM
1
1
1
-
«r--
1
i:-=
:-
TPBi
^|
-:=
=
~^
ib^faa.'
1
1
LA.
4
OVERLAP
6.
Pushspreader
ata
normal
walking
speed
-
2
1/2
m.p.h.
(18
feet
in5
seconds).Apply
header
strips
around
area
tobe
treated.
Space
tripsacross
the
area
as
shown.Keep
material
off
flowerbeds,sidewalks,
etc.
7.
When
transporting
spreader,makesurethat
itisinthe
"OFF"position.
8.
Emptyspreaderaftereach
use.
Return
leftovermaterial
toits
originalcontainer.
