4x4 TOUGH 150L Manuel utilisateur

150L AIR

COMPRESSOR

USER GUIDE

CONTENTS

YEAR WARRANTY

AFTER SALES SUPPORT

MODEL: 15-39553 PRODUCT CODE:39553 08/2015

AUS 1300 883 104

1 x Air compressor

1 x Ination line

1 x Plastic storage case

1 x Tyre deator

1 x Pack of adaptor nozzles

1 x User guide

1 x Warranty card

www.4x4tough.com.au

[email protected]

WARRANTY DETAILS ................................................................................................ 3

REPAIR & REF. GOODS OR PARTS NOTICE ........................................................ 4

FEATURES ................................................................................................................ 5

OPERATING WARNING ........................................................................................ 6

WARNING ................................................................................................................ 6

BEFORE FIRST USE ................................................................................................ 7

OVERHEATING PROTECTION CIRCUIT ................................................................ 7

HARD MOUNTING ................................................................................................ 7

OPERATION ................................................................................................................ 8

OPERATING HINTS ................................................................................................ 8

TROUBLESHOOTING ................................................................................................ 9

MAINTENANCE AND CLEANING ........................................................................ 9

CAUTION ................................................................................................................ 9

SPECIFICATIONS ........................................................................................................ 9

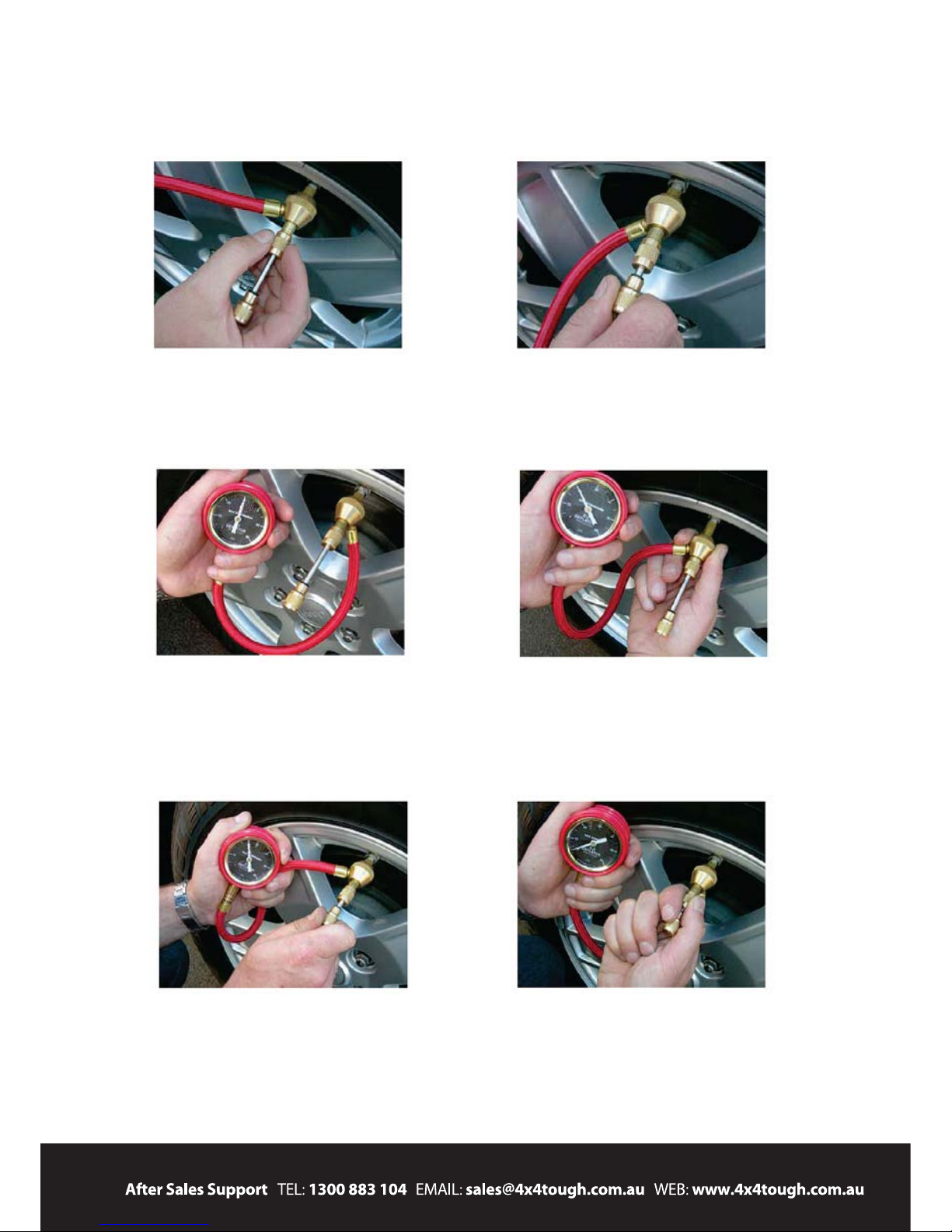

TYRE DEFLATOR - INSTRUCTIONS ........................................................................10

NOTES ........................................................................................................................11

CONTENTS

150L AIR COMPRESSOR

The product is guaranteed to be free from defects in workmanship and parts for a

period of 12 months from the date of purchase. Defects that occur within this

warranty period, under normal use and care, will be repaired, replaced or

refunded at our discretion. The benets oered by this warranty are in addition to

all rights and remedies in respect of the product that the consumer has under the

Competition and Consumer Act 2010 and similar state and territory laws.

Our goods come with guarantees that cannot be excluded under the Australian

Consumer Law. You are entitled to a replacement or refund for a major failure and

for compensation for any other reasonably foreseeable loss or damage. You are

also entitled to have the goods repaired or replaced if the goods fail to be of

acceptable quality and the failure does not amount to a major failure.

Warranty Details

After Sales Support

Telephone: 1300 883 104

Support: [email protected]

YEAR WARRANTY

150L AIR COMPRESSOR

Unfortunately, from time to time, faulty products are manufactured which need

to be returned to the Supplier for repair. Please be aware that if your product is

capable of retaining user-generated data (such as les stored on a computer

hard drive, telephone numbers stored on a mobile telephone, songs stored on a

portable media player, games saved on a games console or les stored on a USB

memory stick) during the process of repair, some or all your stored data may be lost.

We recommend you save this data elsewhere prior to sending the product

for repair.

You should also be aware that rather than repairing goods, we may replace them with

refurbished goods of the same type or use refurbished parts in the repair process.

Please be assured though, refurbished parts or replacements are only used

where they meet ALDI’s stringent quality specications.

If at any time you feel your repair is being handled unsatisfactorily, you may escalate

your complaint. Please telephone us on 1300 883 104 or write to us at:

Natural Product Solutions Pty Ltd

Unit 3 60 Box Road, TAREN POINT 2229

Telephone: 1300 883 104

Email: [email protected]

Website: www.4x4tough.com.au

Repair and Refurbished

Goods or Parts Notice

After Sales Support

Telephone: 1300 883 104

Support: [email protected]

YEAR WARRANTY

FEATURES

Vented

carry handle

12 Volt motor

Air filter cap

Fibre washer

Filter

Machine tooled

carbon steel

cylinder

Self-cooling

aluminium

cylinder

head

Precision balanced

high compression

piston

Sand tray

Please read instructions carefully before use. Unless directions

are followed physical injury or property damage may result.

Save these instructions for future reference.

WARNING

• Always wear approved safety glasses with side shields when operating.

Compressed air and particulate matter can cause eye and soft

tissue damage. Keep air stream away from skin and eyes.

• RISK OF BURNS:Always wear gloves. Some exposed parts may

become hot during use.

• RISK TO BREATHING: This compressor is not designed for and never

should be used as a source of breathable air.

• RISK OF ELECTRICAL SHOCK: This compressor is for use in dry

conditions only.

• RISK OF FALLING: This compressor will produce vibrations which

may cause the product to move along the surface. Only operate at

ground level.

• RISK OF FIRE: This unit will become hot during operation. Allow to

cool before storing.

• RISK OF BURSTING: Use only accessories rated for 90psi. Always

follow tyre manufacturer’s recommended ination instructions. In

most cases they can be located on the side wall of the tyre. If you

are unsure, contact the manufacturer.

• DO NOT MODIFY: Never drill, modify or attempt to repair the unit.

There are no user serviceable parts inside.

• SAFE HANDLING: Never carry the unit by the hose or power cord.

OPERATING WARNING

This unit is designed to supply continuous ow of air. Never dead end

the hose or use accessories that stop the free ow of air. Damage to the

unit can occur.

• This product should never be left unattended during use.

• Never allow children to operate this compressor.

• This compressor may become HOT during operation. Do not touch the

compressor with bare hands other than the battery clamps or the On/O

switch during and immediately after use.

• Do not use this product near open ames or ammable fumes.

• Use only in a well ventilated area

BEFORE FIRST USE

• Turn the compressor on before connecting to the tyre in order to

reduce stress on the motor.

• Use for a maximum 20 minutes then allow to cool for 20 minutes.

• To prevent damage to the air hose tting, remove the inator from the

tyre before disconnecting the hose from the compressor.

• The black power clip to a Negative ground point. Do not connect the

Black clip directly to the battery.

• Test the connections by switching the compressor to “on”. Air will

begin to ow.

• Connect the air hose by screwing the brass inator onto the tyre valve

stem. Only nger tighten the inator. Do not use any tool as you may

damage the inator or the valve stem.

• Watch the gauge closely, switch the unit o or remove the inator from

the tyre when the manufacturer’s recommended pressure has been achieved.

• We recommend that you use a second tyre pressure gauge to verify

your tyres are inated to the proper pressure.

• Stopping and restarting at high pressure can overload and blow the

in-line fuse.

At higher ination pressures, start the unit and then attach to the valve

stem. If you stop the unit and need to resume ination, remove the

inator tip from the tyre valve, start the unit and reattach with the unit

running.

• Allow the compressor to cool and place neatly in the carry bag with the

clips securely fastened to the loops on the carry bag. To prevent

damage to the unit during storage repack in the original colour box.

• Store the unit in a dry location.

• Remember to replace the valve cover on the stem.

OVERHEATING PROTECTION CIRCUIT

The unit is equipped with an automatic protection device. In the event the unit

reaches an unsafe operating temperature, a protection circuit will cut power to

prevent damage to the unit. If the protection circuit activates, immediately

disconnect the unit from the power source and allow it to cool.

The unit will cool in approximately 15 minutes, depending on environmental

conditions. The protection circuit will automatically reset itself when the

temperature returns to a safe operating level. High altitude and certain air

temperatures can negatively aect the unit’s performance.

HARD MOUNTING

This unit may be hard mounted in a dry location. Be sure to use proper

size wiring for your application. When using this unit with an air tank,

you must install a back-ow preventing device to prevent damage to

the cylinder head air valve.

OPERATION

• When operating the unit, be sure to be in a safe location o the road

and away from trac.

• Unpack the unit and inspect for damage. Completely unwrap the

power cord.

• Make sure that vehicle engine is running and place the unit on a dry

level surface.

• Connect the air supply hose to the unit using the quick connect tting.

(See Picture 1. below)

1. Slide retaining snap ring back.

2. Slide the ttings together rmly.

3. While holding ttings together rmly slide the outer ring forward to lock.

• Connect the red alligator clamp to a positive 12 volt source. Connect

the black alligator clamp to a negative ground point. Do not connect

the black alligator clamp directly to the battery.

• Test the connections by switching the compressor to “on”. Air will

begin to ow.

• Connect the air hose by screwing the brass inator onto the tyre valve

stem. Only nger tighten the inator. Do not use any tool as you may

damage the inator or the valve stem.

• Watch the gauge closely and switch the unit o or remove the inator

from the tyre when the manufacturer’s recommended pressure has

been achieved.

• Allow the compressor to cool before replacing neatly into the plastic

storage case with the alligator clamps and adaptors secured into

cavaties provided.

• Store the unit in a dry location.

• Remember to replace the valve cap onto the stem of your valve.

Air hose connection

1. 2. 3.

Picture 1.

OPERATING HINTS

• Turn the compressor on before connecting to the tyre in order to

reduce stress on the motor.

• Use for a maximum of 20 minutes then allow to cool for 20 minutes.

• To prevent damage to the air hose tting, remove the inator from

the tyre before disconnecting the hose from the compressor.

SPECIFCATIONS

Motor: 12 Volt DC

Fuse: 45 Amp

Maximum re-start pressure: 90 psi

Maximum continuous operating time is 20 minutes

This air compressor is designed to run on a 12 Volt DC battery

MAINTENANCE AND CLEANING

We recommend that only qualied persons perform maintenance and

servicing on the air compressor.

NOTE: Always unplug or shut down your compressor before attempting

any type of maintenance. Wait for compressor to cool before servicing.

Ensure the unit has been switched o and has cooled down completely

before cleaning.

• Never immurse this unit in water.

• Simply wipe down with a soft cloth.

• IF THE UNIT STOPS

DURING OPERATION

1. Check the battery condition. Low voltage can trip

the circuit breaker or trigger the protection feature.

2. Check the circuit breaker, reset if necessary.

3. The unit is equipped with an automatic protection

device. In the event the unit reaches an unsafe

operating temperature, a protection circuit will cut

power to prevent damage to the unit. If the

protection circuit activates, immediately disconnect

the unit from the power source and allow it to cool.

TROUBLESHOOTING

CAUTION

• Small items will inate quickly and can easily be damaged. Pay

special attention to bicycle tyres. They inate very fast and can

rupture. Be prepared to stop the unit quickly when manufacturer’s

recommended ination pressure is reached.

• Use this compressor with 12 Volt DC systems only.

• Keep the vehicle engine running while the compressor is working.

TYRE DEFLATOR - Instructions

6. Remove the unit by turning the valve

stem adaptor in an anticlockwise direction.

Ensure a valve cap is placed on the stem to

prevent ingress of debris.

5. When the desired pressure is reached,

push the valve core remover in and turn

clockwise until the valve seats rmly.

Note: Do not over tighten the valve core.

1. With the slide valve pushed

forward, thread the valve stem

adaptor on to the valve stem in a

clockwise direction.

2. Push the valve core remover forward

until it engages the valve and turn

anti-clockwise to remove valve.

4. Pull out on the slide valve to

release air. Push in on the slide

valve to stop air and check the

pressure. Note, gauge will not show

correct pressure whilst deating.

3. When the valve core is removed it

will push the core remover out and the

gauge will read the tyre pressure.

Table des matières

Autres manuels 4x4 TOUGH Compresseur d'air

4x4 TOUGH

4x4 TOUGH 17-39555 Manuel utilisateur

Manuels Compresseur d'air populaires d'autres marques

Sparmax

Sparmax DC-25XR Manuel utilisateur

KAESER

KAESER M122 Manuel utilisateur

GMC

GMC GAC1500 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Air Compressor Manuel utilisateur

Fini

Fini F3GST2TK Manuel utilisateur

Industrial Air

Industrial Air CP1580325 Manuel de programmation

Campbell Hausfeld

Campbell Hausfeld RP3300 Guide de démarrage rapide

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuel utilisateur

Hitachi

Hitachi EC99S Manuel de l'opérateur

Parkside

Parkside PKO 270 A1 Manuel utilisateur

Sullair

Sullair 185 Manuel utilisateur

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuel utilisateur

Ferm

Ferm CRM1046 Manuel utilisateur

BE AC153 Manuel utilisateur

RIDGID

RIDGID OF25150A Manuel utilisateur

Johnson Controls

Johnson Controls QUANTUM LX Manuel

Sears

Sears Craftsman 919.167463 Manuel utilisateur

Ring Automotive

Ring Automotive RAC700 Manuel utilisateur
