3S Vision N9071 Manuel utilisateur
N9071Mini Dome Network Camera 2 Megapixel + H.264
- 2 -
TABLE OF CONTENT
INTRODUCTION .......................................................................................................................................................................... 4
FEATURES.......................................................................................................................................................................................... 4
PACKAGE CONTENTS............................................................................................................................................................................5
SYSTEM REQUIREMENTS ............................................................................................................................................................ 6
VIEW OF N9071 MINI DOME NETWORK CAMERA ...................................................................................................................... 7
Outer View ................................................................................................................................................................................ 7
Inner View ................................................................................................................................................................................. 7
MAKING CONNECTIONS ............................................................................................................................................................. 9
Power ........................................................................................................................................................................................9
Lan........................................................................................................................................................................................... 10
HARDWARE INSTALLATION....................................................................................................................................................... 11
MOUNTING ..................................................................................................................................................................................... 11
ADJUST THE LENS FOCUS RANGE .......................................................................................................................................................... 13
FACTORY RESET ................................................................................................................................................................................ 14
GETTING STARTED............................................................................................................................................................................. 15
SOFTWARE INSTALLATION ........................................................................................................................................................ 16
READY TO USE .......................................................................................................................................................................... 18
ACCESS TO THE IP CAMERA................................................................................................................................................................. 18
VIEW OF CAMERA MAIN PAGE ................................................................................................................................................. 20
LIVE VIEW .......................................................................................................................................................................................20
3Svision Logo...........................................................................................................................................................................20
Product Name ......................................................................................................................................................................... 21
Mode ....................................................................................................................................................................................... 21
Language................................................................................................................................................................................. 22
Video Format ..........................................................................................................................................................................23
View Size .................................................................................................................................................................................24
Streaming................................................................................................................................................................................ 25
Color ........................................................................................................................................................................................ 26
Brightness............................................................................................................................................................................................... 27
Contrast .................................................................................................................................................................................................. 27
Saturation............................................................................................................................................................................................... 27
Set to default .......................................................................................................................................................................................... 27
Alert.........................................................................................................................................................................................28
Alert Message .........................................................................................................................................................................29
Alert Message Text ................................................................................................................................................................................. 29
Disable.................................................................................................................................................................................................... 30
Alert Snapshot ........................................................................................................................................................................................ 30
Clear ....................................................................................................................................................................................................... 30
Shortcuts ................................................................................................................................................................................. 31
+ZOOM IN............................................................................................................................................................................................... 31
-ZOOM OUT ............................................................................................................................................................................................ 32
Original Size............................................................................................................................................................................................ 32
Full Screen............................................................................................................................................................................................... 33
Jitter Time............................................................................................................................................................................................... 33
Record..................................................................................................................................................................................................... 34
Snapshot................................................................................................................................................................................................. 35
Version.................................................................................................................................................................................................... 35
Shortcut Bar ............................................................................................................................................................................36
Microphone ............................................................................................................................................................................................ 36
Buzzer ..................................................................................................................................................................................................... 36
Path ........................................................................................................................................................................................................ 37
N9071Mini Dome Network Camera 2 Megapixel + H.264
- 3 -
Snapshot................................................................................................................................................................................................. 39
Record..................................................................................................................................................................................................... 39
Shortcut Bar Message............................................................................................................................................................................. 39
SETTING USER PREFERENCES............................................................................................................................................................... 41
Basic Setting............................................................................................................................................................................42
System .................................................................................................................................................................................................... 42
System Setting................................................................................................................................................................................... 42
System Log ........................................................................................................................................................................................ 43
Video/Image........................................................................................................................................................................................... 44
Video................................................................................................................................................................................................. 44
PreProc/Overlay ................................................................................................................................................................................ 45
Sensor ............................................................................................................................................................................................... 46
Audio ...................................................................................................................................................................................................... 47
User ........................................................................................................................................................................................................ 48
Network.................................................................................................................................................................................................. 51
Network Setting ................................................................................................................................................................................ 51
Stream Setting................................................................................................................................................................................... 52
PPPoE Setting (Dial-up Networking Setting)...................................................................................................................................... 53
DDNS (Dynamic Domain Name Server)............................................................................................................................................. 55
UPnP (Universal Plug and Play) ......................................................................................................................................................... 56
SMTP (Mail Server Setting)................................................................................................................................................................ 59
Samba ............................................................................................................................................................................................... 60
Notification ....................................................................................................................................................................................... 61
Multicast ........................................................................................................................................................................................... 62
Date/Time .............................................................................................................................................................................................. 63
IP Filter ................................................................................................................................................................................................... 64
Application Setting .................................................................................................................................................................. 65
Event....................................................................................................................................................................................................... 65
Event ................................................................................................................................................................................................. 66
Trigger ............................................................................................................................................................................................... 69
Event Servers (Upload Server) ........................................................................................................................................................... 71
Motion Detection.................................................................................................................................................................................... 73
Blind Detection ....................................................................................................................................................................................... 74
Privacy Mask........................................................................................................................................................................................... 75
Firmware upgrade .................................................................................................................................................................................. 77
Factory Default ....................................................................................................................................................................................... 80
Reboot .................................................................................................................................................................................................... 83
APPENDIX ................................................................................................................................................................................ 84
CHANGE THE INTERNET EXPLORER SETTINGS .......................................................................................................................................... 84
SET UP THE ROUTER SETTING WITH IP CAMERA ...................................................................................................................................... 85
DDNS APPLICATION.......................................................................................................................................................................... 86
How to apply and setup the DDNS service? ............................................................................................................................ 86
How to check if the DDNS service is successful?...................................................................................................................... 91
MOBILE APPLICATION ........................................................................................................................................................................ 92
Symbain System ...................................................................................................................................................................... 96
iPhone System ......................................................................................................................................................................... 99
SUPPORT THE CELLULAR /MOBILE PHONE LIST ....................................................................................................................................104
MULTICAST APPLICATION..................................................................................................................................................................105
H264 (Main) ..........................................................................................................................................................................108
H264 (Sub).............................................................................................................................................................................109
Motion JPEG .......................................................................................................................................................................... 110
TROUBLESHOOTING AND FAQS.......................................................................................................................................................... 113
N9071Mini Dome Network Camera 2 Megapixel + H.264
- 4 -
Introduction
N9071 is a Mini Dome Network Camera which is with H.264 high resolution.
Unlike traditional CCTV, it is built in the Web Server and Camera to provides users with
mechanism for the 24 hours security and it can deliver dual video streams simultaneously
(H.264 or Motion JPEG), allowing for optimization in image quality and bandwidth. It provides
a professional application to remote monitors (VMS)
It provides intelligent image detection system that can lock or target automatically and enlarge
the image when an abnormal object is detected.
It offers many application functions such as DDNS, samba, FTP, Mail, Multicast, motion
detection, privacy mask, event management and multi-level passwords for meeting user
variety level of security needs.
Features
N9071 can operate smoothly without the need to install additional software or hardware. All
you need is a PC that is equipped with IE browser (6.0 or above) and connect the Internet
Camera to the network to monitor the pre-set places remotely. It provides you with protection
of your personal, home, and property security.
2 Megapixel 1/3”CMOS Sensor in High Resolution
H.264/MJPEG Dual Codec & Streaming simultaneously
Up to UXGA (1600x1200@15fps) / WXGA (1280x720@30fps)
3D Noise Reduction
Microphone Embedded
3GPP Support
PoE Power Over Ethernet IEEE802.3af (Option)
N9071Mini Dome Network Camera 2 Megapixel + H.264
- 5 -

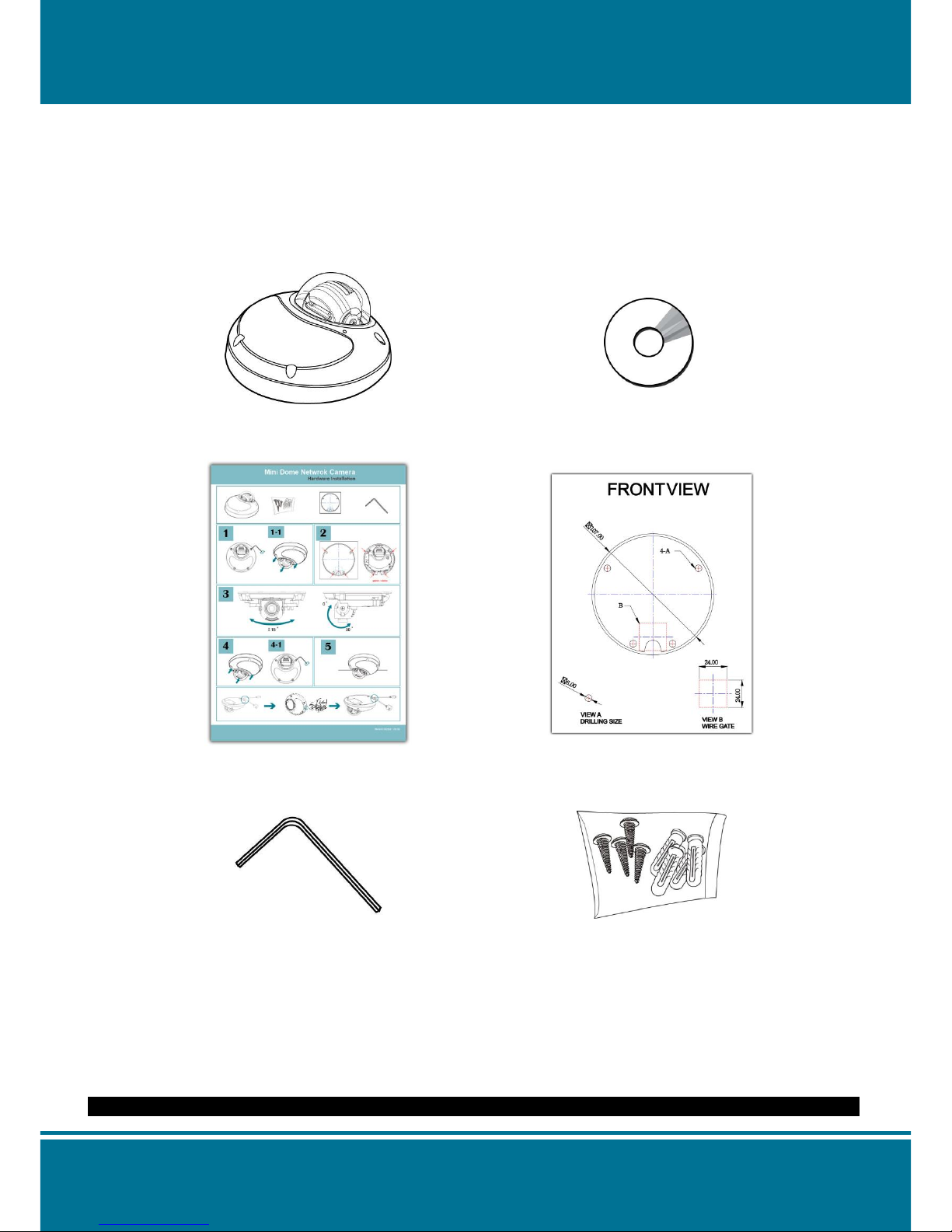

Package Contents
After unpacking, check that if all the following items have been included:
N9071 Mini Dome Network Camera
Installation CD (Manual & Software)
Installation Guide
Mounting position sheet
A hexagonal wrench 1.5mm
Screw Pack
Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work.
N9071Mini Dome Network Camera 2 Megapixel + H.264
- 6 -
System Requirements
Before installing N9071 Mini Dome Network Camera, please make sure your system has the
following recommended minimum hardware requirements.
Internet Environment
Ethernet 10/100M Ethernet
Monitor System Requirements
OS support Windows 2000, XP, Vista and 7
Browser support Internet Explorer 6.x or later
Hardware CPU: Pentium 4 2.4 GHz or later
Memory: 512 MB (1G MB recommended)
VGA card resolution: 1024x768 or higher
N9071Mini Dome Network Camera 2 Megapixel + H.264
- 7 -
View of N9071 Mini Dome Network Camera
Outer View
Inner View
Dome Cover
Top Cover
N9071Mini Dome Network Camera 2 Megapixel + H.264
- 8 -

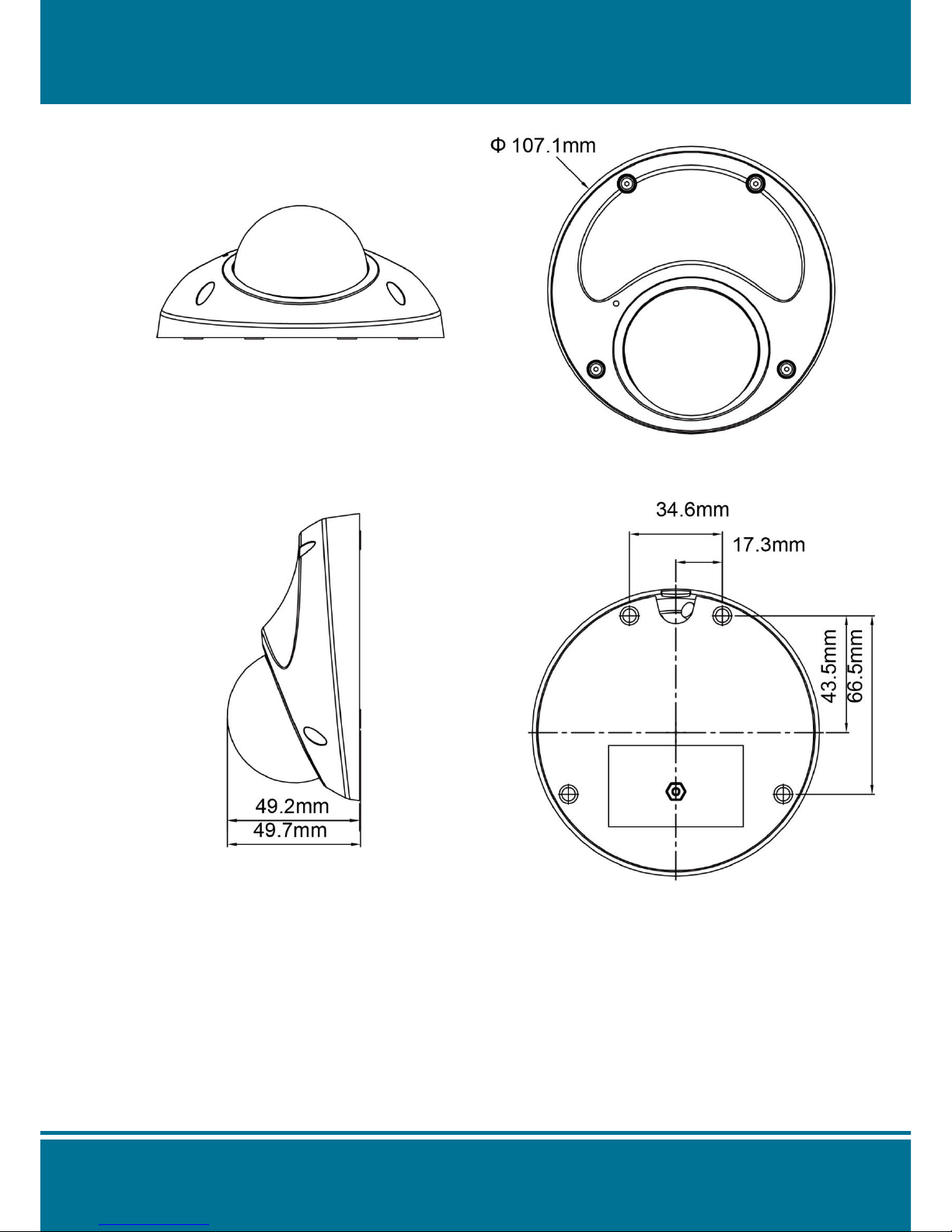

Dimension Diagram
N9071Mini Dome Network Camera 2 Megapixel + H.264
- 9 -
Making Connections
Before you connect your N9071, please make sure your PC has the LAN port available for
connect to the network.
Follow these instructions to connect the N9071 into your PC and LAN Port.
Power Connect to DC12V power.
LAN Connect to 10/100 RJ45 network.

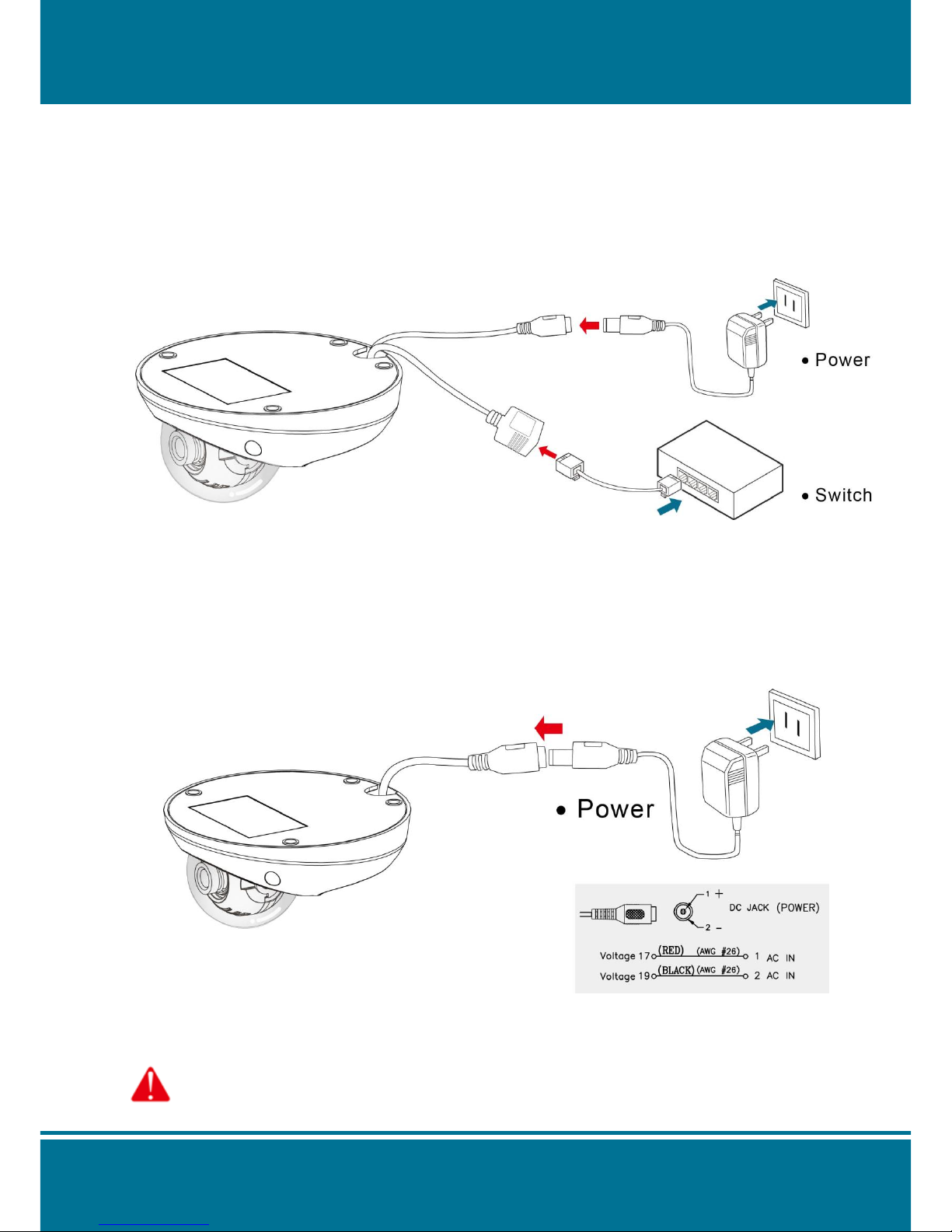

Power
Please connect N9071 Mini Dome Network Camera to the power supply from the DC/POE
Power Inlet. The power inlet of N9071 Mini Dome Network Camera is non-polarized, it can
automatically determine the type of the incoming current.
NOTE：
N9071 provide 2 different kind of power input including DC & POE.
Please make sure the accurate model to come with the purchasing.
Attention: Please take notice of connection of positive and negative electrode. Wrong connection will
damage the camera.
N9071Mini Dome Network Camera 2 Megapixel + H.264
- 10 -

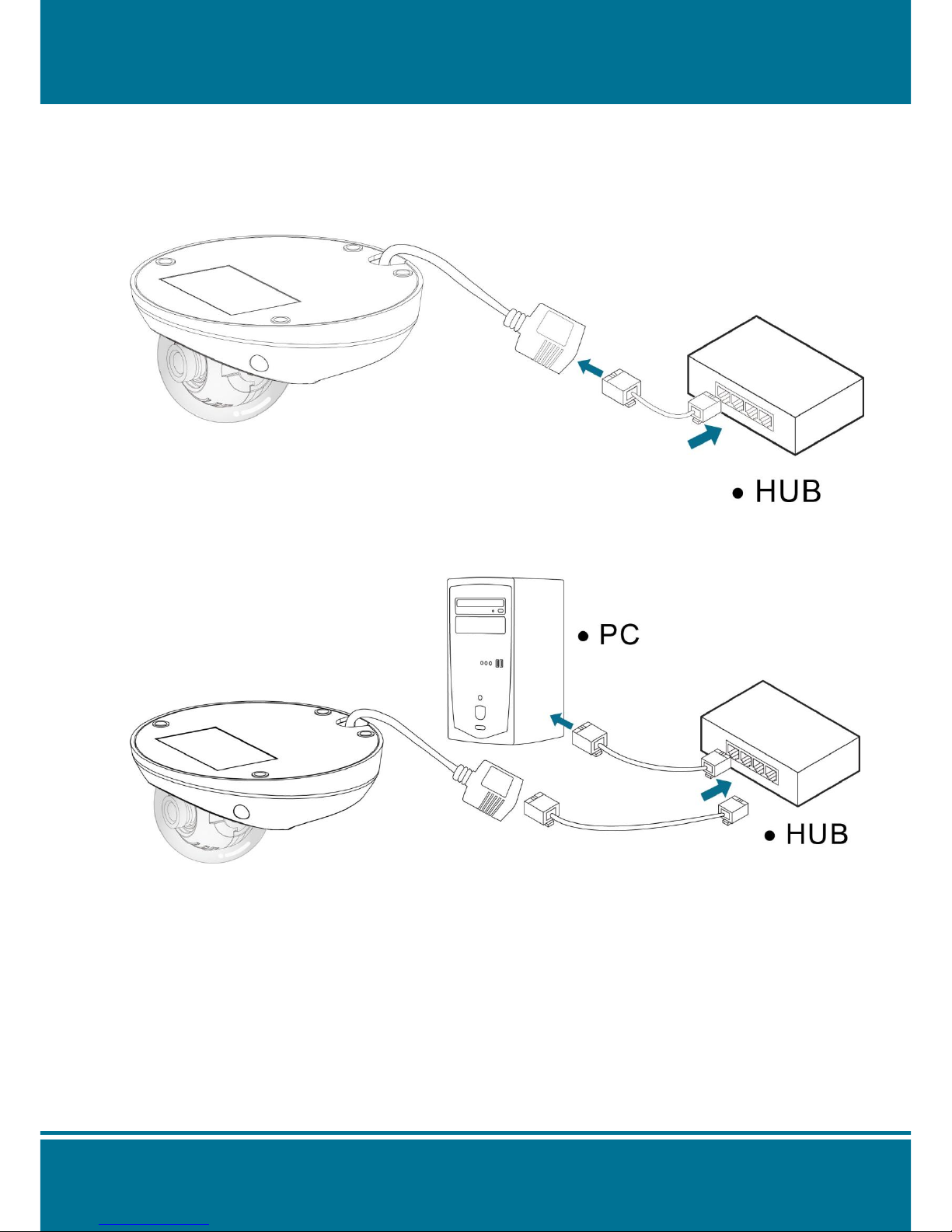

Lan
Connect to the Switch HUB.
Use a network cable and plug it into the LAN port of the N9071. Plug the other end of the cable
in the LAN port of the HUB.
Connect to the Switch HUB to PC.
Make sure your PC has a LAN port available for connect to the network.
