3M PPS HVLP Manuel utilisateur
Fan Control Knob: Open 2 rotations from closed position
Fluid Control Knob: Open 4 rotations from closed position
Air Flow control valve: 18-20 psi / 1.24 – 1.37 Bar
3M™ Performance Spray Gun HVLP – Gravity
Maximum Operating Pressure: 20 psi | 1.38 bar
Attach the supplied air ow valve to the bottom of the gun.
1
2Attach the nozzle to the spray gun with the locking collar fully connected. Note: It is easier to install
the nozzle while pulling the trigger backward toward the spray gun handle. To remove the nozzle
from the spray gun, reverse the process.
4Once the spray gun is properly assembled you may attach the air line.
3Attach 3M™ PPS™ Series 2.0 spray cup to nozzle. See back for directions.
2.0 1.8 1.6 1.4 1.3 1.2
Direct Gloss
Single Stage Top Coat
Wet on Wet Primer
High Viscosity Coatings
Sprayable Fillers
Primer Surfacer
Solvent Base Color
Primer Sealer
High Build Primer
Clearcoat
Waterborne Base Coat
Assembly Recommended Set Up Starting Points
Nozzle Recommendation
*Starting points only, refer to Paint Manufacture for recommendation on uid tip size
WARNING! Do not immerse spray gun or nozzles in cleaning solvents or gun washers. The maximum operational air pressure of this HVLP spray gun is 20 PSI.
For additional questions, contact your local 3M representative or: 1 877 MMM CARS (666-2277)
See manual for additional use and health and safety information.
© 3M 2020. 3M and PPS are trademarks of 3M Company, used under license in Canada. 60-4551-0863-3, 34-8725-5925-6
3M™ Performance Spray Gun HVLP – Gravity
Maximum Operating Pressure: 20 psi | 1.38 bar
Adding the 3M™PPS™Series 2.0 Spray Cup
System Components

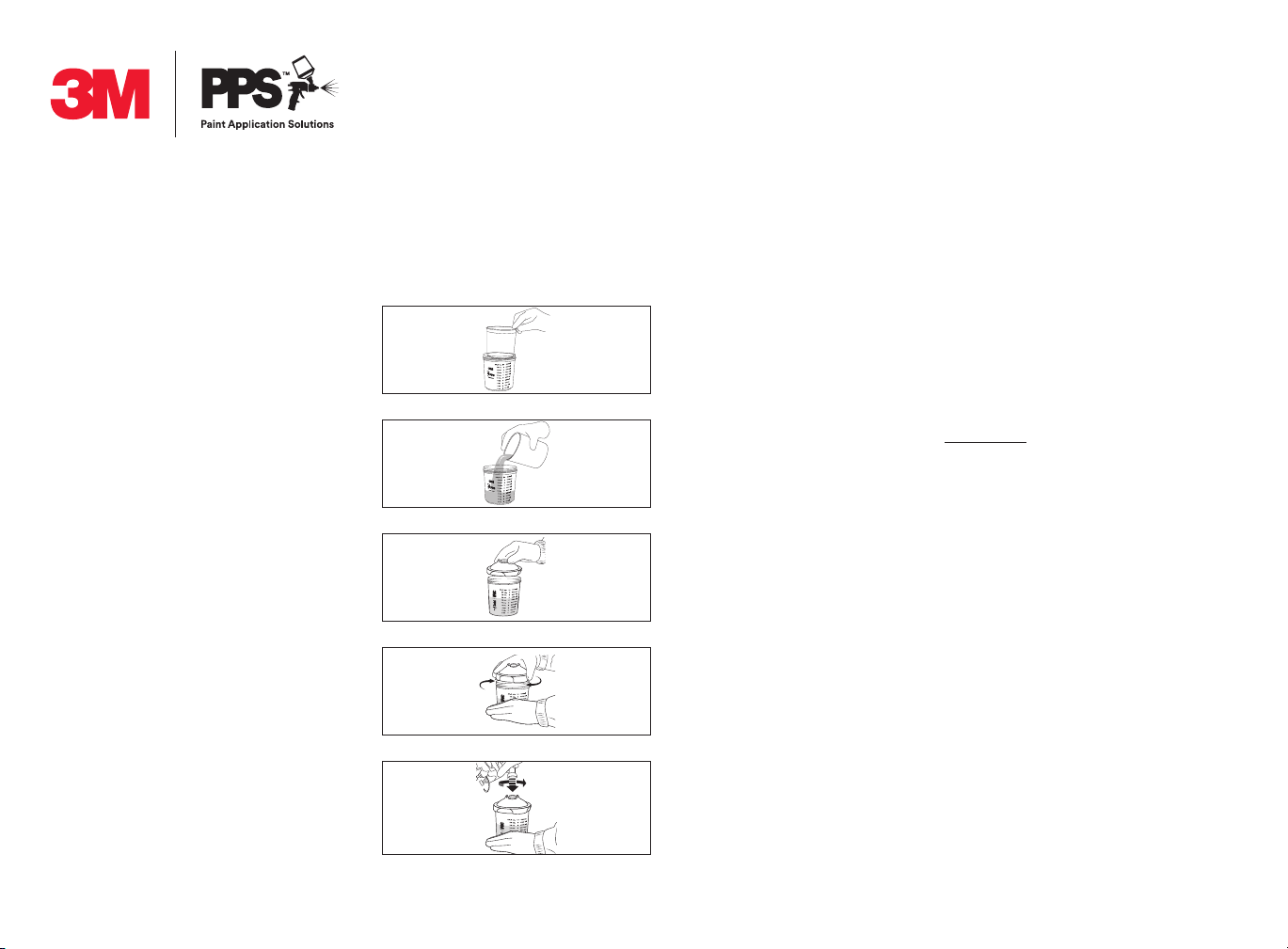

Insert the 3M™ PPS™ Series 2.0 Spray Cup System
disposable liner into the 3M™ PPS™ Series 2.0 Spray
Cup System mixing cup.
1
2Pour material to be sprayed into the 3M™ PPS™
Series 2.0 Spray Cup System mixing cup. Stir
as needed.
4Turn until tight. Insert 3M™ PPS™ Series 2.0
Spray Cup System sealing plug prior to shaking
or sealing.
5Attach spray gun to lled 3M™ PPS™ Series 2.0
Spray Cup System cup.
3Place the 3M™ PPS™ Series 2.0 Spray Cup
System lid with built-in lter on top of the
3M™ PPS™ mixing cup with liner and snap
into place.
For additional questions, contact your local 3M representative
or: 1 877 MMM CARS (666-2277)
See manual for additional use and safety information.
Cleaning
Once coating application is complete, disconnect the air hose from the gun.
1
2To drain back paint into cup - Invert cup, pull trigger, and tap the PPS™ cup on
a table 3 times.
4Store spray gun with a nozzle attached to protect the needle.
3Rinse out nozzle spout and ush cleaning solvent through the nozzle by
pulling trigger with uid tip pointed straight down into receptacle to collect
waste solvent.
