SERVICE BULLETIN
Scan 150 BF/FL installation guide
March 23, 2020
1. Preparing the Workstation:
Note: All the plugs and cables are labeled, connect accordingly!
1.1 Unpack the Dell Precision 5820 Tower XCT workstation (AC-PCC-DL5820T-01).
1.2 Connect the power supply cable to the workstation and the power outlet.
1.3 Connect the mouse and keyboard.
1.4 Connect the Display port mini Display port adapter.
1.5 Unpack the Fujitsu Display (AC-PCM-MON-27UHD).
1.6 Connect the power supply cable to the display and the power outlet.
1.7 Connect the Display port cable to the mini Display port adapter (see step 1.4).
1.8 Plug in both HASP local dongle units (AC-LIC-HAS-010000).
2. Assembling the Scanner Unit:
2.1 Unpack the scanner unit (SCAN 150 BF/FL - SI2FGHM0001009SOL1) and put it on a steady
surface (preferably a professional lab desk to eliminate vibration).
S o l u t i o n
resides in the
d e t a i l s
Certified company Address: No. 3 Öv Street, 1141 Phone: +36 1 211 21 30 info@3dhistech.com
ISO 13485:2003 / ISO 9001:2008 Budapest, HUNGARY Fax: +36 1 211 21 29 www.3dhistech.com
2
2.2 Connect the 2 Microscope USB cables to the scanner and the workstation according to the labels.
S o l u t i o n
resides in the
d e t a i l s
Certified company Address: No. 3 Öv Street, 1141 Phone: +36 1 211 21 30 info@3dhistech.com
ISO 13485:2003 / ISO 9001:2008 Budapest, HUNGARY Fax: +36 1 211 21 29 www.3dhistech.com
3
2.3 Mount the camera adapter (HP-SCA-ADPCM100) to the Grasshopper camera
(AC-SCO-GHM-0100).
S o l u t i o n
resides in the
d e t a i l s
Certified company Address: No. 3 Öv Street, 1141 Phone: +36 1 211 21 30 info@3dhistech.com
ISO 13485:2003 / ISO 9001:2008 Budapest, HUNGARY Fax: +36 1 211 21 29 www.3dhistech.com
4
2.4 Remove the protective cover from the camera tube and mount the assembled camera + adapter to
the scanner.
S o l u t i o n
resides in the
d e t a i l s
Certified company Address: No. 3 Öv Street, 1141 Phone: +36 1 211 21 30 info@3dhistech.com
ISO 13485:2003 / ISO 9001:2008 Budapest, HUNGARY Fax: +36 1 211 21 29 www.3dhistech.com
5
Tip: try to mount the camera in an angle close to the one in the image below this will make the
camera rotation setting easier:
S o l u t i o n
resides in the
d e t a i l s
Certified company Address: No. 3 Öv Street, 1141 Phone: +36 1 211 21 30 info@3dhistech.com
ISO 13485:2003 / ISO 9001:2008 Budapest, HUNGARY Fax: +36 1 211 21 29 www.3dhistech.com
6
2.5 Connect the Grasshopper 3 51S5M Trigger Cable to the camera and the back of the scanner.
S o l u t i o n
resides in the
d e t a i l s
Certified company Address: No. 3 Öv Street, 1141 Phone: +36 1 211 21 30 info@3dhistech.com
ISO 13485:2003 / ISO 9001:2008 Budapest, HUNGARY Fax: +36 1 211 21 29 www.3dhistech.com
7

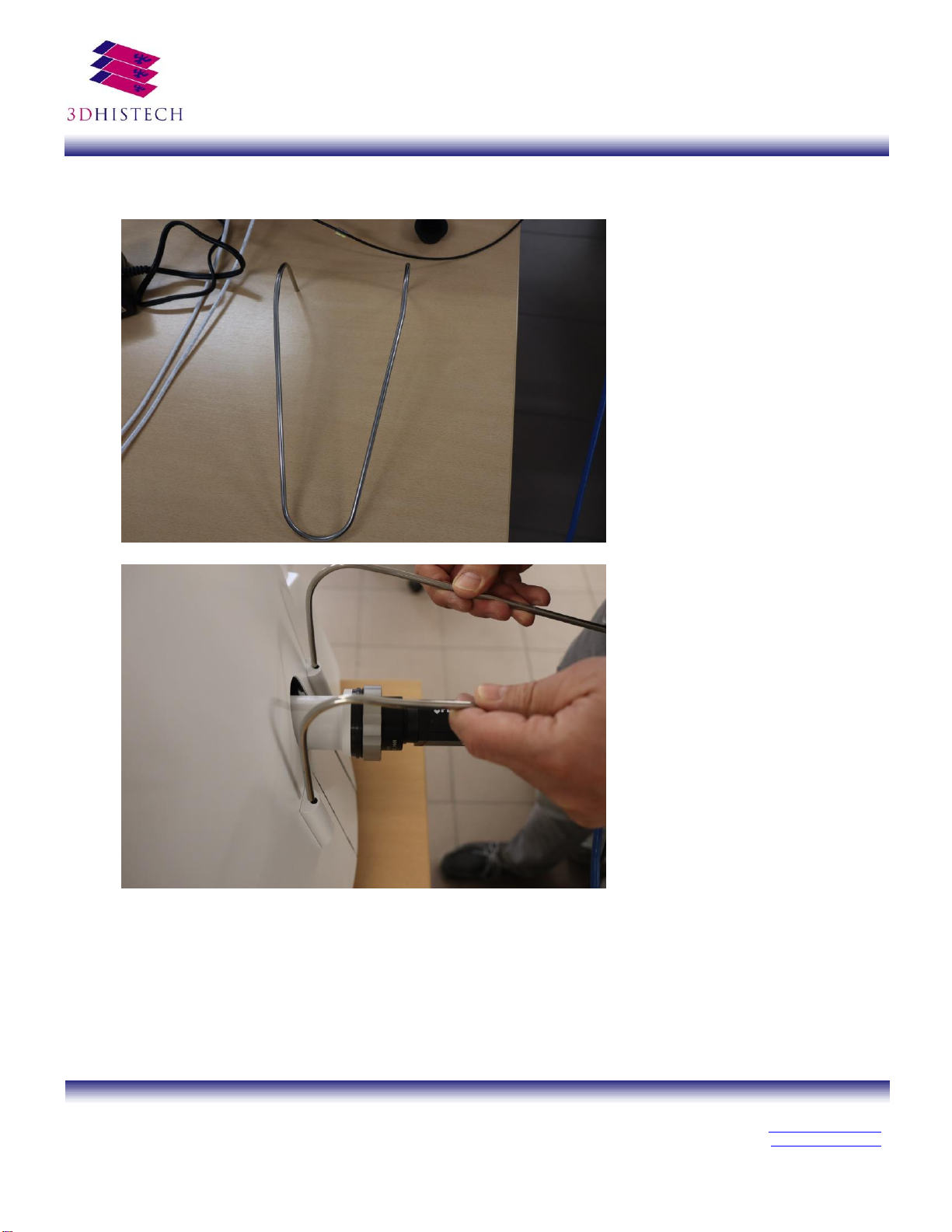

2.6 Connect the Camera to the workstation with the USB 3.0 cable (AC-PCA-USB-0500).
Important: Use tha labeled USB 3.0 slot on the workstation!
S o l u t i o n
resides in the
d e t a i l s
Certified company Address: No. 3 Öv Street, 1141 Phone: +36 1 211 21 30 info@3dhistech.com
ISO 13485:2003 / ISO 9001:2008 Budapest, HUNGARY Fax: +36 1 211 21 29 www.3dhistech.com
9
2.7 Connect the power supply cable (AC-MIC-PWS-MPU100A) to the DEHNER power supply
(AC-MIC-PWS-MPU100A) and then to the scanner.
