3Com®AirProtect Enterprise

Engine 6100

Quick Setup Guide

www.3com.com

PartNumber: 10015863 Rev.BA

March2008



3Com®AirProtectEnterpriseEngine6100QuickSetupGuide

3Com Corporation

350 Campus Drive, Marlborough, MA USA 01752-3064

3Com Corporation reserves the right to revise this documentation and to make changes in content from time to

time without obligation on the part of 3Com Corporation to provide notification of such revision or change.

3Com Corporation provides this documentation without warranty, term, or condition of any kind, either implied or

expressed, including, but not limited to, the implied warranties, terms, or conditions of merchantability, satisfactory

quality, and fitness for a particular purpose. 3Com may make improvements or changes in the product(s) and/or

the program(s) described in this documentation at any time.

If there is any software on removable media described in this documentation, it is furnished under a license

agreement included with the product as a separate document, in the hardcopy documentation, or on the

removable media in a directory file named LICENSE.TXT or !LICENSE.TXT. If you are unable to locate a copy,

please contact 3Com and a copy will be provided to you.

UNITED STATES GOVERNMENT LEGENDS:

If you are a United States government agency, then this documentation and the software described herein re

provided to you subject to the following:

United States Government Legend: All technical data and computer software is commercial in nature and

developed solely at private expense. Software is delivered as Commercial Computer Software as defined in

DFARS 252.227-7014 (June 1995) or as a commercial item as defined in FAR 2.101(a) and as such is provided

with only such rights as are provided in 3Com’s standard commercial license for the Software. Technical data is

provided with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987),

whichever is applicable. You agree not to remove or deface any portion of any legend provided on any licensed

program or documentation contained in, or delivered to you in conjunction with guide.

Unless otherwise indicated, 3Com registered trademarks are registered in the United States and may or may not

be registered in other countries.

3Com and the 3Com logo are registered trademarks of 3Com Corporation.

Linux is a trademark of Linus Torvalds and the Linux Mark Institute.

All other products and services are trademarks, registered trademarks, and service marks or registered service

marks of their respective owners.

Intellectual Property Notice: One or more features and components in this product have patents pending, which

are owned by AirTight Networks, Inc.



3Com®AirProtectEnterpriseEngine6100QuickSetupGuide

Step1:3ComAirProtectEnterpriseApplianceandSensorOverview

ThefrontpaneloftheappliancehasapowerswitchandstatusLEDsasshowninthefigurebelow.



Therearpaneloftheappliancehaspowerandportconnectorsasshowninthefigurebelow.



ThefrontpaneloftheSensorhasstatusLEDsasshowninthefigurebelow.



TherearpaneloftheSensorhaspowerandportconnectorsasshowninthefigurebelow.



3Com®AirProtectEnterpriseEngine6100QuickSetupGuide

Step2:MounttheAppliance

Placetheapplianceontherackandmounttheapplianceusingtherackmountingaccessories.



Step3:PoweruptheAppliance

Connectthepowercableasshowninthefigurebelowandpressthepowerswitchonthefrontpaneloftheappliance.



Important!OnconnectingthePowercable,thePowerLEDshouldturnsolidgreen.Ifthisdoesnothappen,refertothe3ComAirProtect

EnterpriseInstallationGuide.



3Com®AirProtectEnterpriseEngine6100QuickSetupGuide

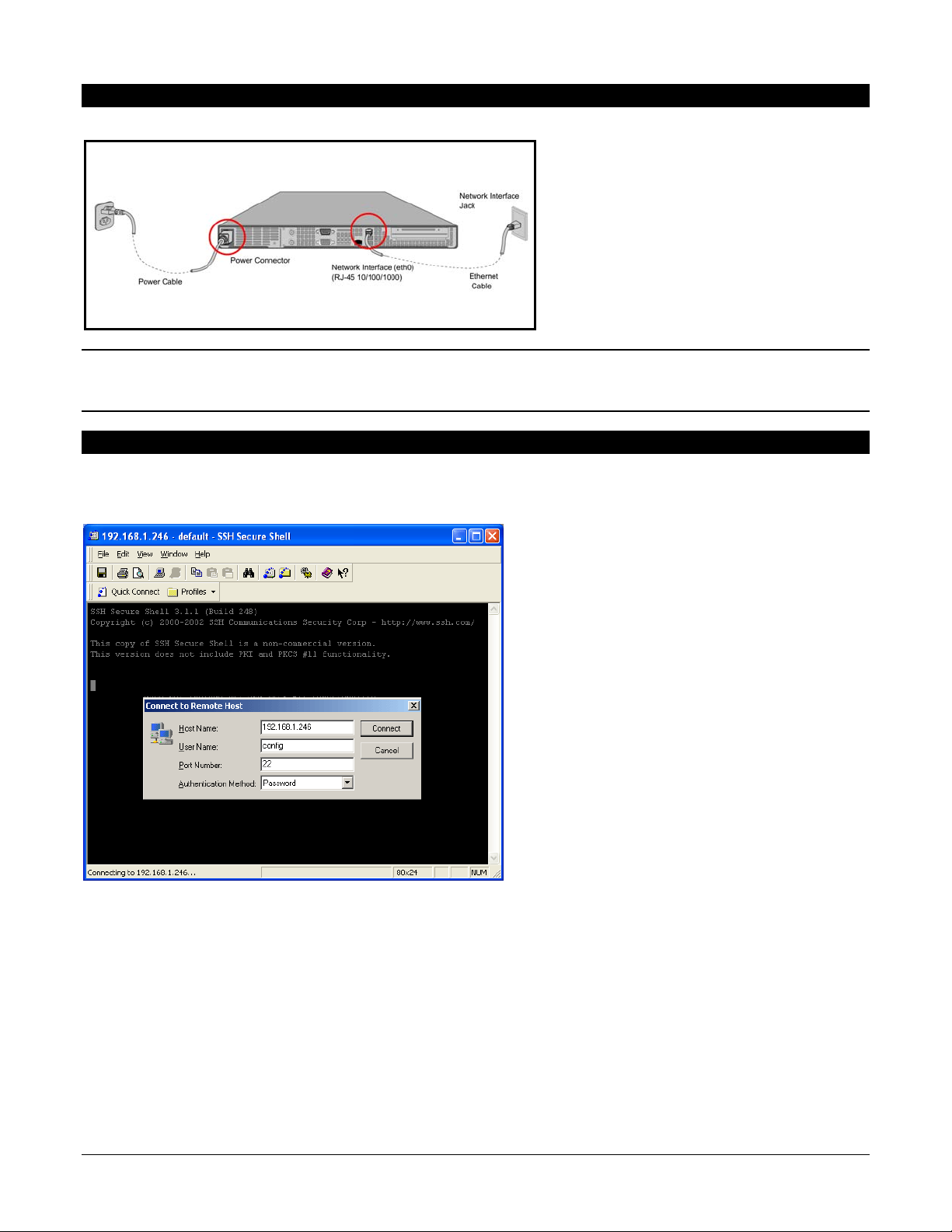

Step4:ConnecttheAppliancetotheNetwork

Connecttheappliancetothenetworkusingthenetworkinterfacecableasshowninthefigurebelow.



Warning!ThedefaultIPaddressoftheapplianceis192.168.1.246.PleaseensurethatnootherdeviceonyournetworkusesthesameIP

addressastheappliance.Connectthenetworkinterfaceportontheappliancetothedesiredsubnetusingthenetworkinterfacecable

providedtoyou.DonotconnecttheHighAvailability(HA)Interfaceporttothesubnet.

Step5:Accessthe3ComAirProtectEnterpriseServer

A. ConnectyourcomputertothesamesubnetwheretheServerisconnected.

B. ChangeyourcomputerIPaddressto192.168.1.XXX.Forexample,192.168.1.244.

C. Accessthe3ComAirProtectEnterpriseServerusingSSHasshowninthefigurebelow.



D. LoginusingtheUsername:configandPassword:password.



3Com®AirProtectEnterpriseEngine6100QuickSetupGuide

Step6:CompletetheServerInitializationandSetupWizard

FollowthestepsintheServerInitializationandSetupWizardtoconfigurethe3ComAirProtectEnterpriseServer.

Important!OntheDateandTimesettingsscreen‐Step3,ifthedayexceeds31andthemonthexceeds12,3ComAirProtectEnterprise

automaticallysetsthedayto31andmonthto12.



Important!YouneedtoreboottheServeroncompletionoftheInitializationandSetupWizardbeforeyouaccesstheServer

Console(GUI).

Step7:SetuptheServerDNSEntry

AddaDNSentry‘wifi‐security‐server’inyourorganization’s/enterpriseDNSserver.ThisentryshouldpointtotheIP

AddressoftheServerconfiguredinStep6(CompleteServerInitializationandSetupWizard)—Substep2(Changethe

NetworkSettings).

Addingthisentryservestwopurposes:

A. SensorscanconnecttotheServerwith“zeroconfiguration”iftheyareconnectedtoaDHCPenabledsubnet.

B. YoucanaccesstheServerusingtheaddress‘https://wifi‐security‐server’.



Step8:Accessthe3ComAirProtectEnterpriseConsole

Important!Theminimumsystemrequirementstoaccessthe3ComAirProtectEnterpriseConsolearealaptopwithIntelP4X861.4GHz

Processor,512MBRAM,Windows2000orXPOperatingSystem,IE5.5orhigher,andJRE15orhigher.

A. Type‘https://wifi‐security‐server’toaccessthe3ComAirProtectEnterpriseConsole.



The3ComAirProtectEnterpriseConsolecantakeupto2minutestoload.

Important!Pop‐upblockers(ifany)mustbedisabledontheWebbrowser.TheReusewindowsforlaunchingshortcutsoptionin

Tools

InternetOptions

AdvancedshouldbedeselectedintheInternetExplorerWebbrowser.

B. ClickYesoneachoftheSecurityAlert/Warningpop‐upscreens.

C. Activatethelicensebysupplyingthelicensekeyfileshippedwiththeappliance.Browsetothelocationofthelicense

keyfileandselectit.Click<Apply>.



3Com®AirProtectEnterpriseEngine6100QuickSetupGuide



Ifthelicensekeyisvalid,youwillseetheLoginscreen.Otherwise,youwillseeanerrormessage.

D. Loginusingthedefaultusername:adminandpassword:password.



Important!Ifyouseeablankscreeninsteadofthe3ComAirProtectEnterpriseConsoleLoginscreeninthepop‐upwindow,despite

havingSunJRE1.5,thenSunJRE1.5maynotbethedefaultplug‐inforyourWebbrowser.ToensurethatSunJRE1.5isthe

defaultplug‐inforyourWebbrowser,dothefollowing:

1.Ifyouseea“JavaCup”iconinthesystemtray,rightclickitandselect“OpenControlPanel”.

2.Ifyoudonotseetheicon,clickStart

Settings

ControlPanelanddouble‐clicktheJavaPlug‐inicon.

3.OncetheJavaControlPaneldialogisopen,gototheAdvancedtabandselectthecheckboxInternetExplorer.



3Com®AirProtectEnterpriseEngine6100QuickSetupGuide



E. OntheEndUserLicenseAgreement(EULA)screen,readtheagreementcarefullyandselectIhavereadandagreeto

theLicensingAgreementabove.Click<Next>.



F. IfyouseetheWelcomescreen,closethewindow.YouaredonewiththeServersetup.YoucanrevisittheWelcome

screenlater.



3Com®AirProtectEnterpriseEngine6100QuickSetupGuide



Step9:PowerupandConnectSensorstotheNetwork

PowerandConnecttheSensortotheNetwork

A. Ensurethatthe3ComAirProtectEnterpriseServerisalreadyrunningonyournetwork.

Note:MakesurethataDNSentry‘wifi‐security‐server’issetuponallDNSServers.ThisentryshouldpointtotheIPaddressofthe

Server.Otherwise,configuretheSensormanually.Pleaserefertothe3ComAirProtectEnterpriseInstallationGuidefordetails.

B. UsenetworkinterfacecablestoconnectSensorstoallthenetworksegments(subnets)thatneedtobeprotected.

MakesurethatthenetworksegmentisDHCPenabled.Otherwise,configuretheIPaddressoftheSensormanually.



Note:LogintotheServerusingSSH.Runthecommand‘getsensorlist’tocheckifalltheSensorsaddedhavebeendetectedbytheServer.

IfalltheSensorsareconnected,gotothenextstep.IfsomeSensorsarenotconnected,thenyoumayneedtoconfiguretheSensors

manually.



3Com®AirProtectEnterpriseEngine6100QuickSetupGuide

C. WaitforthestatusoftheLEDstostabilize.Thisprocessmaytakeupto2minutes.

D. IfallLEDsglowgreen,thentheSensorisoperationalandconnectedtothe3ComAirProtectEnterpriseServer.



E. IfStepDsucceeds,theSensorisnowfullyoperationalandisreadytoprotectyournetwork.

Important!IftheLEDstatusattheendofStep1Aor2DdoesnotmatchthestatusshowninthisQuickSetupGuide,refertothe3Com

AirProtectEnterpriseInstallationGuideformoredetails.


