Higher-bandwidth, higher

density with full range of

802.11n Access Points

(NWA5000-N Series)

■

Comprehensive guest network

management with auto guest

account generator and Web

authentication support

■

Manage up to 240 APs with

granular access control

■

Centralized WLAN

management on both

configurations and data

■

Flexibility supporting both

distributed and tunneled data

forwarding

■

Strongest standard-based

wireless security — WPA/WPA2

and AES encryption

■

Built-in Firewall

■

Built-in wireless intrusion

detection, prevention and

Anti-Virus

Today, businesses are facing continuous challenges providing wireless access to guests and

mobile employees without compromising security. To fulfill this demand, ZyXEL develops an

all-new Wireless LAN Controller Solution comprising of the NXC5200 WLAN Controller and

NWA5000-N Series Managed Access Point (AP) in three models: the dual-band NWA5160N, the

dual-radio NWA5560-N and, the dual-radio outdoor NWA5550-N. The solution is designed to

deliver high-performance 11n Wireless to provide seamless mobility and security in medium-

to large-scale campus and distributed enterprise environments.

The NXC5200 integrates ZyXEL’s industry-leading ZyWALL Firewall features, such as Stateful

Packet Inspection, to monitor data coming from mobile wireless users while the NWA5000-N

Series works in conjunction with NXC5200 to deliver optimized performance and secure

network services to remote branches or offices. The NXC5200 controller and NWA5000-N

Series APs are ideally suited for advanced service delivery on wireless edge.

Benefits

Single-point management for scalable networks

This new, secure WLAN solution is based on the ZyXEL NXC5200 Wireless LAN Controller as well as

the ZyXEL NWA5160N, NWA5560-N, and NWA5550-N Managed APs that scales up to 240 APs to

provide comprehensive wireless coverage. Real-time functions such as data roaming, authentication

and load balancing are performed on the NXC5200 while the NWA5160N, NWA5560-N, and

NWA5550-N function strictly as signal converters.The major benefit is the centralized configuration

independent of the number of available managed access points as long as there is an IP network

available to the administrator.

Secure wireless edge to block threats from mobile users

Mobile users pose more critical threats to company networks than wired users.To address this, the

NXC5200 comes with Firewall features such as stateful packet check to regulate data incoming from

mobile users. In addition, the license-based Intrusion Detection and Prevention as well as Anti-Virus

functions also allow the NXC5200 to act as a gatekeeper on the network edge to block potential

threats.

ZyXEL keeps the best-of-breed technology and provides strong industry-standard WLAN security

with WPA/WPA2-enterprise authentication and a variety of Extensible Authentication Protocol (EAP)

supports.The NWA5000-N Series can relieve businesses from critical WLAN security concerns.

Superior, Secure WLAN Experience for

Distributed Enterprise and Campus

NXC5200/

NWA5000-N

Series

Wireless LAN Controller/

802.11 a/b/g/n

Managed Access Point

NXC5200/

NWA5000-N

Series

Wireless LAN Controller/

802.11 a/b/g/n

Managed Access Point

NXC5200/

NWA5000-N Series

Wireless LAN Controller/

802.11 a/b/g/n Managed

Access Point

NXC5200/

NWA5000-N Series

Wireless LAN Controller/

802.11 a/b/g/n Managed

Access Point

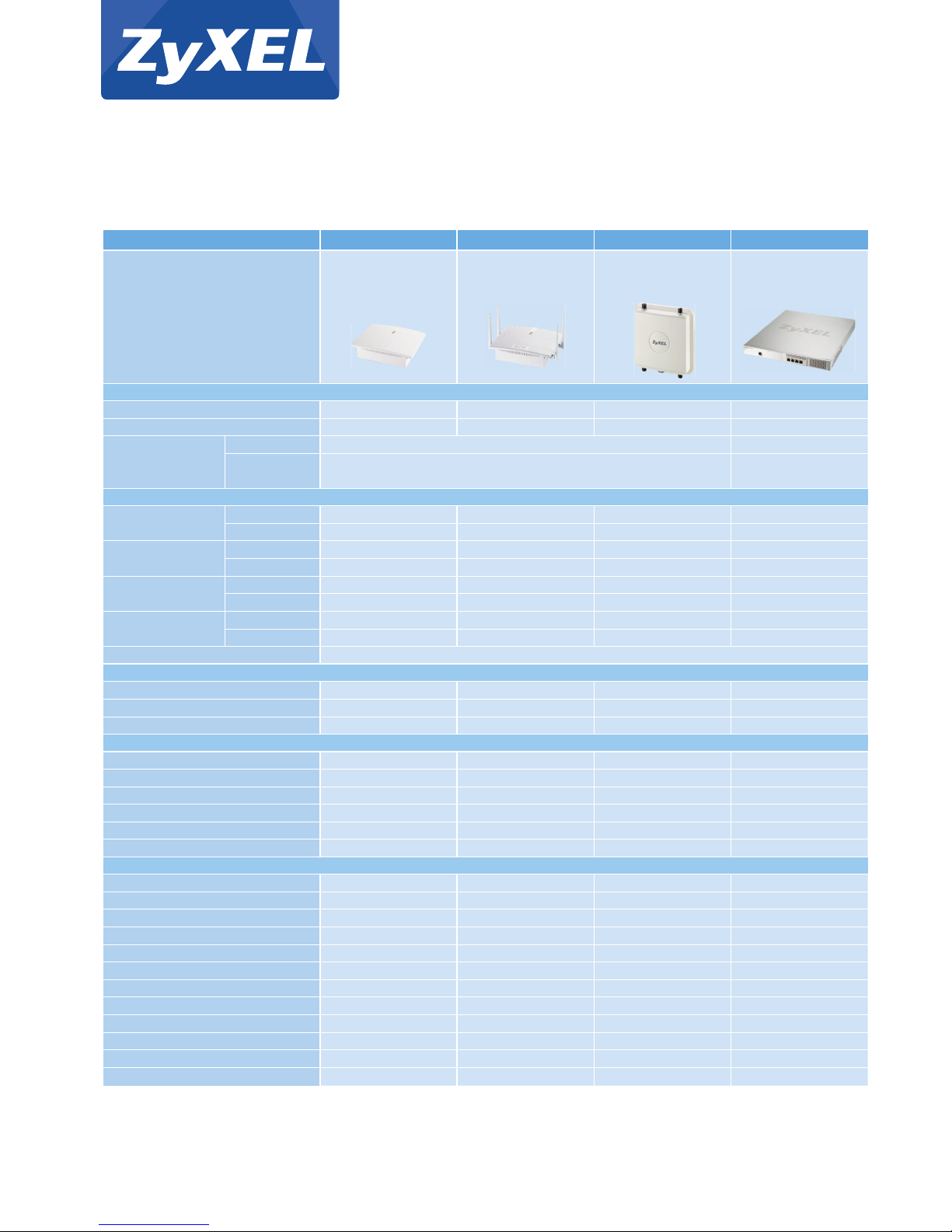

Specifications

Model NWA5160N NWA5560-N NWA5550-N NXC5200

802.11 a/b/g/n 802.11 a/b/g/n 802.11 a/b/g/n

Managed Access Point Dual-Radio Managed Dual-Radio Outdoor Wireless LAN Controller

Access Point Managed Access Point

Product Name

Main Design

Radio 1 2 2 -

Number of Antenna Embedded antenna 4 external dipole 4 N-type connectors*1 -

2.4 GHz (11g/n) USA (FCC): 2.412 to 2.462 GHz; Europe (ETSI): 2.412 to 2.472 GHz -

Frequency Band 5 GHz (11a/n) -

Maximum Output Power

11b/g 54 Mbps 17 dBm 17 dBm 17 dBm -

6 Mbps 18 dBm 18 dBm 18 dBm -

11g/n 20 MHz 15 dBm 15 dBm 15 dBm -

40 MHz 15 dBm 15 dBm 15 dBm -

11a 54 Mbps 16 dBm 16 dBm 16 dBm -

6 Mbps 18 dBm 18 dBm 18 dBm -

11a/n 20 MHz 18 dBm 18 dBm 18 dBm -

40 MHz 16 dBm 16 dBm 16 dBm -

Wired Data Rates 10/100/1000 Mbps Auto-sensing (full-duplex switch)

LAN

Number of 10/100/1000M LAN 1 1 1 Default: 4, Expansion: 4*2

PoE Yes Yes Yes -

PoE Power Draw 12 W 14 W 28 W -

WLAN Features

Maximum Throughput Up to 120 Mbps Up to 140 Mbps Up to 140 Mbps -

WMM (Wi-Fi Certified) Yes Yes Yes Yes

WEP Yes Yes Yes Yes

WPA/WPA2-PSK Yes Yes Yes Yes

WPA2 (Wi-Fi Certified) Yes Yes Yes Yes

WPA/WPA2-Enterprise Yes Yes Yes Yes

Security Features

IEEE 802.1x - - - Yes

Web Authentication - - - Yes

MAC Filtering - - - Yes

RADIUS Authentication - - - Yes

Microsoft AD Authentication - - - Yes

LDAP Authentication - - - Yes

Embedded RADIUS Server - - - Yes

Rogue AP detection - - - Yes

Rogue AP containment - - - Yes

Intrusion Detection & Prevention - - - Yes

Anti-Virus - - - Yes

Firewall - - - Yes

USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.725; 5.725 to 5.850 GHz

ETSI: 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

Model NWA5160N NWA5560-N NWA5550-N NXC5200

Network

VLANs Yes Yes Yes Yes

DHCP Client Yes Yes Yes Yes

DHCP Relay, Server - - - Yes

NAT - - - Yes

Static routing - - - Yes

Access Control

Policy setting per user - - - Yes

Policy setting per SSID - - - Yes

Customizable web login page - - - Yes

QoS

WMM Yes Yes Yes Yes

WMM Power Save Yes Yes Yes Yes

DiffServ Marking - - - Yes

AP Load Balancing - - - Yes

Application Patrol - - - Yes

Management Features

CLI with SSH Yes Yes Yes Yes

Web UI with SSL - - - Yes

SNMP - - - Yes

Multi-level administration roles - - - Yes

Administrator authentication - - - Yes

via RADIUS server

Others

Plenum Rating Yes Yes - -

Kensington Lock Support Yes Yes - -

Packet captured on Wired and Wireless - - - Yes

Dynamic Channel Selection - - - Yes

Device HA - - - Yes

System diagnostic Tool - - - Yes

Standard Compliance

Ethernet IEEE 802.3, IEEE 802.3u,IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az

PoE -

Radio Modulation -

Certification

Radio -

EMC FCC Part 15B, EN 301 489-17 V1.2.1: 08-2002 (Class B)

EN 301 489-1 V1.5.1:11-2004 (Class B)

Safety EN 60950-1 (Class B)

EN 60601-1-2:2002 (Medical Electrical Equipment)(Class B)

FCC Part 15C 15.247, FCC Part 15E (Class B)

EN 300 328 V1.7.1,EN 301 893 V1.2.3:08-2003, DGT LP0002 (Class B)

IEEE 802.11a: BPSK, QPSK, 16-QAM, 64-QAM

IEEE 802.11b: DBPSK, DQPSK, CCK

IEEE 802.11g: BPSK, QPSK, 16-QAM, 64-QAM

IEEE 802.11n: BPSK, QPSK, 16-QAM, 64-QAM

IEEE 802.3af, IEEE 802.3at Proprietary

Ordering Information

*1: Separated sold

*2: Default: 4-port RJ-45 GbE with expansion slot for 4-port RJ-45/SFP GbE

License

Model NWA5160N NWA5560-N NWA5550-N NXC5200

Power Requirement

Power supply 12 VDC @1.5 Amp 12 VDC @1.5 Amp PoE only 100 - 240 VAC, 50/60 Hz

Maximum Maximum

Physical Specifications

218 x 174 x 54/ 218 x 174 x 54/ 257 x 257 x 51/ 431 x 520 x 44/

8.58 x 6.85 x 2.12 8.58 x 6.85 x 2.12 10.12 x 10.12 x 2.01 16.96 x 20.47 x 1.73

0.766/1.69 0.805/1.77 1.360/3.01 12/26.46

326 x 184 x 91/ 326 x 184 x 91/ 382 x 415 x 154/ 644 x 561 x 183/

12.83 x 7.24 x 3.58 12.83 x 7.24 x 3.58 15.04 x 16.34 x 6.06 25.35 x 22.09 x 7.20

1.56/3.44 1.586/3.50 3.6/7.95 14/30.86

Environmental Specifications

0°C to 40°C/32°F to 104°F -40°C to 60°C/ 0°C to 40°C/

-40°F to 140°F 32°F to 104°F

10% to 90% (Non-condensing) 10% to 90% 10% to 90%

(Non-condensing) (Non-condensing)

-30°C to 70°C/-22°F to 158°F -40°C to 70°C/ -30°C to 70°C/

-40°F to 158°F -22°F to 158°F

10% to 90% (Non-condensing) 10% to 90% 10% to 90%

(Non-condensing) (Non-condensing)

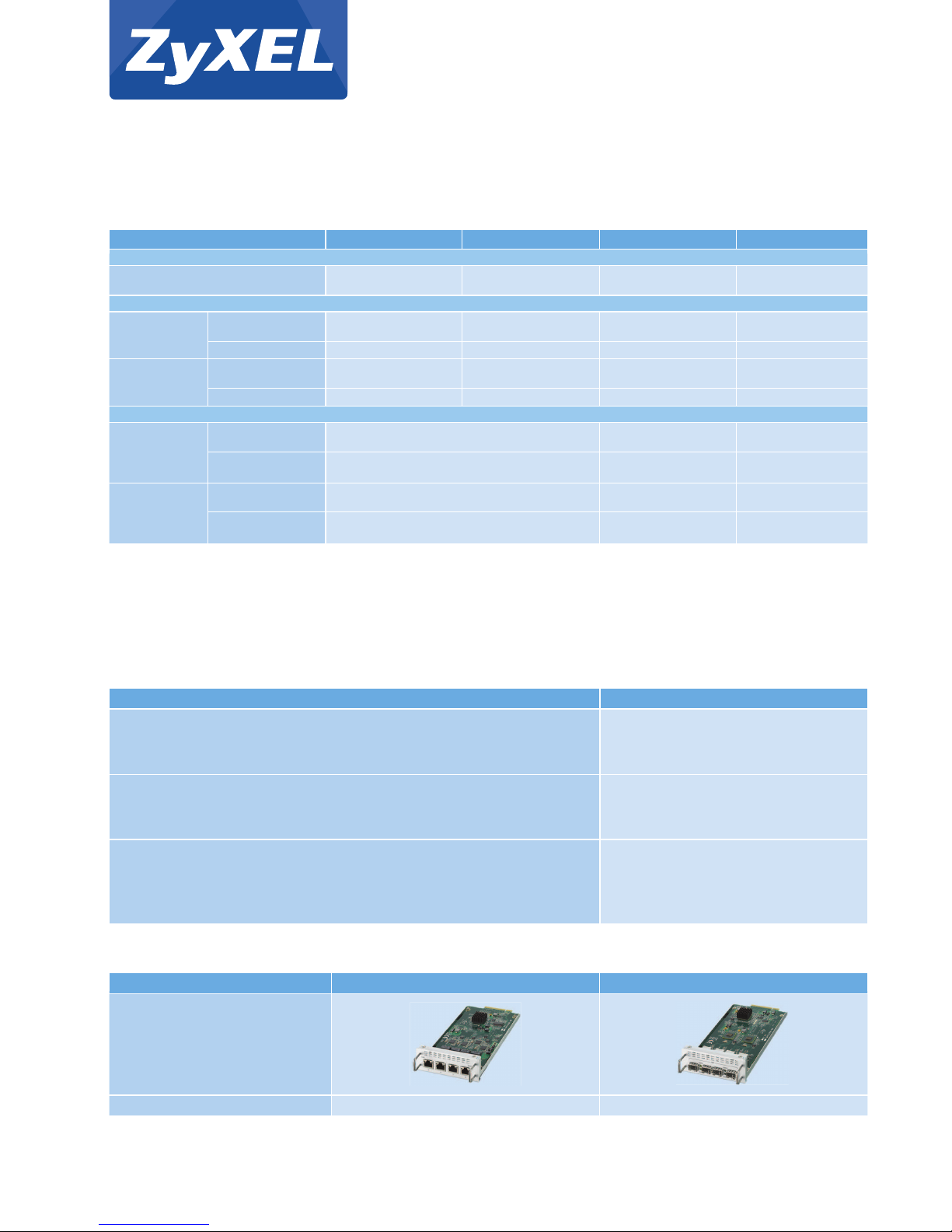

Accessory

Item WEM104 WEM104F


Description 4-port RJ-45 GbE LAN Module 4-port SFP GbE LAN Module

Operating

Environment

Temperature

Dimensions

(WxDxH)(mm/in.)

Weight (kg/lb.)

Dimensions

(WxDxH)(mm/in.)

Weight (kg/lb.)

Item

Packing

Humidity

Temperature

Humidity

Storage

Environment

Feature Please Order

Managed AP Scalability E-iCard 12 AP NXC5200

The NXC5200 Managed AP License is a service that enables the flexibility to increase the number E-iCard 48 AP NXC5200

of 5000 Series WLAN APs in service.The maximum number of managed APs supported is 240.

Intrusion Detection and Prevention (IDP) E-iCard 1 YR IDP NXC5200

The NXC5200 Intrusion Detection/Prevention service is an easy-to-manage, signature-based E-iCard 2 YR IDP NXC5200

feature that mitigates threats from the ever-evolving attacks and exploits.

Anti-Virus (AV) E-iCard 1YR ZyXEL AV NXC5200

The NXC5200 Anti-Virus service is an easy-to-manage, signature-based feature that stops E-iCard 2YR ZyXEL AV NXC5200

virus/spyware from entering your network. E-iCard 1YR Kaspersky AV NXC5200

E-iCard 2YR Kaspersky AV NXC5200

NXC5200/

NWA5000-N Series

Wireless LAN Controller/

802.11 a/b/g/n Managed

Access Point

NXC5200/

NWA5000-N Series

Wireless LAN Controller/

802.11 a/b/g/n Managed

Access Point

Full performance without concerns

The prevalence of 11n wireless networks is putting the capacity of traditional controllers to the test.Fortunately, the NXC5200 is designed to relieve the

concerns for IT staff – the high-performance system pumps data through each virtual AP, and it can be configured to bridge locally or enter the NXC5200

WLAN controller for better management.With this feature, the NXC5200 and the NWA5000-N Series can offload the network burden while allowing users to

enjoy the 11n wireless performance.

Zero-configuration construction for minimized provisioning efforts

Centralized administration simplifies planning significantly. The NXC5200 and the NWA5000-N Series are designed to enable easy deployment and instant

provisioning.After carrying out a site survey, the user can place the NWA5000-N Series managed APs on the most suitable spots; the NWA5000-N Series will

automatically look for the NXC5200 to establish connections, and then the pre-defined configuration will be applied to the NWA5000-N Series to complete

the deployment.The NWA5000-N Series supports the 802.3af or 802.3at Power over Ethernet (PoE) standard to utilize the Ethernet cable for minimized

cabling construction.The ZyXEL NXC5200 and the NWA5000-N Series can provide simplified installation in addition to better Wi-Fi experience.

Easy, comprehensive guest network management

To IT administrators, one of the major concerns is to deploy a WLAN infrastructures with flexible guess access while providing internal users a separated

secure network at the same time.The NXC5200 and NWA5000-N Series feature end-to-end guest network solutions to provide a guest account generator

and Web authentication functions.The guest account generator allows dynamic user accounts to be created as soon as the guests check into the front desk

for minimized IT management efforts.The Web authentication function provides an easy way to identify guest users and it also works with the embedded

firewall policies to segregate guest traffics from the internal users to maintain a clean, safe wireless infrastructure.The ZyXEL NXC5200 and NWA5000-N

Series can eliminate concerns for IT administrators while providing the best Wi-Fi coverage at the same time. It is an ideal and secure choice for business

Wi-Fi deployments.

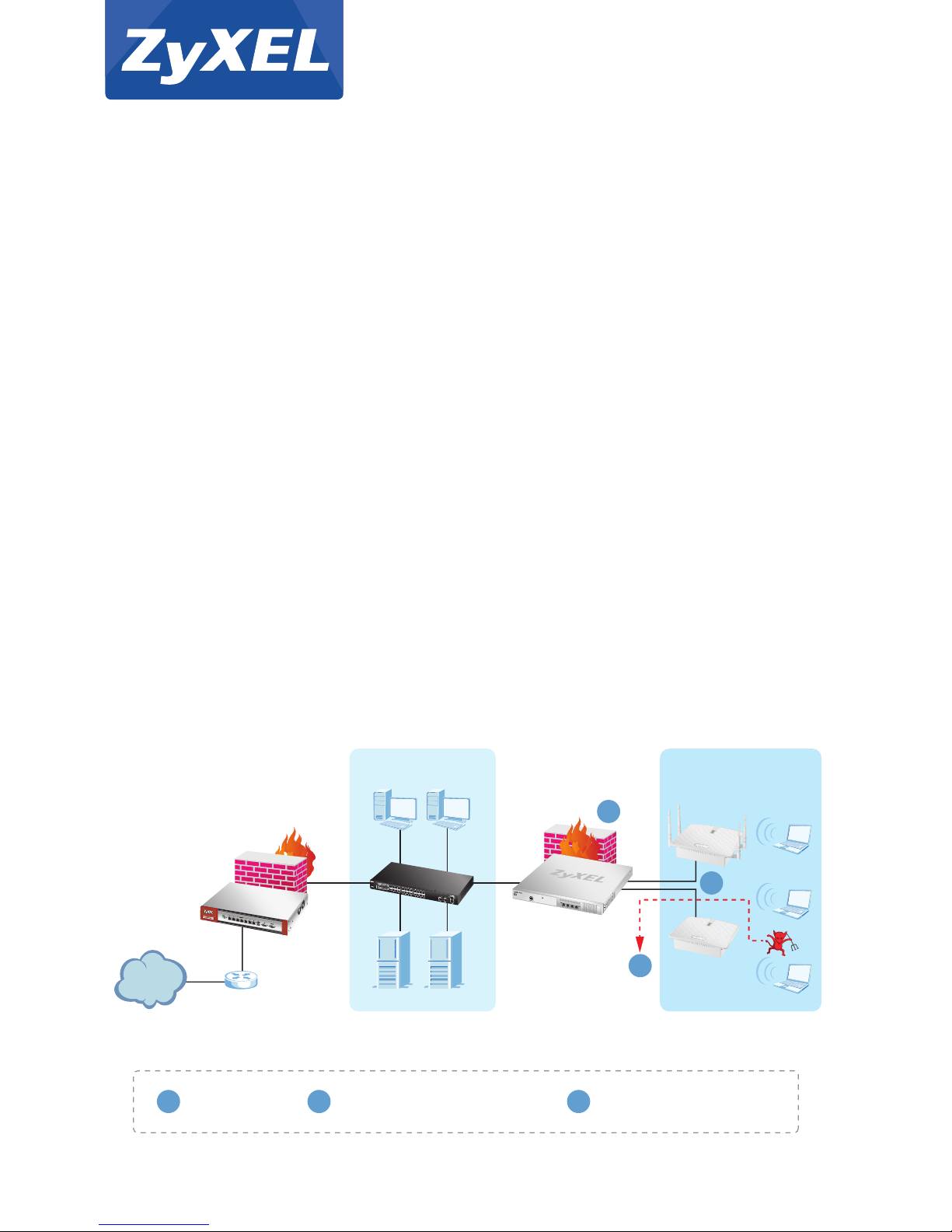

Key Application

Build-in Firewall

Clean Wired

Access Network

Clean Wireless

Access Network

NXC5200

Wireless LAN

Controller

NWA5560-N

802.11 a/b/g/n

Dual-Radio Managed

Access Point

NWA5160N

802.11 a/b/g/n

Managed

Access Point

Switch

Firewall

Block

Block 1

12 3

Internet

Build-in Wireless Anti-Virus,

Intrusion Detection and Prevention

Managed up to 240 APs with

granular access control

GHz

5-100-00711012 10/11

F o r m o r e p r o d u c t i n f o r m a t i o n , v i s i t u s o n t h e w e b a t w w w. Z y X E L . c o m

trademarks of ZyXEL Communications Corp. All other brands,product names, or trademarks mentioned are the

property of their respective owners. All specifications are subject to change without notice.

Autres manuels pour NWA5160N

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ZyXEL Communications Point d'accès sans fil

ZyXEL Communications

ZyXEL Communications NWA5301-NJ Manuel utilisateur

ZyXEL Communications

ZyXEL Communications NWA5000-N Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZyXEL ZyAIR B-1000 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications WAP3205 v2 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications NWA1123-AC HD Manuel utilisateur

ZyXEL Communications

ZyXEL Communications G-570S Manuel utilisateur

ZyXEL Communications

ZyXEL Communications NWA3550-N - Manuel utilisateur

ZyXEL Communications

ZyXEL Communications WAP3205 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications NWA5120 Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications NWA 1121-NI - Manuel utilisateur

ZyXEL Communications

ZyXEL Communications NWA-1100 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZyXEL ZyAIR G-500 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications NWA5301-NJ Manuel utilisateur

ZyXEL Communications

ZyXEL Communications VMG3926-B10A Manuel utilisateur

ZyXEL Communications

ZyXEL Communications NWA1123-ACv2 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications 802.11g Wireless Access Point ZyXEL G-560 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications WAP3205 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications NWA1120 Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZyAIR B-5000 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications P-3202HN-Ba Manuel utilisateur

ZyXEL Communications

ZyXEL Communications NWA5301-NJ Manuel utilisateur

ZyXEL Communications

ZyXEL Communications NWA-3165 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications NWA-3165 Guide de référence

ZyXEL Communications

ZyXEL Communications NWA1300-NJ - Manuel utilisateur

Manuels Point d'accès sans fil populaires d'autres marques

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuel utilisateur

Ubiquiti

Ubiquiti NanoStation NSM2 Manuel utilisateur

Cisco

Cisco Aironet 1550 Series Manuel utilisateur

Aruba

Aruba IAP-335 Manuel utilisateur

Advantek Networks

Advantek Networks AWN-AP-54MR Manuel utilisateur

IP-COM

IP-COM AP355 Manuel utilisateur

Buffalo

Buffalo AirStation WLA-L11G Manuel utilisateur

EnGenius

EnGenius EnStationACv2 Manuel utilisateur

D-Link

D-Link DAP-3662 Manuel utilisateur

xG Technology

xG Technology xMax CN1300 Manuel utilisateur

Widelink

Widelink ezWave WAP-1100 Series Manuel utilisateur

Edimax

Edimax CAP1200 Manuel utilisateur

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuel utilisateur

Aruba

Aruba AP-203R Manuel utilisateur

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuel utilisateur

CreatComm

CreatComm TB5F Manuel utilisateur

SineDigital

SineDigital MW-1500AP(H) Manuel utilisateur

TP-Link

TP-Link AP9650 V1 Manuel utilisateur
