ZyXEL Communications NWA-3160 Manuel utilisateur

NWA-3160

802.11a/b/g Business WLAN Access Point

NWA-3163

802.11b/g Business WLAN Access Point

Quick Start Guide

Version 3.60

01/2010

Edition 3

DEFAULT LOGIN

IP Address http://192.168.1.2

Password 1234

Table of Contents

ENGLISH 2

DEUTSCH 16

ESPAÑOL 32

FRANÇAIS 46

ITALIANO 60

РУССКИЙ 74

SVENSKA 88

简体中文 102

繁體中文 114

Legal 128

ENGLISH

Overview

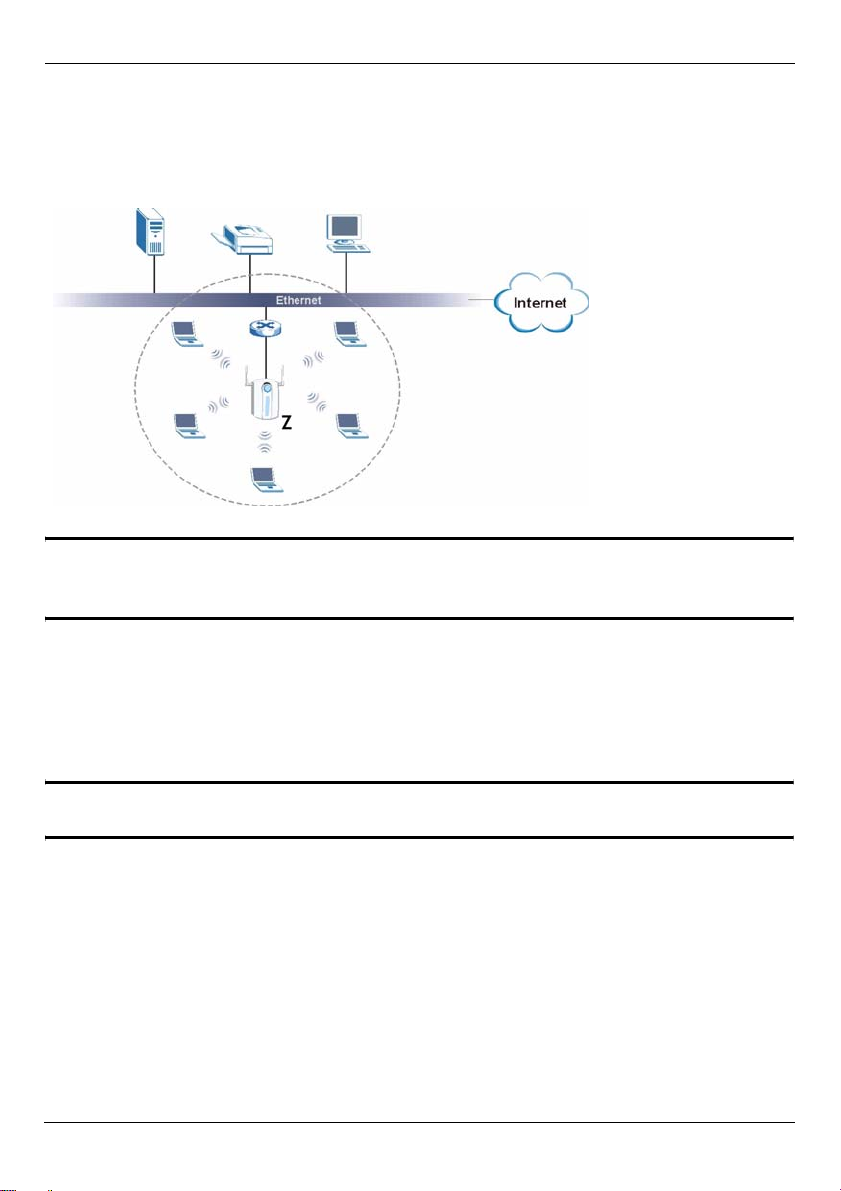

This Quick Start Guide shows how to set up and configure the ZyXEL Device (marked Zin

the figure) to allow wireless clients to securely access your wired network. See your User’s

Guide for more information.

"The icon used in this Quick Start Guide is not an exact representation of

your ZyXEL Device.

At the time of writing this Quick Start Guide covers the following models:

• NWA-3160 IEEE 802.11a/b/g Business WLAN Access Point

• NWA-3163 IEEE 802.11b/g Business WLAN Access Point

"You may need your Internet access information.

To set up your wireless network you need to:

1Connect the Hardware

2Access the Web Configurator

3Configure the ZyXEL Device

4Install the Hardware

5Set Up Power over Ethernet (Optional)

ENGLISH

1 Connect the Hardware

"The figures and screens shown in this Quick Start Guide are from the NWA-

3160. Your device may differ in minor ways.

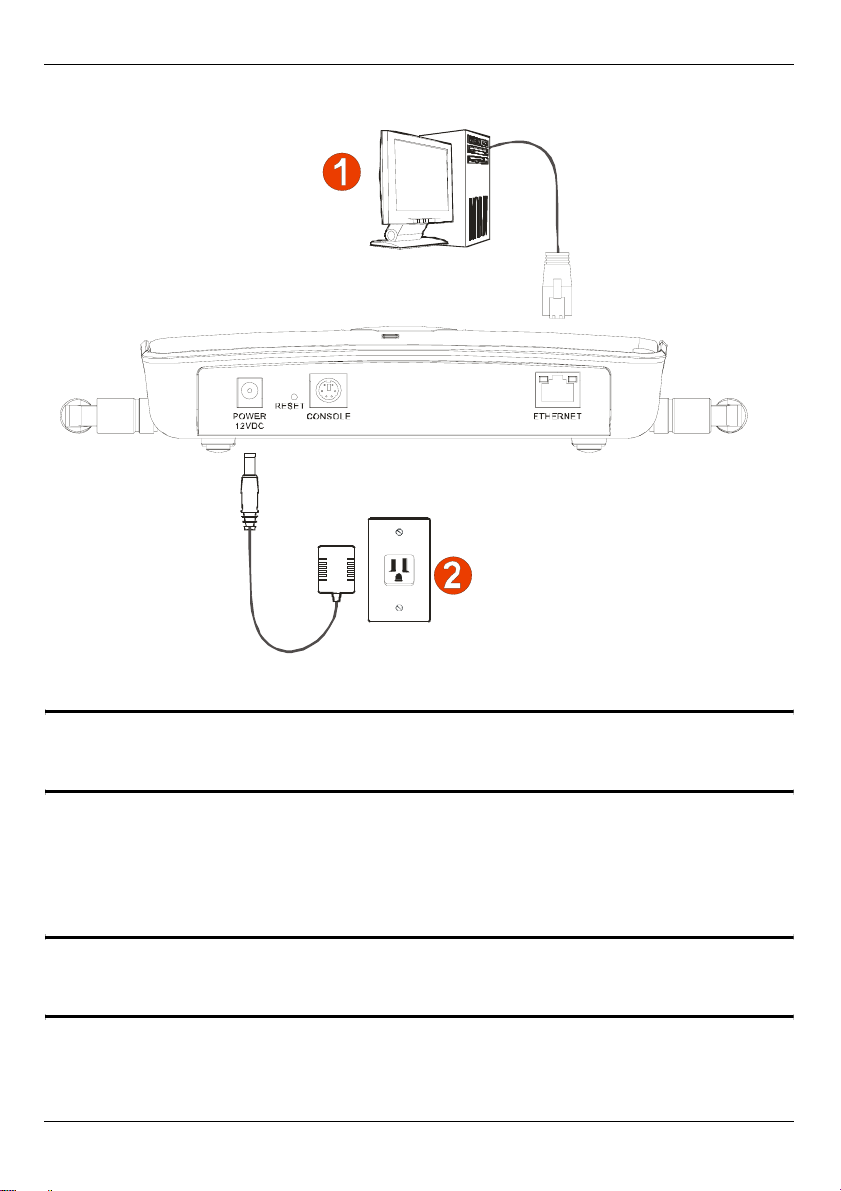

1Using the grey Ethernet cable, connect the ETHERNET port to a computer for initial

configuration.

2Connect the POWER 12VDC socket to a power source using only the included power

adaptor.

"Connect the ZyXEL Device’s ETHERNET port to an Ethernet jack with

network access after you have completed the initial configuration.

ENGLISH

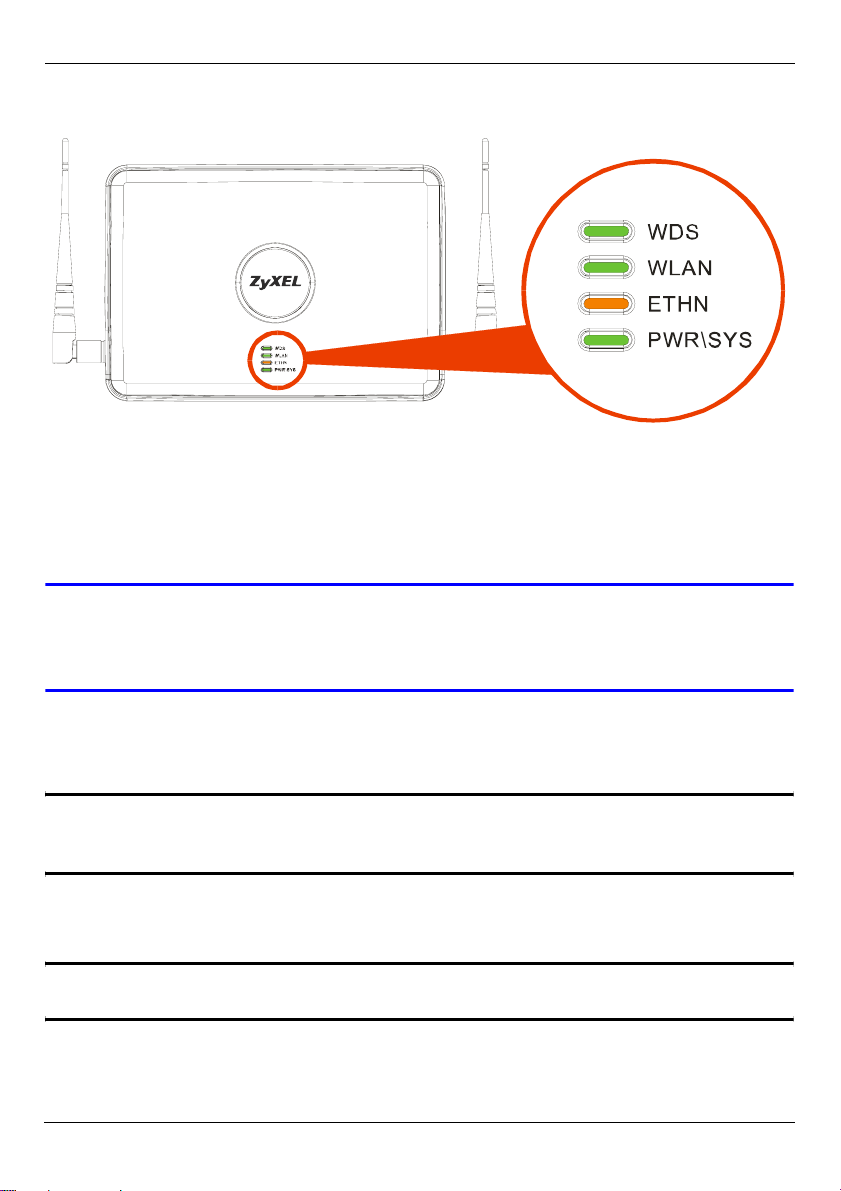

1.1 LEDs

•ThePWR/SYS LED turns steady green when the power is connected.

•TheETHN LED turns on if the ETHERNET port is properly connected, and blinks when

there is traffic. The LED turns green if the connection is at 10Mbps, and turns yellow if the

connection is at 100Mbps.

VIf the ETHN LED does not turn on, check the cable connection to the

ZyXEL Device’s ETHERNET port. Ensure your computer’s network card is

working properly.

2 Access the Web Configurator

"Use Internet Explorer 6.0 and later or Netscape Navigator 7.0 and later

versions with JavaScript enabled and pop-up blocking disabled.

2.1 Set Up Your Computer’s IP Address

"Note down your computer’s current IP settings before you change them.

ENGLISH

First, set your computer to use a static IP address in the 192.168.1.3 - 192.168.1.254

range with a subnet mask of 255.255.255.0. This ensures that your computer can

communicate with your ZyXEL Device. See your User’s Guide for information on setting up

your computer’s IP address.

2.2 Log Into the Web Configurator

"Even though you can connect to the ZyXEL Device wirelessly, it is

recommended that you connect your computer to the ETHERNET port for

initial configuration.

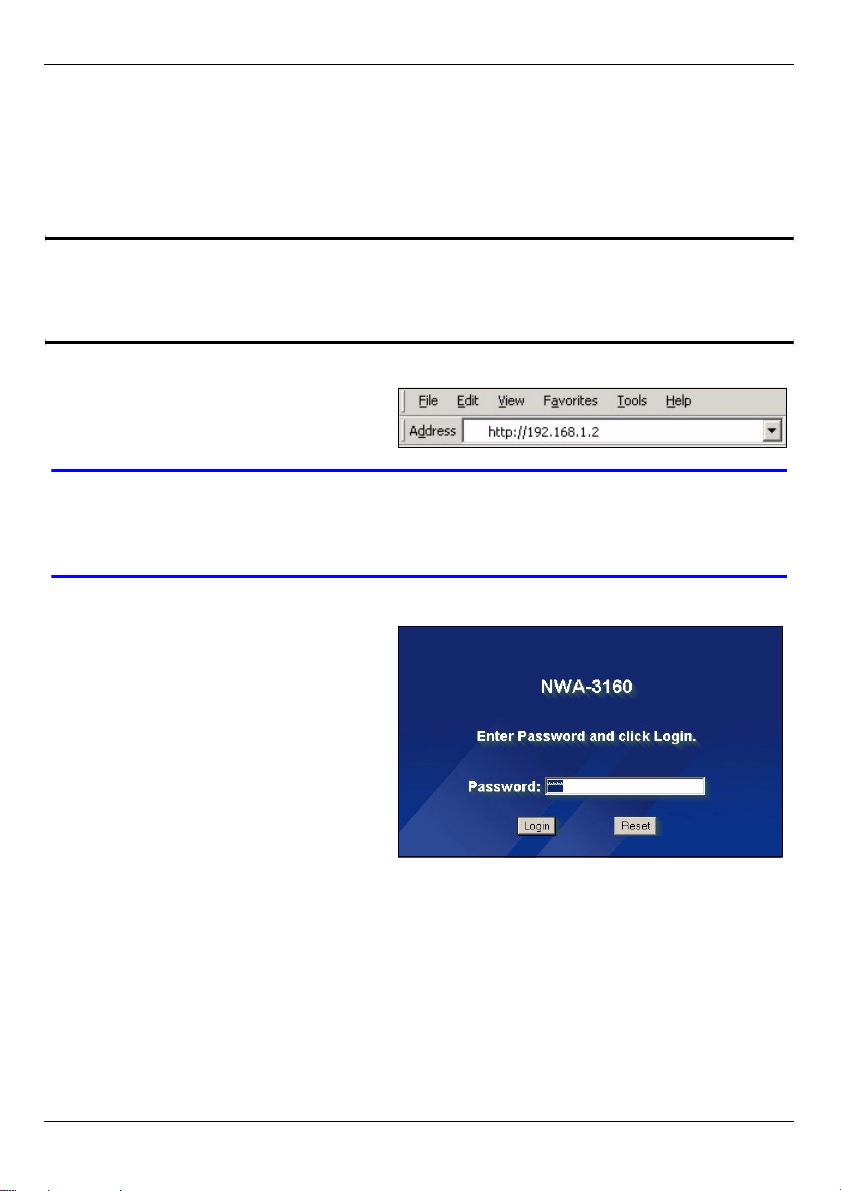

1Launch your web browser. Enter

192.168.1.2 (the ZyXEL Device’s

default IP address) as the address.

VIf you cannot access the Web configurator, make sure the IP addresses

and subnet masks of the ZyXEL Device and the computer are in the same

IP address range (see Section 2.1).

2Click Login (the default password

1234 is already entered).

ENGLISH

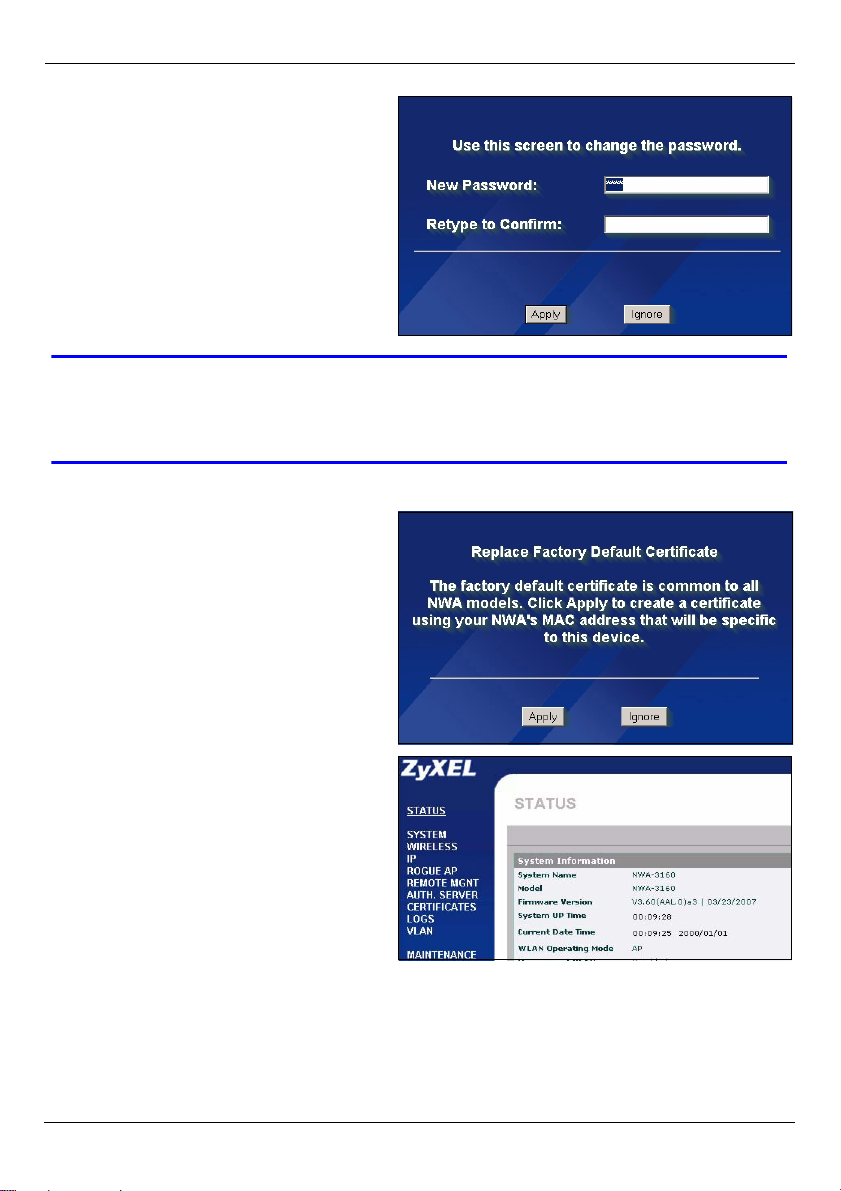

3Change the login password by

entering a new password and

clicking Apply. Be sure to record the

new password and keep it in a safe

place.

VIf you change the password and then forget it, you will need to reset the

ZyXEL Device. Refer to the User’s Guide for how to use the RESET

button.

4Click Apply to replace the factory

default certificate for added security;

alternatively click Ignore to proceed

if you do not want to change the

certificate now.

5The STATUS screen appears.

ENGLISH

3 Configure the ZyXEL Device

3.1 Configure System Settings

1Click SYSTEM in the navigation panel.

2The SYSTEM > General screen appears.

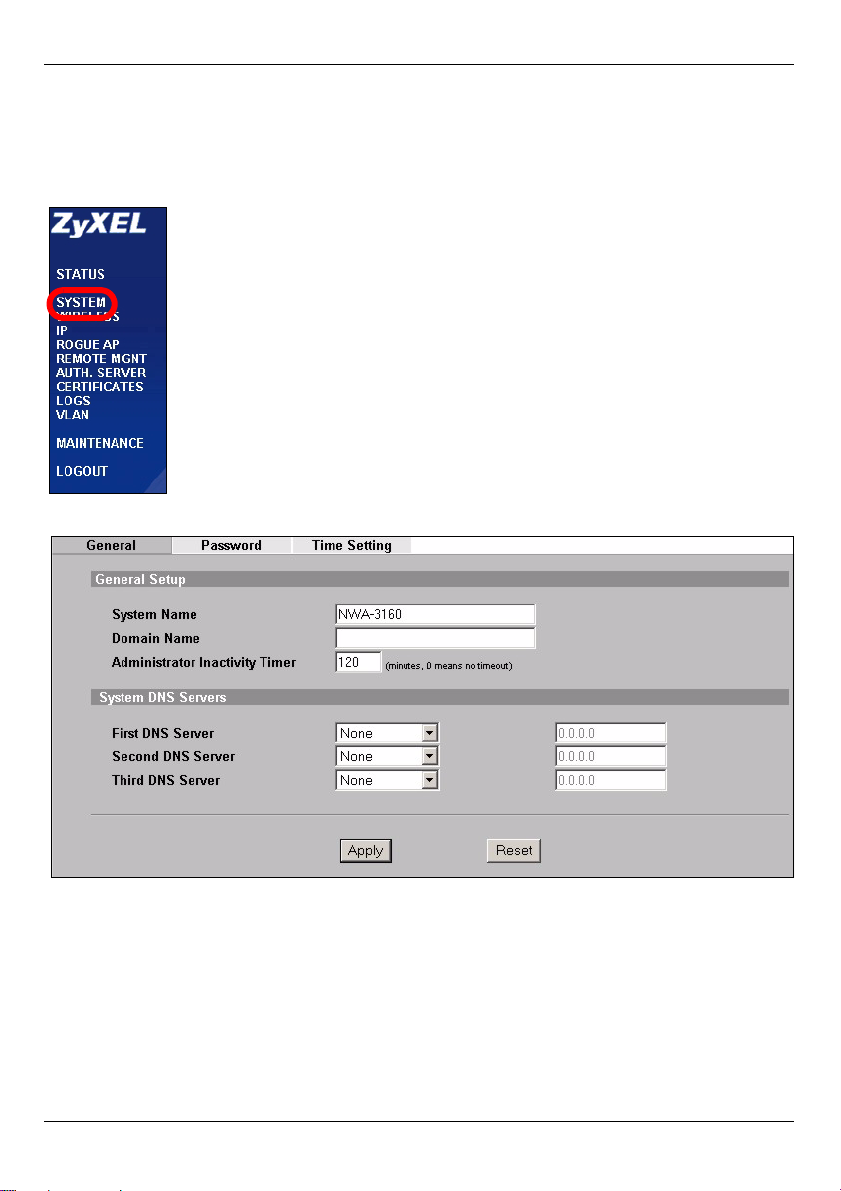

System Name is for identifying the ZyXEL Device on your network. Choose a

distinctive name, or leave this at its default.

Domain Name: Enter a domain name if your ISP requires one for authentication.

Otherwise you can leave it blank or set to whatever may have displayed automatically.

DNS Server(s): if your ISP gave you specific DNS (Domain Name System) settings,

select User-Defined and enter them here. Otherwise, leave these fields at their defaults.

3Click Apply.

ENGLISH

Configure Wireless Settings

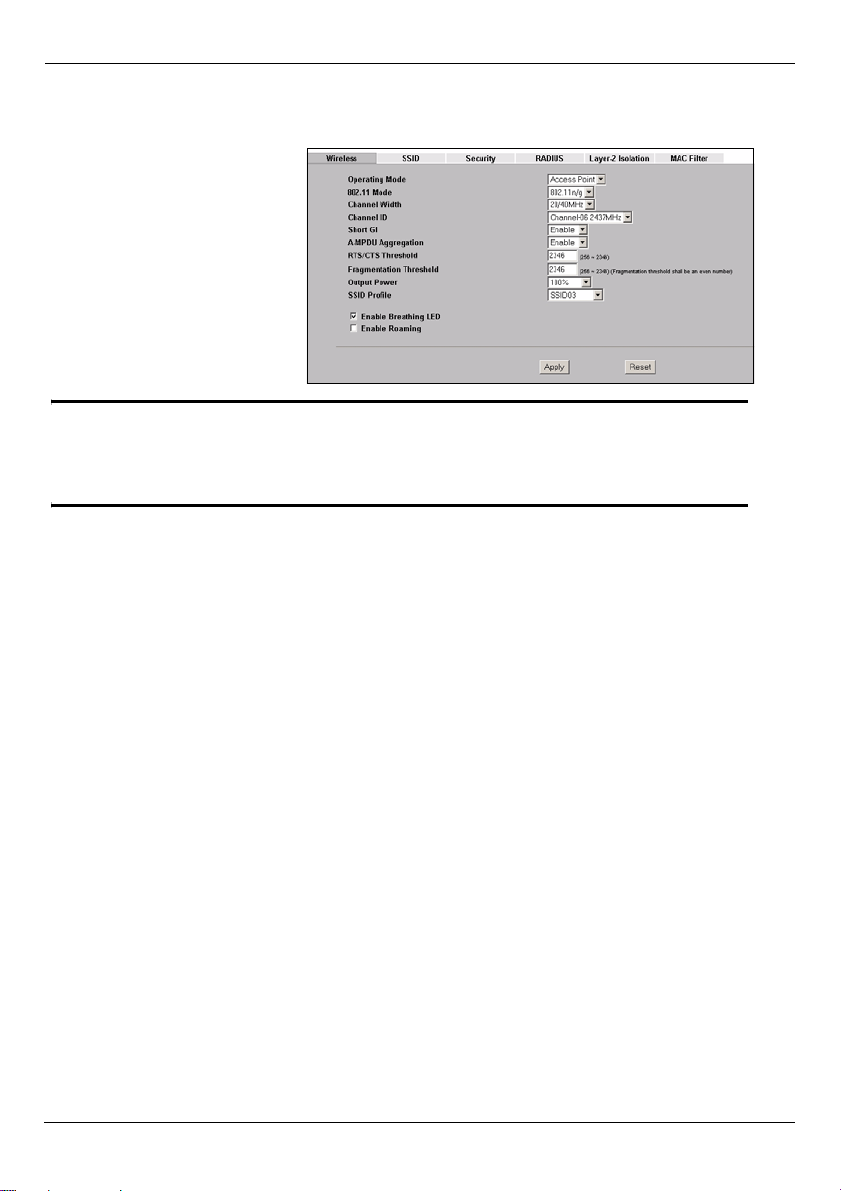

1Click WIRELESS in the

navigation panel. A

screen similar to the

following appears. Not all

fields are available in all

models.

"The wireless stations and the ZyXEL Device must use the same

SSID, channel ID and encryption settings for wireless

communication.

Operating Mode: Ensure that Access Point mode is selected.

802.11 Mode: Select the wireless standard you want your network to use. If you are

not sure which to select, select 802.11b+g.

Channel ID: Select the wireless channel you want your network to use. To have the

ZyXEL Device automatically select a channel, click Scan instead.

SSID Profile: Select the SSID profile you want to configure for network access from

the drop-down list box. This example uses the SSID03 profile.

2Click Apply to save your settings.

ENGLISH

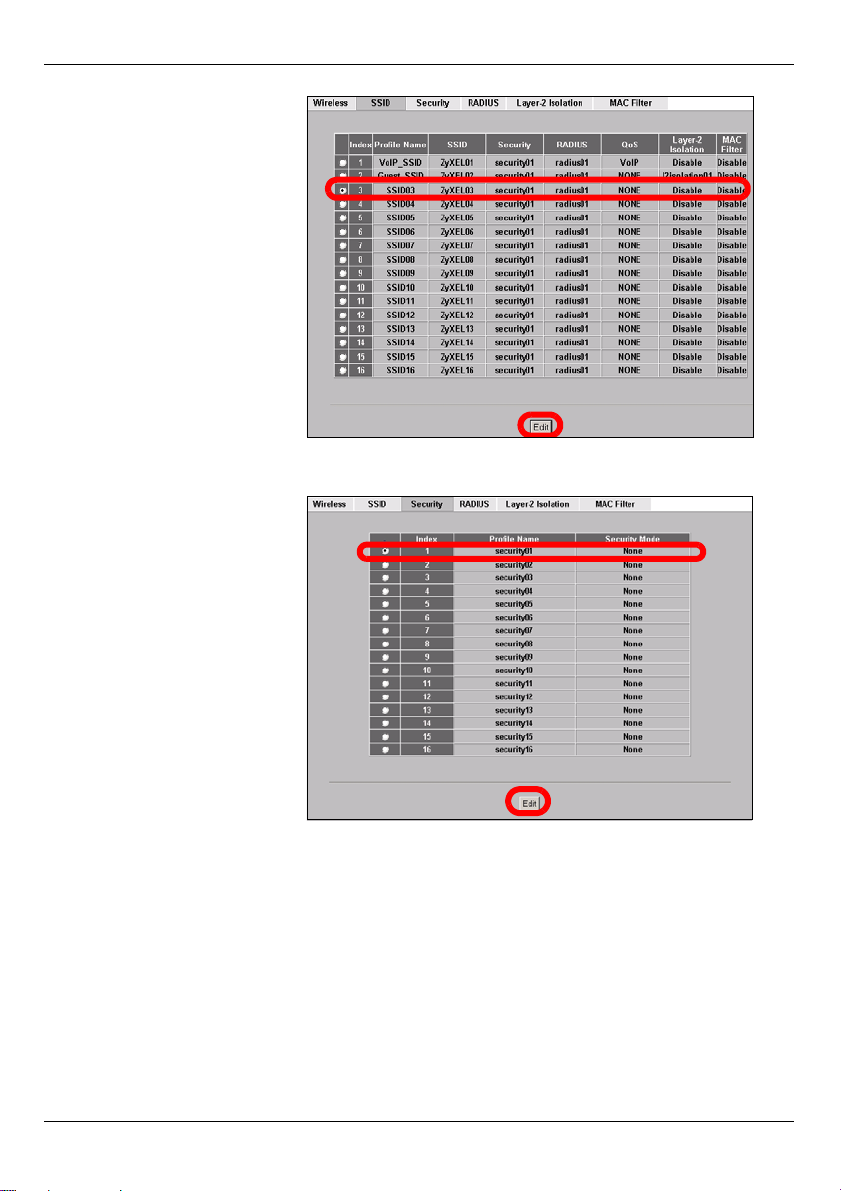

3Click the SSID tab. The

following screen appears.

Ensure the settings for

SSID03 are at their default

values.

The default SSID (the

name of the network) is

ZyXEL03, its default

Security setting is

Security01.Layer 2

Isolation and MAC Filter

are set to Disable by

default.

If you want to change the

SSID profile’s settings,

select SSID03 and click

Edit.

4Click the Security tab.

Ensure that Security01 is

selected and click Edit.

If you don’t configure

wireless security, then

anyone can access your

network.

ENGLISH

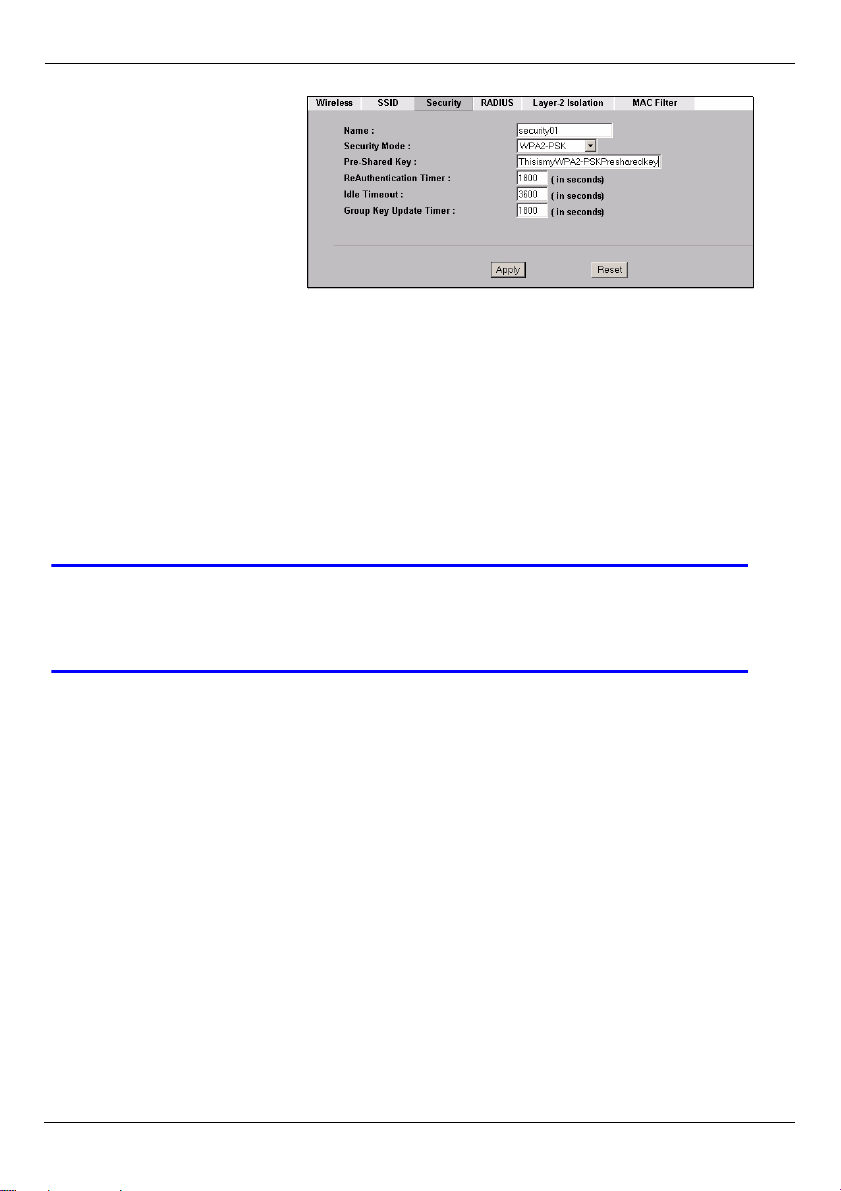

5This is where you can

enter the security settings

for your wireless network.

The fields you fill in differ

according to the type of

security you select in the

Security Mode field.

Select None if you do not

wish to use wireless

security.

This example uses WPA2-

PSK security, in which all

wireless clients must use

the same pre-shared key

to join the network.

Ensure that all your

wireless clients support the

type of security you set.

Click Apply when you

have finished.

VIf the wireless clients cannot communicate with the network, ensure

that the clients and the ZyXEL Device are using the same wireless

security settings.
