ZyXEL Communications DMA2501 Manuel utilisateur

www.zyxel.com

Full HD Digital Media Streamer

Firmware v1.00

Edition 1, 5/2010

DMA2501

CONTENTS

ENGLISH 5

DEUTSCH 21

ESPAÑOL 39

FRANÇAIS 57

ITALIANO 75

NEDERLANDS 95

SVENSKA 113

ZyXEL Communications Corporation

Device Panels

POWER

LED

REMOTE CONTROL

ACTIVITY LED

RECEIVER

USB

PORT

ETHERNET

PORT

HDMI PORT

POWER

AV PORT

OPTICAL

PORT

ENGLISH

Connect Your DMA2501

This is a hardware connection overview. Take the following steps to set

up your DMA2501’s hardware connections. Use either the cables that

came with your DMA2501, or those that came with your TV or Internet

access device.

Turn off your TV before you connect the DMA2501.

ENGLISH

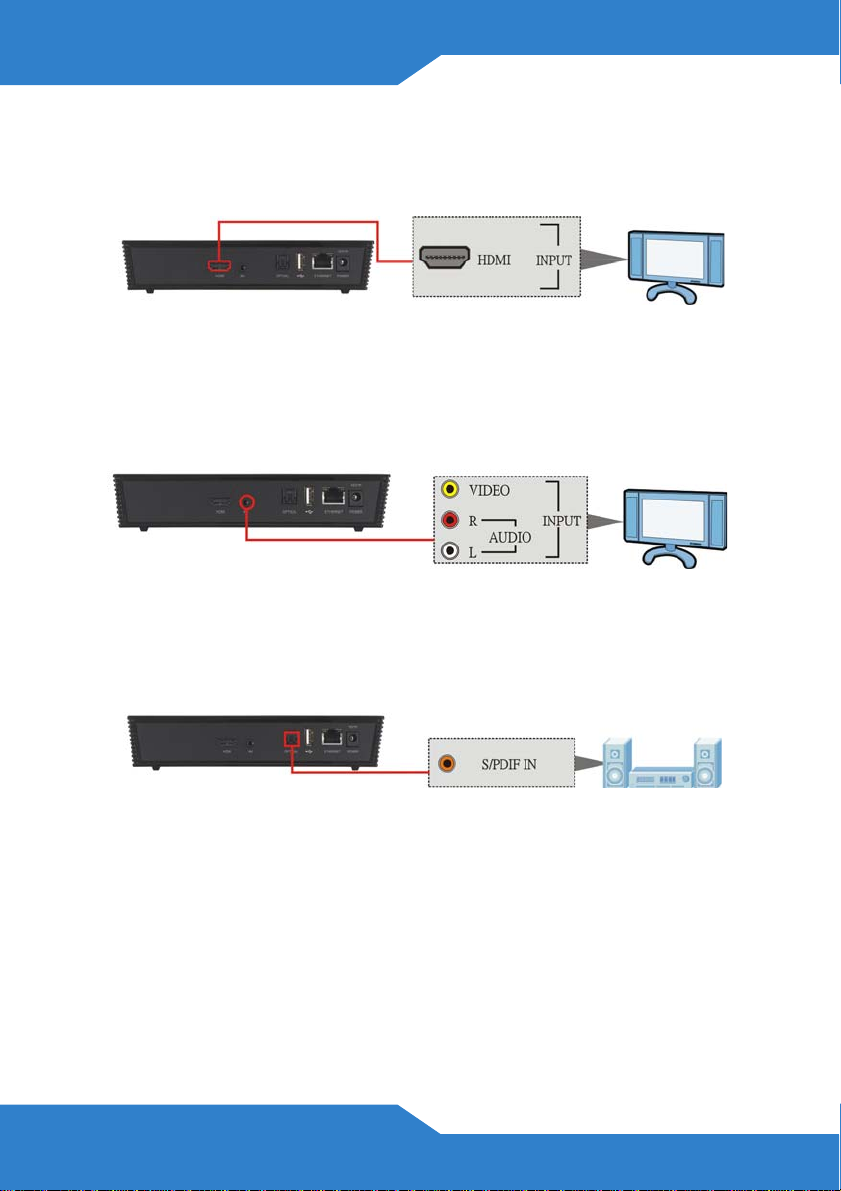

1. If your TV has an HDMI connector, use an HDMI cable to connect the

DMA2501’s HDMI connector to the TV. Then go to step 3.

If your TV does not have an HDMI connector:

Use a composite AV to 3 RCA cable to connect the DMA2501’s AV

jack to the TV.

2. If your stereo has an optical jack, use a digital audio cable to connect

it to the DMA2501’s OPTICAL jack.

3. Skip to step 4if you will only play files from a USB device. To play

media files located on computers or devices on your network or the

Internet, connect the DMA2501’s Ethernet port.

• Use the straight-through Ethernet cable to connect to an Ethernet

switch, router, or hub.

• Or use a cross-over Ethernet cable (not included) to connect

directly to your computer.

ENGLISH

4. To play files from a USB device, connect it to the DMA2501’s USB

port. Make sure the USB device also uses its external power supply if

it has one.

5. Connect the POWER socket to a power source using only the

included power adaptor.

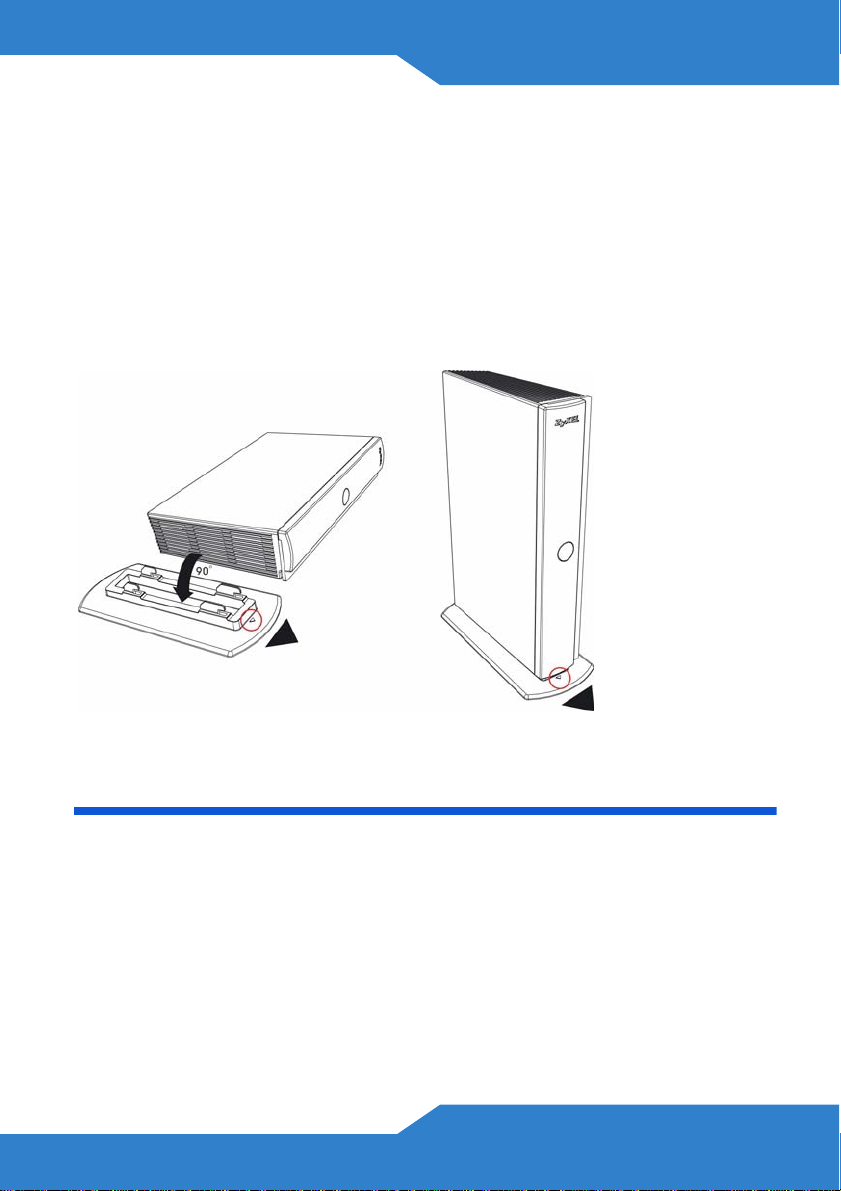

6. If you want to stand the DMA2501 up vertically, attach the included

stand as shown next.

Configure the DMA2501

1. Turn on the TV and set its video source to the DMA2501’s

connection: HDMI or composite (AV).

2. Install the remote control’s batteries.

Point the remote at the black dot on the front of the DMA2501. The

DMA2501 remote is sensitive to input from the remote. Holding a button

on the remote down may register as multiple pushes.

3. Turn on the DMA2501. The POWER light turns green.

 Check your power connection if the power light does not

come on.

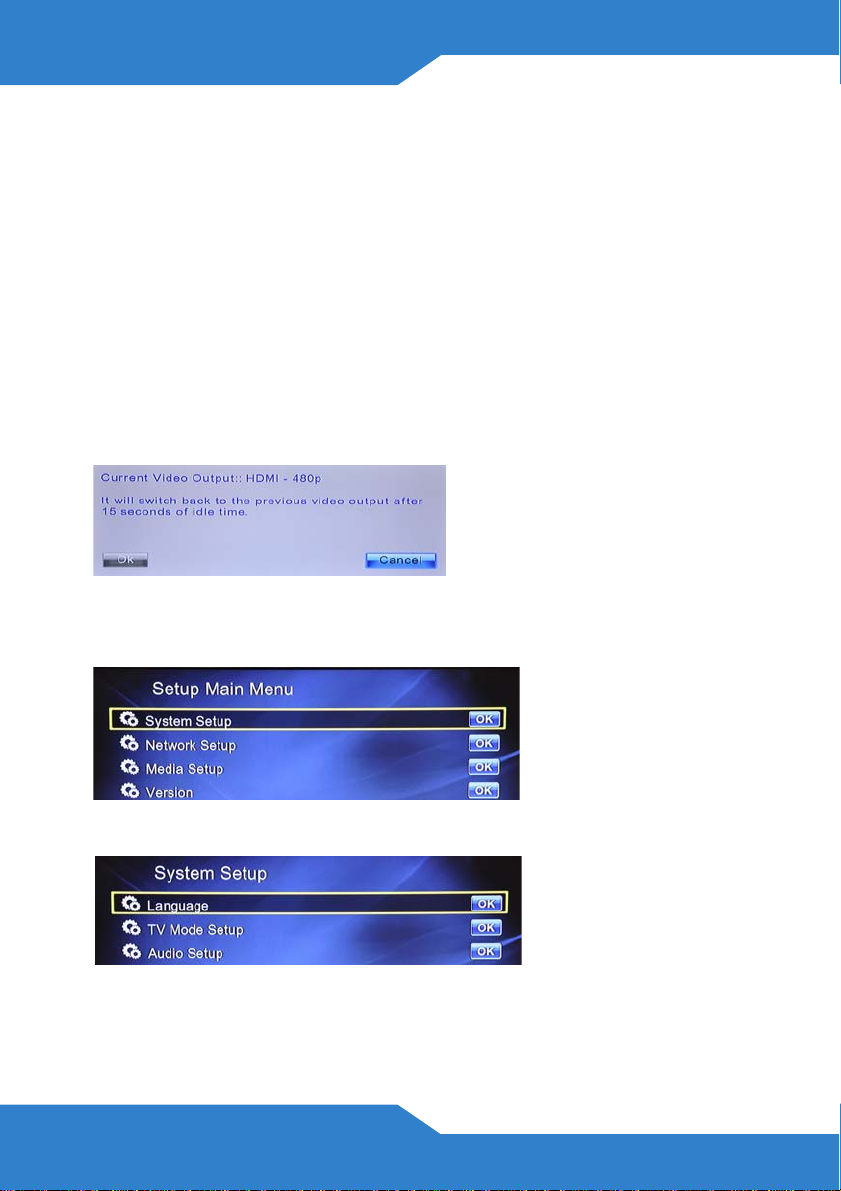

4. If the DMA2501’s picture displays on the TV properly, continue to the

next step. Otherwise, use the remote’s OUTPUT button to change the

video mode. Wait a few seconds during each mode. When you get to

the correct mode, use the arrow and OK buttons to select OK.

5. Press the remote’s SETUP button. Use the arrow and OK buttons to

select System Setup.

6. Press OK to select Language.

ENGLISH

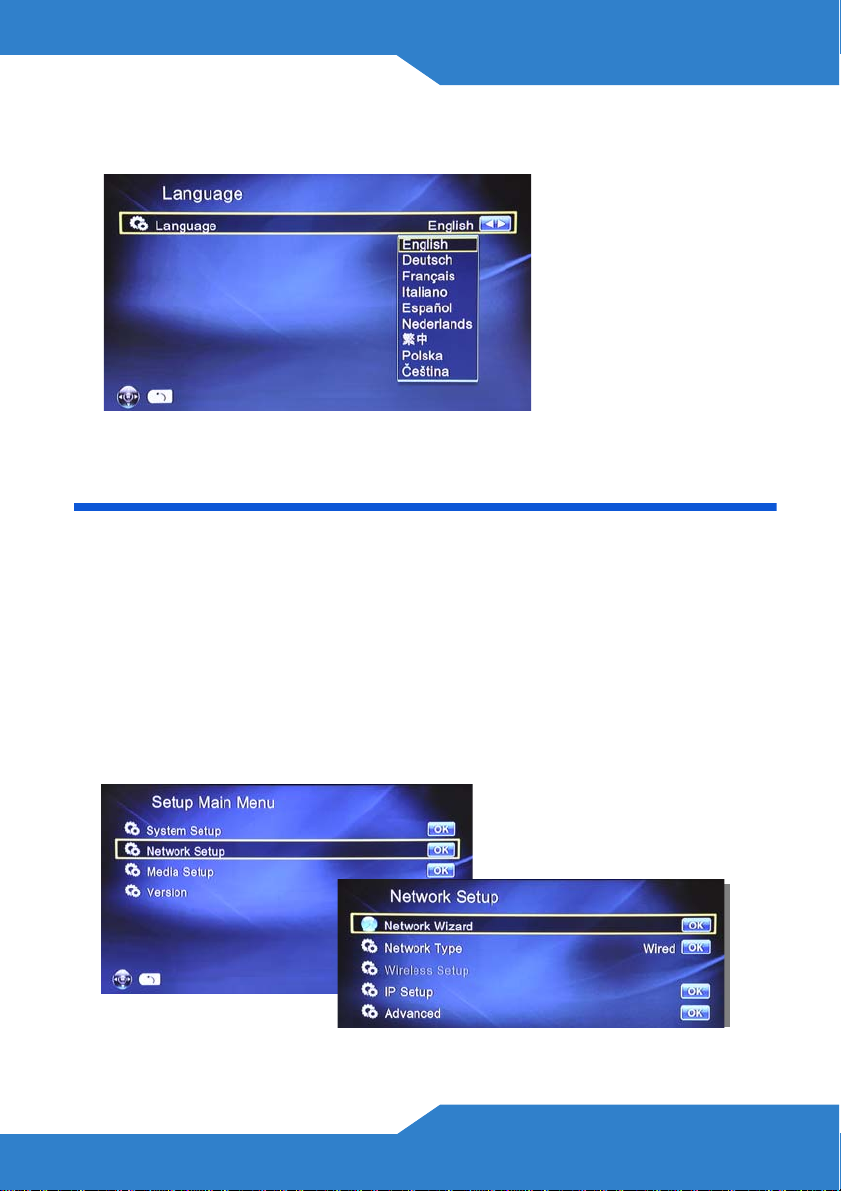

7. Press OK to display a language list. Use the up and/or down arrow

and OK buttons to select your language.

Wireless Setup

Connect a ZyXEL NWD-211AN or NWD-270N wireless USB adapter to

the USB port and use this section to set up a wireless network

connection. For wireless connections the DMA2501 only supports

getting an IP address automatically so your network must have a DHCP

server to assign the DMA2501 an IP address.

1. Press the remote’s SETUP button and use the arrow and OK buttons

to select Network Setup and then the Network Wizard.

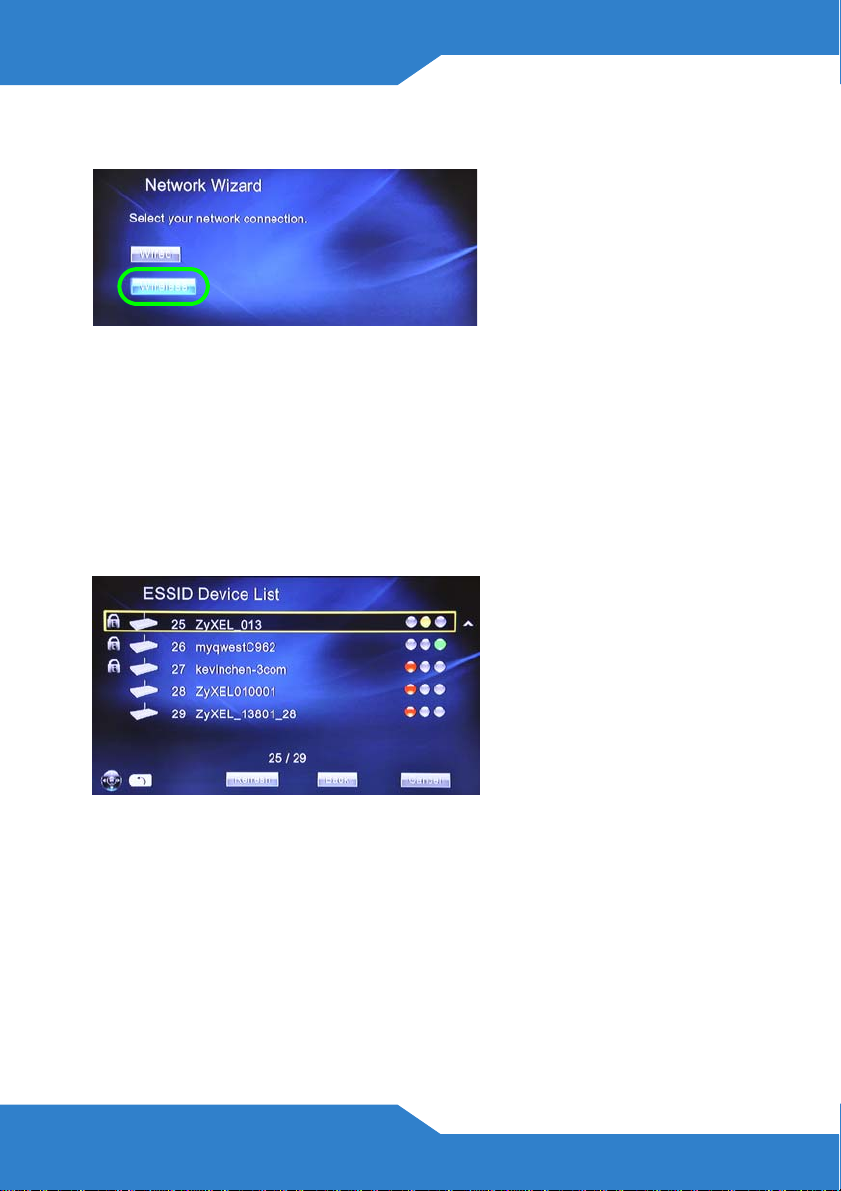

2. Select Wireless.

3. The DMA2501 scans and lists the wireless networks in the area.

Select the wireless network to which you want to connect and press

OK.

• Red: this first dot (on the left) indicates a weak signal.

• Yellow: (the second dot) indicates a fair signal.

• Green: (the third dot) indicates a strong signal.

ENGLISH

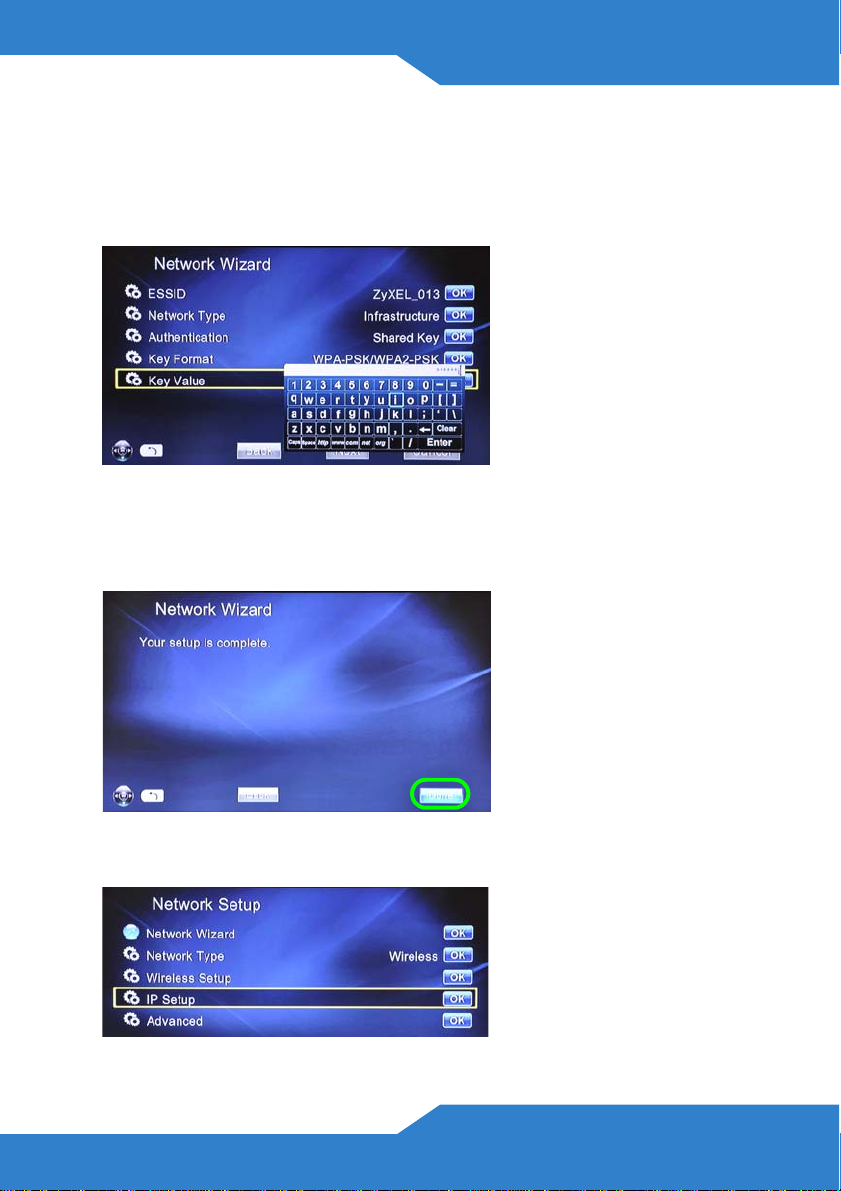

4. The DMA2501 lists the selected wireless network’s key settings. If the

wireless network uses security, select Key Value and use the remote

control’s arrow and OK buttons to input the password. Then select

Next.

5. The DMA2501 applies your settings and your DMA2501’s network

setup is complete. Select Done to return to the Network Setup

menu.

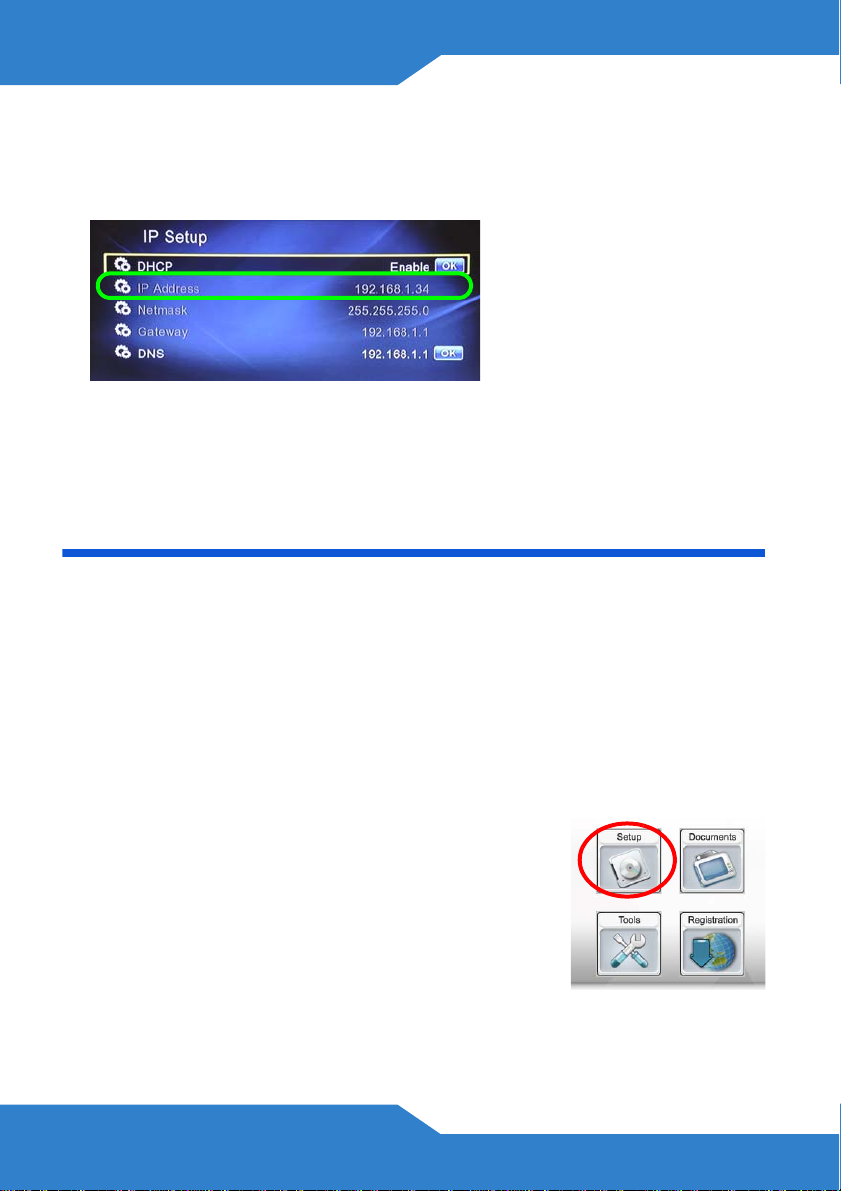

6. Select IP Setup.

7. Your wireless setup is complete if the DMA2501 has been assigned

an IP address. Otherwise use the wireless wizard again and make

sure you use the correct settings.

If you change the wireless AP’s settings, disconnect and reconnect the

DMA2501’s power and configure the wireless wizard again.

Media Server Software

Install the included media server software to let the DMA2501 play files

stored on your computer.

To just use a USB device, skip to page 17. You can only install the media

server software on a Windows computer. See page 18 for more details.

Install the Media Server Software

1. Put the CD into your CD-ROM. Click Setup in

the following screen.

 If this screen does not display, locate and

double-click setup.exe.
