ZyXEL Communications WX3100-TO Manuel utilisateur

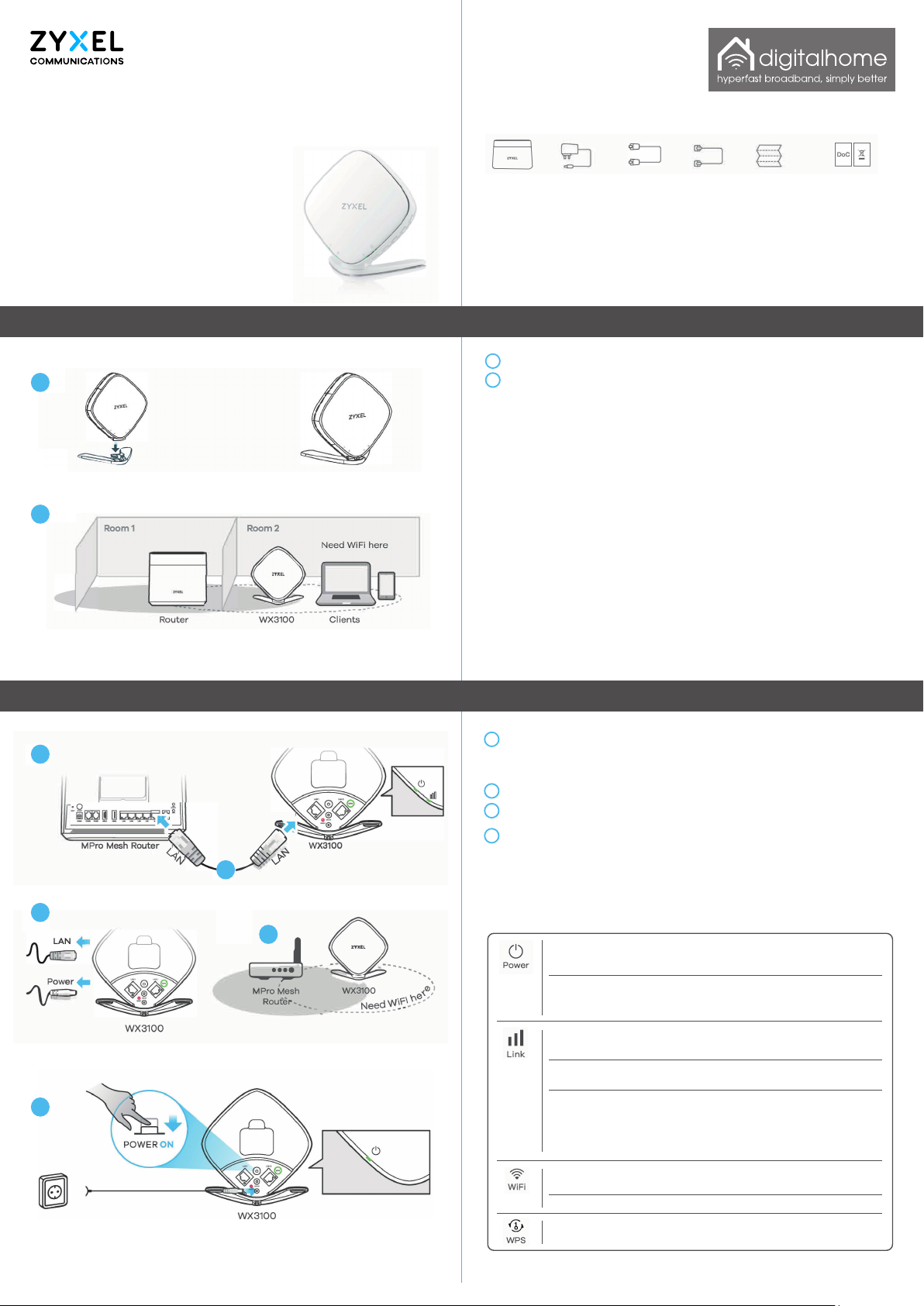

Attach the bracket to the bottom of the WX3100 as shown.

Consider where you want to place the WX3100 to extend your wireless

network. The extender needs to be placed close to, but not in the Wi-Fi

blackspot, as it still needs to connect to the router to create the mesh

network. This way it also maximises the coverage available.

There are two ways to set up your extender.

Preparing to use the WX3100

Setting up your Extender - Option 1

WX3100-TO

Dual-Band Wireless AX1800 Gigabit Extender

If you need any assistance please call us on

0333 0155156 or email [email protected]

www.digitalhomeuk.com

Package Contents

Device Power Cable Ethernet Cable Phone Cable Quick Start Guide Declaration of Conformity

Safety Warnings

Quick Start Guide

Firstly use the included Ethernet cable to connect the WX3100 LAN port

to the original MPro Mesh Router LAN port. Plug in the power adaptor

and wait until the POWER and LINK LEDs are steady green.

Then unplug the Ethernet and power cable from the WX3100.

Place the WX3100 where you want to extend your wireless network.

Plug in the power adapter. Make sure your LINK LED is steady green

(preferred) or amber.

For more details on the LEDs, please refer to the LED table below.

To add more extenders to your network, repeat from step 1.

Note: You do not need to plug in the Ethernet cable in this step.

On - Power is on or the MPro Mesh conguration process is done.

Blinking - The WX3100 is starting up or under the MPro Mesh

conguration process.

On - The WiFi connection to the MPro Mesh router is good.

On - The Ethernet cable is connected to the WX3100 LAN port.

With Wireless Connection

With Wired Connection

On - The WX3100 detects a system error.

Blinking (Fast) - The WX3100 is upgrading rmware.

Blinking (Slow) - The Easy Mesh process has failed.

On - The signal is too strong. We suggest moving the WX3100

away from the MPro Mesh Router.

Blinking - The WPS is in process.

Off - The WPS process is done.

On - The WiFi connection to the MPro Mesh router is good.

Blinking - The WX3100 is transmitting/receiving WiFi data.

Off - 2.4G/5G WiFi is disabled.

On - The signal is too weak. Move theWX3100 closer to the

MProMesh Router.

Red

Green

Amber

Red

Green

1 / 2

Wait until the power LED

turns steady green

2 / 2

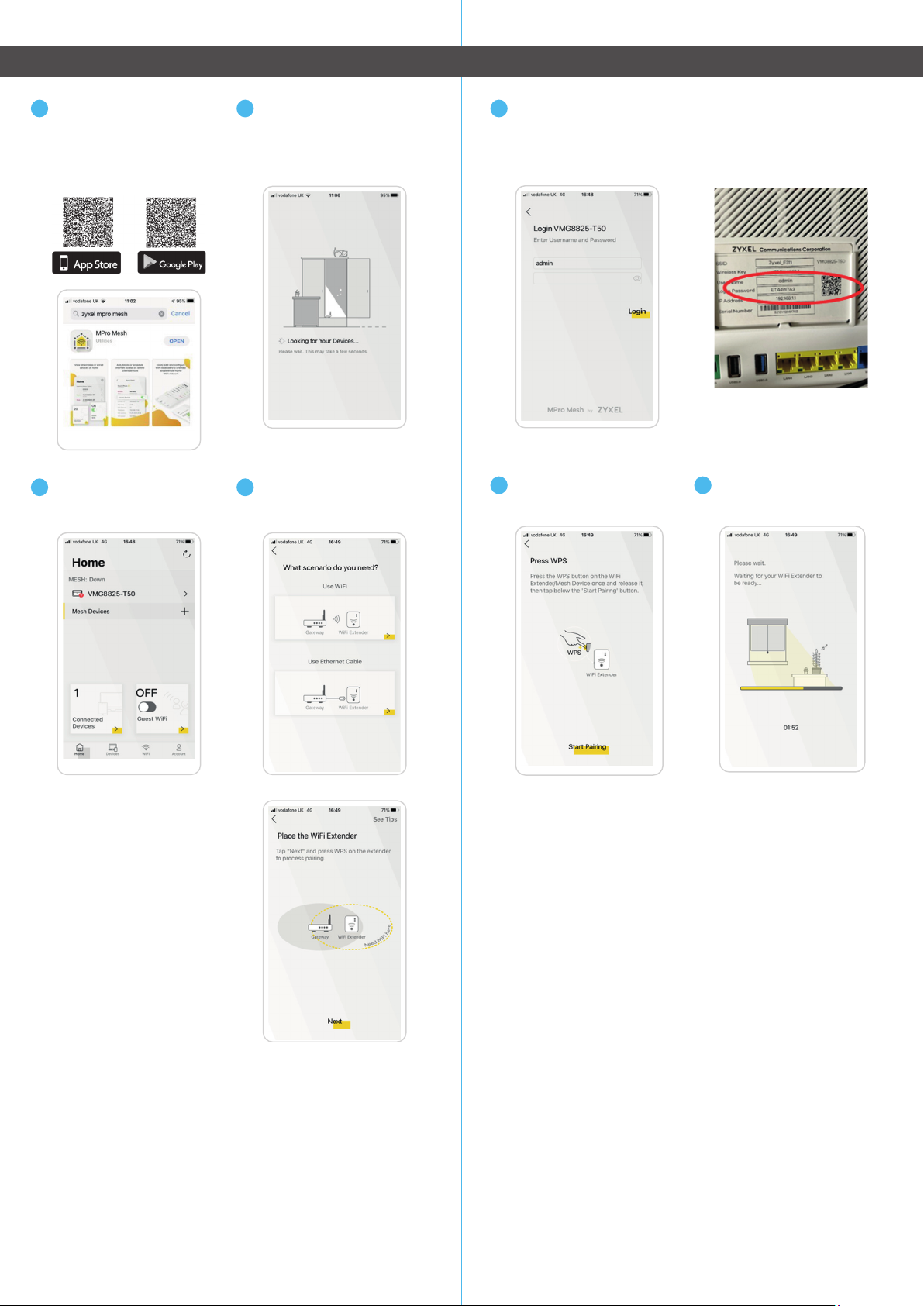

On your mobile device, go

to your App store and

search for: Zyxel MPro Mesh

app or scan the QR code

below. Open to download.

Once logged in - click the

’+’ to add mesh devices.

A note on positioning of the

Extender.

The extender needs to be placed

close to, but not in the Wi-Fi

blackspot, as it still needs to

connect to the router to create

the mesh network.

This way it also maximises the

coverage available.

Pair the router & extender

by pressing the ‘WPS’

button on the extender.

Switch your router on and

open the app. The app will

search for your Zyxel router.

Then Power up your extender.

Select ‘use Wi-Fi’ scenario

to connect the extender

to the router.

Wait 2 minutes for the

router & extender to

complete the process.

Once the app has located the router – it will prompt you to login

as admin. Connect to the router as admin (using admin password

from the rear of the router).

Setting up your Extender via the App - Option 2

A note on positioning of the Extender.

The add more extenders to your network, repeat from Step 4.
