Configuring your Phone

Quick Installation Guide

Configuration of the phone is centrally managed from the Zultys MX IP phone system. For

most deployments the phone will receive an IP address from the DHCP server on the local

network. For the phone to automatically download its configuration information the DHCP

server must have Option 66 enabled and configured with the address of the Zultys MX IP

phone system. For further information about configuration of the phone please refer to the

ZIP 33i Administration Manual.

80mm/3.15”

For more information, refer to ZIP 33i User Guide. 96-35331-01

ZIP 33i Business Phone

Wall Mount Drilling Template

Drill two holes vertically spaced 80mm/3.15” apart.

After the IP phone is connected to the network

and supplied with power, it automatically

begins a process of initializing on the network

and downloading it's configuration information.

Contact your system administrator if the phone

fails to register with the IP phone system.

Initializing

Please wait

Startup

Stand &

Wall Mount

Power Adapter

(optional)

Handset Cord

Handset

IP Phone

Ethernet Cable Quick Installation

& Quick Reference

PC Connection

(Optional)

IEEE 802.3af compliant

PoE Switch

You have two options for network and power connections. Your system administrator will

advise you on which one to use.

Power Adapter

(DC 5V)

PC Connection

(Optional)

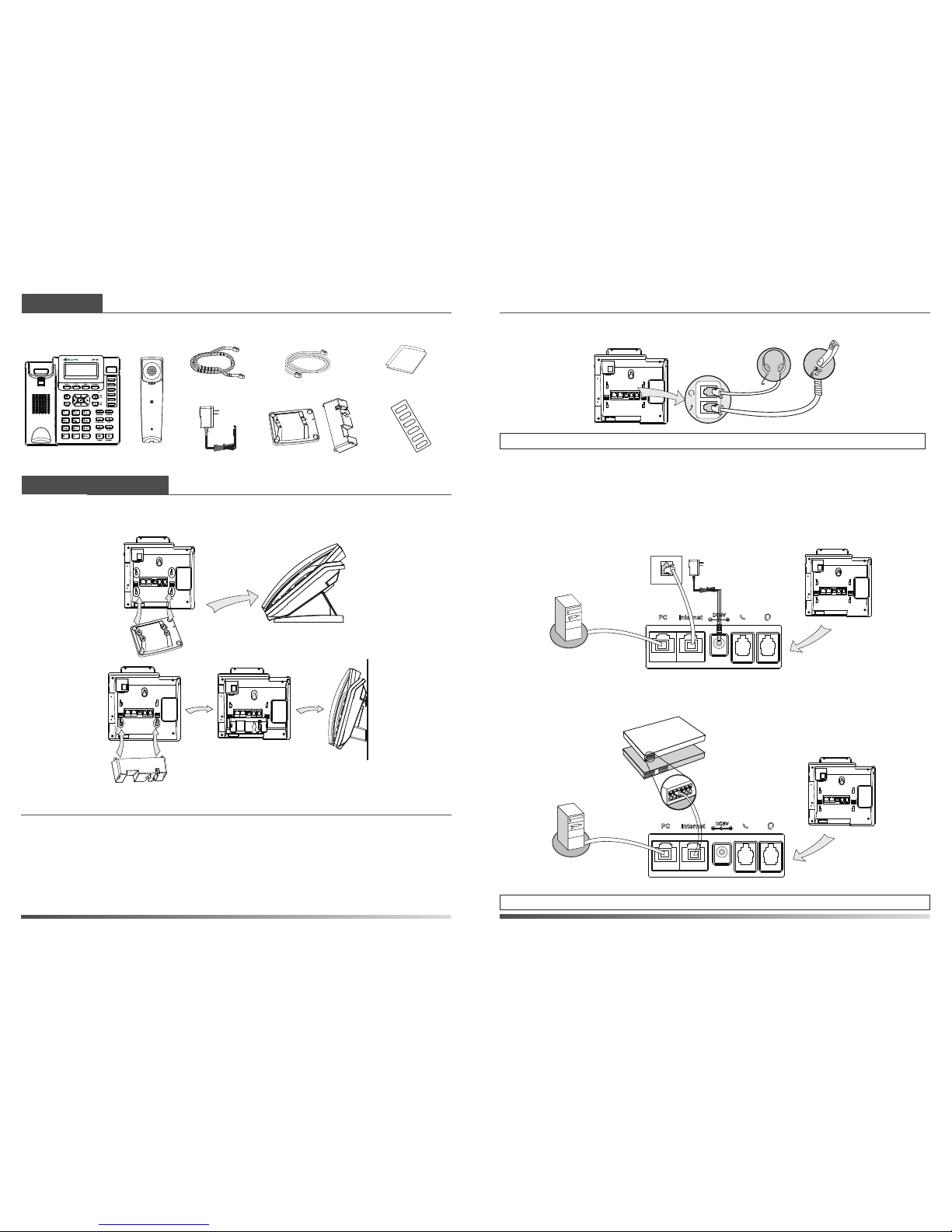

ZIP 33i Quick Installation

1. Attach the stand, as shown below:

2. Programmable Key Label Installation

4. Connect the network and power, as shown below:

a. AC Power Option

b. PoE (Power over Ethernet) Option

The following items are included in your package. The power adapter is optional. If you find

anything missing, contact your system administrator.

Packing List

Assembling the Phone

Note: If the PoE (Power over Ethernet) option is used, the power adapter is not required.

Desk Mount Method

Wall Mount Method

Network

ZIP 33i Quick Installation

Key Label Set

Note: Headset purchased separately.

3. Connect the handset and optional headset, as shown below:

A set of pre-printed labels for the programmable keys is provided. To change the installed

label remove the clear plastic cover using a paper clip or similar, insert the required label

followed by the clear plastic cover.
