Zotac GAMING MEK1 Manuel utilisateur

291-MA345-06R9F

ZOTAC GAMING MEK1 Gaming PC

ZOTAC GAMING MEK1 GAMING PC

User’s Manual

No part of this manual, including the products and software described in it, may

be reproduced, transmitted, transcribed, stored in a retrieval system, or translated

into any language in any form or by any means, except documentation kept by the

purchaser for backup purposes, without the express written permission of ZOTAC.

Products and corporate names mentioned in this manual may not be registered

trademarks or copyrights of their respective companies, and are used for identication

purposes only. All trademarks are the property of their respective owners.

Every effort has been made to ensure that the contents of this manual are correct and

up to date. However, the manufacturer makes no guarantee regarding the accuracy of

its contents, and reserves the right to make changes without prior notice.

CAUTION:

Risk of explosion if the battery is replaced with an incorrect type. Batteries should be

recycled where possible. Disposal of used batteries must be in accordance with local

environmental regulations.

ZOTAC GAMING MEK1 Gaming PC

Table of Contents

Product specications ----------------------------------------------------------------------------------------3

Safety information ----------------------------------------------------------------------------------------------4

Setting up your system-------------------------------------------------------------------------------------4

Care during use ----------------------------------------------------------------------------------------------4

Welcome -----------------------------------------------------------------------------------------------------------5

Package contents -------------------------------------------------------------------------------------------5

Getting to know your ZOTAC GAMING MEK1 Gaming PC ----------------------------------------6

Front view -----------------------------------------------------------------------------------------------------6

Rear view ------------------------------------------------------------------------------------------------------7

Side view ------------------------------------------------------------------------------------------------------8

Standing your ZOTAC GAMING MEK1 Gaming PC --------------------------------------------------9

Setting up your ZOTAC GAMING MEK1 Gaming PC ------------------------------------------------10

Congure your ZOTAC GAMING MEK1 Gaming PC-------------------------------------------------12

Conguring a wireless connection ----------------------------------------------------------------------12

Conguring a wired connection --------------------------------------------------------------------------12

Using a static IP----------------------------------------------------------------------------------------------12

Conguring audio output-----------------------------------------------------------------------------------13

Mouse & Keyboard ---------------------------------------------------------------------------------------------14

Standard keyboard shortcuts -----------------------------------------------------------------------------14

Lighting effects -----------------------------------------------------------------------------------------------14

Macro -----------------------------------------------------------------------------------------------------------15

ZOTAC GAMING MEK1 Gaming PC

Product specications

qMicroprocessor support

vIntel Core i5-7400 (quad-core 3.0GHz, up to 3.5GHz)

qOperating systems:

v Windows 10 Home (pre-installed)

qSystem Memory support

v Two DDR4 DIMM slots (2x8G 2400MHz pre-installed)

qOnboard Serial ATA

v Supports one 2.5-inch SATA HDD or SSD (1TB HDD pre-installed)

qExpansion slot

vOne M.2 PCIe x4 (240GB NVMe SSD pre-installed)

qUSB Ports

v Two USB 3.0 port(Front)

v Two USB 2.0 port(Rear)

v Four USB 3.0 ports(Rear)

q Onboard Dual LAN

v Supports 10/100/1000 Mbps operation

vSupports IEEE 802.3

qWiFi/Bluetooth support

v Compliant with IEEE802.11ac standard

vBluetooth v4.2

qOnboard Audio

v 7.1 audio output and Microphone input with Optical output

qPower Management

v Supports ACPI (Advanced Conguration and Power Interface)

qOnboard Graphics support

vZOTAC GeForce GTX 1060 w/ 6GB GDDR5, 192bit

v3 x DisplayPort 1.4, 1 x HDMI 2.0b, 1 x DL-DVI

qProduct Size

v 418.3 x 118 x 415.2 mm (LxWxH)

qPower Supply

v 450W

ZOTAC GAMING MEK1 Gaming PC

Safety information

Your ZOTAC GAMING MEK1 Gaming PC is designed and tested to meet the latest standards of

safety for information technology equipment. However, to ensure your safety, it is important that you

read the following safety instructions.

Setting up your system

Read and follow all instructions in the documentation before operating your system.

Do not use this product near water or a heat source such as a radiator.

Set up the system on a stable surface.

Openings on the chassis are for ventilation. Do not block or cover these openings. Make sure

you leave plenty of space around the system for ventilation. Never insert objects of any kind into

the ventilation openings.

Use this product in environments with ambient temperatures between 0℃and 35℃.

 If you use an extension cord, please use the UL listed cord and make sure that the total

ampere rating of the devices plugged into the extension cord does not exceed its ampere

rating.

Care during use

Do not walk on the power cord or allow anything to rest on it.

Do not spill water or any other liquids on your system.

When the system is turned off, a small amount of electrical current still ows. Always unplug all

power, modem, and network cables from the power outlets before cleaning the system.

If you encounter the following technical problems with the product, unplug the power cord and

contact a qualied service technician or your retailer.

¾The power cord or plug is damaged.

¾Liquid has been spilled onto the system.

¾The system does not function properly even if you follow the operating instructions.

¾The system was dropped or the cabinet is damaged.

ZOTAC GAMING MEK1 Gaming PC

Welcome

Congratulations on your purchase of the ZOTAC GAMING MEK1 Gaming PC. The following illustration

displays the package contents of your new MEK1 Gaming PC. If any of the below items is damaged

or missed, contact your retailer.

Package contents

• 1 x ZOTAC GAMING MEK1 Gaming PC

• 2 x MEK1 Gaming PC Stand

• 1 or 2 x Power Cord (depends on region)

• 2 x Antenna

• 1 x Windows recovery DVD

• 1 x USB ash drive with Windows drivers

• 1 x User Manual & Warranty Card

• 1 x Quick Start Guide

• 1 x Gaming mouse*

• 1 x Gaming keyboard*

• 1 x Gaming mouse pad*

*Only applicable on select bundles

ZOTAC GAMING MEK1 Gaming PC

Getting to know your ZOTAC GAMING MEK1 Gaming PC

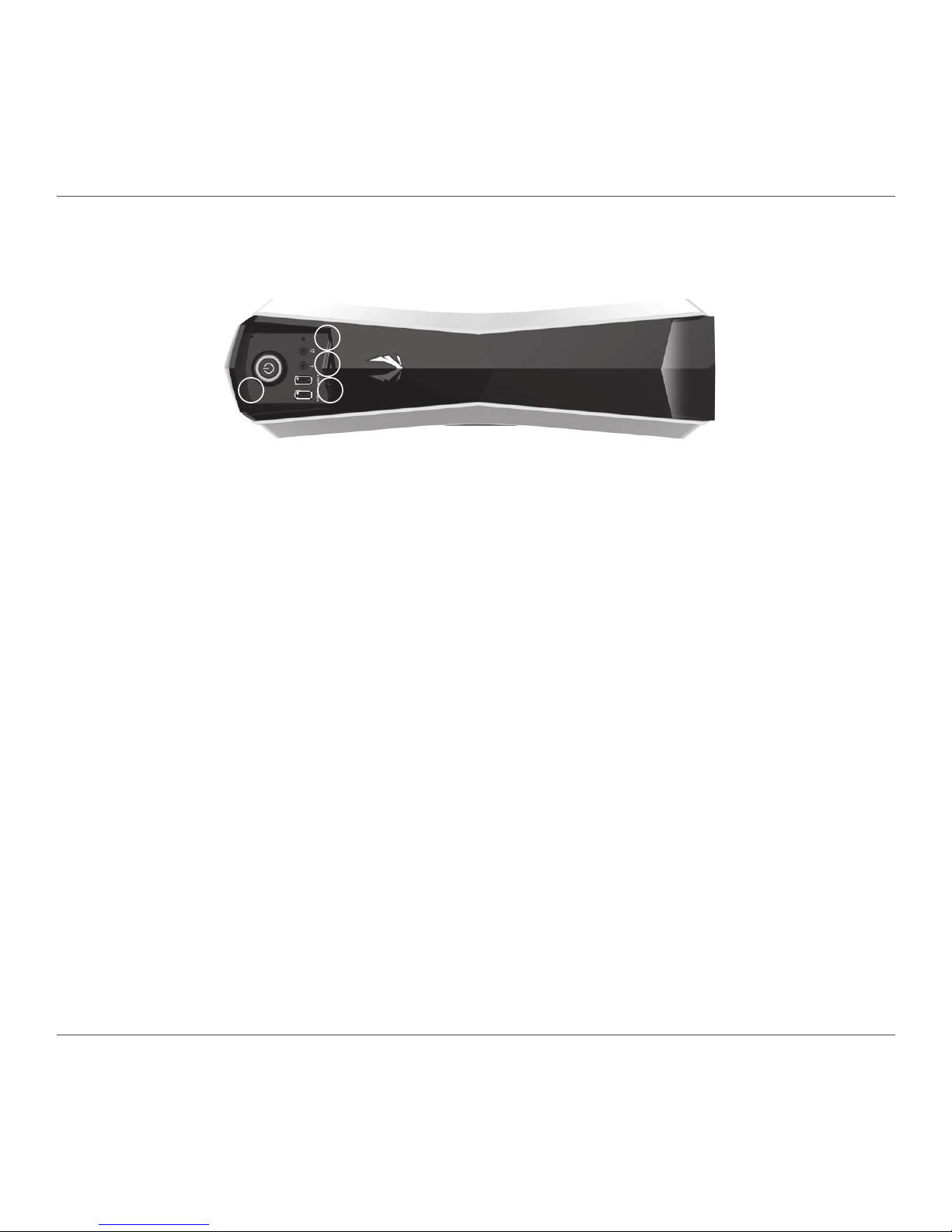

Front view

Refer to the diagram below to identify the components on this side of the system

1. Power switch

The power switch allows powering ON and OFF the system. The ring LED will be lit while

system is On.

2. Headphone/Audio Out jack

The stereo headphone jack (3.5mm) is used to connect the system’s audio out signal to

gaming headset.

3. Microphone jack

The microphone jack is designed to connect the microphone used for easy connection with

gaming headset.

4. USB 3.0 ports

The USB 3.0 port supports the SuperSpeed USB 3.0 devices and is backwards compatible

with USB 2.0/1.1 devices. Use this port for USB 3.0 devices for maximum performance with

USB 3.0 compatible devices.

ZOTAC GAMING MEK1 Gaming PC

Rear view

1. Power input (IEC C14, standard power cord connection)

Connected with power cord to mains for AC input.

2. DVI port

The DVI port supports connection to digital display devices.

3. DisplayPorts

DisplayPorts supports both external (box-to-box) and internal (laptop LCD panel) display

connections.

4. HDMI port

The HDMI (High Denition Multimedia Interface) port supports a UHD device such as an LCD

TV or monitor to allow viewing on a larger external display.

5. Audio ports

Use the ve audio ports to connect audio devices. The pink jack is for microphone. The green

jack is for front speaker out signal. The blue jack is for side speaker out signal. The orange

jack is for rear speaker out signal. The black jack is for center/subwoofer signal.

6. Optical (SPDIF OUT) jack

The optical S/PDIF output enables connectivity with digital audio receivers and speakers for

crystal clear digital audio and surround sound from compatible soundtracks.

7. USB 3.0 ports

The USB 3.0 port supports the SuperSpeed USB 3.0 device. Use this port for USB 3.0 devices

for maximum performance with USB 3.0 compatible devices.

8. LAN ports

The eight-pin RJ-45 LAN ports support standard Ethernet cables for connection to a local

network.

9. WiFi antenna connectors

The WiFi antenna connector supports WiFi antenna module.

3 4 5

311

ZOTAC GAMING MEK1 Gaming PC

Side view

1. LED Strips

Lighting effects are controlled by ZOTAC GAMING Spectra software. Customize color, 5

different lighting modes, and brightness. Visit www.zotac.com website for the latest version.

Do not block the ventilation inlet / outlet. Lack of ventilation may cause system overheating.

10. USB 2.0 ports

The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards,

mice, cameras and hard disk drives.

11. PS/2 port

The PS/2 port is used to connect with keyboard or mouse.

Do not block ventilation outlet for warm air exhaust.

ZOTAC GAMING MEK1 Gaming PC

Standing your ZOTAC GAMING MEK1 Gaming PC

1. Lay the MEK1 Gaming PC on its side on a at surface.

2. Position the two MEK1 Gaming PC feet outside the edge of the at surface.

3. Slide MEK1 Gaming PC stands on the MEK1 Gaming PC feet.

4. Lift the MEK1 Gaming PC up and position it upright.

*Standing the MEK1 Gaming PC without installing the stand is not recommended as it may be

unstable and can be easily unbalanced.
