LOAD CHART MANUAL FOR
RT55 ROUGH TERRAIN CRANE
Address:Quantang Indust=rial Park, 2nd Yuanda Road,
Changsha Economic and Technological Development
Zone, Hunan Province, China
Postcode: 410131
Website: www.zoomlion.com
RT55 ROUGH TERRAIN CRANE
LOAD RATINGS
Edition 1
Dec.2013
To owners, users and operators
LOAD RATINGS FOR ROUGH TERRAIN CRANE
RT55 Rough Terrain Crane I
Zoomlion Cranes appreciates your selection of the ZOOMLION Rough Terrain Crane
for your application.
No one should operate the crane unless they read and understand the information in
this manual.
When you follow the instructions in this manual, your crane can operate at MAXIMUM
EFFICIENCY.
The operator must keep this manual in the cab of the crane.
If there is anything in the manual that you do not understand, speak with us. We
(Zoomlion Cranes) are NOT responsible for damages from an operator who does not
obey the instructions in the OPERATOR’S MANUAL.
The OPERATOR’S MANUAL is an important part of the crane. If the crane becomes the
property of a different person, make sure that the manual stays in the cab of the crane.
THANK YOU!
Mobile Crane Branch Company of ZOOMLION Heavy Industry Science and Technology
Co., Ltd.
Copyright
Under the copyright laws, this manual may not be copied, photocopied, reproduced,
translated, or reduced to any electronic medium or machine readable form, in whole or
part, without the prior written consent of Zoomlion Heavy Industry Science and
Technology Co., Ltd.
Copyright © 20XX, Zoomlion Heavy Industry Science and Technology Co., Ltd.
All rights reserved.
Safety
LOAD RATINGS FOR ROUGH TERRAIN CRANE
II RT55 Rough Terrain Crane
Hazard Indicators
DANGER, WARNING, CAUTION, ATTENTION, NOTE, and IMPORTANT labels are on
signs and decals, and as you read this manual to show important instructions. In this
manual, DANGER, WARNING, and CAUTION labels are before the paragraph or item to
which they apply. ATTENTION, NOTE, and IMPORTANT follow the paragraph or item
they apply to. The markers are as follows:
Refers to a dangerous situation which, if you do not prevent, will cause death or
injury.
Refers to a possible dangerous situation which, if you do not prevent, could cause
death or injury.
Refers to a possible dangerous situation which, if you do not prevent, may cause
light or moderate injury.
Attention
Refers to a situation which, if you do not prevent, may cause property or equipment
damage.
Note
Refers to a tip or hint in the operation instructions.
Emphasizes the importance of the data in this manual.
This symbol shows a step or procedure that is not approved and can cause a dangerous
situation.
Important
Caution
Warning
Danger
RT55 Rough Terrain Crane III
To Owners, Users and Operators.......................................................................................................I
Safety...................................................................................................................................................II

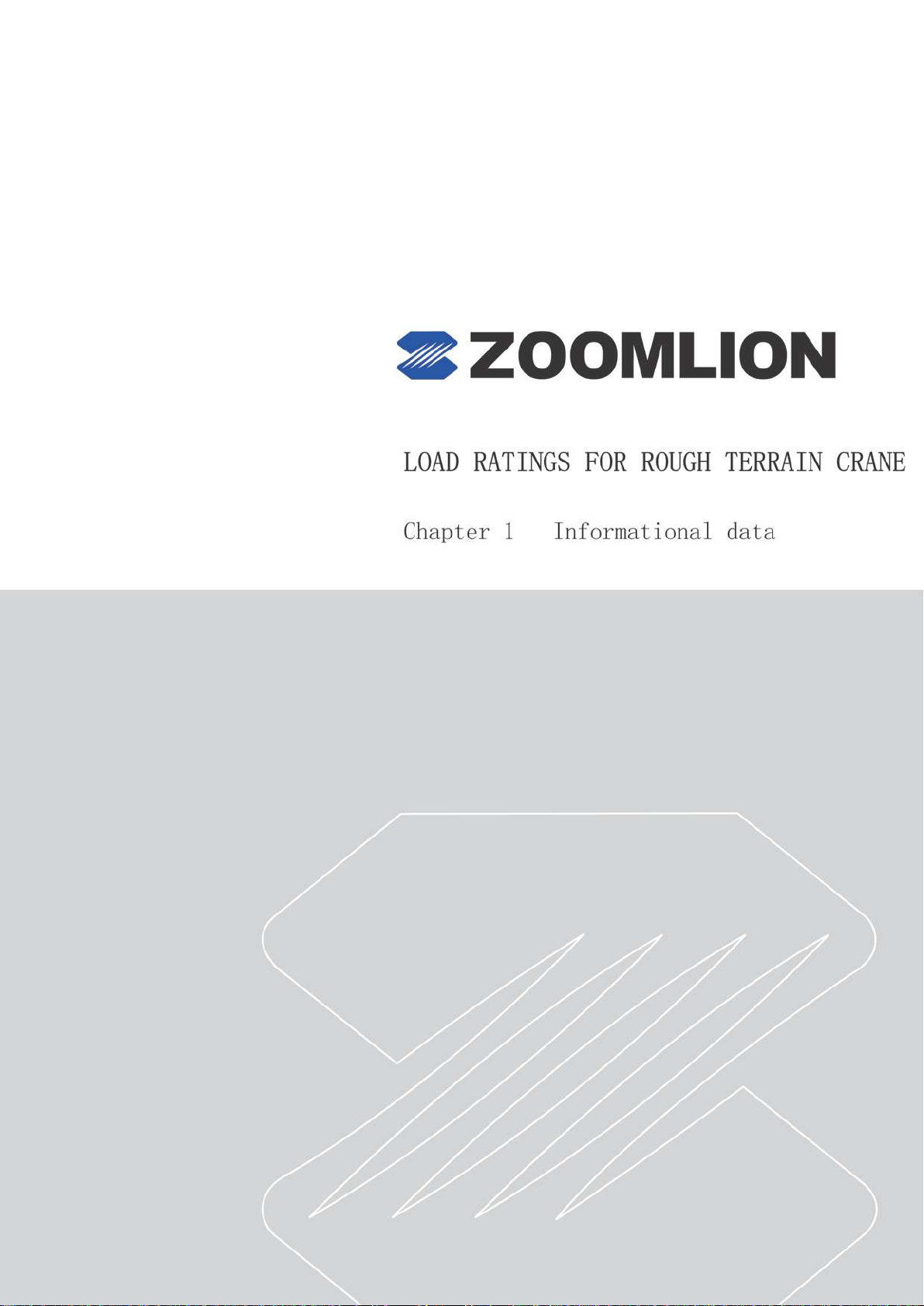

1 Informational data...................................................................................................................... 01-1
1.1 Hoist Tackle Chart ............................................................................................................... 01-1
1.2 Tire Inflation Chart............................................................................................................... 01-1
1.3 Weights................................................................................................................................ 01-2
1.4 Maximum outrigger float load .............................................................................................. 01-2
1.5 General................................................................................................................................ 01-3
1.6 Definitions............................................................................................................................ 01-3
1.7 Set-up.................................................................................................................................. 01-4
1.8 Operation............................................................................................................................. 01-4
2 Lifts with outrigger beams fully extended. ............................................................................. 02-1
3 Lifts with outrigger beams at mid-position. ............................................................................ 03-1
4 Lifts with outrigger beams fully retracted ............................................................................... 04-1
5 Lifts on tires ............................................................................................................................... 05-1
RT55 Rough Terrain Crane 01 - 1
1.1 HOIST TACKLE CHART
This chart only represents the maximum permissible hoist line load per parts of line. You must
refer to the proper Lift Charts for machine rated loads.
Table 01 – 1 Line Parts
MAXIMUM PERMISSIBLE HOIST LINE LOAD
LINE PARTS 1 2 3 4 5 6 7 8 9 10
MAXIMUM
PERMISSIBLE
HOIST LINE
LOAD (KG)
5500 11000 16500 22000 27500 33000 38500 44000 49500 55000
MAXIMUM
PERMISSIBLE
HOIST LINE
LOAD (LBS)
12125 24250 36375 48500 60625 72750 84875 97000 109125 121250
Wire rope: 19NAT-15×K7-IWRC-1960Mpa（3/4″ROTATION RESISTANT 15×K
7 COMPACTED
STRAND, GRADE 1960）
Weight: 160kg/100m (1.1LBS/FT)Minimum breaking strength: 31.1T (30.61TONS)
1.2 TIRE INFLATION CHART
Table 01 – 2 Tire Inflation Chart
RECOMMENDED TIRE PRESSURE
TIRE SIZE STATIONARY CREEP
（
21/2MPH
）
TRAVEL
26.50-25-32PR 580kpa（85 PSI）580kpa（85 PSI）450kpa（65 PSI）
