Zoom Model 24 Manuel
Dialer Sales
Ron Polli
Tel: 732-255-3969
E-mail: [email protected]
Founded in 1977, Zoom Telephonics, Inc.
designs, produces and markets a broad range
of communications products under the Zoom,
Hayes and Global Village brands. Zoom
Telephonics is publicly traded on the NASDAQ
National Market,and its trading symbol is ZOOM.
International Headquarters
Zoom Telephonics
207 South Street
Boston, MA 02111
www.zoom.com
Zoom/Dialer
Model 24
for VoIP & Prepaid Networks
•
Easy Routing
Maximize your service revenue
•
Easy Plug-in Installation
Through any jack on the phone line
•
Easy To Use
Works for all phones on the line
•
Easy Programming
And remote reprogramming
•
Easy Software
Manages programming downloads and
maintains customer information

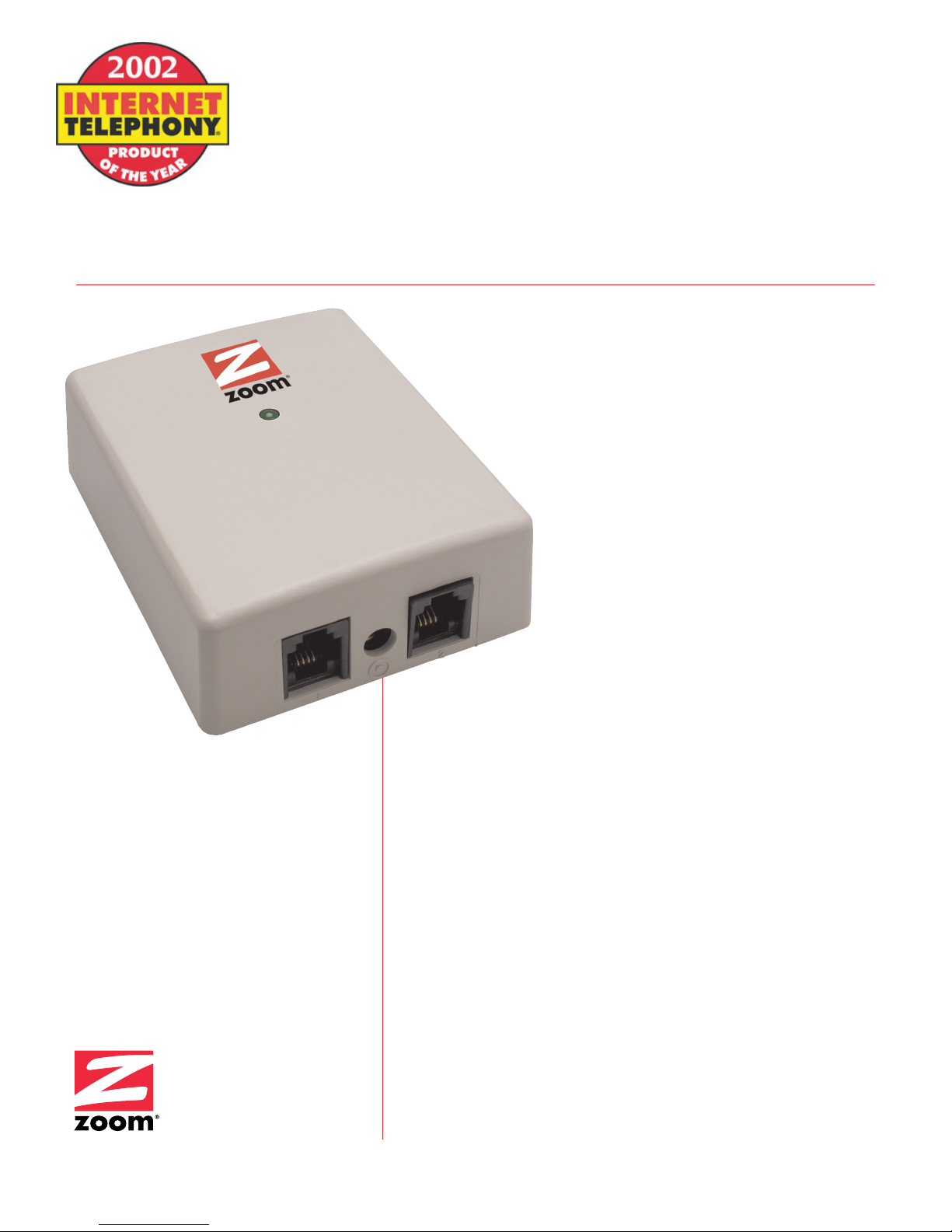

The Zoom/Dialer Model 24 is an award-winning product from Zoom Telephonics.
The dialer plugs in easily, just like a telephone, and uses a parallel connection to
provide powerful store-and-forward dialing for all of the phones on the line. Consumer
installation takes only seconds and requires no technical knowledge. The dialer
automatically selects calls to be routed to alternative service providers and allows the
service provider to remotely change the dialers' call selection parameters and dialing
directories. Remote management of the dialer is done with a Windows-based PC and
a Dialogic
®
voice board.
The Zoom/Dialer Model 24 is designed for the following services:
•Voice over IP
•Prepaid Calling Services
•Least Cost Routing using up to six networks
•Alternative Network Access
By making alternative carriers convenient and easy to use, service providers can
increase usage and revenue. Remote updates of the dialer allow service providers to
change carriers or access numbers while retaining customers.
The Zoom/Dialer Model 24 is available in one-line and 4-line models.
•
Easy Price
Model 24 Dialer
Specifications
Dialer Operation:
The Model 24 can route calls to up to six network access numbers. The routing tables can hold up to 350 numbers, area
codes or prefixes which the dialer will act upon. The dialer can block, route, or pass calls.
The dialer can output a dialing string of up to 60 digits in addition to acting upon logical operators such as programmed
pauses or programmed detection of voice or tones. Pauses may be programmed in increments of one-tenth second, up
to a maximum pause of one hundred seconds.
The Model 24 may be remotely programmed using Zoom Dialer Management Software, a Windows 2000/XP computer,
and a Dialogic Voice Board. Download information is input to the dialer using DTMF. The management software has an
easy-to-use graphical interface and is purchased separately from the dialers. The management software requires a
system with a Pentium 4 processor running at 1.4 MHz or faster and one GB of available storage. A single PC can
manage up to 5,000 dialers.
Dialer Programming: Remote programming using Zooms' Dialer Management Software. Local
programming using DTMF input.
Tones detected: DTMF (Touch Tones): 0 through 9, #, *, A, B, C, D, Voice. Continuous tone, Dialtone
Dialing Speed: Programmable duration of 50 ms to 250 ms per tone.
Dimensions: Dialer: 3.3 inches by 2.6 inches by 1.25 inches
110 Volt adapter: 2.2 inches by 1.7 inches by 1.6 inches
Weight: Dialer: 1.9 ounces
Power Supply: 5.8 ounces
Connectors: Two RJ-11 phone jacks
One DC power supply barrel connector, size 5.5 mm outer diameter x 2.1mm
inner diameter with positive center.
Status Reporting: Phone line on/off hook: Sending DTMF: Waiting for program download: Receiving program
download.
Regulatory Compliance: FCC Part 15B and Part 68, CE (EN55022, EN55024, EN60950) UL and CUL
Transformer Output: 22-24 Volt DC, 65 mA
Mounting bracket: Provides for optional wall mounting by using the adhesive pad provided or by
using a screw.
Package Contents: Dialer 24
Phone cord - 18 inches (45 cm), RJ-11 to RJ-11 connectors
Mounting bracket
Instruction manual
Power transformer
Compliance flyer
0354DI24
