Zodiac Freetalk PRO Manuel utilisateur

www.zodiac.se

www.zodiac.no

Zodiac Freetalk PRO

English

Swedish

Norwegian

User Guide ENG

JIntroduction

Thank you for purchasing Zodiac FreeTalk Pro. Zodiac

FreeTalk Pro is a PMR-product (Private Mobile Radio)

that lets you talk to as many people you wish, as often

as you like, with no need for a license, subscription or

tax payment. It is very easy to use so even children can

handle it.

Please read through this manual carefully for many

features of this model.

This user guide is also available on our web site

www.zodiac.se.

JDistinctive Features

Use of TCXO resonator to enhance freq. stability

Digitally designed to ensure stable quality

Extra-small size with sturdy case, compliant with

US military standards 810E

7 tone calls & MORSE code

8 levels of VOX (voice-activate feature) with quick

VOX capability ON/OFF

3 steps auto-power save modes/4 steps auto-

power-off/4 steps time-out-timer

Both channel and frequency scan features

1 hazard channel and 1 memory channel setting

14 Channels with 38 group-codes (CTCSS) on

each channel

Multi-Icon Backlit LCD display

Zodiac FreeTalk Pro English

JTable of contents

Radio controls/functions page 4

Icons Guide page 5

Operation Guide page 6

Power ON/OFF page 6

Transmitting/Receiving page 6

Volume adjustment page 6

Channel selection page 6

Scan channels page 7

CTCSS ON/OFF page 7

LCD back light page 8

Monitoring page 8

Keypad lock/unlock page 8

Function settings page 9

Tone call page 9

Power Save Modus page 9

VOX ON/OF page 10

VOX sensitivity page 10

TX/RX Different Channels page 10

Keypad Tone page 11

Auto-Power page 11

Time-Out Timér page 11

Squelch page 12

Repeater page 12

Tone Call page 12

VOX ON/OFF page 12

Memory Channel page 13

Hazard (Emergency) Channel page 13

Dual Channel Watch page 14

Memory and Hazard Channel page 14

Restore to factory default settings page 15

Installing/removing of Battery Pack page 15

Battery Charging page 16

PMR Channel Frequency Table page 17

CTCSS Frequency Table page 17

Optional Accessories page 18

Safety Informations page 18

Specifications page 19

Warranty page 19

Declaration of Confirmity page 20

English Zodiac FreeTalk Pro

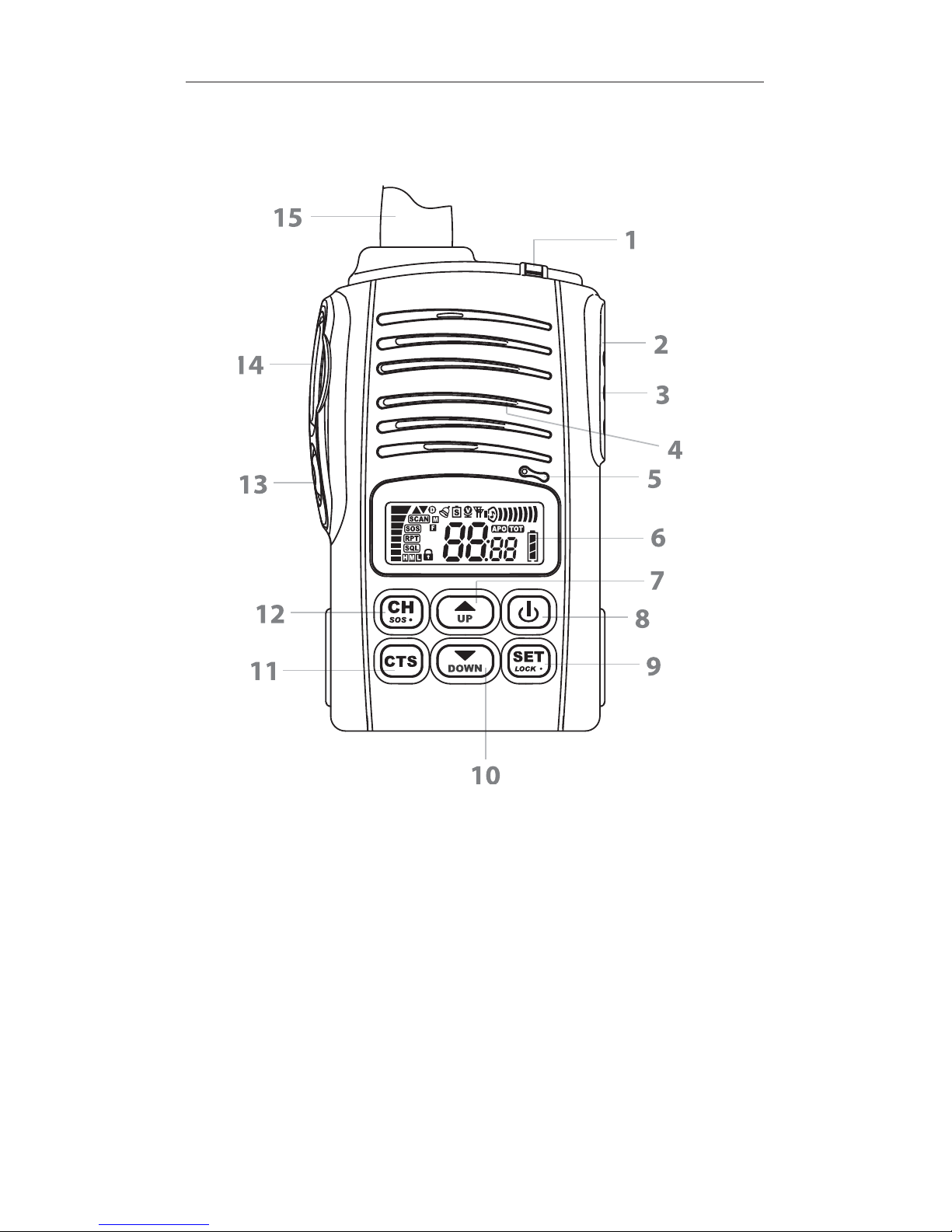

JRadio controls/functions

1. LED indicator

2. External speaker jack

3. External microphone

jack

4. Speaker area

5. Microphone

6. LCD screen

7. UP key

8. Power key

9. Function key

10. DOWN key

11. CTCSS key

12. Channel key

13. Monitor/back light key

14. PTT key (Push-To-Talk)

15. Antenna

Zodiac FreeTalk Pro English

JIcons Guide

Tone call

Auto-Power Save

VOX (Voice-activate system)

Keypad tone

Volume

Auto-Power-Off

TX Time-Out-Timér

Battery power

CTCSS number

Channel number

Squelch level

Keypad lock

(not in use for this model)

Hazard (Emergency) channel

Memory Channel

Scanning

Signal strength indicator

(not in use for this model)

Dual channel watch

(not in use for this model)

English Zodiac FreeTalk Pro

While holding , speak to the microphone area.

LED glows red during transmission. To receive,

release . LED glows green when receiving.

Keep about 10 cm from microphone area when

speaking slowly and clearly.

Momentarily press repeatedly on to adjust

volume louder. Momentarily press repeatedly on

to adjust volume lower. Press and hold or

to swiftly adjust volume. Do adjustment as you need.

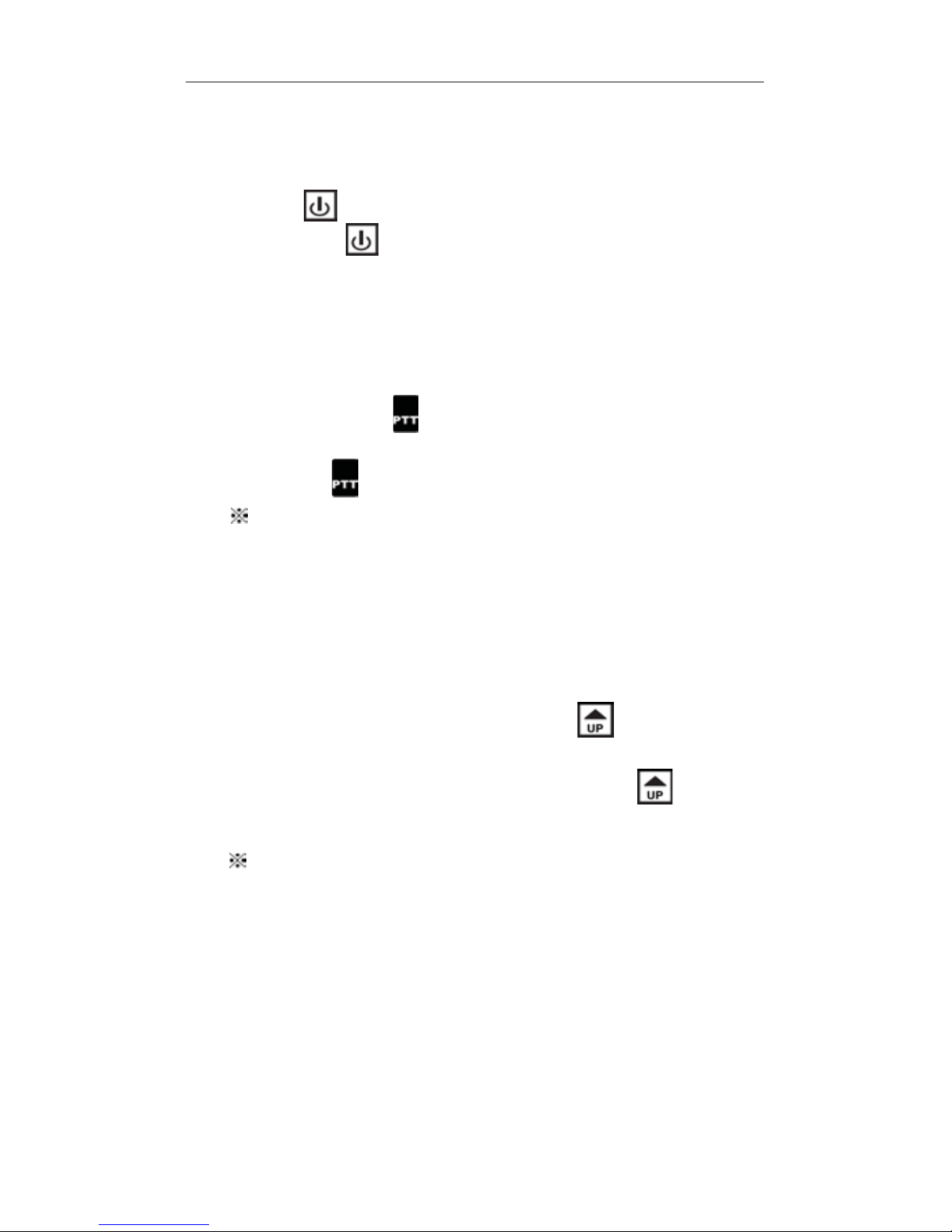

JOperation Guide

Hold about 0.5 sec to power radio. While power

ON, hold about 1.5 sec to turn power off.

2. Transmitting/Receiving

1. Power ON/OFF

3. Volume adjustment

Caution: For external mic/ear user, adjust volume

starting from lowest level.

4. Channel selection

Zodiac FreeTalk Pro English

Momentarily press . While channel icon blinks,

temporarily press repeatedly on or to

select channel. To preset channel, temporarily press

or .

5. Scan Channel

Momentarily press . While channel icon blinks,

hold on or about 2 sec. to start scanning

of channel. Jumping of channel numbers

increasingly or decreasingly indicates scan in

progress. Scan stops when it detect a busy channel.

Temporarily press on or will disable scan

and select the final busy channel.

Note: To scan, turn off CTCSS codes.

6. CTCSS ON/OFF

ON OFF

Hold on for about 2 sec. to enable CTCSS.

Hold on again for about 2 sec. to disable.

While CTCSS is enabled, press temporarily or

repeatedly to select CTCSS.

English Zodiac FreeTalk Pro

7. LCD back light ON/OFF

Temporarily press to turn back light ON. Tempo-

rarily press again to turn back light OFF or it will

automatically turn OFF after 5 sec. lighting.

8. Monitoring

Hold on for about 1 sec. Static is heard if the

channel is clear or any voice on this channel can be

heard regardless of CTCSS settings. LED glows

green.

Monotor is used for following purposes

a. To receive weak signal due to distance or for signal

intermittently received.

b. To receive all signals on same channel even with

different CTCSS.

9. Keypad lock/unlock

Hold on for about 3 sec until shows on the

screen to confirm keypad lock is enabled. To unlock

keypad, hold on again for about 3 sec until

clear from the screen.

When keypad lock is enabled, volume control and

program features are locked to prevent accidental

function changes.

lock unlock

Zodiac FreeTalk Pro English

10. Function settings

Temporarily press to enable menu mode on

screen. Use or to scrol menu item

between 1 and 9 .

F1 Tone Call

Under menu item 1, tone call 1 - 7 can be selected.

Factory default: 1

F2 Power Save Mode

Under meu item 2, power save modes 1-1 to 1-4 can

be selected. Choose 1-4 if talk time is short for best

power saving.

Factory default: OFF

OFF 1-4

English Zodiac FreeTalk Pro
