Installation Guide

EFace10

Version: 1.0

Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the

actual product and the written information in this manual.

With Backplate:

How to Install the Device?

Attach the mounting template sticker to the wall, and drill holes according to the

mounting paper.

Fix the Backplate on the wall using the wall mounting screws.

Attach the device to the Backplate.

Fasten it with a security screw.

Note: Features and parameters with mark are not available in all devices. ★

1.5m

With Back Cover :★

Attach the mounting template sticker to the wall, and drill holes according to the

mounting paper.

Fix the Back Cover on the wall using the wall mounting screws.

Attach the device to the Back Cover.

Fasten it with a security screw.

Wall Mount

Desktop Placement

1. Attach the Back Cover to the Device.

Fasten it with a security screw.

1.3m

IP address: 192.168.1.130

Subnet mask: 255.255.255.0

Wiring Diagram

Power Connection:

Recommended AC Adapter

12V ± 10%, at least 1500mA.

To share the power with other

devices, use an AC Adapter with

higher current ratings.

Ethernet Connection:

Connect the device and computer software over an Ethernet cable. As shown in the

example below:

Default IP address: 192.168.1.201

Subnet mask: 255.255.255.0

Click on [COMM.] > [Ethernet] > [IP Address] , input the IP address and click on [OK].

Note: In LAN, the IP addresses of the server (PC) and the device must be in the

same network segment when connecting to the ZKBioAccess IVS software.

Lock Relay Connection:

Device not sharing power with the lock

FR107

NC Lock

DC12V

AUX

+12V

COM

BUT

SEN

GND

ZKBioAccess IV S

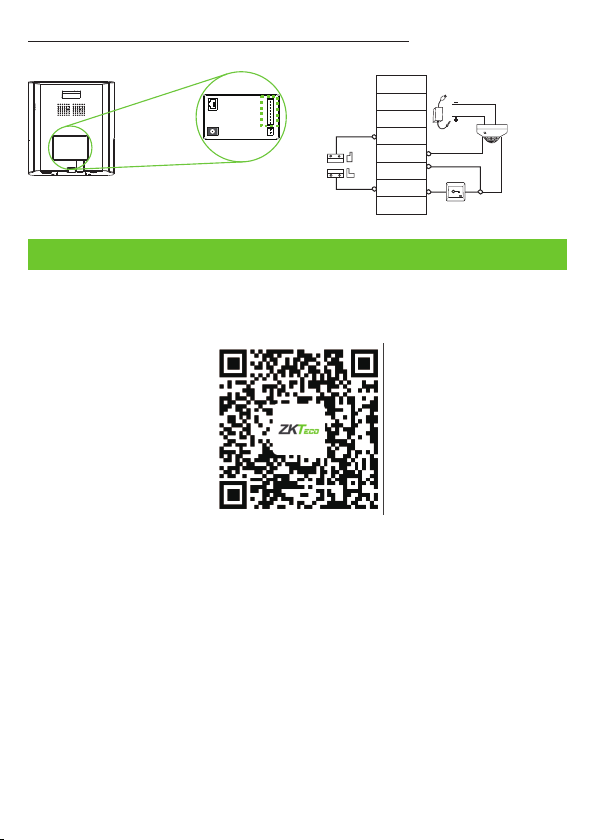

Door Sensor, Exit Button & Auxiliary Input Connection:

Download Center

Scan the QR Code to download the User Manual, Installation Guide and Quick Start

Guide.

QR Code (Download Center)

AUX

+12V

COM

BUT

SEN

GND

NO COM

Exit Button

Smoke

Detector

Sensor

Detector

Power

ZKTeco Industrial Park, No. 32, Industrial Road,

Tangxia Town, Dongguan, China.

Phone : +86 769 - 82109991

Fax : +86 755 - 89602394

www.zkteco.com
