ZKTeco C9AP Series Manuel utilisateur
Quick Start Guide
Model: C9AP Series
Version: 1.0
Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between
the actual product and the written information in this manual.
English
1
Important Notes
If you have any problems, please read this manual carefully or contact the
customer care.
1.
2.
Make sure that the entered Wi-Fi password is correct while adding a new
device.
3.
Please make sure the device is close to the router for a stable network
connection.
4.
Make sure the circuit breaker is turned off before the removal or
during installation.
5.
Due to the frequent app and product upgrades, we couldn't guarantee
exact consistency between the actual product and the stated information
in this manual.
6.
It's recommended that a qualified electrician perform the installation,
especially if you are unsure about any parts of these instructions.
2

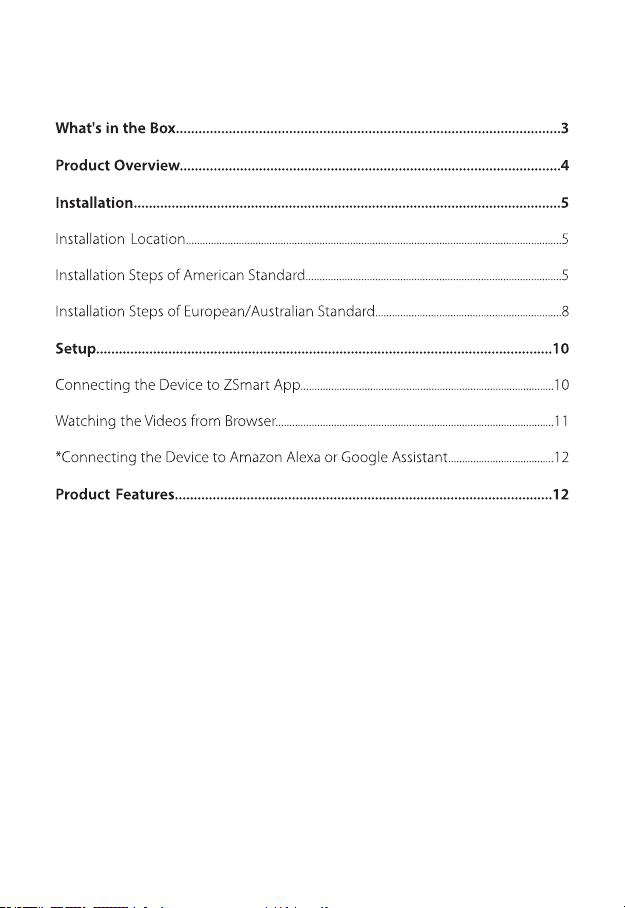

Table of Contents
3
What's in the Box
American Standard Packing List (C9AP/C9APA):
Floodlight Camera Central
Screw
Mounting
Plate
Plate Screws * 4
Wire Nuts
Dust Pad Ground Wire
Screw * 1
Central
Screw Cap
Quick Start Guide
Model: C9AP Series
Version: 1.0
Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between
the actual product and the written information in this manual.
English
Quick Start
Guide
European/Australian Standard Packing List (C9A2P/C9A2PA):
Floodlight Camera Central
Screw
Mounting
Anchors * 2
Mounting
Screws * 2
Central
Screw Cap
Junction Box Dust Pad
Quick Start Guide
Model: C9AP Series
Version: 1.0
Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between
the actual product and the written information in this manual.
English
Quick Start
Guide
4
Product Overview
Front
Side
Floodlight
Lens
Microphone
IR LED
Light Sensor
Motion Sensor (PIR)
Speaker
Reset Button
Micro-SD
Card Slot
5
Installation
WARNING
To avoid risk of shock, injury or death, always be cautious when working with
electricity!
Make sure the power switch has been turned off before installation.
Installation Location
Installation Steps of American Standard
Central
Screw Cap
Central
Screw
Lock Collar
Adjustment Knob
Dust Pad
Yellow & Green:
Ground Wire (E)
Plate
Screw
Mounting
Plate
Wire Nuts
White: Neutral
Wire (N)
Black: Live
Wire (L)
Ground
Wire Screw
Installation Diagram - US
Note: The junction box and existing wires are required to install the camera.
The device can be put on the ceiling or the wall. Choose a location with a clear,
unblocked field of view and with a good wireless signal to the device.
6
Step 1: Remove the Existing Floodlight
Turn off the power at circuit breaker or fuse box.
1.
2.
Remove the existing floodlight and pull it out from the wall to reveal the wires.
3.
Step 2: Install the Mounting Plate
Attach the mounting plate to the existing junction box.
1.
To fix it, use the appropriate plate and screws that are given.
2.
Note: The mounting plate concave side must be facing outward.
Check with an electric tester to make sure that the power is switched off
before the installation.
7
To avoid corrosion, tighten the central screw by putting it into the camera's
centre. Then, using the central screw cap, cover the centre screw.
3.
12
3
Step 3: Install the Floodlight Camera
Remove the protective film from the dust pad, and then stick on the
bottom of the camera by inserting the wires through the middle of the
dust pad. Connect both Ground Wires (Yellow & Green) from the junction
box and camera and then joint the wires by using a wire nut.
1.
Connect the White Wire on the camera to the White Wire (Neutral) from the
junction box. Connect the Black Wire on the camera to the Black Wire (Live)
from the junction box.
2.
Turn the knobs to adjust the angle of floodlight and lens as required.
1.
Switch on the power at circuit breaker or fuse box, and then check whether
the device is wired properly.
2.
Step 4: Adjust the Camera and Power on
Note: If the existing Ground Wire has been connected to the junction box
or there is no Ground Wire, connect the Ground Wire of the camera to the
junction box or mounting plate directly.
8
Installation Steps of European/Australian
Standard
Central
Screw Cap
Central
Screw
Installation Diagram - EU/AUS
Note: The existing wires are required to install the camera.
Step 1: Remove the Existing Floodlight
Turn off the power at circuit breaker or fuse box.
1.
Check with an electric tester to make sure that the power is switched off
before the installation.
2.
Remove the existing floodlight and pull it out from the wall to reveal the wires.
3.
Step 2: Install the Junction Box
Drill two holes in the wall according to the hole positions of the junction
box, and then insert the plastic anchor into the holes. Anchors are
necessary for walls that are made of hard materials such as concrete, brick
or stucco.
1.
Fix the junction box on the wall with the proper provided screws.
2.
1
Lock Collar
Adjustment Knob
Dust Pad
Mounting
Screws
Mounting
Anchors
Yellow & Green:
Ground Wire (E)
Blue: Neutral
Wire (N)
Brown: Live
Wire (L)
Junction Box
2
To avoid corrosion, tighten the central screw by putting it into the camera
centre. Then, using the central screw cap, cover the centre screw
3.
12
3
Step 3: Install the Floodlight Camera
Remove the protective film from the dust pad, and then stick it on the
bottom of the camera by inserting the wires through the center of the dust
pad.
1.
According to the following wiring diagram, connect the same wires to the
corresponding wire ports. Make sure to tighten the screws.
2.
9
Turn the knobs to adjust the angle of floodlight and lens as required.
1.
Switch on the power at the circuit breaker or fuse box, and then check
whether the device is wired properly.
2.
Step 4: Adjust the Camera and Power on
