Zip InLine ES3 Instructions de montage

ZIP InLine

Electronic Instantaneous

Water Heaters

Models: ES3, ES4 & ES6

Issued February 2012

Installation, Maintenance and User Instructions

Please read these instructions carefully before commencing

installation of the InLine water heater. Please leave these

instructions with the end user after installation.

Zip Heaters (UK) Ltd

14 Bertie Ward Way

Dereham

Norfolk

NR19 1TE

Telephone: 0845 6024533

Fax: 01362 692448

Web: www.zipheaters.co.uk

The terms ‘Zip’ and ‘InLine’

are registered trademarks

9120-1411

Front CoverBack Cover

Inside Back Cover Inside Front Cover

ES3, ES4 & ES6 Instructions. Issue: No. 2 Page 1 February / 2012

Contents

Contents 1

Description 2

Approvals 2

Safety information 3

Technical data 5

Parts list 6

Installation 7

Requirements 7

Installation site 7

Installing the appliance 8

Electrical connection / circuit diagram 11

Commissioning 12

Maintenance and cleaning 13

Fault ﬁnding 14

Warranty 16

Please read these instructions carefully before commencing installation of the

InLine Electronic Instantaneous Water Heater.

Please leave these instructions with the end user after installation.

To ensure you have the latest revision of this instruction manual, please visit

www.zipheaters.co.uk to download the latest copy.

In order to preserve our environment we ask that you dispose of this product

correctly.

Please contact Zip Customer Service for advice on 0845 602 4533.

ES3, ES4 & ES6 Instructions. Issue: No. 2 Page 2 February / 2012

Description

Zip InLine ES3, ES4 and ES6 instantaneous water heaters are compact

electronically controlled instantaneous water heaters for hand washing.

This small instantaneous water heater is intended to provide economical heating of

water for a wash basin when installed together with a sanitary water ﬁtting. When

the hot-water tap is opened, the heater switches itself on automatically when the

minimum water ﬂow rate is exceeded and heats the water as it passes through

the appliance.

The heater is pre-set in the factory to an outlet temperature of about 38°C, which is

ideal for hand washing. When this temperature is reached, the electronic regulator

reduces the power in order to ensure that the outlet temperature does not exceed

this value. This automatic temperature regulation means that it is only necessary to

open the hot water tap to obtain water at a constant, safe temperature for washing

hands. If the set outlet temperature is not reached, slightly reduce the ﬂow of water

from the tap. Cold water may be added if a lower temperature is required.

If the ﬂow rate is too low or if the hot water tap is closed, the appliance switches

itself off automatically. For an optimum ﬂow of water, always ﬁt the special jet

regulator supplied with the appliance. This regulator should be inserted into the

threaded retainer on the tap outlet.

The maximum possible outlet temperature is determined by the temperature

of the incoming water, the ﬂow rate and the heating power of the heater.

The temperature set point and ﬂow rate can be preset inside the appliance to

achieve an outlet temperature between about 30°C and 50°C.

Power consumption is also regulated based on outlet temperature to ensure

the required temperature is achieved exactly to the degree and irrespective of

ﬂuctuations in voltage and water pressure.

The maximum inlet temperature of 60°C is suitable for use with preheated water

e.g. from solar heating systems.

Approvals

Zip InLine ES3, ES4 and ES6 are VDE approved to the LVD and EMC directives

and CE endorsed.

Zip InLine ES3, ES4 and ES6 have been examined, tested and found when correctly

ﬁtted to comply with the requirements of the United Kingdom Water Regulations /

Byelaws (Scotland). The products are listed under the WRAS (Water Regulations

Advisory Scheme) Water Fittings and Materials Directory.

ES3, ES4 & ES6 Instructions. Issue: No. 2 Page 3 February / 2012

Safety Information

WARNING

• Installation, commissioning and maintenance of this appliance must

only be carried out by a competent installer who will then be responsible

for adhering to all relevant standards and regulations.

• The front cover of the appliance must never be opened before

disconnecting the appliance from the mains power supply.

• The appliance must be permanently connected to the supply through an

isolating switch with a contact separation of at least 3mm in all poles.

• To protect the appliance, a circuit breaker must be ﬁtted with a rating suitable

for the nominal current of the appliance.

• The cross sectional area of the connection cable must be appropriate for the

power rating and location of the appliance. See Technical Data.

• The connecting cable must be adequately secured.

• This appliance must be earthed at all times.

• Check that the power supply is switched off prior to electrical connection.

• The appliance, its wiring and piping must not be modiﬁed in any way.

• In case of malfunction isolate the power supply immediately. In case of leaks

also isolate the water supply. Repairs must only be carried out by Zip Heaters

(UK) Ltd or an authorised Zip service engineer.

• Temperatures in excess of approximately 43°C are perceived as hot, especially

by children, and may cause a feeling of burning.

• This appliance must not be used by any person (including children) with

limited physical, sensorial or mental abilities or failing experience and/or

knowledge unless they are supervised by a person responsible for their safety

or received instructions about how to use the appliance.

• Children should be supervised in order to make sure that they do not play

with the appliance.

WARNING:

Indicates a potentially hazardous situation, which, if

not avoided, could result in death and/or serious injury

and/or property damage.

CAUTION: Indicates a potentially hazardous situation, which, if not

avoided, may result in property damage.

IMPORTANT:

PLEASE READ THESE INSTRUCTIONS CAREFULLY.

NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS. USE

THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS

INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY,

AND WILL INVALIDATE THE WARRANTY. RETAIN THESE INSTRUCTIONS FOR FUTURE USE.

ES3, ES4 & ES6 Instructions. Issue: No. 2 Page 4 February / 2012

CAUTION

• Optimum operation is ensured at a water ﬂow pressure of 0.2 to 0.4 MPa

(2-4 bar). The appliance must not be subjected to pressure exceeding

1.0 MPa (10 bar).

• The appliance must only be used when correctly installed and in perfect

working order.

• The appliance must be installed in a frost-free room and must never be exposed

to frost.

• The ES range is not recommended for use with thermostatic mixing valves or

taps.

• The appliance must be completely ﬁlled with water before being switched on.

• Before commissioning for the ﬁrst time and each time the appliance is emptied

(e.g. due to work on the plumbing system or maintenance), the appliance

must be vented by opening and closing the hot water tap until all air has been

eliminated from the water heater and no more air emerges before re-connecting

to the electrical supply.

• The appliance must only be used for heating potable water. The speciﬁc water

resistance must not fall below the required value indicated on the rating plate.

The appliance must not be used for any other purpose.

• Incoming water temperature must not exceed 60°C.

• When the appliance has been in use for some time, the ﬁttings may be very

hot.

• If inlet temperature is up to 60°C (eg. fed from a solar supply) mixing with cold

water will be required to ensure a safe temperature at the outlet.

• The Zip InLine is intended for connection to mains supply only. In any other

case please contact Zip on 0845 602 4533 for advice.

• Zip Heaters (UK) Ltd cannot be held liable for any damages caused by

failure to observe these instructions.

ES3, ES4 & ES6 Instructions. Issue: No. 2 Page 5 February / 2012

Technical data

Model ES3 ES4 ES6

Power rating (kW) 3.1 4.8 6.0

Rated Current (A) 13 20 25

Power supply 1/N/PE 240V ~

Factory set ﬂow rate @ 38°C (l/min) *1.7 2.6 3.3

Rated volume (litres) 0.2

Rated pressure 1 MPa (10 bar)

Element type Bare wire

Required speciﬁc water resistance

(Ω.cm @15°C) >1300 >1000 >1000

Maximum inlet temperature (°C) 60

Switch on ﬂow rate (l/min) 1.2 1.5 1.5

Switch off ﬂow rate (l/min) 1.0 1.3 1.3

Minimum differential pressure @

factory set ﬂow rate

0.025 MPa

(0.25 bar)

0.05 MPa

(0.50 bar)

0.075 MPa

(0.75 bar)

Factory set temperature (°C) * 38

Maximum temperature setting (°C)

(qualiﬁed technician) 30 - 50

Maximum weight (kg) 1.5

Dimensions H x W x D (mm) 132 x 187 x 80

Water connections (BSP) ½”

Protection class IP24

Aminimum water pressure of 0.2 MPa (2 bar) is recommended for optimum

performance. The appliance must not be subject to more than 1.0 MPa (10 bar).

*Based on 12°C supply temperature, 3 bar dynamic pressure and 240V supply.

ES3, ES4 & ES6 Instructions. Issue: No. 2 Page 6 February / 2012

Item Part No. Description

IN80324 Heating Spiral for ES3

IN80326 Heating Spiral for ES4

IN80327 Heating Spirals for ES6 (Pair)

2 IN95622 Front Cover

3IN80352 Complete ﬁxing kit (wall bracket with screws & ﬁxing plugs)

IN80689 Wall bracket only

4 IN80353 Set of small spare parts (seals, nozzle for cable entry, etc.)

5 IN80080 Filter sieve (ﬁne ﬁlter)

6 IN80750 Water connection set, including two water connections

and seals

7IN80372 Flow adjustment screw with seal for ES3 and ES4

IN803721 Flow adjustment screw with seal for ES6

8 IN86072 Temperature sensor

9 IN80427 Safety thermal cut-out and seals

ZL009 Jet regulator for ES3 and ES4 (Not shown)

ZL010 Jet regulator for ES6 (Not shown)

5 67 8

Parts list

ES3, ES4 & ES6 Instructions. Issue: No. 2 Page 7 February / 2012

Installation requirements

• These instructions must be read and fully understood before commencing the

installation. If in doubt, or in need of further guidance please ring Zip on 0845

602 4533

• Zip InLine water heaters must be installed by a competent person familiar with

electric instantaneous water heaters.

• Installations must comply fully with UK Water Regulations and any Local

Authority requirements.

• The electrical installation including earthing and cross bonding should comply

with current IEE regulations and any Local Authority requirements.

• Zip InLine water heaters must be installed according to the speciﬁcation on the

rating plate and the technical speciﬁcations.

• The appliance must be permanently connected to the electrical supply through

an isolation switch having a contact separation of at least 3mm on all poles.

• To protect the appliance, a circuit breaker must be ﬁtted with a rating suitable

for the nominal current of the appliance. (See Technical Data Section on page. 5).

• The cross sectional area of the connection cable must be in accordance

with the power rating of the appliance and the speciﬁc requirements of the

installation site.

• Take care to protect the wiring from damage during installation and ensure that

any uninsulated wiring is not directly accessible after installation.

• Check that the power supply is switched off prior to electrical connection.

• Thoroughly ﬂush the water supply pipes before installation to remove any water

borne debris.

• WARNING! The front cover of the appliance must never be opened

before disconnecting the appliance from the mains power supply.

• WARNING! This appliance must be earthed.

Installation site

• The installation site must be free from frost at all times.

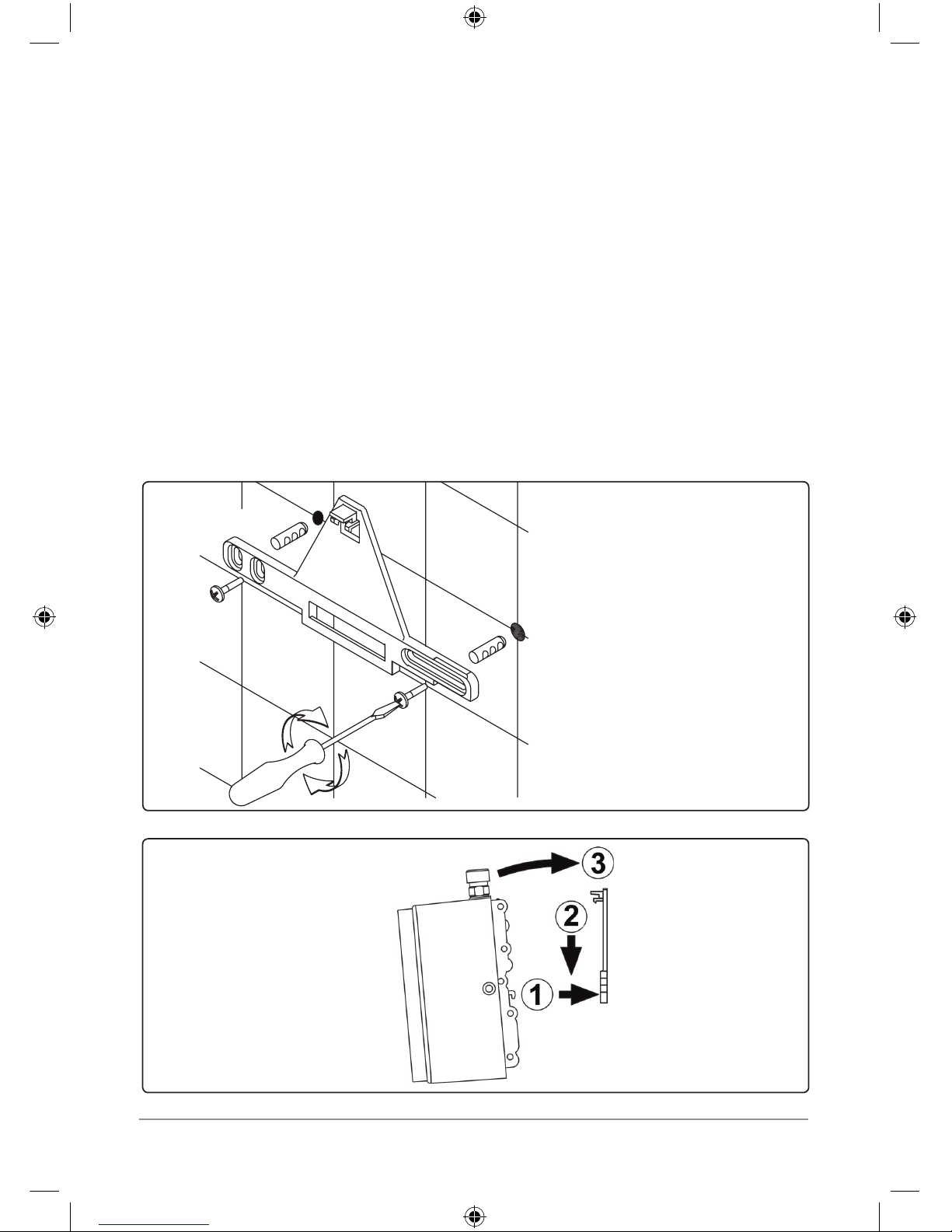

• For maintenance work a shut off valve should be installed in the water supply

line to the heater.

• The unit should be positioned as close as possible to the outlet to minimise

heat loss. The recommended maximum distance is 0.5 meters.

• When considering the location of the heater, consideration should be given to

the safe and visible disposal of any water resulting from leaks and seepage.

This is particularly relevant when the heater is located in a cupboard or any

concealed location. For guidance please call Zip Heaters (UK) Ltd on 0845 602 4533.

ES3, ES4 & ES6 Instructions. Issue: No. 2 Page 8 February / 2012

Fig. 2

• Hot and cold water connecting pipes should be WRAS approved and of

copper or steel construction. Plastic pipes may only be used if conforming to

DIN 16893 Series 2.

• The speciﬁc resistance of the supply water must be >1300 Ωcm at 15°C for

ES3 and >1000 Ωcm at 15°C for ES4 and ES6. The speciﬁc resistance can be

checked with the local water supply company.

• Thoroughly ﬂush the water supply pipes before installation to remove any

water borne debris.

Installing the appliance

1. Secure the wall bracket to the wall with screws and wall plugs supplied (Fig. 1).

2. Place the appliance on the wall bracket and snap into position (Fig. 2).

Note! This appliance is intended for under sink installation with the water

connections pointing vertically upwards.

Fig. 1

Drill size Ø 7mm.

Use the mounting bracket

as a guide for ﬁxing marks.

Drilling width variable:

105mm minimum to

145mm maximum.

Autres manuels pour InLine ES3

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Zip Chauffe-eau

Zip

Zip AquaFlo II AF3090 Instructions de montage

Zip

Zip Aquapoint III AP3/100 Instructions de montage

Zip

Zip VARIPOINT II Series Manuel

Zip

Zip DEX Instructions de montage

Zip

Zip DEX Instructions de montage

Zip

Zip HydroTap B160 Manuel utilisateur

Zip

Zip VP303 Instructions de montage

Zip

Zip Varipoint III Instructions de montage

Zip

Zip InLine CEX-O Instructions de montage

Zip

Zip AQUAPOINT III Eco Manuel

Zip

Zip HydroTap Miniboil MB1BA Manuel utilisateur

Zip

Zip InLine DEX Next Manuel

Zip

Zip AquaFlo II Instructions de montage

Zip

Zip 1552 Manuel utilisateur

Zip

Zip HydroTap 30009UK Manuel utilisateur

Zip

Zip Aquapoint AP430S SmartEco Manuel

Zip

Zip InLine CEX-U Manuel

Zip

Zip Aquapoint III AP3/30 Manuel utilisateur

Zip

Zip Hydroboil Plus 3 Litre White HP003 Manuel utilisateur

Zip

Zip Tudor Manuel

Zip

Zip InLine ES4 Manuel utilisateur

Zip

Zip 203362 Clage- Hydroboil Manuel utilisateur

Zip

Zip Varipoint II VP103 Instructions de montage

Zip

Zip VP103 Manuel utilisateur

Manuels Chauffe-eau populaires d'autres marques

Kenmore

Kenmore 153.582400 Manuel utilisateur

Applimo

Applimo Edel AIR Manuel utilisateur

STIEBEL ELTRON

STIEBEL ELTRON Eltronom SHU 5 S Manuel utilisateur

clage

clage E-Mini Series Manuel utilisateur

Toyotomi

Toyotomi Oil Miser OM-180 Manuel utilisateur

Bradford White

Bradford White EF Series Manuel utilisateur

Eccotemp

Eccotemp 40-H Manuel utilisateur

Dimplex

Dimplex ECSd125-580 Mode d’emploi

Dux

Dux 32FCR6N Manuel utilisateur

Toyotomi

Toyotomi Oil Miser OM-148 (Type D) Guide de dépannage

Noritz

Noritz N-132M Manuel d'instructions

TESY

TESY GCV7/4S 10047 Fiche technique

A.O. Smith

A.O. Smith Gphe 50 Manuel utilisateur

Koryo

Koryo KWHZF15Y Manuel utilisateur

Pentair

Pentair PSC-14-4-02 Manuel utilisateur

GE 40M06AAG Instructions de montage

Thermor

Thermor AEROMAX SPLIT 2 Manuel utilisateur

American Hometec

American Hometec AHQ-B03X Manuel utilisateur
