INSTRUCTIONS FOR INSTALLATION AND OPERATION OF ZILMET USA EXPANSION TANKS

PROFESSIONAL INSTALLATION REQUIRED rev. Sep2020 page 1 / 7

PLEASE, PASS THESE INSTRUCTIONS ON TO THE PERSONNEL IN CHARGE OF INSTALLATION, OPERATION AND SERVICE. ALL IN-

STRUCTIONS MUST BE CAREFULLY READ AND FULLY UNDERSTOOD BEFORE INSTALLING THIS EXPANSION TANK. AFTER THE IN-

STALLATION, THESE INSTRUCTIONS MUST BE KEPT IN AN EASILY ACCESSIBLE PLACE FOR FUTURE REFERENCE.

THIS IS A SAFETY SYMBOL AND IS USED FOR WARNINGS. WHEN YOU SEE THIS SYMBOL, PAY PARTICULAR ATTENTION

TO THE WARNING DESCRIBING THE DANGER, HOW TO AVOID THE DANGER AND THE CONSEQUENCES OF NOT

AVOIDING THE DANGER.

TO ENSURE SAFE USE AND PROPER CARE OF THIS PRODUCT, FOLLOW THE PRODUCT INSTALLATION, OPERATING AND

MAINTENANCE INSTRUCTIONS CAREFULLY. FAILURE TO DO SO WILL VOID THE PRODUCT WARRANTY AND MAY RESULT

IN SERIOUS PERSONAL INJURY OR DEATH AND/OR PROPERTY DAMAGE.

BEFORE THE INSTALLATION, IT IS MANDATORY THAT YOU CALCULATE AND CHOOSE THE CORRECT TYPE OF VESSEL

BASED ON SYSTEM DESIGN, SPECIFICATIONS, INSTRUCTIONS AND OPERATION REQUIREMENTS. ONLY QUALIFIED AND

LICENSED TECHNICIANS MAY PERFORM THE CALCULATION AND THE CHOICE OF THE VESSEL IN ACCORDANCE WITH

CURRENT LOCAL, STATE AND NATIONAL CODES AND STANDARDS. ONLY QUALIFIED AND LICENSED PERSONNEL MAY

INSTALL, OPERATE AND SERVICE THIS EQUIPMENT IN ACCORDANCE WITH SYSTEM DESIGN, SPECIFICATIONS AND IN-

STRUCTIONS, OPERATION REQUIREMENTS AND CURRENT LOCAL, STATE AND NATIONAL EDITIONS OF THERMAL,

PLUMBING, AND ELECTRICAL CODES AND STANDARDS. MOREOVER, ALL LOCAL SAFETY, OCCUPATIONAL, HEALTH EN-

VIRONMENTAL AND ANY OTHER APPLICABLE CODES AND STANDARDS MUST BE FOLLOWED.

1. DESCRIPTIONS AND USE

The Zilmet pre-pressurized expansion vessels are designed for the following purposes:

URPOSE

YPE OF WATER

MEMBRANE TYPE S

YSTEM

TANK

MODEL

·Hydronic water

expansion

NON-POTABLE WATER

These tanks cannot be

used for the production of

potable (drinking) water.

Fixed diaphragm

expansion tanks

Closed hydronic heating sys-

tems (hydronic systems) and

refrigerating systems; Closed

hydronic solar systems

•CAL PRO - ZHT

•ZILMET FLATS - ZFT

•SOLAR PLUS - ZSP

•Zilmet expansion tanks incorporate a flexible butyl membrane to keep the system water or fluid from contacting the sealed-in air cushion in the tank.

•CalPro (ZHT), Zilmet Flats (ZFT), and Solar Plus (ZSP) tanks are designed for closed systems and therefore do not have an internal liner as part of

the water reservoir. Water is in contact the the tank steel dome.

•Easy Pro ZEP and ZHP tanks are designed for potable water and therefore have an internal liner to protect the water dome steel. These tanks are

NSF61 and UPC certified.

•Zilmet tanks comply with low lead plumbing law.

WARNING: FAILURE TO CHOOSE THE CORRECT TANK AND PERFORM PROPER INSTALLATION CAN LEAD TO

MALFUNCTION, CONTAMINATION, AND VOIDANCE OF THE WARRANTY.

2. TECHNICAL CHARACTERISTICS

WARNING: The values of the maximum working temperature and the maximum working pressure, shown in the label affixed

to the expansion tank and must be considered the maximum working parameters for the expansion tanks.

DO NOT INSTALL OR OPERATE THE SYSTEM AT SUSTAINED OR INSTANTANEOUS PRESSURE AND/OR AT TEMPERATURES

EXCEEDING THE LIMITS ON THE LABEL AFFIXED TO THE EXPANSION TANK.

The technical characteristics of the expansion tank are reported on the identifying label affixed to each product, including product identification, tank

volume, maximum working pressure and temperature, pre-charge pressure (factory set or user set), production year, and serial number. The label is

firmly affixed to the tank and must not be removed, tampered with, hidden, covered, or changed.

If the label on the ZILMET tank is missing or the technical characteristics on the ZILMET label are not legible, DO NOT INSTALL the expansion tank

and contact ZILMET immediately by phone at 401 884 4943 or by e-mail at [email protected].

Each tank comes with a factory precharge pressure that must be checked prior to installation. The precharge pressure may not be correct for the

installation. Measure and adjust the precharge, if necessary, so it is equals the operating pressure of the system.

If the system has been filled, the tank must be isolated from the system and the tank emptied before charging. This ensures all fluid has exited the

bladder and proper precharge pressure can be charged.

Check the precharge using a calibrated pressure gauge at the charging valve and adjust as required. Check air valve for leakage. Do not depend on

the valve cap to seal the leak. After making sure air charge is correct, replace air stem cap.

The Zilmet Flats, ZFT, Tanks come standard with a welded mounting bracket and a ZFT-U Tank Union Connector with two way check valve. This

valve makes it easy to install, service, and maintain the Zilmet Flat ZFT tank.

·Potable water

thermal expansion

POTABLE WATER Fixed diaphragm

expansion tanks

Potable hot water systems •EASY PRO - ZEP &

ZHP

ZILMET USA 400 Frenchtown Road - East Greenwich, RI 02818 – phone 401 884 4943

PROFESSIONAL INSTALLATION REQUIRED rev. Sep2020 page 2 / 7

INSTRUCTIONS FOR INSTALLATION AND OPERATION OF ZILMET USA EXPANSION TANKS

WARNING: EXCEEDING MAXIMUM PRESSURE AND/OR TEMPERATURE, EITHER SUSTAINED OR DUE TO SUDDEN

INCREASES, IS DANGEROUS AND MAY RESULT IN REDUCED TANK LIFE, PROPERTY DAMAGE, SERIOUS SCALDING

AND/OR BODILY INJURY OR DEATH.

Do not expose the expansion tank to temperatures lower than 14 °F. DO NOT USE ANTIFREEZE for the production

and storage of potable water. If antifreeze liquid is utilized for a closed hydronic system, you must use all

precautions to avoid dispersion in the environment and possible poisoning in accordance with applicable safety,

occupational, health and environmental codes and standards.

In accordance with local regulations, or following specifications agreed in specific cases between ZILMET and the purchaser, the maximum working

pressure and the maximum working temperature may be lower than those shown on the product label, but may never exceed the same. Please

always refer to the agreed specifications and/or to the local codes, regulations and standards.

3. WARNINGS

• The system in which the expansion tank is installed must have a pressure-limiting device (pressure relief valve), sized and installed in accordance

with local codes.

•To prevent corrosion due to stray and galvanic currents, the system must be grounded properly in accordance with local electrical and plumbing

codes and standards. If needed, the tank may be provided with dielectric joints after careful evaluation of the characteristics of the installation.

• Other possible causes for pin-holing and corrosion phenomena must be evaluated, including the water’s chemical, physical and thermal

characteristics, the presence of oxygen or melted salts and the use of devices made of different materials (e.g. carbon steel and stainless steel,

carbon steel and copper) within the system. All of these factors must be considered by the manufacturer of the complete system and by the

personnel in charge of installation and maintenance, taking into account all local plumbing, electrical and safety standards and regulations.

• Water quality may affect the lifespan of expansion tanks. Water may require treatment to ensure the correct performance and complete lifespan of

the expansion tank. If installed near the sea, damage from salty air may occur.

• Do not use this tank with the following fluids: (a) chemicals, solvents, petroleum products, acids, bases or any other substance that may be

detrimental to the tanks itself, (b) explosive, extremely flammable, flammable, toxic, or oxidizing fluids.

• Only use this tank with not dangerous fluids and having a vapor pressure greater than 7.25 psi above the normal atmosphere pressure (14.7 psi) at

the maximum working temperature of the expansion tank.

• Do not use this tank with water containing sand, clay, particulates or other solid substance that may damage the tank (particularly the internal

coating) and / or clog its connecting pipes.

• Proper means must be provided in order to prevent air from accumulating in the chamber of the tank (water side) connected to the system.

• The tank and the connected system must be protected against below-freezing temperatures by using proper antifreeze (if for use with non-potable

water, see above) or installing the tank in suitable indoor areas.

• Do not use this expansion tank for any purpose other than the purpose for which it was intended.

• The expansion tank, piping and connections may leak water or other liquids over time. Therefore, the expansion tank must be installed in a suitable

technical room capable of supporting the weight of the vessel filled with water and that must have adequate drainage and protection such that any

leakage will not damage the surrounding area and will not cause scalding injuries. THE MANUFACTURER SHALL NOT BE RESPONSIBLE FOR

ANY DAMAGE TO PROPERTY, INJURIES OR SCALDING IN CONNECTION WITH THIS EXPANSION TANK.

•THE MANUFACTURER SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES TO PROPERTY AND / OR INJURIES DUE TO IMPROPER

TRANSPORT, HANDLING, INSTALLATION OPERATION OR MAINTENANCE OF THE TANK.

• As in all plumbing products, bacteria can grow in the expansion tank, especially during times of non use. The local health and safety office must be

consulted regarding any measures the personnel in charge of service and maintenance takes to safely disinfect the plumbing system. DO NOT USE

ABRASIVE DETERGENTS OR OTHER SUBSTANCES THAT MAY CAUSE DAMAGE TO THE TANK OR CONTAMINATION OF DRINKING

WATER. IF BACTERIA CONTAMINATION IS DETECTED, IT MAY BE ADVISABLE TO REPLACE THE TANK.

• DO NOT drill, open, heat with flames or tamper with the tank in any way.

• NOTE that certain pressure tanks may have an opened upper connection in order to allow the installation of a three way connection on which a

manometer and a pressure relief valve may be installed. If the three way connection is not installed, or the upper part is not closed with a suitable

threaded nut, fluid escape may occur from the vessel.

• In the event it is necessary to change the factory pre-charge, specialized technicians should calculate and determine the new pre-charge. The

calculation must ensure that, for all foreseeable working conditions, the specified limits (particularly the maximum working pressure) are never

exceeded and that all local codes and standards are observed.

WARNING -DO NOT OVER-PRESSURIZE- EXPLOSION HAZARD. The pre-charge should never exceed 50% of the maximum

working pressure. The new value of the pre-charge pressure (user set) must be written in the appropriate space on the label that is

permanently affixed to the tank.

• Make sure that the system layout allows for future maintenance and provides sufficient access and working space around the system to allow for

replacement of components whenever necessary.

• If vibration is likely to occur in the vicinity, proper means must be provided in order to insulate the expansion tank from vibrations (e.g. installation on

a resilient mount).

• The tank can only be disposed of at selective waste collection authorized centers, in accordance with local codes and standards.

CALIFORNIA PROPOSITION 65 WARNING: This product contains chemicals known to the State of California to cause cancer and

birth defects or other reproductive harm. (California Installer / Contractor – California law requires that this notice to be given to

consumer / end user of this product.)

ZILMET USA 400 Frenchtown Road - East Greenwich, RI 02818 – phone 401 884 4943

INSTRUCTIONS FOR INSTALLATION AND OPERATION OF ZILMET USA EXPANSION TANKS

PROFESSIONAL INSTALLATION REQUIRED rev. Sep2020 page 3 / 7

4. GENERAL INSTRUCTIONS FOR INSTALLATION

Inspect the product for any damage that may have occurred during shipping. If evident damage is detected, notify the freight carrier and

reseller immediately, and do not install the tank.

PRIOR TO INSTALLATION OF THE TANK

1. Ensure that access to the installation area is restricted. Do not install where children are present or may be present.

2. Use caution and always wear protective gloves and safety goggles during installation and maintenance of the expansion tank. Use suitable

and appropriate lifting tools when positioning and installing the tank.

3. Choose an appropriate site for installation which is enclosed and well aerated. The tank must be placed far from heat sources, electric

generators and any other element that may damage the tank. Install in an area that allows for easy access and inspection of the tank.

4. Depending on the model, the weight of the expansion tank filled with water can be supported by the system piping. To avoid overloading the

pipes and possibly breaking or offsetting the pipe connections, it is important that the piping is supported by suitable bracing (strapping, hanger,

brackets). If the tank does not have a support base, and is installed horizontally, it must be properly supported along the entire length of the tank.

5. Before using any Zilmet accessory to hang the expansion vessel on a wall, check that the wall itself can sustain the weight of a full

expansion vessel, as it will fill with system liquid. This will add considerable weight to the tank during normal operation.

6. Before installing the expansion tank, remove the plastic cap on the air valve of the tank and using a controlled manometer verify that it has

the correct factory set pre-charge (with a tolerance of ± 20%). Adjust the tank pre-charge to the required value (do not over-pressurize) and

replace and tighten the plastic cap on the air valve. Only adjust the tank when empty of water and the system connection open to atmosphere.

7. Install the tank at the point specified by the system design, specifications and instructions, preferably in a vertical position for diaphragm cycle

symmetry to result in optimum product life. If tank is to be installed horizontally, then it must be fully supported independent from the piping. Install the

tank in the following places:

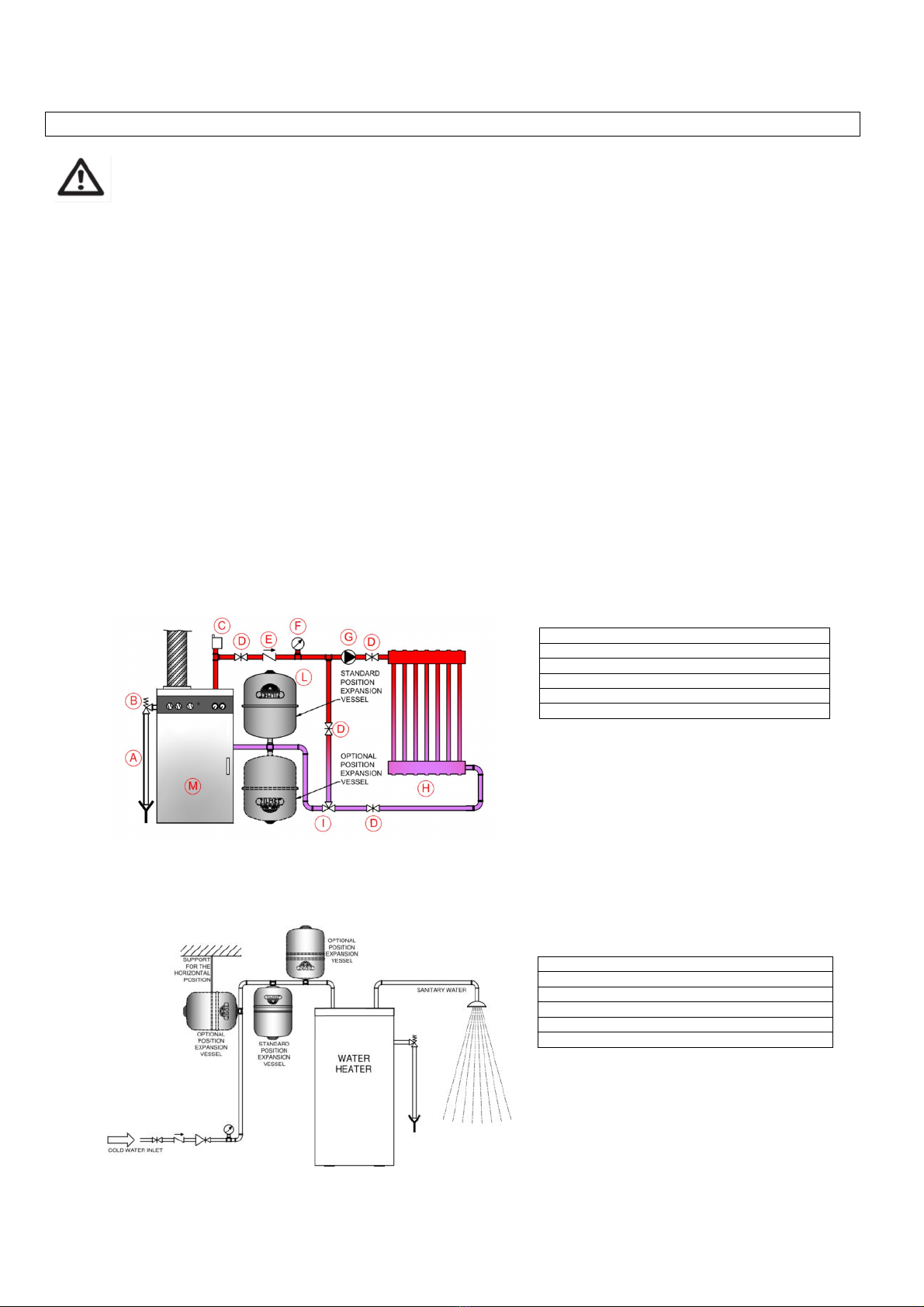

INSTALLATION IN CLOSED HYDRAULIC HEATING (HYDRONIC) SYSTEMS

A = Draining B = Safety valve

C = Air bleed valve D = Gate valve

E = Backflow preventer F = Manometer

G = Pump H = Utilities

I = Mixing valve L = Expansion tank

M = Boiler

ONLY QUALIFIED AND LICENSED PERSONNEL MAY PERFORM INSTALLATION.

DO NOT ACCESS WHILE UNDER PRESSURE. DANGER OF SCALDING, BURSTING OR WATER DAMAGE.

BEFORE INSTALLING, THE SYSTEM (INCLUDING THE TANK) MUST BE SHUT OFF, COOLED AND NOT PRESSURIZED, ALL

OF THE ELECTRICAL PARTS MUST BE UNPLUGGED AND THE TANK MUST BE COMPLETELY EMPTY.

INSTALLATION OF THERMAL EXPANSION TANKS IN SYSTEMS FOR THE PRODUCTION OF POTABLE HOT WATER

A = Draining B = Safety valve

C = Air bleed valve D = Gate valve

E = Backflow preventer F = Manometer

G = Shutoff valve H = Utilities

I = Mixing valve L = Expansion tank

M = Water heater

•The tank must be installed on the runback piping. An alternative

location may be on the supply side, provided that the maximum

working pressure and temperature limits are kept.

•The use of proper anti-scale and corrosion inhibitors additives is

required in hydronic systems; when necessary, also the use of

a proper anti-freeze fluid (glycol) must be considered.

•If tank is to be installed horizontally, then it must be fully

supported independent from the piping.

•The tank must be installed on the cold water supply side to

the water heater.

•If tank is to be installed horizontally, then it must be fully

supported independent from the piping.

ZILMET USA 400 Frenchtown Road - East Greenwich, RI 02818 – phone 401 884 4943

INSTRUCTIONS FOR INSTALLATION AND OPERATION OF ZILMET USA EXPANSION TANKS

PROFESSIONAL INSTALLATION REQUIRED rev. Sep2020 page 4 / 7

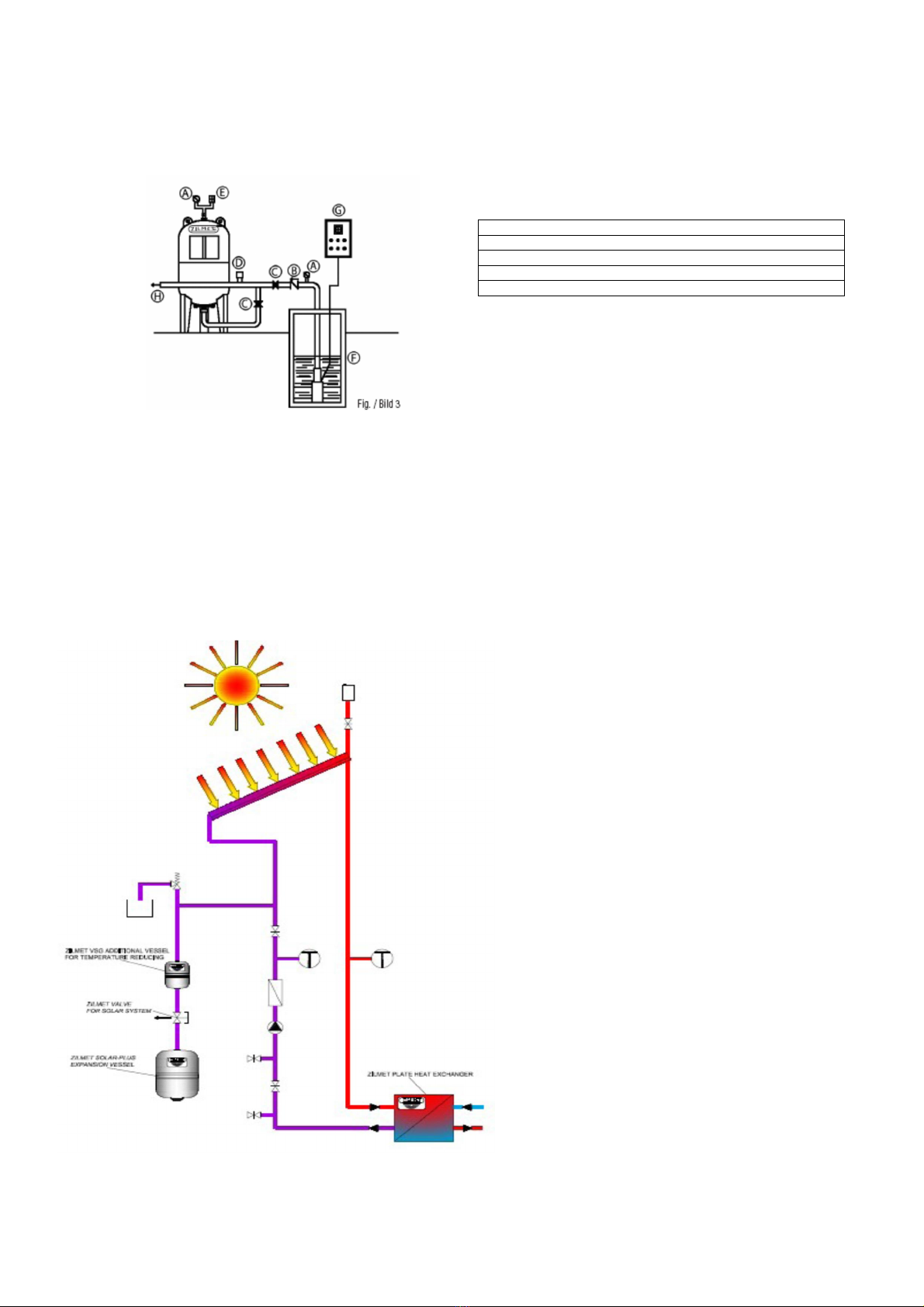

INSTALLATION IN PUMP SYSTEMS FOR STORAGE AND LIFTING OF POTABLE WATER

After the back-flow preventer at the exit of the pump, as shown in the picture.

A = Manometer B = Backflow preventer

C = Globe valve D = Pressure switch

E = Safety valve F = Basin with submerged pump/

G = Switch board H = Water system

I = Interchangeable membrane pressure tank

Note: pre-charge of the tank must be set 3 psi lower than the minimum pressure switch setting at which the pump starts.

INSTALLATION IN SOLAR SYSTEMS

For installation and operation review the system norms. Solar vessel must be installed in the supply line of the solar collector through use of a

suitable temperature-resistant solar ball valve with a shut off to the system. The maximum working temperature in the membrane may not exceed

212 °F. This can be achieved by installing a temperature control system or using a vessel for compensating temperatures (type ZILMET VSG). The

solar vessel must be installed in frost-free areas and have no direct heat. During the start-up, the pre-charge of the vessel must be adjusted

according to the system data and must be written on the label. When checking the systems pressure, the maximum working pressure of the solar

vessel must be considered and, if necessary, the solar vessel must be separated from the system. The solar vessel is resistant to 70% antifreeze.

The use of proper anti-scale and corrosion inhibitors additives is required in solar systems.

Do not insulate the connecting pipe or the solar expansion vessel.

Beware: this can get hot. Therefore, precautions should be taken

to ensure that access to this equipment is restricted. Do not install

where children are present or may be present.

Maintenance notes for solar vessels

When solar expansion vessel is connected to the system using a

butterfly solar valve, please follow these instructions before

performing gas pre-charge checks: 1) close the knob and open the

drain nipple to completely drain the tank, then check the pre-

charge pressure; 2) after checking the pre-charge pressure, close

the drain nipple and open the knob. When opening the drain

nipple of the butterfly valve to drain the solar expansion

vessel, please note that the solar fluid coming out from the

butterfly valve may be hot: therefore precautions must be

taken to avoid property damage, scalding and/or bodily injury.

When rinsing the solar system, the solar vessel must be separated

from the system by closing the ball valve outlet, thereby preventing

dirt particles from entering the solar vessel. Dirt particles may

cause damage to the membrane or corrosion.

Pay particular attention to the fact that the solar fluids may

undergo to chemical degradation (pH lowering) due to thermal

effect, causing corrosion of the tank and of other parts of the

system. This may happen also when the system is not working,

due to the stagnation of the fluid in the solar panels. The personnel

in charge of installation, commissioning and maintenance must

take into account this possibility and must follow the instructions of

the supplier of the solar fluid regarding periodical substitution of

the fluid itself and/or adding proper additives to the system.

ZILMET USA 400 Frenchtown Road - East Greenwich, RI 02818 – phone 401 884 4943

INSTRUCTIONS FOR INSTALLATION AND OPERATION OF ZILMET USA EXPANSION TANKS

PROFESSIONAL INSTALLATION REQUIRED rev. Sep2020 page 4 / 7

5. MAINTENANCE

ONLY QUALIFIED AND LICENSED PERSONNEL MAY PERFORM SERVICE AND MAINTENANCE.

DO NOT ACCESS WHILE UNDER PRESSURE. DANGER OF SCALDING, BURSTING OR WATER DAMAGE.

BEFORE PERFORMING MAINTENANCE AND CONTROL OPERATIONS, THE SYSTEM (INCLUDING THE TANK) MUST BE

SHUT OFF, COOLED AND NOT PRESSURIZED, ALL OF THE ELECTRICAL PARTS MUST BE UNPLUGGED AND THE TANK

MUST BE COMPLETELY EMPTY.

1. Unless otherwise stated, at least once every six months the expansion tank must be checked to verify that the pre-charge is within

the value indicated on the label (factory pre-charge or customer set pre-charge) with a tolerance of ± 20%.

2. To lengthen the life of the expansion tank’s external protection, periodically clean the external portions of the tank using warm water and soap.

3. Inspect the tank visually for signs of damage / corrosion at least once every 6 months

4. The expansion tank includes components which undergo stress. In the event such components deteriorate with time, the tank must be replaced.

5. Use only original ZILMET spare parts.

Note: To ensure the proper functioning of the system, the expansion tank must be replaced in the event of excessive deterioration and, in any case,

no later than 5 years from the installation date.

Current copies of this manual can be viewed at www.zilmetusa.com

The use of proper anti-scale and corrosion inhibitors additives is required in hydronic systems; when necessary, also the use of a proper

anti-freeze fluid (glycol) must be considered.

AFTER THE INSTALLATION OF THE TANK

1. Maintenance: Pre-charge control and visual inspection every 6 months.

2. After the installation of the tank and the re-start of the plant, check for leakage and remove all air from the system. Check to make sure that

the system pressure and temperature are within safe operating range. If necessary, remove system water to bring the system pressure within safe

limits and/or adjust the temperature control up to the desired ending temperature.

3. Do not over-tighten the threaded connection.

4. Ensure proper support, restraint and anchoring of the expansion tank to avoid displacement or rupture in the event of vibrations or earthquake.

The above installation instructions are intended as a reference and must be adapted by taking into account the

specifications and instructions of the plant at which the tank is installed, the system design, the operation requirements and

local codes and standards.

ZILMET USA 400 Frenchtown Road - East Greenwich, RI 02818 – phone 401 884 4943

PROFESSIONAL INSTALLATION REQUIRED rev. Sep2020 page 5 / 7

INSTRUCTIONS FOR INSTALLATION AND OPERATION OF ZILMET USA EXPANSION TANKS

Products Covered: All Products Manufactured And Identified As Manufactured By Zilmet.

This warranty cannot be transferred –it is extended only to the original purchaser or first user of the product. By accepting and keeping this product

you agree to all of the warranty terms and limitations of liability described below. The warranty is not valid if the purchaser does not follow the terms of

payment agreed to with ZILMET.

IMPORTANT WARNING - READ CAREFULLY THE INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS MANUAL ("MANUAL")

to avoid serious personal injury and/or property damage and to ensure the safe use and proper care of this product.

Who Receives Zilmet's Product Warranty: all purchasers or first user of the new product; the warranty is non-transferable.

What Is Covered By This Warranty: ZILMET warrants to the purchaser or first user of the new product that, at the time of manufacture, the product is

free from defects in material and workmanship. Any warranty claim must be made within five (5) years, unless another time period is agreed

between ZILMET and the purchaser, measured from the time the product was manufactured.

What Zilmet Will Do If You Have A Covered Warranty Claim: in the event of a breach of the foregoing warranty, ZILMET will, at its option, either

make repairs to correct any defect in material or workmanship or supply and ship either new or used replacement parts or products. ZILMET will not

accept any claims for labor, property damage or other costs.

What This Warranty Does Not Cover - Exclusions And Limitations: this warranty does not cover any claim unless it was caused by a defect in

material or workmanship during the warranty period. In addition, this warranty shall not apply:

·if the product is not correctly installed, operated and maintained as described in the manual provided with this warranty;

·to any failure or malfunction resulting from abuse (including freezing); improper or negligent: handling, shipping (by anyone other than ZILMET),

storage, use, operation, accident; or alteration, lightning, flood or any other environmental condition;

·to any failure or problem resulting from the use of the product for any purpose other than those specified in the accompanying manual or

alteration of any part of the product;

·this warranty does not cover labor costs, shipping charges, service charges, delivery expenses, administrative fees or any costs incurred in

removing or reinstalling the product;

·this warranty does not cover any claims submitted to ZILMET or a ZILMET-authorized distributor or retailer more than 15 days after expiration of

the applicable warranty time period described in this warranty ;

·this warranty does not cover repair or replacement costs not authorized in advance by ZILMET;

·this warranty also does not cover corrosion on mild steel flanges (stainless steel flanges must be used).

THESE WARRANTIES ARE GIVEN IN LIEU OF ALL OTHER EXPRESS WARRANTIES. NO ZILMET REPRESENTATIVE OR ANY OTHER

PARTY IS AUTHORIZED TO MAKE ANY WARRANTY OTHER THAN THOSE EXPRESSLY CONTAINED IN THIS WARRANTY AGREEMENT.

Additional Warranty Limitations: ALL IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE ARE SPECIFICALLY DISCLAIMED. Some states do not allow limitations on how long an implied

Warranty lasts, so the above limitation may not apply to you.

Limitations Of Remedies: THE REMEDIES CONTAINED IN THIS WARRANTY ARE THE PURCHASER'S / FIRST USER'S EXCLUSIVE

REMEDIES. IN NO CIRCUMSTANCES WILL ZILMET BE LIABLE FOR MORE THAN, AND PURCHASER / FIRST USER'S REMEDIES SHALL

NOT EXCEED, THE PRICE PAID FOR THE PRODUCT. IN NO CASE SHALL ZILMET BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL

OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM NON-DELIVERY OR FROM THE USE, MISUSE, OR INABILITY TO USE THE

PRODUCT OR FROM DEFECTS IN THE PRODUCT OR FROM ZILMET'S OWN NEGLIGENCE OR OTHER TORT. This exclusion applies

regardless of whether such damages are sought for breach of warranty, breach of contract, negligence, strict liability, in tort or under any other legal

theory. Such damages include, but are not limited to, inconvenience, loss or damage to property, mold, loss of profits, loss of savings or revenue,

loss of use of the products or any associated equipment, facilities, buildings or services, downtime, and the claims of third parties including

customers. Some states do not allow the limitation of incidental or consequential damages, so the above limitation or exclusion may not

apply to you.

What To Do If You Have A Problem Covered By This Warranty: any covered warranty service must be authorized by ZILMET. Contact the person

from whom you purchased the product, who must receive a written authorization from a ZILMET distributor or from ZILMET. The following

documentation must be supplied in order to receive authorization:

·The “Schedule of returns” sheet duly filled by the purchaser / first user;

·Reports, photos etc. describing the problem. If you do not receive a prompt response, call ZILMET directly at 401 884 4943. Notice of a warranty

claim should be submitted by the authorized distributor to ZILMET at the following address:

ZILMET USA

400 Frenchtown Road

East Greenwich, RI 02818

phone 401 884 4943

info@zilmetusa.com

Before ZILMET decides to provide any replacement part or product, it may, as a pre-condition to making such a determination, require that the

warranty claimant ship the product, postage prepaid, to an authorized ZILMET distributor, or to ZILMET, and provide proof of purchase evidenced by

the original sales receipt.

Replacement Product Warranty: in case of replacement of a product or any component part, ZILMET reserves the right to make changes in the

design, construction, or material of the substitute components or products, which shall be subject to all of the terms and limitation of this warranty,
