1

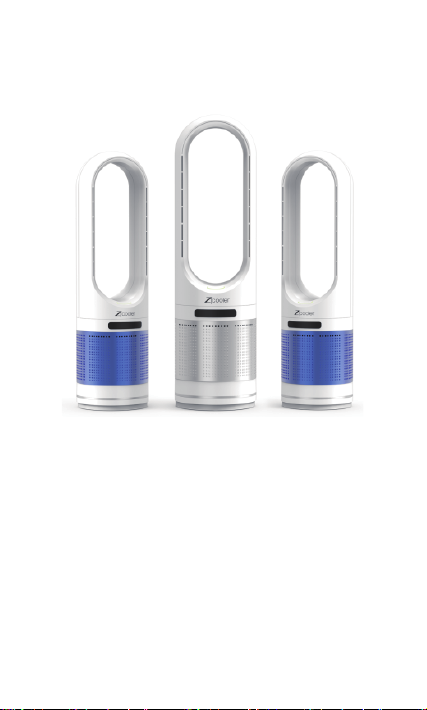

Zicooler Bladeless Fan
Instruction Manual
Suitable
UML-046
2
TABLE OF CONTENTS
Accessories--------------------------------------------- 2
Parameters---------------------------------------------- 3
Remote Control Battery Installation and Operation
--------------------------------------------------------- 4-5
Fan Operating Instructions--------------------------- 6
HEPA Filter Replacement --------------------------- 7
Malfunction Inspections and Contacts ------------8-9
Cleaning and Maintenance-------------------------- 10
Safety Precautions -------------------------------- 11-12
Accessories
Instruction Manual Fan Remote Control
3
Basic Parameters
Product name: Bladeless Fan
Model: UML-046
Rated voltage: 110-120V
Rated power: 20-45W
Rated frequency: 50/60HZ
Timing: 1-8H
Swing angle: 80°
Notice to Users
Bladeless fan speed level and corresponding noise
Speeds 1-3 30-40dB
Speeds 4-5 40-45dB
Speeds 6-8 45-60dB
Attention: The above data are measured in a
soundproof room, and the test error in the normal
environment is about 5dB.
Speeds 1-3 are recommended for night sleep.
4
Remote Control Operation
①When the fan is in the standby state, press the ON/OFF
button to start running; when the fan is in the running state,
press the ON/OFF button to stop running and enter the
standby state.
②Press the strong wind button on the remote control, “HH”
will appear on the screen. Press the button again to exit the
strong wind mode. (Or you can press the wind speed button to
exit the current mode)
③Press the sleep wind button on the remote control, “LL”
will appear on the screen. Press the button again to exit the
sleep wind mode. (Or you can press the wind speed button to
exit the current mode)
Timing +
Timing -
Wind speed -
Swing
ON/OFF
Wind speed +
Strong wind
Sleep wind
5
④Press the “wind speed +”button on the remote control to
turn up the wind speed, and press the “wind speed -”button to
turn down the wind speed.
⑤Press the “Swing” button on the remote control to
activate the swing mode. The swing angle is 80°. Press the
button again to exit the swing mode.
⑥Press the “timing +” button to increase the timing time,
and press the “timing -” button to reduce the timing time. 1-8
hours timing can be realized. Other functions will work
normally after the timing time is set; after power off, the
timing setting will be canceled; the fan will stop running after
the timing time is out, and you can press the ON/OFF button
to restart the fan.
6
Remote Control Battery Loading
1. Slide and remove the battery cover from the
remote control.
2. Prepare a button cell, with the side with
letters facing upwards, and load the button cell
into the remote control.
3. Reinstall the battery cover to the remote
control.
※ Button cell
CR2025
LITHIUM BATTERY 3V
shall be used
Batter cover
7
Fan Operating Instructions
Buttons are as shown in the figure
■ON/OFF
Connect the plug to the socket, and press the power button, the power
indicator will light up and the fan will enter the standby state, then press
the ON/OFF button, the buzzer will prompt “beep” sound and the smart
air-purifying fan start running; press and hold the power button of the
fan for 2 seconds, the buzzer will prompt “beep beep” sound, then
release the button and the fan will stop running.
■Swing
When the fan is in the running state: press the “Swing" button, the
buzzer will prompt a “beep” sound, and the swing mode will be
activated; Press the “Swing” button again, the buzzer will prompt a
“beep” sound and the swing mode will be deactivated.
■Wind speed +/-
When the wind speed and the time indicator light up, press the “+” and
“-” buttons to adjust the wind speed or the timing setting. The
corresponding wind speed or the timing time will be displayed.
WL receiver
Down
Up
Screen
Swing
ON/OFF
8
Instructions of HEPA Filter Replacement
1) Disconnect the power cord.
2) A lock and unlock icon is
provided on the base of the
bladeless fan, and the arrow on
the base indicates the lock and
unlock status of the base.
3) Hold the fan, and rotate it
counterclockwise toward the
unlock icon, and you will hear
“click”.
4) Lift up the wind outlet loop to
separate the two parts.
New filters can be purchased
from authorized dealers of the
bladeless fan.
5) After replacing the filter, put
the wind outlet loop back to its
original position (make sure the
arrow aligns with the unlock
icon).
6) Turn the upper part clockwise
toward the lock icon until you
hear another “click”, which
indicates the fan is properly
fixed.
Attention: it is recommended that the filter of the bladeless fan should be
replaced every 6 months.
Malfunction inspection method
●In case of malfunction, please check the followings
●If you have any questions, you can contact us directly via
You can also contact us in the following two ways through
Amazon. You can contact us through the order link.
9
You can click “Problem with Order” under “Your Orders”,
select “Other Issue”, click “Contact Seller” and select “Other
Issue” to Contact our Amazon store directly
Alternatively, you may click the store name on the right side
of the product homepage to move to the new page, and then
click "Ask a Question" button to send messages and contact
us.
1. Connect the power supply and the fan does not work
●Check whether the plug is properly connected to the
socket;
●Check whether the display screen lights up after the
power ON/OFF button is pressed, and check the power
supply for outage;
2 The wind speed is low
●Check whether the air inlet/outlet is blocked, remove
the foreign matters as necessary;
●Check whether the wind speed is set to a high level;
3. The remote control does not work
●Check whether the battery has run out, and
whether the battery (positive and negative sides) is
loaded properly;
4. The fan fails to run normally after power failure
●Find and reconnect the plug;
5. Bad smell is observed
●Parts may be damaged, please stop running;
10
Cleaning and Maintenance
■Make sure to disconnect the plug and cut off the power
supply before maintenance.
During maintenance, do not sprinkle or
splash water onto the smart air-purifying
fan for cleaning, for water may enter and
result in fan damage. Do not clean the smart
air-purifying fan with lacquer thinner,
gasoline, alcohol, bleacher or metal objects,
for they may cause discoloration or
scratches on the surface.
■Surfaces
Gently wipe the surface of the bladeless
fan with a soft dry cloth. If the surface is
dirty, wipe the surface with wet soft
cloth dipped in diluted neutral detergent;
and then dry the surface with soft dry
cloth.
■Air inlet and outlet
Clean the air inlet and outlet with a soft
brush or a vacuum cleaner. Severe dust
deposition on the inlet or outlet may
degrade the performance. Please clean
the air inlet and outlet regularly in time.
■Remote control
Gently clean the surface of the remote
control with dry and soft cloth, if the
remote control will not be used for a
long time, please remove the battery.
■Power plug
Clean the power plug with dry and soft
cloth.
