Zicom Z.HA.HO.GSM.ATOUCH.KIT Manuel utilisateur

GSM/SMS RFID Touch

Alarm System

UserManual

Z.HA.HO.GSM.ATOUCH.KIT

ZICOM

Foreword Table Contents

Dear Customers,

Thank youfor choosing our product. This product is atotallyD.I.Y. wireless home

securitysolution. It features automatic connection to various accessories, putting your

home under all-round protection. To experience this wonderful product, please follow

the instructions in the user manual.

In theBox ...............................................................................................................1~3

ControlPanel ............................................................................................................1

Accessories ...............................................................................................................3

HowItWorks ...............................................................................................................4

Accessories ........................................................................................................... 5~10

RemoteControl ........................................................................................................5

Door/Window Contact ..............................................................................................6

PIR Motion Detector .................................................................................................7

Zone Mode of Sensor ...............................................................................................9

Getting Started ....................................................................................................11~14

Step1.InsertSIMCard............................................................................................11

Step 2. Download theApp ......................................................................................11

Step 3. Add an Account ..........................................................................................11

Step 4. BeFamiliar with the AlarmSystem ................................................................12

Step5.SystemSettings ...........................................................................................12

SettingthroughSMS ............................................................................................15~16

Other SMS Notifcations ..........................................................................................16

Installation ...........................................................................................................17~20

Sensor Placement ....................................................................................................17

Installation Mode .....................................................................................................18

Placing theControlPanel .........................................................................................18

Mounting the Door/Window Contact .......................................................................19

Mounting the PIR Montion Detector ........................................................................20

Pairing/DeletingAccessory ....................................................................................21~22

Pair New Remote Control and Sensor .......................................................................21

PairNewWirelessSiren ............................................................................................22

DeleteSensors ........................................................................................................22

DeleteWireless Siren ...............................................................................................22

Reload theBatteries of Accessories .............................................................................23

Arm & Disarm byFreePhone Call ...............................................................................24

RestoretoFactorySettings ..........................................................................................24

Specifications .......................................................................................................25~26

ControlPanel ..........................................................................................................25

RemoteControl .......................................................................................................25

Door/Window Contact ............................................................................................26

PIR Motion Detector ................................................................................................26

RFIDTag ..................................................................................................................26

Disclaimer ..................................................................................................................27

In the Box

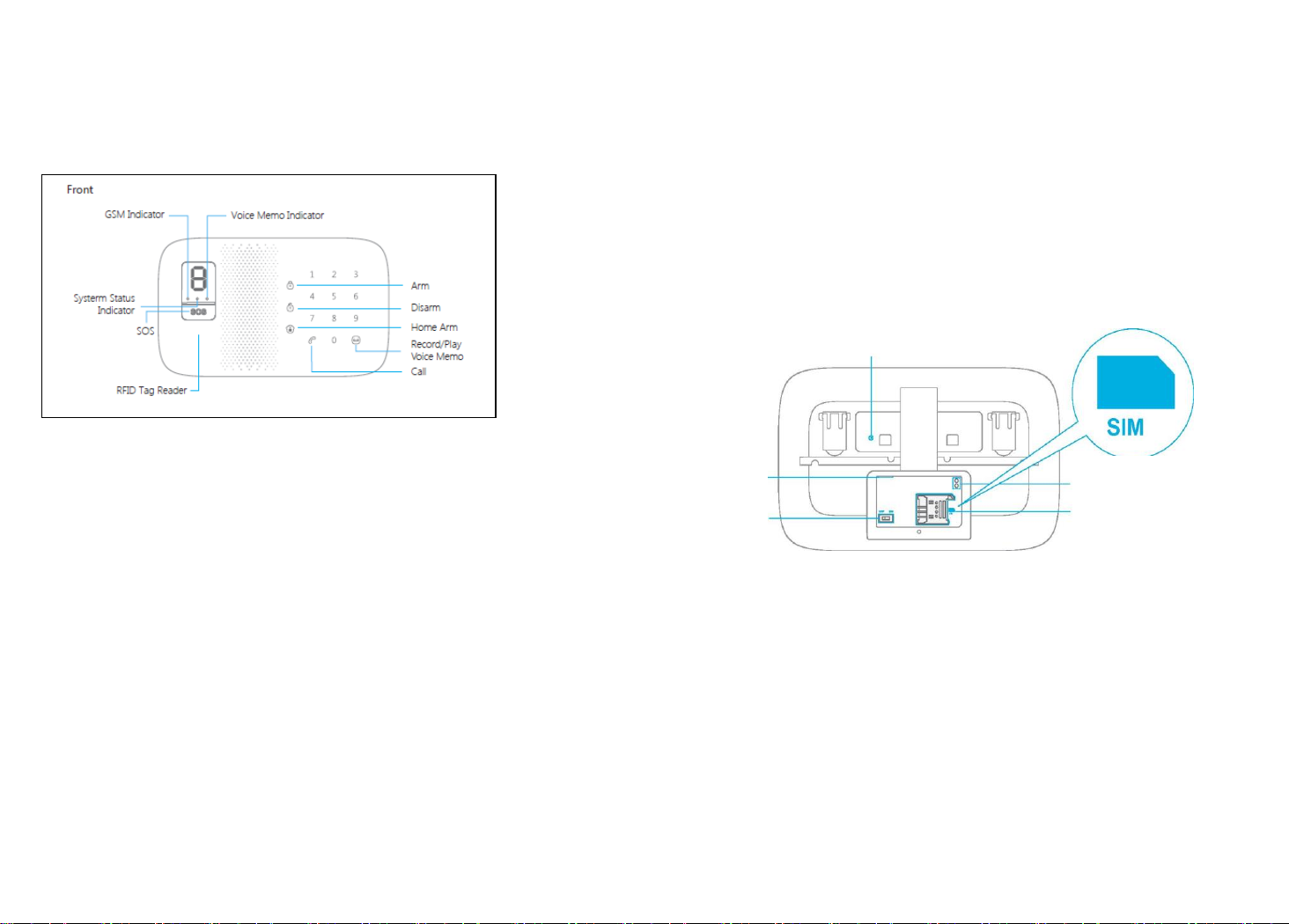

Control Panel

LED Indicators

GSM Indicator

Blinks once per second: Searching network.

Blinks once per 3 seconds: Connected with network.

System Status Indicator

On: System is armed.

Keeps blinking: System is in home mode.

Off: System is disarmed.

Voice Memo Indicator

Lights up after pressing: Record voice memo.

Keeps blinking: There is a new voice memo.

Off: No new voice memo.

Key Operation

1. SOS: System will alarm immediately when this button is pressed.

2. Arm: Press [ @ ] to arm your system. Now all the sensors are guarding.

3. Disarm: Enter the password (default setting: 1234) and press [ Q ] to disarm your

system. Now your system stops handling alarm signal from sensors (except these

sensors in 24-H zone).

4.Home Arm: Press [©] to part arm your system. Now your system only stops handling alarm

signal from home mode zone sensors.

5. Call: Enter a phone number and press this call button to dial.

6. Record Voice Memo: Press and hold it for 3 second to leave a 10-second voice

memo. Press once to listen to a new voice memo or replay.

Rear

Tamper switch: when it is pressed, the system will alarm immediately.

Yo u can turn on or turn off this function by sending SMS “87201”or “87200“to the SIM

card No. of the control panel.

RFID Tag Reader

Induce the RFID tag to this reader area to disarm the system and unlock the electronic lock (if

connected).

Adapter Jack

Power On/Off

TamperSwitch

Outputfor Electronic Lock

SIM Card Slot

Accessories

This alarm system has thefollowing accessories includedin thebox. How It Works

You can record an alarm voicemessage bythefollowing steps:

Enter disarm password(default setting: 1234), andthen press [ ® ] and [ @ ] button toleave a

10-second alarm message.

Distinction

Voice memo: Message is recorded to your familymembers.

Alarm voice message: Message is played when you pickup an emergencycall

Operation

Function

Disarm

Arm

Turn off siren

Turn on siren

Two-way talk

Hang up

Accessories Door/Window Contact

Remote Control

Thecontactcontains a transmitter and a magnet. Itcan be mounted on doors, windows

and any other objects that can be opened or closed. When the transmitter and magnet

are separated over 2 cm,the contact will send a signal to the control panel to trigger an

alarm.

Overview

Button

System Status

Press once to arm.The sirenbeeps once to confrm thesystem is armed.

Press once to disarm. The siren beeps twicetoconfrm the system is disarmed.

Press onceto home arm. After 3 seconds, the siren beeps once toconfrm the

system is in home mode.

Note:Thecontrolpanel onlystops handling alarm signal from the homemode

zone sensor .

SOS

Thecontrol panel will hoot on-site with indicator fashing, and users will receive

SMS and calls.

®+ ©

Press the [ © ] button. After the indicator on the remote control blinks once,

press [ Q ] button within 3 seconds to mutely arm the system.

® + ©

Press the [ ® ] button. After the indicator on the remote control blinks once,

press [ (§ ] button within 3 seconds to mutely disarm the system.

PIR Motion Detector Working Mode

The detector adopts digital dual-core fuzzy logic control processing technology and intelligent

analyze algorithm. When human body’s infrared spectrum is detected, it will send alarm signal

to the control panel. The detector features pet immunity for animals up to 25kgs.

Overview

Testing Mode

After a 1 minute self-test, the detector enters a testing mode. It detects once in every 10

seconds and emits alarm signal when motion is detected. This will last for 3 minutes and then

switches into power saving mode.

Note: You can press the test button to enter into testingmode too.

Status Indicator

Blinks continuously: Motion detector performs a self-test.

Blinks once: Motion is detected.

Blinks twice: Motion detector has exited testing mode, and goes to power saving mode.

Blinks once per 3 seconds: Low battery, please replace battery.

PCB Layout

Power Saving Mode

If the PIR motion detector detects movements twice in 3 minutes, it automatically goes into

sleep state. If there is no movement detected in the next 3 minutes, it will switch from sleep

state to arm. During the 3 minutes, the detector won’t be active and will not send any signal to

the control panel. As long as there is a movement detected within the 3 minutes, the duration

of power saving mode will be extended.

Detection Range

Tamper Switch: When the tamper switch is pressed, system will alarm immediately.

Infrared Sensors: The infrared sensors detect movement, and please make sure they are

always clean.

Pet-Immune Function How to set:

This sensor adopts aspecial design to improvedetectionaccuracy. Pets less than 25kgs Open therearcover of the detector;change the array of jumpers on the zonesetting to

will not trigger the alarm. thecorresponding position as below (Mind the direction of D0-D3):

Zone Mode of Sensor

Sensorscan be placed in differentzones for different requirements. Fourdifferentzones can

be selected:

Normal zone: In arm or home arm state, the detectors set to normal zone work

normally. Onceintrusion is detected, the detectorstrigger an alarm.

Home zone: When system is in home armstate, the detectors set to home zone are

disarmed. The detectors setto other zones are armed. That is, partial arm.

Single delay zone: Detector set to this zone will alarm at the specifed time(which can

setby yourself) after being triggered.

24-H zone: The detector setto 24-H zone trigger an alarmimmediately when detecting

intrusion,no matter thesystem is armed or disarmed.

Sensors in This Kit

Zone Mode(Default Setting)

Door/Window Contact

Normal Zone

PIR Motion Detector

Home Mode Zone

You can set zone bychanging the jumpers in detector.After the setting, detector can

work in corresponding mode. It must be paired to thecontrol panel again.

Getting Started

Step 1. Insert SIM Card

Before inserting the SIM card, please perform the following steps:

1. Make sure the alarm system is power off

2. IMPORTANT: Remove the (default) code permanently from the SIM card.

3. Turn off the voice mail function if it is enabled.

4. Insert the SIM card into the SIM card slot; wait until the GSM indicator starts blinking once

every 3 seconds; which means the network is connected.

SIMcard requirement: 2G GSMSIM card with calling, SMS and caller displayfunctions.

Step 2. Download the App

Download the App by searching keywords “O3 Alarm”in App Store or Google Play, and then

create your own account.

Step 4. Be Familiar with the Alarm System

Now you can tap [©], [§], [®] to arm/disarm/home arm your system remotely Tap [ @ ] and

app will skip to messages interface automatically After sending the SMS, you will receive a

phone call from the control panel to leave a 10-second voice memo. Tap [ (P ] and app will

skip to messages interface automatically After sending the SMS, you will receive a phone

call from the control panel to start a two-way talk.

Step 3. Add an Account

Step 5. System Settings

11 12

Store Emergency Numbers & SMS Numbers

Emergencynumbers arethephone numbers that will receive calls from thecontrol

panel when the alarm goes off.

SMS numbers arethe phonenumbers that will receive alarmSMS from thecontrol panel

when the alarm goes off.

IMPORTANT:Afterphonenumbersarestored,onlythosenumberscanmodifythesystem

settings.Commandsfromunauthorizedphonenumberswillberejected.

Onceanalarmistriggered,thecontrolpanelwillcalltheemergencynumbers3roundsatmost,if

aphoneispickedupwithoperationonphonebutton,thesystemwillstopdialing.

ChangeRFIDTags Name

You can rename all theRFID tags for your families whocarrythesetags.

Store SMS Number for RFID Tags

You can assign aphonenumber that will receive anSMS textnotifcation when the

system is disarmed by a RFID tag.

Store Speed Dial Number

After the number is stored, you can dial this number immediately bypressing [ (f]

button once on the control panel.

Change ZoneName

10 remote controls and 50 sensors could be extended and the names of sensors are

able to be edited.

This function aims at guiding users to identify the invasion location quickly by changing

the sensor name. Their sequence in naming follows pairing order. For example, the frst

paired sensor is by default setting to zone 1; the second paired sensor is by default

assigned to zone 2, etc. In case of emergency, if you did not change the sensor name,

this control panel will send SMS with zone number to user (e.g. Zone 1 Alarm).

Exit & Entry Delay Time

If you don’t want tocarry remote controls, youcan set the exit or entry delay.Suppose

entry delay was set at 30 seconds, the system will allow you 30 seconds to disarm the

system before alarming. Suppose exit delaywas set at 35seconds, thesystemwill allow

you 35seconds toleave before thesystem is armed.The“beep”is heard in everysecond

toremind you to leave. The pace of reminding sound will speed up in last 15 seconds.

Thus leaves you enough time to leave home without triggering thesystem.

Single Zone Delay Time

( To apply this function, you shouldchange the zone mode of thesensor to singlezone

delayfrst. Pleaserefer to “Zone Mode of Sensor”on page 9).

After the delay time setup, the single zone delay sensor will delay to alarm when it is

triggered.

For example: The exit & delay time is set at 30 seconds; single zone delay time is set at

40 seconds.

Sensor

Arm

Alarm

Normal and home mode zone

Delay 30s to arm

Delay30s to alarm

Single zonedelayzone

Delay 30s to arm

Delay40s to alarm

24-H zone

Always inarm state

Alarm immediately

DisarmPassword

The default disarm password is 1234. It is suggested to change the passcode for

safety.

13 14

Setting through SMS For example:

1. Send“5”to the SIMcard number of thecontrol panel.

If you use a non-smart phone, you can set your system by sending the related SMS

command codes to the SIM card in the control panel.

Item

SMS Command Code

SMS menu

?, ??, ???

System setting inquiry

Disarm

Arm

Home mode

Two-way talk

Call back to leave a 10-second voice memo

Store emergency telephone numbers

Store emergency SMS numbers

Store SMS No. for RFID tags

Store speed dial numbers

Change zone name

901~950

Change RFID tags name

101~150

Set exit & entry delay time

Set alarm volume and ringing time

Change disarm password

Set single zone delay time

Delete wireless sensors

Delete all RFID tags

Delete all remote controls

Restore system to default setting

0000

Turn off the tamper switch of control panel

87200

Turn on the tamper switch of control panel

87201 (Default)

Turn off thearm/disarm tone of wireless siren

63700 (Default)

Turn on the arm/disarm tone of wireless siren

63701

2. You willreceive a menu SMS from thecontrol panel.

TEL:

3. Copy and editthemenu message, andthen send it back.

4. You willreceive a SMS forconfrmation from thecontrol panel.

Other SMS Notifcations

You will receive SMS for reminding you:

1. Whenthe control panel and sensors are in low battery, the1ststored phone number

will receive a SMS.

2. Whenthe AC power of control panel fails or restores, the 1ststored phone number

will receive a SMS.

3. Whenthe tamperswitch of sensors trigger an alarm, allthestoredphone numbers

will receive a SMS.

15 16

Table des matières

Autres manuels Zicom Système de sécurité

Zicom

Zicom Z.HA.HA.HOOT.ATOUCH.SIREN Manuel utilisateur

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur
