Dear Sir, Madam,

Congratulations on your purchase of this Zibro heater, the number one brand

amongst portable heaters. You have purchased a quality product, which will

serve you for many years to come. This, of course, provided you use the heater

correctly. Please read these Directions for Use first, to ensure the maximum

lifetime for your heater.

This appliance comes with a 24-month manufacturer’s warranty on all defects

in materials or workmanship.

We wish you much warmth and comfort from your Zibro.

Yours sincerely,

PVG International b.v.

Customer Service Department

1READ THE DIRECTIONS FOR USE FIRST.

2 IN CASE OF ANY DOUBT, CONTACT YOUR ZIBRO DEALER.

3BEFORE YOU START READING, FOLD OUT THE LAST PAGE. EEEEEEEEEE

GENERAL DIRECTIONS FOR USE

Below you will find the main steps to be taken for

using your heater. For more details, please refer to

the MANUAL (pages 65 ff.).

•The first time you ignite your heater it will smell

like ’new’ for a short time.

•Store your fuel in a cool and dark place.

•Fuel has a limited shelf life. Start every heating

season with new fuel.

•The right quality of fuel will be assured, when you

use Zibro Extra or Zibro Kristal for your heater.

•If you change to another brand and/or type of

paraffin oil, you must first finish up all the

remaining fuel in the heater.

MAIN COMPONENTS

OFF - button (for

emergency stop)

Knurled wick

adjustment knob

Ignition button

Combustion chamber

handle

Fuel indicator

Grill

Lid for removable

tank

Removable tank

Fuel gauge

removable tank

Ignition coil

Battery holder

Air quality control

system

Information display

(E-Guard)

Wick height lock

EEEEEEEEEEEEEEEEEEEEEEE

Remove all packaging materials (refer to Section A, Fig. A).

Fill the removable tank Iand wait 30 minutes before you

ignite the heater (refer to Section B, Fig. H).

Insertthe batteries into the battery holder L

(refer to Section A, Fig. F).

Check whether the combustion chamber Dis fully upright

(refer to Section A, Fig. E).

Ignite the heater by turning the Knurled wick adjustment knob

Band the ignition button Csimultaneously (refer to Section

C, Fig. J and K).

After igniting the heater it will take 10 to 15 minutes before

you can check if the heater burns well (refer to Section D).

Switch off the heater (refer to Section E).

WHAT YOU NEED TO KNOW IN ADVANCE

ALWAYS MAKE SURE THAT THERE IS SUFFICIENT VENTILATION

This heater is equipped with an air quality control system M.When there is

insufficient ventilation in the room or when the heater is being used in a room

which is too small, the heater will shut off automatically. For comfortable and safe

heating ensure that there is sufficient ventilation.

Note: To avoid unexpected shut off, we recommend to put a door or window ajar

when the heater is operating.

For each model the minimum size of space is specified in which you can use the

heater safely, without additional ventilation (refer to Section K).If a particular

room is smaller than the specified space, always leave a window or door slightly

ajar (± 2.5 cm). We also recommend doing this in highly insulated or draught-free

rooms and/or at altitudes above 1,500 metres. Do not use your heater in cellars or

other underground areas.

SAFE TOP

The heater is supplied with a safe top. This application decreases the temperature

of the top plate. In this way, the risk of harmful accidents at accidentally touching

the top plate is considerably decreased. However, be aware that the top plate still

becomes hot.

Avoid any contact with the top plate and grille.

THE RIGHT FUEL

Only use Class C1 paraffin fuel in accordance with BS2869 Parttwo, or equivalent.

Your Zibro heater has been designed for use with high-quality water-free pure

paraffin oil, such as ZibroExtra or ZibroKristal. Only fuels of this kind will ensure

clean and proper burning. Lower quality fuel may result in:

Eexcessive tar deposits on the glass fibre wick

Eincomplete burning

Ereduced heater lifetime

Esmoke and/or smells

Edeposits on the grid or mantle

Using the right fuel is therefore essential for safe, efficient, and comfortable use

of your heater.

Always refer to your local Zibro dealer for the right fuel for your heater.

This transportation cap

is packed separately in

the box. Only this cap

ensures trouble-free

transportation of the

heater after use.

Store it well!

Only the use of the

correct fuel will ensure

safe, efficient, and

comfortable use of your

heater.

MANUAL

AINSTALLING THE HEATER

Carefully remove your Zibro heater from the box and check the contents.

Inaddition to the heater you also need to have:

Eamanual fuel pump

Eatransportation cap

Ethese directions for use

Keep the box and the packaging materials (Fig. A) for storage and/or transportation.

Remove the other packaging materials:

ERemove the packaging material from the grill G.Lift the grill from the slot

(Fig. B) and pull it forward.

EPush the packing material on top of the combustion chamber Dslightly

down and remove it (Fig. C). Remove the packaging materials from under

the combustion chamber as well (Fig. D).

EPut the combustion chamber back into its place. The combustion chamber

is positioned correctly when it can be smoothly moved a little to the left

and to the right by its handle E(Fig. E). Close the grill: Slightly lift it to

reposition it in its slot.

EOpen the lid for removable tank Hand remove the piece of cardboard.

Fill the removable tank as indicated in Section B.

Insertthe batteries into their holder Lat the back of the heater (Fig. F).

Ensurethat the positive and negative poles match the + and - marks indicated

on the batteryhousing.

The floor should be firm and completely level.

Your heater is now ready for use.

BFILLING FUEL

Do not fill the removable tank in the living room, but in a more suitable place

(there can always be some spillage). Follow the procedure below:

Make sure that the heater is switched off.

Open the lid Hand lift the removable tank Iout of the heater (Fig. G).

Note: Some drops may leak from the tank. Put down the removable tank

(cap pointing upwards) and screw off the fuel cap.

EEEEEE

Take the manual fuel pump and insert the smooth, most rigid tube into the

jerrycan. Make sure that it is in a higher position than the removable tank

(Fig. H). Insert the ribbed hose into the opening of the removable tank.

Lock the valve on top of the pump (turn clockwise).

Squeeze the pump a few times, until fuel starts flowing into the removable

tank. As soon as this happens, there is no need to press any longer.

Check the removable tank fuel gauge Jwhile filling the tank (Fig. I). Stop

filling by loosening the valve on top of the pump (turn anti-clock-wise), once

the gauge indicates that the tank is full. Never overfill the tank, especially not

when the fuel is very cold (fuel expands when it heats up).

Let the remaining fuel in the pump flow back into the jerrycan and carefully

remove the pump. Carefully screw the fuel cap back on the tank. Clean off

any spilled fuel.

Check whether the fuel cap is straight and tightened properly. Reinstall the

removable tank in the heater (cap down). Close the lid.

CIGNITING THE HEATER

Anew heater may give offsome smells for a shortwhile, when it is used for the

first time. You should thereforeprovide extra ventilation or ignite the heater

outside the living room.

When you use the heater for the first time, first put the filled removable tank into

place, and then wait approximately 30 minutes before you ignite the heater. This

allows the glass fibre wick to soak up the fuel. Follow the same procedure when you

have completely burnt up all fuel from the tank, and after the glass fibre wick has

been replaced.

Before igniting the heater, always check the fuel indicator Fto see whether the

removable tank needs filling up.

Always ignite the heater with the ignition coil K.Never use matches or a cigarette

lighter.

Follow the procedure below:

Turn the knurled wick adjustment knob 2clockwise to its stop (Fig. J). If you

apply more pressure you may turn it slightly further; however, it will automatically

return to the startposition. When you have set the wick to its highest position,

this action will automatically activate the safety device.

Push in the ignition button C(Fig. K), but do not apply too much force.

Release the ignition button as soon as a flame is visible in the combustion

chamber D.

When you have ignited the heater but it shuts off again shortly after, the batteries

need to be replaced. It is best to use new alkaline batteries (4x D-size).

empty full

☞

☞ ☞

If the heater has been used only a few times and the wick adjustment knob is not

locked, first turn the wick adjustment knob (Fig. S) completely left, before putting the

wick in the highest position for ignition (Section C).

After having ignited the heater, always check whether the combustion

chamber Dis level, by sliding it slightly to the left and the right by its handle

(Fig. E) E.This should be a smooth movement. If the combustion chamber is

not level, this will cause smoke and soot to develop.

DBURNING OF THE HEATER

After you have ignited the heater, it will take 10 to 15 minutes before you can

check whether the heater is burning well. Too high a flame may cause smoke and

soot, whereas too low a flame causes smells. The page opposite the folding page

shows the minimum and maximum permissible burning heights of the flame (Fig. P).

The flame can be slightly adjusted with knurled wick adjustment knob B(Fig. S).

If the flame remains low after the adjustment, the wick height must be

adjusted (refer to Section F).

Too low a flame may also be caused by:

Einsufficient fuel (fill the tank)

Epoor fuel quality (contact your dealer)

Einsufficient ventilation (leave window or door ajar)

Ewastage of the wick (contact your dealer or replace the wick,

refer to section M)

When thereis insufficient ventilation in the room, an intermittent buzzer will be

heardand the VENT lamp (Yellow) will be lit (Fig. Q) .When this signal is given,

ensurethat the ventilation of the room is improved (e.g. by opening a door or

window a little more) to avoid that the heater shuts off. When the ventilation of

the room is improved, the VENT lamp and buzzer will be deactivated. When there

is still insufficient ventilation, the heater shuts off automatically. After improving

the ventilation of the room (e.g. by opening a door or window a little more), the

heater can be ignited again.

This heater is fitted with a safety system that ensures that it switches off if you

lift the exchange tank out of the heater. To switch the heater on again, put the

exchange tank back and follow the steps in chapter C.

ESWITCHING OFF THE HEATER

Let the heater burn at its lowest setting for approximately one minute. Push the

OFF-button A.The flame will extinguish after a little while (Fig. L).

In cases of emergency: switch off the heater with the OFF - button A(Fig. L).

☞☞

☞

VENT.

☞

FADJUSTING THE WICK HEIGHT

After a period of time the combustion may no longer be high enough (Section D). In

that case you can adjust the wick height to improve the flame. To do this, the heater

must have been switched off. Follow the procedure below:

Push the OFF-button A(Fig. L).

Pull the knurled wick adjustment knob Boff the heater, so the wick height

lock Owill be visible.

Take the plastic collar between your thumb and index finger and pull it out.

Turn the collar up one step, to either position 2 or 3 (Fig. R). Carefully push

the collar back, so the pin engages in the recess.

Carefully reinstall the knurled wick adjustment knob. This can be done in one

way only - check the rear of the cap for the correct position.

If adjustment of the wick height does not have the required effect, let the

heater burn until all fuel has been used up (Section H).

If the flame height is still too low and the wick is set on position 3, then contact your

dealer,

or replace the wick, refer to section M.

If the flame gets too high after adjus-

ting (Fig P), the wick height lock should be placed one position lower again.

Otherwise smoke or soot may be caused.

GMALFUNCTION, CAUSES AND SOLUTIONS

If any malfunctioning cannot be solved from the directions below, please contact

your Zibro dealer.

THE HEATER DOES NOT IGNITE

EThe batteries arenot positioned correctly in the holder. Check (Fig. F).

EThere is not enough power left in the batteries for the ignition. Replace (Fig. F).

EYou have run out of fuel from the tank or the wick has been replaced.

After having refilled and replaced the removable tank, wait for 30 minutes

before igniting the heater.

EYou are pushing the Ignition button Cwith too much force.

Push it down less forcefully (Section C).

EThe ignition coil Kis defective.

Contact your dealer.

IRREGULAR FLAME AND/OR SOOT AND/OR SMELLS

EThe combustion chamber Dhas not been positioned correctly.

Use the handle Eto put it level, until you can easily slide it slightly to the left

and to the right and the chamber is level.

EThe flame height has not been adjusted properly.

See Fig. P and the directions in Section D.

EYou are using fuel which is past its ‘use by’ date.

Starteveryheating season with fresh fuel.

EYou are using the incorrect type of fuel.

Refer to THE RIGHT FUEL (Section ’What you need to know in advance’).

EDust has gathered in the lower partof the heater.

Contact your dealer.

EThe wick heigt is not correct.

See Section F.

THE HEATER SLOWLY EXTINGUISHES

EThe removable tank is empty.

broken ignition coil

☞

Refer to Section B.

EThe lower reservoir is contaminated by water.

Contact your dealer.

EThe wick has hardened on the upper side.

Burn the heater until all fuel is used (Section H). Use the right fuel.

EYou are using fuel which is past its ‘use by’ date.

Start every heating season with fresh fuel.

THE HEATER REMAINS BURNING LOW

EWick position too low.

Reinstall the wick height lock (Section F).

EBefore you refilled the tank, the heater had burnt up almost all the fuel.

After having refilled and replaced the removable tank, wait for 30 minutes

before igniting the heater.

EYou are using the incorrect type of fuel.

Refer to THE RIGHT FUEL (Section ’What you need to know in advance’).

EThe room is insufficiently ventilated.

Leave a window or a door wide open for a while.

THE HEATER BURNS TOO HIGH, THE FLAMES CANNOT BE ADJUSTED.

EYou are using an incorrect, too volatile type of fuel.

Refer to THE RIGHT FUEL (Section ’What you need to know in advance’).

EWick position too high.

Reinstall the wick height lock (Section F).

HMAINTENANCE

Your heater needs hardly any maintenance. It is, however, important that you

remove dust and stains in time with a damp cloth, because otherwise these may

cause stains that arehardto remove. Under normal conditions, only three

components are subject to wear:

1. THE BATTERIES

You may replace the batteries yourself. Do not dispose of old batteries along with

the other domestic waste. Follow the locally applicable regulations regarding the

disposal of domestic chemical waste.

2. THE WICK

To extend the glass fibre wick life, you must occasionally let the heater burn until

the tank is completely emptied and the heater extinguishes by itself. Do this when

you notice that the flame is weakening. The burn-out will cause some smells, so it

is recommended that you take the heater outside of the living room.

3. THE IGNITION COIL

The ignition coil will last longer if you ignite in the right way. Replace the

batteries on time and make sure you do not push the ignition button too

forcefully. If the filament is broken, you should replace the coil.

THE FUEL FILTER

Check the fuel filter regularly as well.

Remove the removable tank Ifrom the heater and take out the fuel filter (Fig.

M). Some drops of fuel may spill from the filter; keep a cloth at hand. Turn the fuel

filter upside down and clean it from all dirt deposits by tapping it on a hard sur-

face. (Never clean it with water!) Reposition the fuel filter in the heater.

Do not remove any heater components yourself. Always contact your dealer for

repairs.

Let the heater cool down first, before you start any maintenance or service work.

☞

ignition coil

fuel filter

ISTORAGE (END OF THE HEATING SEASON)

We recommend that you burn up all the fuel in the fuel tank at the end of the heating

season and store the heater properly. Follow the next procedure:

Ignite the heater outside the living room and let it burn until all fuel is used.

Let the heater cool down.

Clean the heater with a damp cloth and then dry it with a cloth.

Remove the batteries from the holder Land store them in a dry place.

Clean the fuel filter (refer to section H).

Store the heater in a dust-free place, if possible in its original packaging.

Unused fuel cannot be used for the next heating season. If there is still some

fuel left, do not throw it away, but dispose of it in accordance with the local

regulations for the disposal of domestic chemical waste.

Always start the new heating season with fresh fuel. When you start re-using

the heater,follow the instructions again (starting from Section A and as

specified).

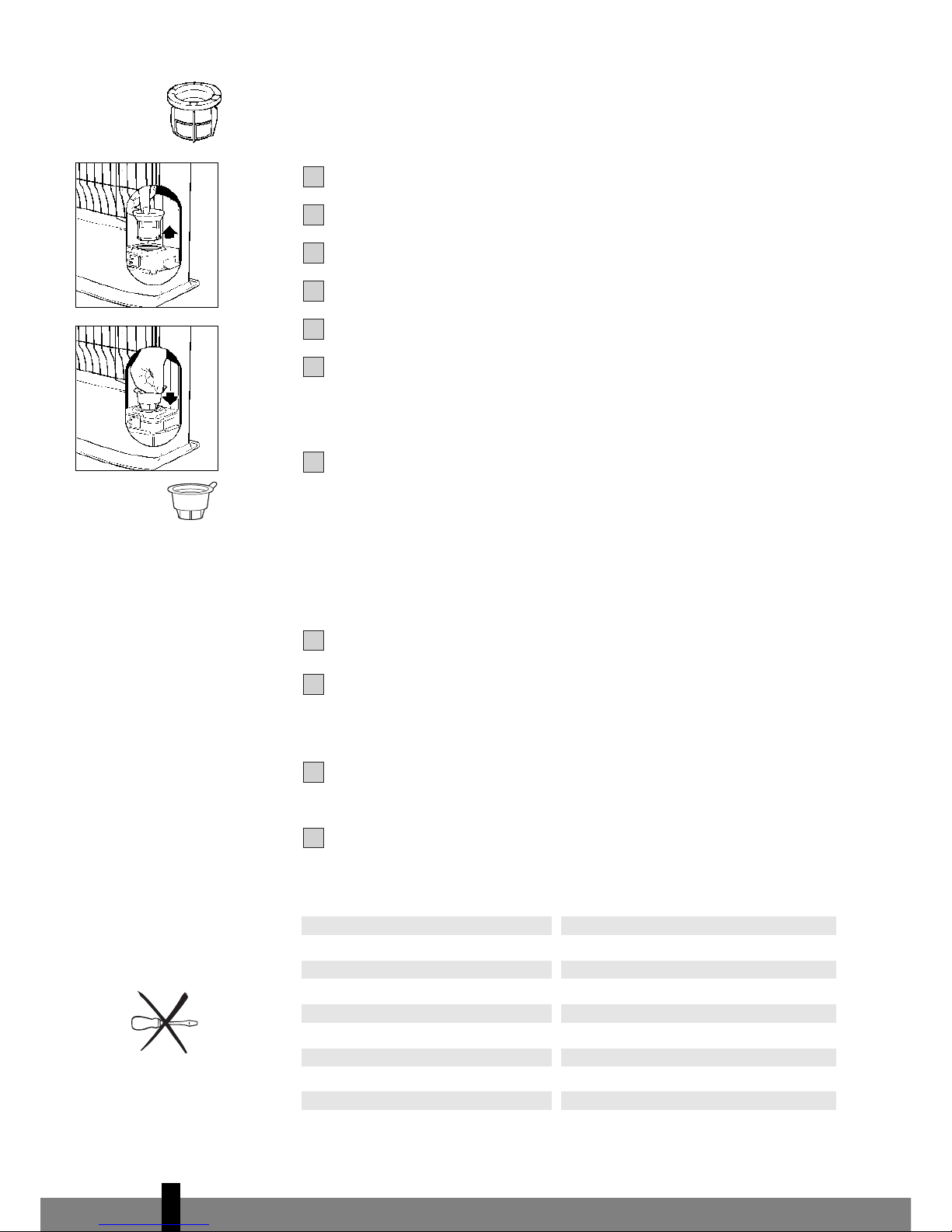

JTRANSPORTATION

Take the following measures to avoid fuel leakage during the transportation of

the heater:

Let the heater cool down.

Remove the removable tank Ifrom the heater and remove the fuel filter

(Fig. N). Some drops may leak from the filter; keep a cloth at hand. Store the

fuel filter and the removable tank outside the heater.

Place the transportation cap into the position of the fuel filter (Fig. O).

Press it tight.

Always move the heater in an upright position.

KSPECIFICATIONS

Ignition electrical Dimensions (mm) width 428

Fuel paraffin (including base plate) depth 295

Capacity (kW)*2.70 height 513

Suitable space (m3)** 45-95 Accessories: manual fuel pump

Fuel consumption (l/hr)*0.281 transportation cap

Fuel consumption (g/hr)*225 Required batteries

4x LR20,MN 1300

Burning time per tank (hr)

14.2 1.5V

Capacity removable tank (litres) 4.0 Wick type F

Weight (kg) 9.0

Monitoring of the quality of ventilation (air renewal):

Direct measurement of the CO2level (NDIR CO2-sensor E-GuardN).

*At maximum setting ** Specified values are indicative

transportation cap

fuel filter

Autres manuels pour R 421 E

Table des matières

Autres manuels Zibro Chauffage

Zibro

Zibro SRE 168E Manuel utilisateur

Zibro

Zibro SRE 188 E Manuel utilisateur

Zibro

Zibro SRE 157 Manuel utilisateur

Zibro

Zibro R 316 C Manuel utilisateur

Zibro

Zibro R 14 Manuel utilisateur

Zibro

Zibro R 31 E Manuel utilisateur

Zibro

Zibro Kamin SRE 710 Manuel utilisateur

Zibro

Zibro SRE 158 E Manuel utilisateur

Zibro

Zibro Kamin R 50 C Manuel utilisateur

Zibro

Zibro R 419 C Manuel utilisateur

Zibro

Zibro R 224 TC Manuel utilisateur

Zibro

Zibro Kamin SRE 166 Manuel utilisateur

Zibro

Zibro SRE 172 E Manuel utilisateur

Zibro

Zibro SRE 250 Manuel utilisateur

Zibro

Zibro R 421 TC Manuel utilisateur

Zibro

Zibro R 421 E Manuel utilisateur

Zibro

Zibro SRE 25 TC Manuel utilisateur

Zibro

Zibro SRE 179 E Manuel utilisateur

Zibro

Zibro SRE 227 E Manuel utilisateur

Zibro

Zibro SRE 250 Manuel utilisateur

Zibro

Zibro Kamin R 50 C Manuel utilisateur

Zibro

Zibro SRE 152 Manuel utilisateur

Zibro

Zibro SRE 270 TC Manuel utilisateur

Zibro

Zibro Kamin SRE 166 Manuel utilisateur

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
