MAXinBOX 66

Multifunction Actuator with 6 Outputs and 6 Inputs

USER MANUAL

ZN1IO-MB66

Application program version: [1.2]

User manual edition: [1.2]_a

www.zennio.com

MAXinBOX 66

http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com

CONTENTS

Contents ........................................................................................................................................ 2

Document Updates ....................................................................................................................... 3

1 Introduction .......................................................................................................................... 4

1.1 MAXinBOX 66 ................................................................................................................... 4

1.2 Installation........................................................................................................................ 5

1.3 Start-Up and Power Loss.................................................................................................. 6

2 Configuration......................................................................................................................... 7

2.1 General............................................................................................................................. 7

ETS Parameterisation.................................................................................................... 7

2.2 Inputs ............................................................................................................................... 8

2.3 Outputs........................................................................................................................... 10

2.3.1 Manual Control ...................................................................................................... 10

ETS Parameterisation.................................................................................................. 13

2.4 Logic Functions............................................................................................................... 14

2.5 Thermostats ................................................................................................................... 15

2.6 Master Light ................................................................................................................... 16

ETS Parameterisation.................................................................................................. 16

ANNEX I. Communication Objects............................................................................................... 19

MAXinBOX 66

http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com

DOCUMENT UPDATES

Version

Changes

Page(s)

[1.2]_a

Changes in the application program:

•

Optimisation of the timed actions management in the

logic functions module.

MAXinBOX 66

http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com

1INTRODUCTION

1.1 MAXINBOX 66

MAXinBOX 66 from Zennio is a versatile KNX actuator featuring a wide variety of

functions:

6 relay outputs, configurable as:

Up to 3 independent shutter channels (with or without slats),

Up to 6 individual ON/OFF outputs,

A combination of the above.

6 multi-purpose inputs, configurable as:

Temperature probes,

Binary inputs (i.e., pushbuttons, switches, sensors),

Motion detectors.

10 customisable, multi-operation logic functions.

4 independent thermostats.

Master light control for an easy, out-of-the-box control of a set of luminaires

(or functionally equivalent devices) one of which acts as a general lamp and

the others as secondary lamps.

Manual operation / supervision of the 6 relay outputs through the on-board

pushbuttons and LEDs.

MAXinBOX 66

http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com

1.2 INSTALLATION

MAXinBOX 66 connects to the KNX bus through the on-board KNX connector.

Once the device is provided with power from the KNX bus, both the individual address

and the associated application program may be downloaded.

This device does not need any additional external power since it is entirely powered

through the KNX bus.

Figure 1. MAXinBOX 66. Elements

The main elements of the device are described next.

Test/Prog. Pushbutton (8): a short press on this button sets the device into

the programming mode, making the associated LED (5) light in red.

Note: if this button is held while plugging the device into the KNX bus, the

device will enter into safe mode. In such case, the LED will blink in red every

0.5 seconds.

Outputs (2 and 6): output ports for the insertion of the stripped cables of the

systems being controlled by the actuator (see section 2.3). Please secure the

connection by means of the on-board screws.

1. Analogue/Digital Inputs.

2. Upper Outputs.

3. Output LED Indicator.

4. Manual Control Pushbutton.

5. Test/Prog. LED.

6. Lower Outputs.

7. KNX Bus Connector.

8. Test/Prog. Pushbutton.

MAXinBOX 66

http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com

Inputs (1): input ports for the insertion of the stripped cables of external

elements such as switches / motion detectors / temperature probes, etc. One

of the two cables of each element needs to be connected to one of the slots

labelled “1” to “6”, while the other cable should be connected to the slot

labelled as “C”. Note that all the external input devices share the “C” slot for

one of the two cables. Please secure the connection by means of the on-

board screws.

To get detailed information about the technical features of this device, as well as on the

installation and security procedures, please refer to the corresponding Datasheet,

bundled with the original package of the device and also available at www.zennio.com.

1.3 START-UP AND POWER LOSS

During the start-up of the device, the Test/Prog. LED will blink in blue colour for a few

seconds before MAXinBOX 66 is ready. External orders will not be executed during this

time, but afterwards.

Depending on the configuration, some specific actions will also be performed during

the start-up. For example, the integrator can set whether the output channels should

switch to a particular state and whether the device should send certain objects to the

bus after the power recovery. Please consult the next sections of this document for

further details.

On the other hand, when a bus power failure takes place, MAXinBOX 66 will interrupt

any pending actions, and will save its state so it can be recovered once the power

supply is restored.

For safety reasons, all shutter channels will be stopped (i.e., the relays will open) if a

power loss takes place, while the individual outputs will switch to the specific state

configured in ETS (if any).

MAXinBOX 66

http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com

2CONFIGURATION

2.1 GENERAL

After importing the corresponding database in ETS and adding the device into the

topology of the desired project, the configuration process begins by right-clicking into

the device and selecting Edit parameters.

ETS PARAMETERISATION

The only parameterisable screen available by default is General. From this screen it is

possible to activate/deactivate all the required functionality.

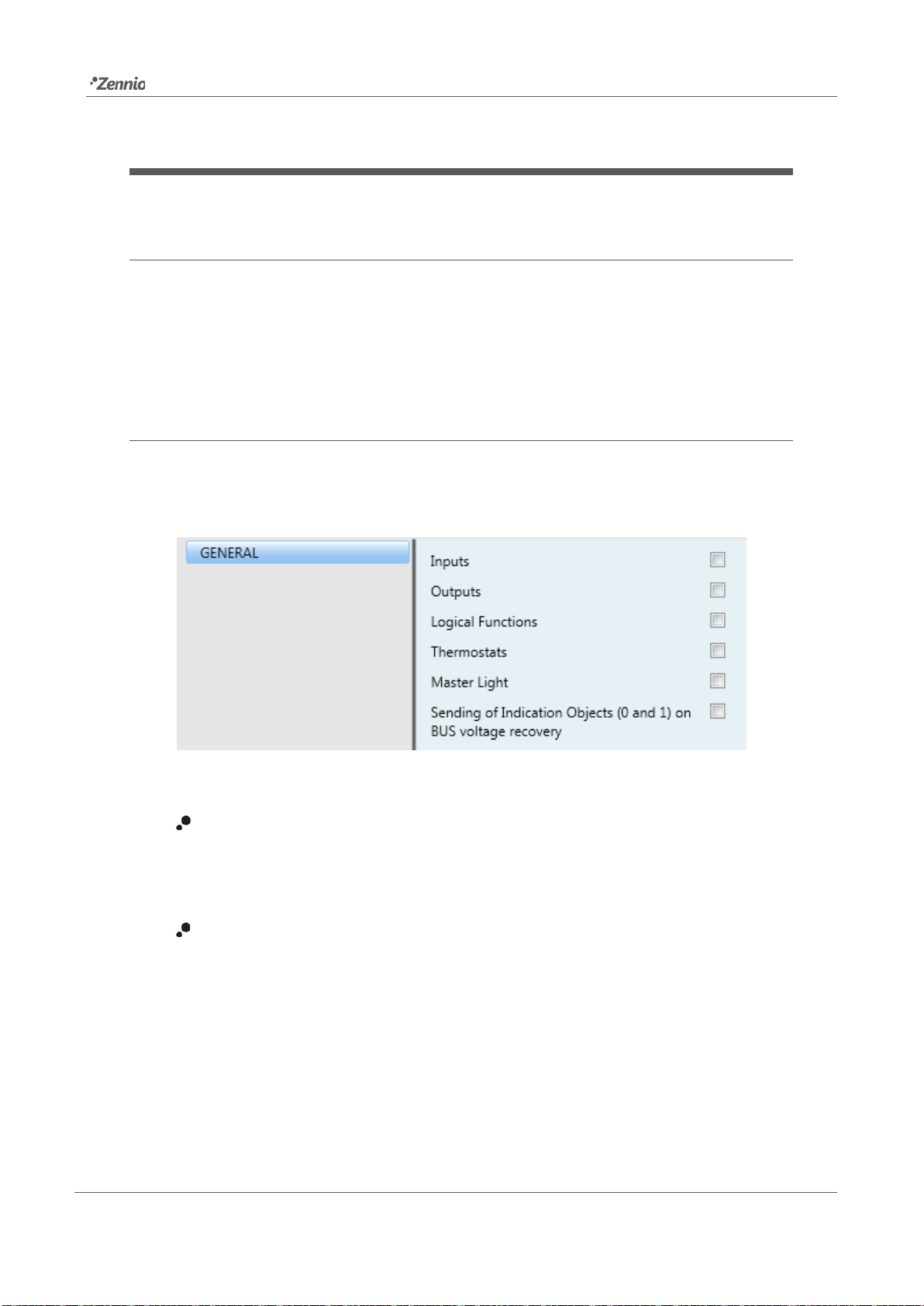

Figure 2. General screen

Once activated, Inputs, Outputs, Logical Functions, Thermostats and

Master Light bring additional tabs to the menu on the left. These functions

and their parameters will be explained in later sections of this document.

Sending of Indication Objects (0 and 1) on Bus Voltage Recovery: this

parameter lets the integrator activate two new communication objects (“Reset

0” and “Reset 1”), which will be sent to the KNX bus with values “0” and “1”

respectively whenever the device begins operation (for example, after a bus

power failure). It is possible to parameterise a certain delay to this sending (0

to 255 seconds).

MAXinBOX 66

http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com

2.2 INPUTS

MAXinBOX 66 incorporates 6 analogue/digital inputs, each configurable as a:

Binary Input, for the connection of a pushbutton or a switch/sensor.

Temperature Probe, to connect a temperature sensor (model ZN1AC-

NTC68 S/E/F from Zennio).

Motion Detector, to connect a motion detector (models ZN1IO-DETEC-P

and ZN1IO-DETEC-X from Zennio).

Notes:

Older models of the Zennio motion detector (e.g., ZN1IO-DETEC and

ZN1IO-DETEC-N) will not work properly with MAXinBOX 66.

2.2.1 BINARY INPUT

Please refer to the specific user manual “Binary Inputs in MAXinBOX 66”.

2.2.2 TEMPERATURE PROBE

Please refer to the specific user manual “Temperature Probe in MAXinBOX 66”.

2.2.3 MOTION DETECTOR

It is possible to connect motion detectors (models ZN1IO-DETEC-P and ZN1IO-

DETEC-X from Zennio) to the input ports of MAXinBOX 66. This brings the device with

the possibility of monitoring motion and presence in the room, as well as the light level.

Depending on the detection, different response actions can be parameterised.

Please refer to the specific user manual “Motion Detector in MAXinBOX 66”

(available at the Zennio homepage, www.zennio.com) for detailed information about

the functionality and the configuration of the related parameters.

Notes:

The ZN1IO-DETEC-P motion detector is compatible with a variety of Zennio

MAXinBOX 66

http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com

devices. However, depending on the device it is actually being connected to,

the functionality may differ slightly. Therefore, please refer specifically to the

aforementioned user manual “Zennio Motion Detector for MAXinBOX 66”.

Motion detectors with references ZN1IO-DETEC and ZN1IO-DETEC-N are

not compatible with MAXinBOX 66 (may report inaccurate measurements if

connected to this device).

When connected to MAXinBOX 66, the rear micro-switch of model ZN1IO-

DETEC-P should be set to position “Type B”.

MAXinBOX 66

http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com

2.3 OUTPUTS

MAXinBOX 66 incorporates 6 relay outputs, each configurable as a:

Individual binary output, that allow an independent control of a load (up to 6

different loads can be controlled by a MAXinBOX 66).

Shutter channel, that allow to control the motion of one blind (up to 3 blinds

can be controlled by a MAXinBOX 66).

For detailed information about the functionality and the configuration of the related

parameters, please refer to the following specific manuals, all of them available at the

Zennio homepage (www.zennio.com):

Individual outputs in MAXinBOX 66.

Shutter channels in MAXinBOX 66.

2.3.1 MANUAL CONTROL

MAXinBOX 66 allows manually switching the state of its output relays through the

respective pushbuttons on the top of the device. A specific pushbutton is therefore

available per output.

Manual operation can be done in two different ways, named as Test On Mode (for

testing purposes during the configuration of the device) and Test Off Mode (for a

normal use, anytime). Whether both, only one, or none of these modes should be

accessible needs to be parameterised in ETS. Moreover, it is possible to enable a

specific binary object for locking and unlocking the manual control in runtime.

Note:

The Test Off mode will be active (unless it has been disabled by parameter)

after a download or a reset with no need of a specific activation – the

pushbuttons will respond to user presses from the start.

On the contrary, switching to the Test On mode (unless disabled by

parameter) needs to be done by long-pressing the Prog/Test button (for at

least three seconds), until the LED is no longer red and turns yellow. From
