Thanks for

choosing Zenith!

machine numbers A20A22D

operating guide / warranty

hookup directory page 3

RECORD YOUR MODEL NUMBER

The model and serial number of your new TV are located

on the back of the TV cabinet. For your future convenience,

we suggest that you record these numbers here:

MODEL NO.____________________________________

SERIAL NO.____________________________________

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.

REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence

of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating

and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

POWER CORD POLARIZATION:

CAUTION: To Prevent Electric Shock, Match wide blade of plug to wide slot, fully insert.

ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne

correspondante de la prise et pousser jusqu’au fond.

NOTE TO CABLE/TV INSTALLER:

This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric Code

(U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be

connected to the grounding system of the building, as close to the point of the cable entry as practical.

REGULATORY INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures: •Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Do not attempt to modify this product in any way without written authorization from Zenith Electronics Corporation.

Unauthorized modification could void the user’s authority to operate this product.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

206-3371-A

INSTALLATION GETTING STARTED PAGE 3

This page will

direct you to

which page to

go to for

proper hook-

up of your

Entertainment

Machine.

Hook-Up Directory

IMPORTANT!!

Use this page to decide where you need to begin your set up. First, find the line

below that best describes what you want to do, then go to that page number.

Cable TV

wall jack

Cable box

Out

Cable TV

wall jack

Cable box

Out

If you are using an antenna and no other equipment, go to . . . . . . . . . . . . . . . . . . page 4

If you have cable and no other equipment, go to . . . . . . . . . . . . . . . . . . . . . . . . . page 5

If you are using an antenna and have a VCR, go to . . . . . . . . . . . . . . . . . . . . . . . page 6

If you have cable and a VCR, go to . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7

Antenna only

Cable only

Antenna with VCR

Cable and VCR

Locate the Antenna/Cable jack on

the back of your Entertainment

Machine.

Connect the cable that runs from

the wall directly to this jack,

according to the diagram to the

right.

Remove the back of the remote

and put in two AAA batteries.

Plug in your TV. Do not plug it

into a switched outlet. Your

Entertainment Machine is

designed to operate on household

current, 120-volt 60 Hertz AC. Do

not attempt to operate it on DC

Current.

Go to page 8 to Auto Program

your Entertainment Machine.

206-3371-A

INSTALLATION STANDARDPAGE 4

Connect

off-air

antenna your

Entertainment

Machine

Hook Up Your Antenna to the TV

RF coaxial wire

(75ohm)

Antenna TV back

TV back panel

(expanded view)

Antenna

Cable

TV back

Flat wire

(300 ohm)

Antenna

300/75 ohm

Adapter

TV back panel

(expanded view)

Antenna

Cable

Audio In Video

If you have a 75 ohm RF cable,

then you don’t need any adapters!

Remember, when screwing RF

cables onto jacks, clockwise tight-

ens, and counterclockwise loosens.

A 300 to 75 ohm adapter

is not included with your Zenith

Entertainment Machine.

back of

remote

300 TO 75 OHM

ADAPTER

Mini glossary

75 OHM RF CABLE The wire that comes from an off-air antenna or cable service provider. Each end looks like a hex shaped nut with a wire

sticking through the middle, and it screws onto the threaded jack on the back of your TV.

A small device that connects a two-wire 300 ohm antenna to a 75 ohm RF jack. They are usually about an inch long with two

screws on one end and a round opening with a wire sticking out on the other end.

Flat wire antenna to TV

Antenna to TV with coaxial wire

206-3371-A

INSTALLATION STANDARD PAGE 5

Connect cable

to your

Entertainment

Machine

Hook Up Your Cable (CATV) to the TV

Cable TV

wall jack

Cable TV

wall jack

Audio In Video

Cable box

Out

RF coaxial wire (75ohm)

3 4

output

switch

TV back panel

(expanded view)

Antenna

Cable

TV back

Audio In Video

TV back panel

(expanded view)

Antenna

Cable

TV back

If you’re using a cable box, leave

your TV on channel 3 or 4 and use

your cable box to change chan-

nels.

Remember, when screwing RF

cables onto jacks, clockwise tight-

ens, and counterclockwise loosens

If you’re using a cable box, Auto

Program might only find the chan-

nel your cable service is on (usual-

ly channel 3 or 4). Don’t worry,

that’s all you need!

back of

remote

Locate the Antenna/Cable jack on

the back of your Entertainment

Machine.

Connect the cable that runs from

the wall directly to this jack.

Remove the back of the remote

and put in two AAA batteries.

Plug in your TV. Do not plug it

into a switched outlet. Your

Entertainment Machine is

designed to operate on household

current, 120-volt 60 Hertz AC. Do

not attempt to operate it on DC

Current.

Go to page 8 to Auto Program

your Entertainment Machine.

Cable to TV

Cable with Cable Box to TV

Locate the Antenna/Cable jack on

the back of your Entertainment

Machine.

Connect the cable that runs from

the wall directly to this jack,

according to the diagram to the

right.

Remove the back of the remote

and put in two AAA batteries.

Plug in your TV. Do not plug it

into a switched outlet. Your

Entertainment Machine is designed

to operate on household current,

120-volt 60 Hertz AC. Do not

attempt to operate it on DC

Current.

Go to page 8 to Auto Program your

Entertainment Machine.

206-3371-A

INSTALLATION STANDARD

PAGE 6

Connect your

off-air

antenna and

VCR to your

Entertainment

Machine.

Hook Up Antenna and VCR to your TV

TV back panel

(expanded view)

Antenna

Cable

TV back

Out Audio

Video

3 4

VCR back

VCR back AV panel

Flat wire

(300 ohm)

Antenna

300/75 ohm

Adapter

RF coaxial wire

(75ohm)

not included

with TV

output

switch

Audio In Video A/V cables

not included

with TV

Remember, when screwing

RF cables onto jacks, clockwise

tightens, and counterclockwise

loosens.

No A/V cables are included with

your Zenith Entertainment

Machine.

Without A/V cables, most VCRs will

not play videocassettes in stereo

sound.

back of

remote

TV back panel

(expanded view)

Antenna

Cable

TV back RF coaxial wire

(75ohm)

not included

with TV

Audio In Video

A/V cables

not included

with TV

Out Audio

Video

3 4

VCR back

VCR back AV panel

output

switch

RF coaxial cable

(75ohm)

Antenna

Flat wire Antenna to TV with VCR

Coaxial wire Antenna to TV with VCR

Locate the Antenna/Cable jack on

the back of your Entertainment

Machine.

Connect the cable that runs from

the wall directly to this jack,

according to the diagram to the

right.

Remove the back of the remote

and put in two AAA batteries.

Plug in your TV. Do not plug it

into a switched outlet. Your

Entertainment Machine is

designed to operate on household

current, 120-volt 60 Hertz AC. Do

not attempt to operate it on DC

Current.

Go to page 8 to Auto Program

your Entertainment Machine.

206-3371-A

INSTALLATION STANDARD PAGE 7

Connect your

VCR and

Cable to your

Entertainment

Machine.

Hook Up Your Cable (CATV) and VCR

Leave your VCR and your television

tuned to channel three and use

the cable box to change channels.

Remember, when screwing in RF

cables onto jacks, clockwise tight-

ens, and counterclockwise loosens.

No A/V cables are included

with your Entertainment Machine.

Without A/V cables, most VCRs

will not play videocassettes in

stereo sound.

Cable TV

wall jack

RF coaxial cable (75ohm)

TV back panel

(expanded view)

Antenna

Cable

TV back

Out Audio

Video

3 4

VCR back

VCR back AV panel

RF coaxial wire

(75ohm)

not included

with TV

A/V cables

not included

with TV

output

switch

Audio In Video

back of

remote

Cable TV

wall jack

RF coaxial cable (75ohm)

Cable box

Out

Out Audio

Video

3 4

VCR back

VCR back AV panel

output

switch

3 4

output

switch

TV back panel

(expanded view)

Antenna

Cable

TV back RF coaxial wire

(75ohm)

not included

with TV

Audio In Video

A/V cables

not included

with TV

Cable with Cable

Box to TV with

VCR

Cable to TV with VCR

PAGE 8

206-3371-A

INSTALLATION QUICK START

Mini glossary

AUTO PROGRAM Auto Program is how your Entertainment Machine finds all the channels available in your area and stores them in memory.

Use Auto

Program to

automatically

find and

store all of

the stations

available in

your area.

Auto Program

With the remote control in hand,

press the POWER key to turn on

your Entertainment Machine.

Press the MENU key so the Setup

menu appears.

Using the UP/DOWN arrows on

the remote control, select Auto

Program on your screen.

Press a RIGHT or LEFT arrow to

reach the Auto Program screen.

Using the UP/DOWN arrows,

choose either Cable TV or Off-Air

Antenna on your screen.

Press a RIGHT or LEFT arrow to

begin Auto Program.

Press ENTER or QUIT to return to

TV viewing.

PRG POWER

CABLE VCR AUX TV

ENTER

FLASHBK MUTE

CHANNEL

VOLUME VOLUME

123

456

REWIND

RECORD

QUIT

PAUSE TIMER

PLAY

STOP FFWD

TV/VCR

SOURCE

4/6

3/5

PAGE 9

206-3371-A

OPERATION BUTTON FUNCTIONS

A quick list

of all the

buttons on

your remote

and what

they do.

Button Functions on your Remote

PRG POWER

CABLE VCR AUX TV

ENTER

FLASHBK MUTE

CHANNEL

VOLUME VOLUME

123

456

REWIND FFWD

RECORD

QUIT

TV/VCR

SOURCE

PAUSE TIMER

PLAY

STOP

PRG (PROGRAM)

Programs your remote to

operate other products.

See page 23.

FLASHBK

(FLASHBACK)

Return to the

last channel viewed.

POWER

Turns TV On or Off.

CABLE/VCR/AUX/TV

Switch between available input

sources. AUX is for any optional

device.

CHANNEL

(UP/DOWN)

Flip through

available channels. MUTE

Turns sound Off and On

while the picture remains.

ENTER

Shows the Channel/Time

display. Press after channel

numbers for instant selection.

NUMBER KEY PAD

Selects channels directly and

enters numeric values for

some options.

Displays on-screen

menus for TV mode.

UP/DOWN ARROWS

The Up/Down arrows select options.

remote control part number

MBR3446

TIMER

Displays the Sleep Timer

Menu. See “Timer Setup”

on page 18 for

more information.

VOLUME LEFT/RIGHT

Adjusts the sound levels on

your Entertainment Machine.

QUIT

Remove on-screen display from

view. If no display is on, switches

front speaker surround sound

On and Off from some TVs.

TV/VCR-SOURCE

Switches between watching TV

through your antenna/cable, or

through your VCR.

Your remote has Night Vision

Glow-In-The-Dark keys! It must

be exposed to light before the

keys will glow in the dark.

Longer exposure—longer glow.

Keys dedicated to VCR

functions will still operate your

VCR while the remote is in TV

mode.

Grey keys indicate that they may

not function on your model of

TV.

LEFT/RIGHT ARROWS

The Left/Right arrows

adjust options.

LED INDICATOR LIGHT

Lights when keys are pressed.

PAGE 10

206-3371-A

OPERATION BUTTON FUNCTIONS

Front Panel Diagram

POWER

VOLUME

CHANNEL

1 3

An example of

using the

panel on the

front of your

Entertainment

Machine.

Access the Setup Menu by press-

ing MENU on the front panel.

Using the CHANNEL Up/Down

keys, select Language on your

screen.

Press the VOLUME Right/Left

arrows to adjust the language you

want your on-screen menus to

appear in.

Repeat the above steps for the

other options in the Setup and

Video menus.

When finished, wait ten seconds

and the menus will disappear.

Here’s an example of how to use the front panel

to work with menus:

Without a remote, you may not

be able to use all the options in

your menus, such as those that

require the NUMBER key pad on

the remote.

Autres manuels pour A20A22D

Table des matières

Autres manuels Zenith TV

Zenith

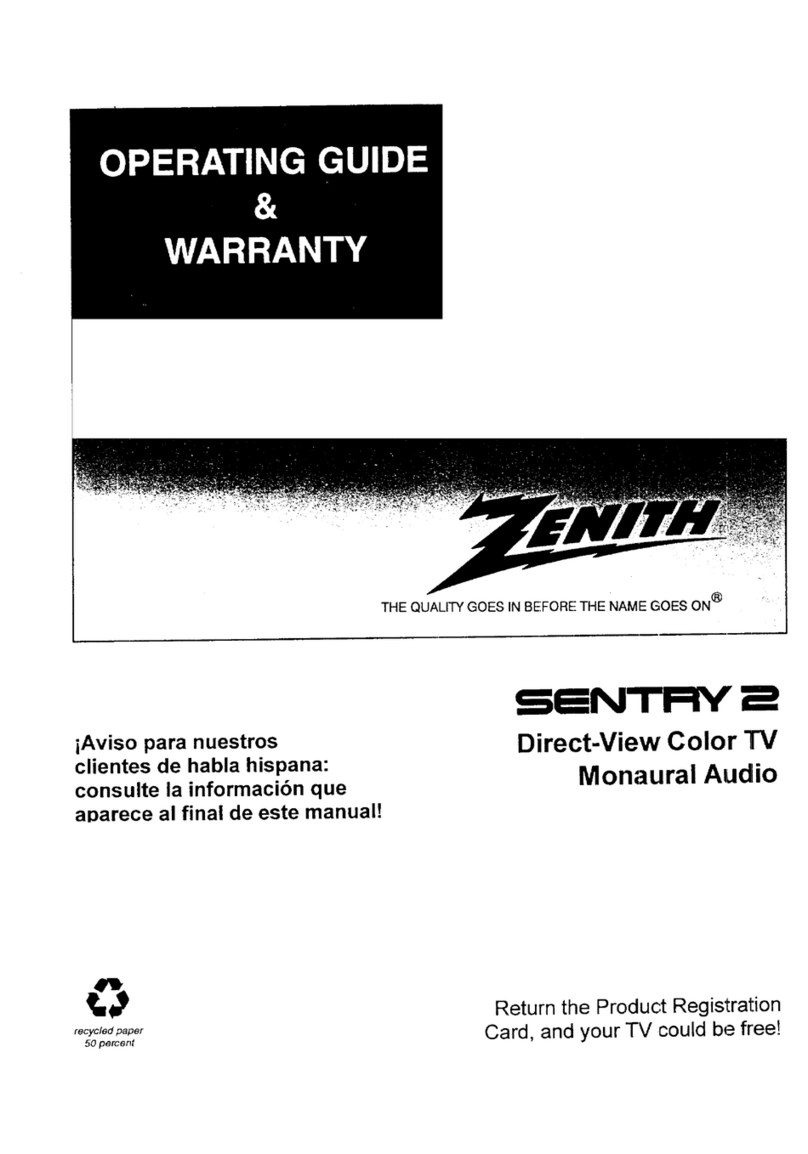

Zenith SENTRY 2 SMS2047W Manuel d'utilisation et d'entretien

Zenith

Zenith IQB42P97G Manuel d'utilisation et d'entretien

Zenith

Zenith C27A25 Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 SL2722RK Manuel d'utilisation et d'entretien

Zenith

Zenith 42PC3DU Manuel utilisateur

Zenith

Zenith SENTRY 2 SY2768 Manuel d'utilisation et d'entretien

Zenith

Zenith A25A23W Manuel utilisateur

Zenith

Zenith SENTRY 2 SLS9550S Manuel d'utilisation et d'entretien

Zenith

Zenith IQB27B44W Manuel d'utilisation et d'entretien

Zenith

Zenith D27B48T Manuel d'utilisation et d'entretien

Zenith

Zenith SYSTEM 3 SY2738RK Manuel d'utilisation et d'entretien

Zenith

Zenith B25A10Z Manuel utilisateur

Zenith

Zenith A13P01D Manuel utilisateur

Zenith

Zenith C27J28C Manuel utilisateur

Zenith

Zenith A19A11D Manuel utilisateur

Zenith

Zenith IQB27B44 Manuel d'utilisation et d'entretien

Zenith

Zenith C27V46 Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 SLS2751Y and warranty Manuel d'utilisation et d'entretien

Zenith

Zenith Concierge H19C34DT Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 SM0953X Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 Z25A65 Manuel d'utilisation et d'entretien

Zenith

Zenith Concierge H20E35DT Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 Z25A11 Manuel d'utilisation et d'entretien

Zenith

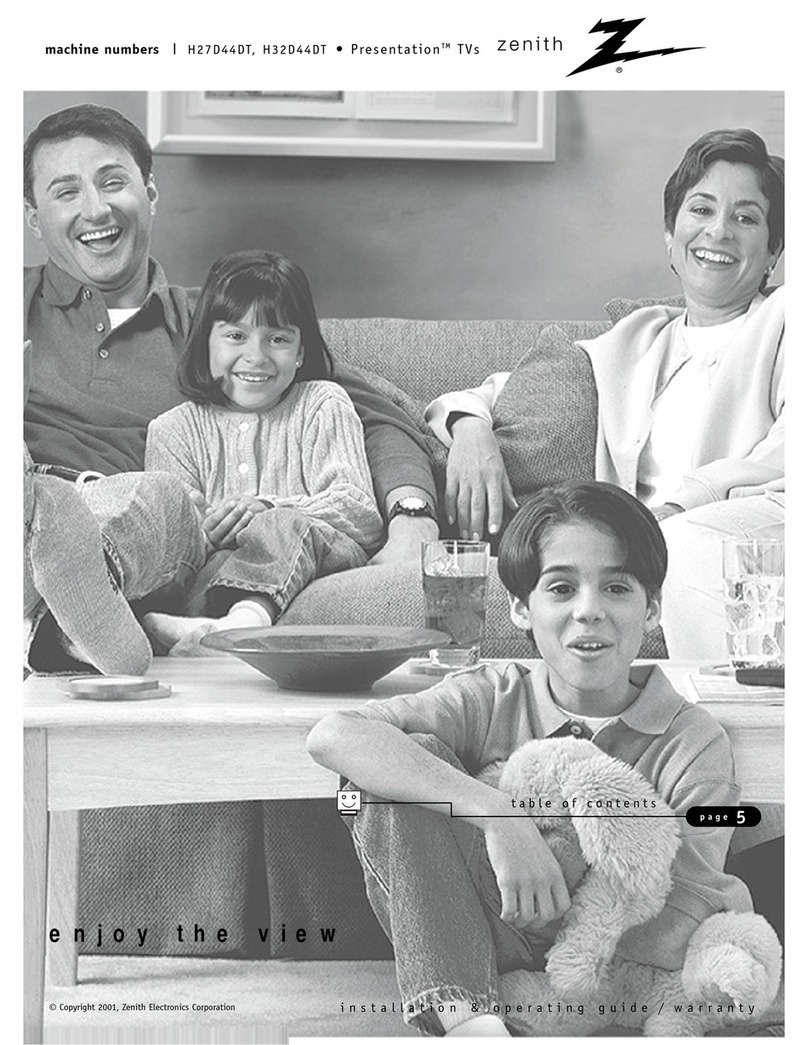

Zenith Presentation H27D44DT Guide de dépannage

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
