IP Desk Master Stations

Getting Started Guide

This document serves as a quick conﬁguration guide for the IP Desk

Master Stations.

The information in this document pertains to following IP Stations:

About

Item Number Item Name Description

1008400090 IPDM-V2_P IP Desk Master V2_P

1008401090 IPDMH-V2_P IP Desk Master with Handset V2_P

1008401190 IPDMHB-V2_P IP Desk Master with Handset (black)-V2_P

For more information and instructions on conﬁguration of the IPDM-V2_P

please go to https://wiki.zenitel.com/wiki/IP_Desk_Master_-V2-P.

For more information and instructions on conﬁguration of the IPDMH-V2_P

and IPDMHB-V2_P please go to https://wiki.zenitel.com/wiki/IP_Desk_

Master_-V2-P_w/handset.

Installation

LAN

Network Connection & Power Supply

There is one RJ45 port on the IP Desk Master Station. (10/100 Mbps RJ45

port for LAN (uplink) connection). The LAN port serves as both network and

Power over Ethernet (PoE) connection.

The IP Station must be connected to a switch/hub which supports PoE.

Conﬁguration

The station can operate in dierent modes: ICX-AlphaCom, Edge and SIP.

The default mode is Edge. The description in the rest of this document uses

the ICX-AlphaCom mode as an example.

There are two ways of conﬁguring the IP Desk Master Station, either via the

station keypad or via a web browser.

For ICX-AlphaCom conﬁguration, there are essentially three parameters

set:

• ICX-AlphaCom IP address

• Station directory number

• Station IP address

Conﬁguration via Station Keypad

When the IP Desk Master Station is not connected to the ICX-AlphaCom

server, an oine menu is displayed. The oine menu can be used to

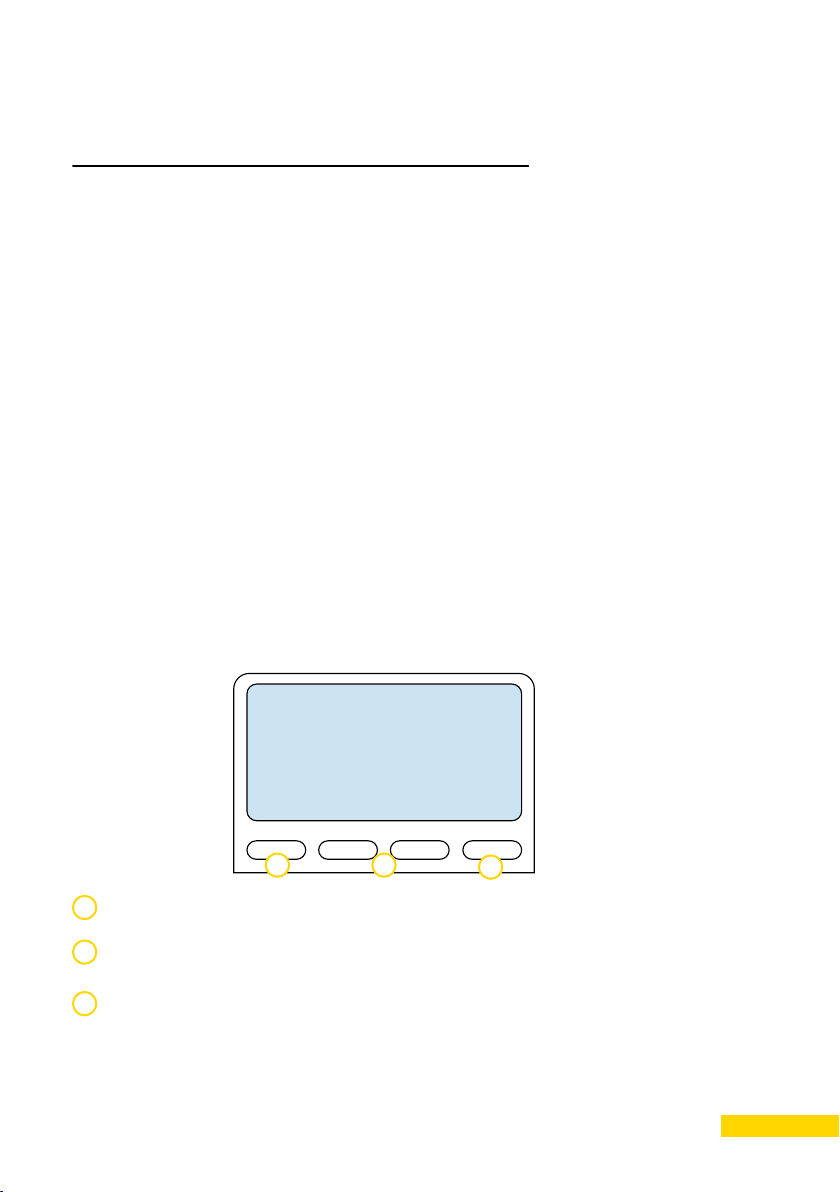

conﬁgure the station and is navigated with the 4 keys below the display.

The left key is used as a Setup, Select or OK key.

The right key is used as a Esc or Back key.

The middle keys are used to navigate according to the arrows on the

display.

1 3

The Main Menu

To enter the setup menu:

Not conﬁgured

Setup

- Enter password

1851

OK Esc

Press the Setup key

Enter the default password 1851 by

using the station keypad

Press the OK key

A menu with six options will be displayed.

Use the two arrow keys in the middle

to navigate through the menu options.

Press the Sel key to select the menu

option and the OK key to conﬁrm data

entered. When entering data the left

arrow is used for deleting characters.

- Main Menu -

Station Info -->

IP Settings -->

Station Mode -->

SIP Mode -->

Load Defaults -->

Restart -->

Sel Back

Station Info

This shows the station MAC and

IP addresses, the conﬁgured ICX-

AlphaCom address and software version.

- Station Info -

MAC adr:0013cb000000

St IP: 169.254.1.100

AMC IP: 169.254.1.5

SW ver: 6.0.3.0

Back

IP Settings

Choose between DHCP and STATIC IP

address. If STATIC IP is chosen, it is pos-

sible to conﬁgure the IP address, mask

and gateway.

- IP settings -

< > DHCP

<*> STATIC

IPaddr: 169.254.1.100

IPmask: 255.255.0.0

IPgw: 169.254.1.1

Back

Sel

Station Mode

Select Station Mode followed by ICX-

AlphaCom

- Station Mode -

<*> ICX-AlphaCom

< > Edge

< > SIP

Back

Sel

ICX Settings

Set the IP address of ICX-AlphaCom

that the station shall connect to, and

the directory number of the station. Id

A directory number is not entered the

station will register with its MAC address.

- ICX Settings -

ICX IP: 169.254.1.5

Request Dir No: 2525

Back

Sel

Load Defaults

This will load the factory default settings.

Press Sel key to load the default settings.

- Load Defaults -

Station will restart.

Press to set.

Back

Sel

Restart

This will restart the station. Press Sel to

restart the station. Restarting the station

will apply the new settings.

- Restart -

Press to restart.

Back

Sel

Conﬁguration via Web Browser

IP Desk Master Station Web Interface

The IP Desk Master Station features an embedded web server, which

allows users to login via a standard web browser. At commissioning,

the IP station needs to be conﬁgured to enable it to subscribe to an ICX-

AlphaCom server. Connect a PC to the IP station via a PoE switch by using

network cables.

By default, the station is set to DHCP an will thus obtain an IP address from a

DHCP server. Obtain the actual IP address of the station by performing the

method described in the previous section under the heading Station Info.

After the IP properties have been updated, access the station by logging

into the web interface using a standard web browser:

Open a web browser

In the browser’s address bar, type IP address as listed in the Station Info

screen. The station login page will be displayed.

3Log into the station by clicking Login. Default username/password:

admin/alphaadmin.

The Station Information page will now be displayed, showing the IP

station conﬁguration.

Station Main Settings

Click Station Main > Main Settings to access the page for conﬁguring

station mode and IP parameters.

2Under Mode, select ICX-AlphaCom.

Registration Settings.Enter the IP address of the ICX-AlphaCom

server in which the IP station is to be a subscriber in the ICX-AlphaCom

IP-addresses ﬁeld. Then enter the directory of the station in the

Directory Number ﬁeld.

If a directory number is not entered, the station will register with its MAC

address. The MAC address is found on the Station Information page

and needs to be entered into the AlphaPro programming tool.

IP Settings:

• DHCP - Use this option if the station shall obtain an IP address from

a DHCP server.

• Static IP - Use this option if the IP station shall use a static IP

address. Enter values for IP-address, Subnet-mask, Gateway.

Click Save followed by Apply to apply the new conﬁguration settings.

The WEEE Directive does not legislate that Zenitel, as a ‘producer’, shall collect ‘end of life’ WEEE.

This ‘end of life’ WEEE should be recycled appropriately by the owner who should use proper

treatment and recycling measures. It should not be disposed to landﬁll.

Many electrical items that we throw away can be repaired or recycled. Recycling items helps to

save our natural ﬁnite resources and also reduces the environmental and health risks associated

with sending electrical goods to landﬁll.

Under the WEEE Regulations, all new electrical goods should now be marked with the crossed-

out wheeled bin symbol shown.

Goods are marked with this symbol to show that they were produced after 13th August 2005, and

should be disposed of separately from normal household waste so that they can be recycled.

Go to https://wiki.zenitel.com/wiki/IP_Desk_Master_-V2-P, or scan the

QR-code below for more instructions on how to set up and conﬁgure the

IPDM-V2_P.

Go to https://wiki.zenitel.com/wiki/IP_Desk_Master_-V2-P_w/handset,

or scan the QR-code below for more instructions on how to set up and

conﬁgure the IP Desk Master with Handset V2_P.
