INSTRUCTIONS

MODELS 101482 (2.6m) & 101483 (2.9m)

Telescopic

Loftmaster

Safety

Please ensure you read the Safety section in

this manual before installing or using the

equipment. Your safety and that of others is

paramount to ZARGES.

101483

(

2.9

Safety section in

g or using the

that of others is

Index

Introduction 2

Safety 2

Important Safety Information 3

Main Features 4

Loftmaster Components 5

1: Install the Loftmaster 6

2: Close & Stow the Loftmaster 13

3: Open the Loftmaster 14

Speciﬁcations 15

Warranty 15

Introduction

Thank you for purchasing Telescopic

Loftmaster. Manufactured in aluminium with

an anodised ﬁnish.

It is built to withstand the toughest handling

and working conditions and is suitable for

home and commercial use. Spare parts are

readily available.

You may already be familiar with using

similar equipment but the Telescopic

Loftmaster is unique and we recommend

you take time and read these instructions.

They contain full installation details and

describe how to deploy the ladder and how

to store it after use to ensure you get the

very best performance from your purchase.

Keep these instructions in a safe place for

future reference.

Safety

Please ensure you read the Safety section in

this manual starting on page 3 before

installing or using the equipment. Your safety

and that of others is important.

For more information visit: zarges.com/uk2

Important Safety Information

Warning

For your safety, please read all the safety

instructions in this Manual before using the

ZARGES Telescopic Loftmaster.

Safety and quality is of paramount

importance when manufacturing your

Telescopic Loftmaster products.

All components meet the requirements of

the Work at Height Regulations of 2005.

Important!

Read these instructions before installing the

ZARGES Telescopic Loftmaster.

Install the Telescopic Loftmaster according the

instructions given in this Manual and on the

labels afﬁxed to the equipment.

Safety Considerations

General

• Do not install or use the ZARGES

Telescopic Loftmaster if damaged in

any way.

• Never exceed the maximum load of

150 kg.

• Never operate any of the red buttons

while on the ladder or allow anyone

else to operate the buttons while it is in

use.

Cleaning

• Do not use any abrasive or chemical

solvents.

• Periodically clean with a soft damp

cloth. We recommend occasionally

spraying with a silicon spray.

How to Dispose of this Product

When the unit has reached the end of its life,

contact your local council regarding

available recycling or disposal options.

Servicing and spare parts

A full set of spares are available. Please visit

our website at www.zarges.com/uk for

further details for servicing and spare parts.

For more information visit: zarges.com/uk 3

Main Features

The main features of the ZARGES Telescopic

Loftmaster:

• There are two models each adjustable

to three lengths for optimum usability.

See the table (right) for details.

• Manufactured in anodised aluminium

with steel ﬁxing brackets and ﬁtments.

• Fitted with rubber feet for safety and

protection of the ﬂoor.

• Closes down to a compact size and ﬁts

into the smallest of spaces.

See table (right).

• The loft hatch must be converted so

that the door opens downwards.

• Permanently ﬁtted in the loft.

• Allows loft hatch to close when stowed

a way.

• Very easy to operate and use.

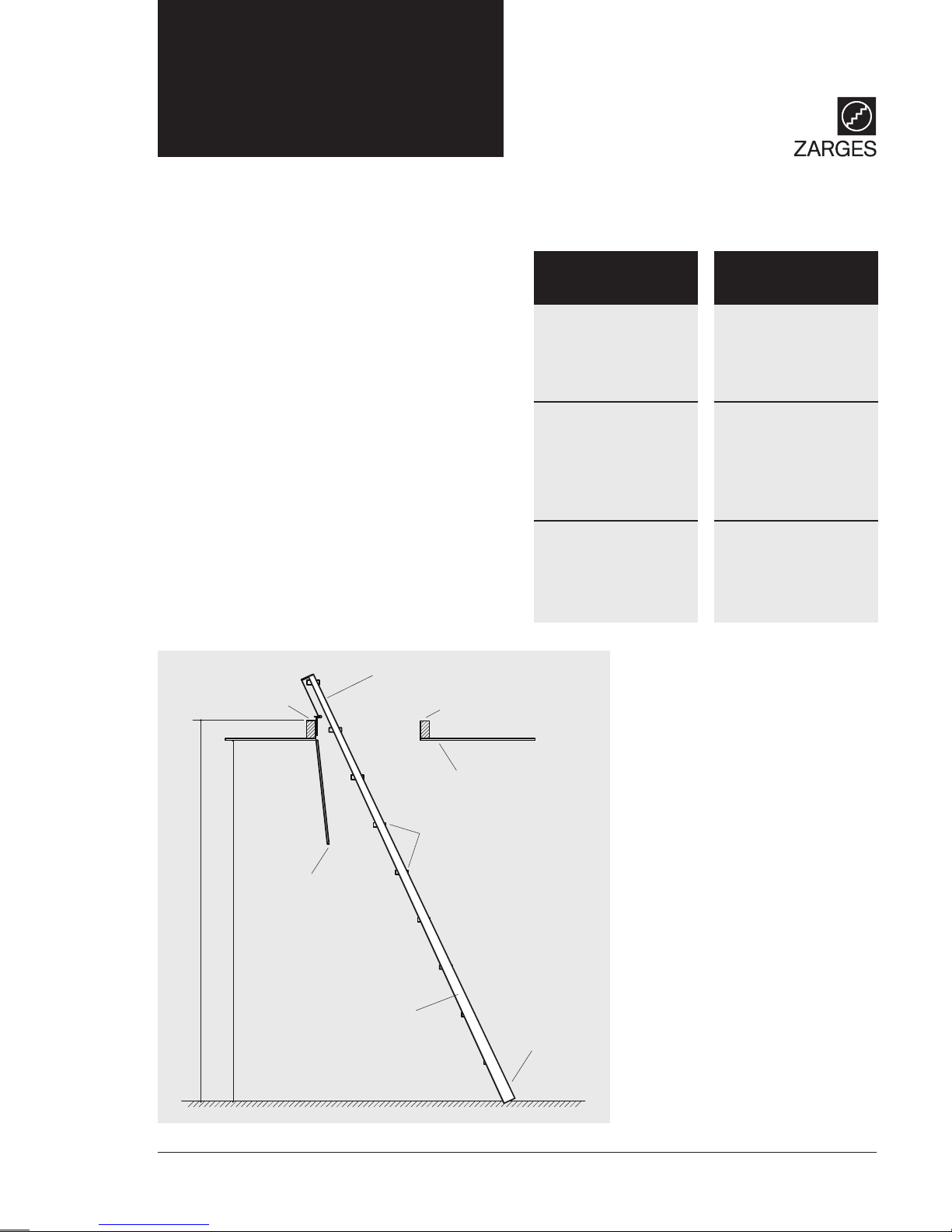

For more information visit: zarges.com/uk4

Loft door

Floor to ﬂoor measurement

Top adjustable tube

Loft joist

Floor in room

Stile tubes of ladder

Ceiling

In room Ceiling

In room

Loft joist

Floor to ceiling measurement

Rungs

Loft ladder

Loftmaster Details

Floor to Floor

Height:

217 - 261cm

Minimum Hatch

Size:

(W x L)

510 x 600cm

Overhang:

(Distance Behind the Joist)

235mm

101482

Floor to Floor

Height:

243 - 288 cm

Minimum Hatch

Size:

(W x L)

510 x 600cm

Overhang:

(Distance Behind the Joist)

235mm

101483

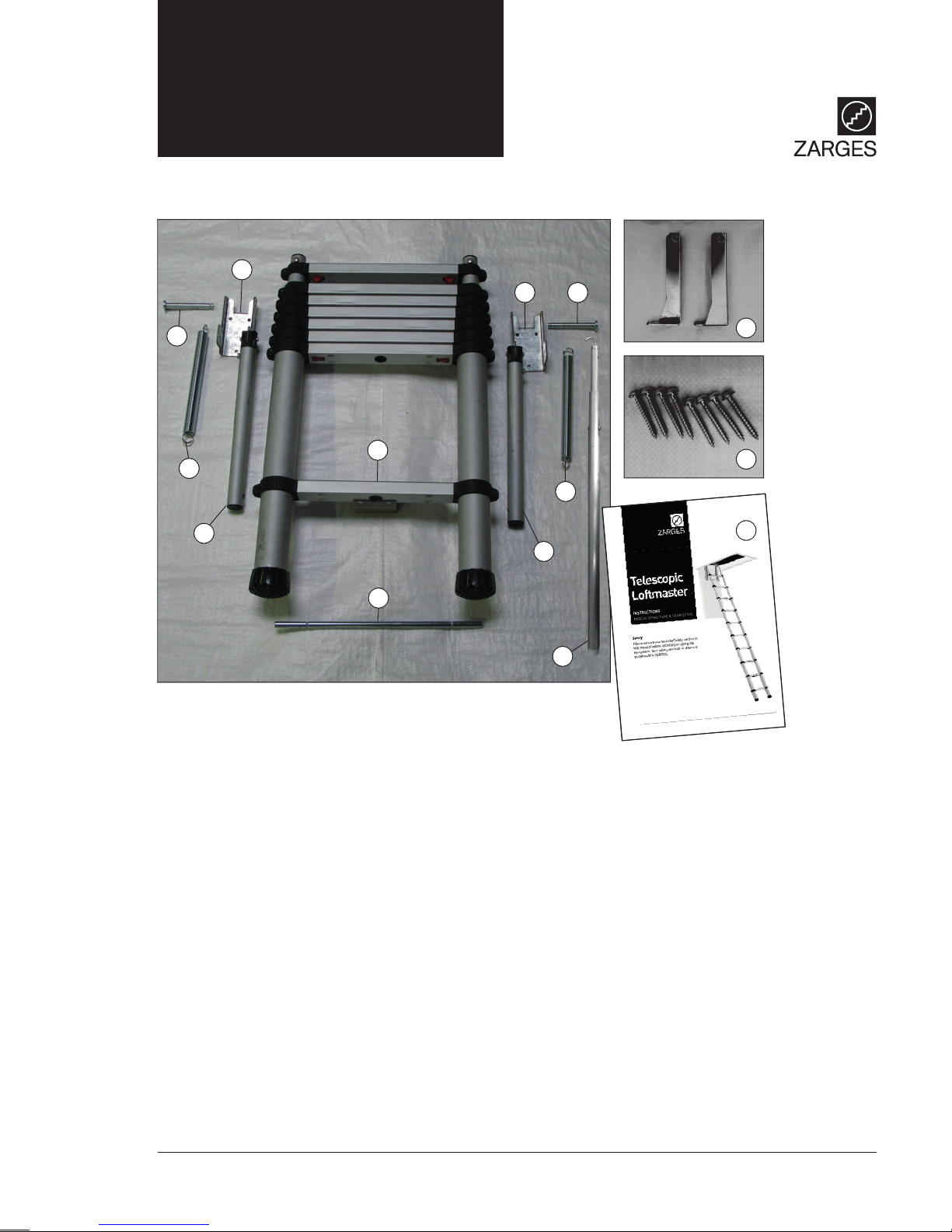

Loftmaster components

Parts Components

1 Ladder

2 Mounting brackets (x2)

3 Swivel arms (x2)

4 Hinge swivel pins (x2)

5 Ladder sub-frame carrier bar (x1)

6 Ladder sub-frame carrier tubes (x2)

7 Springs (x2)

8 Telescopic pole with hook (x1)

9 Bracket ﬁxing screws (x8)

10 Instructions

For more information visit: zarges.com/uk 5

1: Install the Loftmaster

Installation Consideration

The following points should be considered

before installing the Loftmaster.

Loft Hatch

The loft hatch must be downward opening. It

may be necessary to reﬁt your loft hatch

door so that it opens downwards so that the

hatch when open hangs down behind the

ladder when it is deployed.

Loft Opening

It is recommended that the Loftmaster is

installed so that it is orientated parallel to

the longer side of the opening. This will give

the user more comfortable access to the loft

and will be easier for the user to take items

into the loft.

Secure Fixing

The two ﬁxing brackets supplied must be

attached to a secure part of the loft

structure such as a ceiling joist or sound

timber bridging and securely fastened to the

joists.

Footprint

When the ladder is opened there should be

enough space available at the base of the

ladder for a person to easily and safely get

onto and climb the ladder.

Tools

You will need the following tools and

materials: Pencil, set-square and

measuring tape (mm) for marking out.

A drill and a 4mm drill bit for drilling the

bracket ﬁxing holes and a Posidrive

screwdriver for tightening the eight bracket

ﬁxing screws.

Strong string to extend the springs during

installation.

For more information visit: zarges.com/uk6

Ceiling

joist

Loft aperture

600 x 510 mm

minimum

Left

mounting

bracket

Right

mounting

bracket

Loft door

opening down

1: Install the Loftmaster

Installation

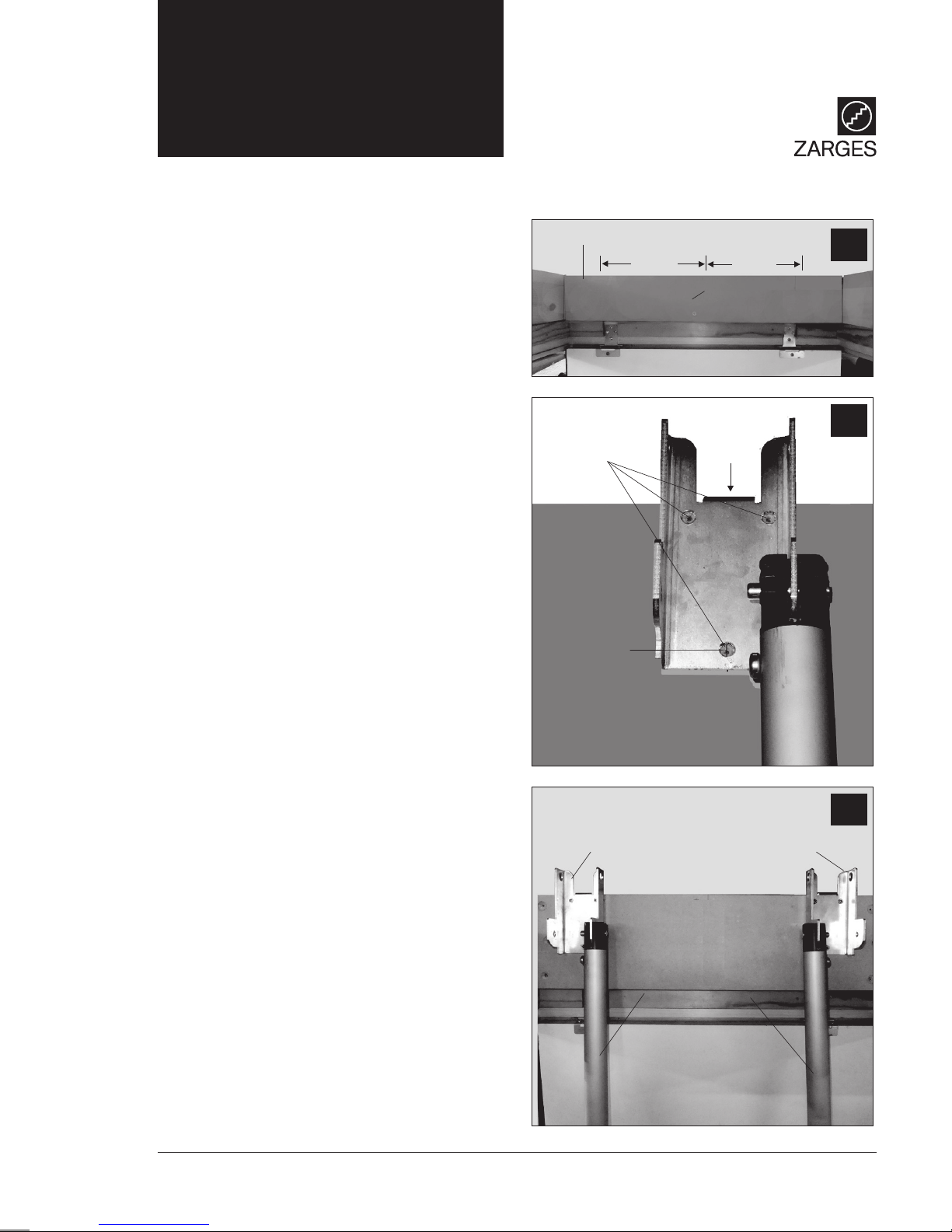

Marking Out

1.1 Measure and draw the ‘centre line’

on the ceiling joist midway across the

width of the loft opening where the

mounting brackets will be ﬁtted, Fig 1.1.

Measure 188 mm either side of this line

and draw a vertical line at these points

greater than 90 mm long to mark the

mounting bracket centre lines.

1.2 Refer to Fig 1.2 and Fig 1.3. The

brackets are supplied with their ladder

sub-frame carrier tubes ﬁtted. Note that

these brackets are ‘handed’, left bracket

and right bracket.

Take the ﬁrst bracket and place it on the

mounting board so that it is placed over

the bracket centre line and slide it until

the lower screw hole is centred on this

line. Mark the centre point of this hole.

Fixing the Brackets

1.3 Remove the bracket and drill a 4mm

diameter hole at the position just

marked.

Fix the bracket using one of the ﬁxing

screws supplied. Similarly drill the other

three holes (one on top) and screw in

the other screws. Repeat for the other

bracket, see Fig 1.3.

For more information visit: zarges.com/uk 7

1.1

1.3

Ceiling Joist

Left Mounting

Bracket

Left Mounting

Bracket

Ceiling Joist

Sub-Frame

Carrier Tubes

188mm

Centre Line

............

188mm

1.2

Mounting Bracket

Fixing Positions

Ceiling Joist

Left Mounting

Bracket

1: Install the Loftmaster

Installation Consideration

1.4. Place the Right Swivel arm in

position on the Right Mounting bracket

and align their holes, Fig 1.4.

1.5. From the outer edge, guide the

Hinged swivel pin through the arm and

bracket holes and push in completely,

Fig 1.5.

Repeat this procedure with the Left

Swivel arm and the Left mounting

bracket using the other Hinged

swivel pin.

1.6. The installation will now be at the

stage shown in Fig 1.6.

Attaching the Springs

1.7. Slide the Ladder sub-frame carrier

bar into the hole in one of the

sub-frame carrier tubes, see Fig 1.7.

Now slide the two spring eyelets onto

the bar.

1.8. Slide the other end of the carrier

bar into the corresponding hole on the

other sub-carrier tube, Fig 1.8.

There is groove near each end of the

bar for the purpose of holding the

spring in place when installed, see

Fig 1.8 (inset). Locate each spring in

these grooves.

For more information visit: zarges.com/uk8

1.5

1.6

1.7

1.8

1.4

Sub-Frame Carrier Tube

Sub-Frame Carrier Bar

1: Install the Loftmaster

Extending the Springs

The next step is to anchor the free end

of the spring to its anchor point on the

hinged swivel pin.

Lay the swivel arms back so they are

horizontal. Hook a loop of strong string

to the end of the spring.

1.9. Lift the sub-frame carrier tube

above the horizontal and pull the string

to extend the spring so that it reaches

and clips on to the hinged swivel pin,

see Fig 1.9 and inset for close-up of

spring on the pin. Remove the string.

1.10. Now slide the spring eyelet along

the pin so that it locates in the groove

on the pin, see Fig 1.10. Repeat for the other

spring.

1.11. The installation will now be at the

stage shown in Figure 1.11.

For more information visit: zarges.com/uk 9

1.9

1.11

1.10

1: Install the Loftmaster

Important!

Be very careful when carrying out the next

stage as there is no ladder to stop the

sub-frame from swinging forward with

considerable force if it is moved inadvertently.

1.12. Pull down on the sub-frame

carrier bar until it touches against its

stop.

1.13. The tensioned springs will hold it

in this position, see Fig 1.13.

Adjusting the Ladder Length

1.14. The ladder length can be extended by

15cm or 30cm from its minimum length to

best suit your ﬂoor-to-ﬂoor height.

The adjustment tube is shown in Fig 1.14:

a. Minimum length - no extension

b. Extended by 15cm

c. Extended by 30cm

Remove the two bolts from the endcaps

and have them ready to ﬁx the swivel

arms to the ladder at step 1.21.

For more information visit: zarges.com/uk10

1.12

1.13

1.14

Endcap

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels zarges Échelle

zarges

zarges Alto L Guide de configuration rapide

zarges

zarges Skymaste Industrial Z600 Manuel de l'opérateur

zarges

zarges Skymaste Industrial Z600 Manuel de l'opérateur

zarges

zarges ZAP Safemaster S Manuel de l'opérateur

zarges

zarges 41981 Manuel de l'opérateur

zarges

zarges 41286 Manuel du produit

zarges

zarges Compactstep L Manuel de l'opérateur

zarges

zarges ZAP Teleneo S Manuel de l'opérateur

zarges

zarges REACHMASTER Manuel de la liste des pièces

zarges

zarges ZAP Z600 Manuel de l'opérateur

zarges

zarges Skymaste Industrial Z600 Manuel utilisateur

zarges

zarges Skymaste Industrial Z600 Manuel de l'opérateur

zarges

zarges Scana S Guide de configuration rapide

zarges

zarges Z200 Guide de configuration rapide

zarges

zarges Skymaster Manuel utilisateur

zarges

zarges 40060041 Guide produit

zarges

zarges 41286 Manuel de l'opérateur

zarges

zarges ZAP Safemaster S Guide de configuration rapide

Manuels Échelle populaires d'autres marques

ADVANCED SIMRACING

ADVANCED SIMRACING ASR6 Manuel utilisateur

Batavia

Batavia GIRAFFE AIR Manuel utilisateur

Millennium

Millennium L-220-SL Manuel utilisateur

Louisville

Louisville AA2210 Manuel utilisateur

wibe

wibe TMR Guide de l'utilisateur

BESSLER

BESSLER 20 Manuel utilisateur

Branach

Branach TerrainMaster Manuel utilisateur

TUBESCA-COMABI

TUBESCA-COMABI 02271 105 à 115 Manuel utilisateur

KTL

KTL 24392909 Manuel

Penguin

Penguin ICE LADDER Manuel utilisateur

KRAUSE

KRAUSE 1103 Series Manuel utilisateur

Tractel

Tractel skysafe Instructions d'utilisation

AFIX

AFIX FAST FIX Manuel utilisateur

Wenger

Wenger Fixed Height Stairway 2-Step Manuel utilisateur

KRAUSE

KRAUSE 1212 Manuel utilisateur

fakro

fakro LWS-P 22/47 Manuel utilisateur

FACAL

FACAL Euro Stilo Manuel

SHEDorize

SHEDorize Stepladder/Rake/Cord Rack Manuel utilisateur

zarges 101482 Manuel utilisateur

Manuels Échelle populaires d'autres marques
