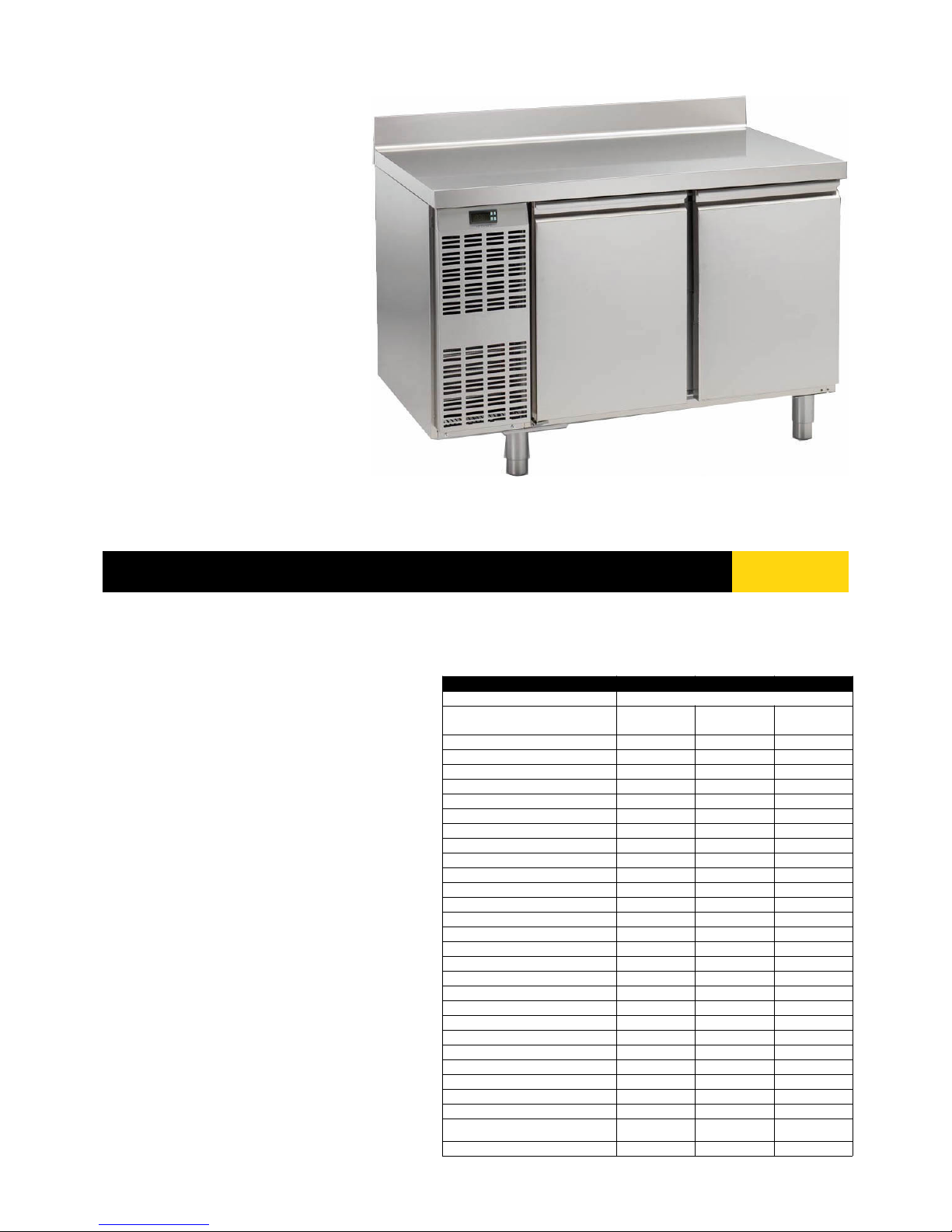

REFRIGERATED TABLES WITH UPSTAND-2 COMP.

CONCEPT SERIES

728509

1/1 GN GREY "RILSAN" GRID 2 1

INCLUDED ACCESSORIES

Power supply - V, phases, Hz 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50

Net weight - kg. 120 124 128

installed-electric 0.34 0.34 0.34

Power - kW

at evaporation temperature - °C -23 -23 -23

Refrigerant power

Refrigeration power - W 343 343 343

Refrigerant quantity - g. 130 130 130

Refrigerant type R404a R404a R404a

N° defrost in 24 hrs. 4/20 4/20 4/20

Compressor power - HP 1/4 1/4 1/4

Door hinges 1 Left+1 Right Left

N° of drawers 2x1/2 4x1/2

Min/Max internal humidity - % 55 55 55

Upstand l l l

height 543 543 543

depth 580 580 580

Internal dimensions - mm

height 950 950 950

depth/with open doors 700, 1102 700, 1102 700, 1102

width 1238 1238 1238

External dimensions - mm

Cooling unit Built-In Built-In Built-In

Gross capacity (D.I.N. 8952) - l. 265 265 265

Operating mode Ventilated Ventilated Ventilated

Operating temperature - min/max °C -2/10 -2/10 -2/10

HB2PU

728509

HB1P2C12U

728530

HB4CU

728531

CHARACTERISTICS MODELS

TECHNICAL DATA

RANGE

COMPOSITION

Zanussi Professional has designed

and produced a complete range of

refrigerated tables, that combines

the dual function of worktop and

refrigerated table. This versatility

allows notable savings in space

whilst offering functional and

modular solutions to kitchen

requirements.

FUNCTIONAL AND

CONSTRUCTION

FEATURES

� Built-in refrigeration unit.

� Height-adjustable feet.

� Internal and external doors, front

and side panels and worktop in 304

AISI stainless steel.

� Rounded internal corners for

easier cleaning.

� Refrigerated compartment

designed to accommodate GN 1/1

containers.

� Digital control panel.

� Suitable to operate in ambient

temperatures up to +43°C.

Temperature range: -2/+10 °C.

� Forced air circulation for rapid

cooling and an even temperature

distribution.

� Automatic evaporation of defrost

water.

� Drain outlet.

� Access to all components from the

front.

� In compliance with H

requirements.

� C.F.C. and H.C.F.C. free.

REFRIGERATED TABLES WITH UPSTAND-2 COMP.

CONCEPT SERIES

DBAD80 2010-05-28 The Company reserves the right to alter technical specifications without prior notice.

www.zanussiprofessional.com

ZANUSSI

P R O F E S S I O N A L

STRUCTURE TO SUPPORT 3 GRIDS(RIGHT+LEFT) 880047 880047 880047

S/S STRUCTURE TO SUPPORT 6 GRIDS (R+L) 880140 880140 880140

PRINTER FOR HACCP BASIC VERSION REFRIG. 881457 881457 881457

LOCK KIT FOR REFRIGERATED TABLES 880130 880130 880130

KIT INTEGRATED HACCP-DIG. REFR. (IR33) 880205 880205 880205

KIT HACCP EKIS 922166 922166 922166

KIT DOOR REVERSIBILITY FOR REF.TABLES 880046 880046 880046

KIT 4 WHEELS (2 W/BRAKE)+4 (40MM)SPACERS 880025 880025 880025

KIT 2 S/S GRIDS GN1/1 FOR REFRIG.TABLES 880139 880139 880139

DRAWER KIT-1/3+2/3 (BOTTLES)-REF.TABLES 880126 880126 880126

3x1/3 DRAWER KIT FOR REFRIGERATED TABLES 880115 880115 880115

2x½ DRAWER KIT FOR REFRIGERATED TABLES 880118 880118 880118

HB2PU

728509

HB1P2C12U

728530

HB4CU

728531

ACCESSORIES MODELS

OPTIONAL ACCESSORIES

� High-density expanded

polyurethane foam, 50 mm in

thickness, with cyclopenthane

injection.

� Developed and produced in ISO

9001 and ISO 14001 certified factory.

REFRIGERATED TABLES WITH UPSTAND-2 COMP.

CONCEPT SERIES

DBAD80 2010-05-28 The Company reserves the right to alter technical specifications without prior notice.

www.zanussiprofessional.com

ZANUSSI

P R O F E S S I O N A L

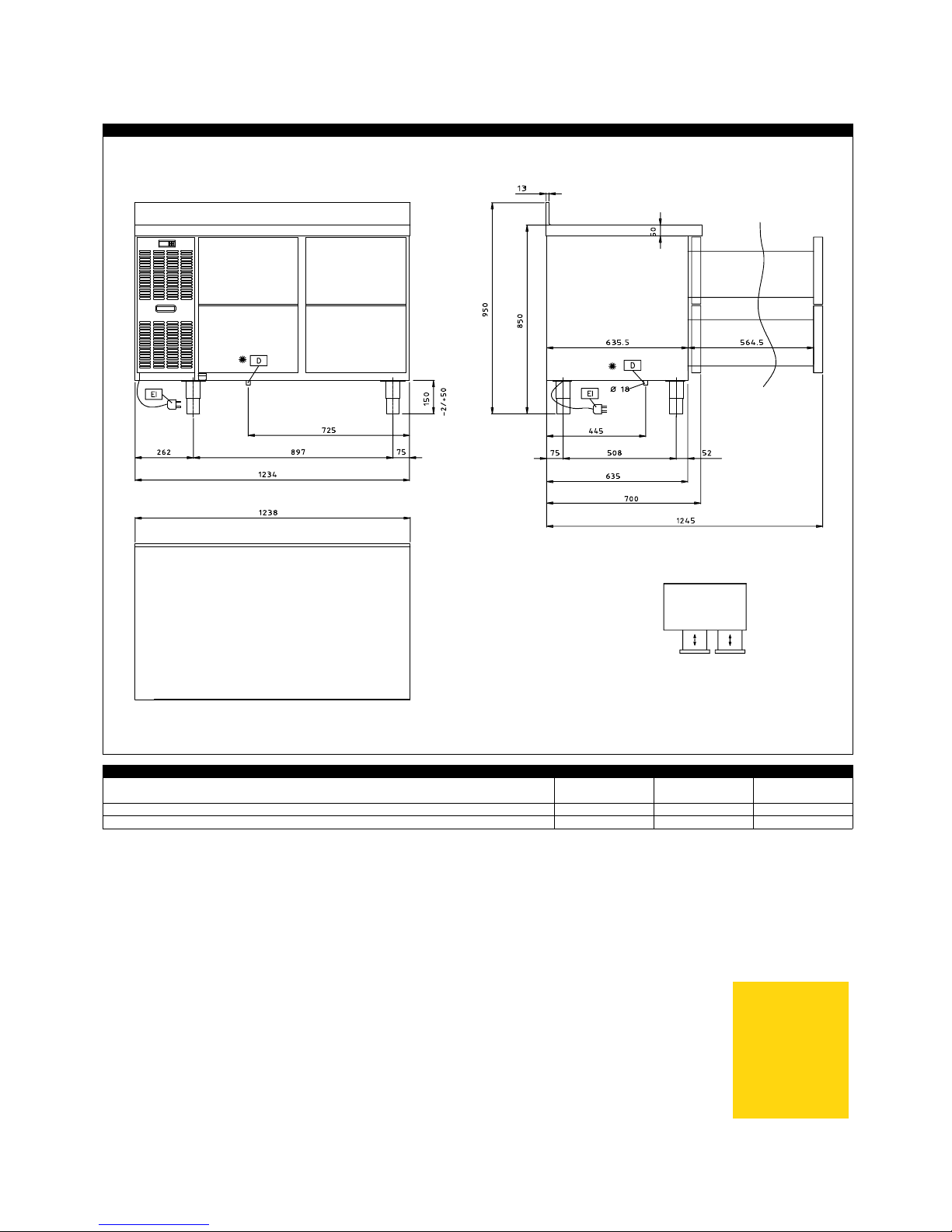

EI - Electrical connection 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50

D - Water drain 18mm 18mm 18mm

HB2PU

728509

HB1P2C12U

728530

HB4CU

728531

LEGEND

728509, 728531, 728530
