ZPO1BPC Pizza Oven Manual &

Safety Instructions

WARNING: PLEASE ENSURE YOU HAVE READ THROUGH THE

SAFETY AND OPERATING INSTRUCTIONS BEFORE USE.

PLEASE RETAIN INSTRUCTIONS FOR FUTURE REFERENCE

For Customer Services & Spare Parts pleasecall 03301230597

Or visit us at zanussiheatingandcooling.uk

Please scan the QR code for step by step video

assembly instructions. Alternatively, you can visit:

zanussiheatingandcooling.uk. From here, please select

the product that you are looking to build and view the

‘How To’ video located at the bottom of the page.

Safety Instructions

3-5

Parts List & Feature Diagram

Pizza

Oven Assembly 7-17

Lighting

And Extinguishing Your Pizza Oven 18-20

Cooking With

Your Pizza Oven 21-22

Cleaning Instructions

Troubleshooting

24-25

Guarantee and Customer Services

ZPO1BPC

ZPO1BPC Pizza Oven

SAFETY INSTRUCTIONS

WARNING: IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Before you start to build and use your pizza oven, please read these

instructions thoroughly:

•Please dispose of all plastic bags carefully and keep them away from

children.

•Check all the parts provided against the list in this instruction manual to

make sure you have all of the parts listed. If not, contact your local store

who will be able to help you.

•Take a few moments to familiarize yourself with the contents and before

starting, check all holes are clear of any paint residue.

•When you are ready to start, make sure that you have plenty of space and

a clean dry area for assembly.

•Important - Whilst every care is taken in the manufacture of this product,

care must be taken during assembly in case sharp edges are present.

Please read and follow this advice when cooking on your grill:

•ALWAYS wash your hands before or after handling uncooked meat and

before eating.

•ALWAYS keep raw meat away from cooked meat and other foods.

•Before lighting your oven, ensure pizza oven grill surfaces and tools are

clean and free of old food residues.

•DO NOT use the same utensils to handle cooked and uncooked foods.

•Ensure all meat is cooked thoroughly before eating.

•CAUTION - eating raw or under cooked meat can cause food poisoning

(e.g. bacteria strains such as E.coli).

•To reduce the risk of under cooked meat, cut it open to ensure it is

cooked all the way through internally before consuming.

•CAUTION - if meat has been cooked sufficiently the meat juices should

be clear in colour and there should be no traces of pink/red juices or meat

colouring.

ZPO1BPC

•Pre-cooking of larger meat of joints is recommended before finally

cooking in your pizza oven.

•After cooking with your pizza oven always clean the grill cooking surfaces

and utensils.

Safety Warnings:

•WARNING –Pellet pizza oven give off CARBON MONOXIDE when used,

which is poisonous and can kill. DO NOT use a pizza oven indoors or

either in a tent, caravan or awning.

•WARNING - Do not use indoors! OUTDOOR USE ONLY. Do not use the

pizza oven in a confined and/or habitable space e.g. houses, tents,

caravans, motor homes, boats. Danger of carbon monoxide poisoning

fatality.

•DO NOT use this product as a furnace.

•Ensure that the product is positioned on a permanent, flat, level, heat

resistant, non-flammable surface always from flammable items, including

wooden fences or overhanging trees.

•Ensure the product has a minimum of 2 meters overhead clearance and

has a minimum of 2 m clearance from other surrounding items.

•WARNING! Do not use spirit or petrol for lighting or relighting! Use only

firelighters complying to EN 1860-3!

•DO NOT handle or move the product whilst alight as it will become hot.

•NEVER leave a burning fire unattended.

•Keep children and pets at a safe distance from the product when in use.

•DO NOT cook before the fuel has a coating of ash.

ZPO1BPC

Carbon Monoxide

Poisoning Hazard

Do not use in

Motor Homes

Do Not Use

Indoors

Do Not Use in

Tents

Use in open

Spaces

•The pizza oven shall be heated up and the fuel kept red hot for at least 15

minutes prior to the first cooking on the pizza oven.

•Always use heat resistant gloves when handling the product. Do not

touch any metal parts while the pizza oven is in use; only touch the oven

door, hopper assembly, pizza peel, and fire box assembly using the

handles provided.

•Still be careful when using the handles to operate the oven door, hopper

assembly, pizza peel, and fire box, as metal parts of the pizza oven are

likely to become hot.

•Ensure that the pizza oven has cooled down completely before removing

ash.

•Keep a fine water sprayer at hand to extinguish any small flare-ups;

otherwise, use baking powder or salt to extinguish if the fire increases in

size.

•To extinguish the unit - stop adding fuel and allow the fire in the pizza

oven to die or douse with water.

•To prolong the life of your pizza oven grill do not leave it outside

unprotected, use a suitable pizza oven cover when not in use.

•DO NOT store flammable materials near this product.

•DO NOT use aerosols near this pizza oven.

•DO NOT use coal in this product.

•DO NOT attempt to move the product when it is hot or in using.

•Flames may blow outside of the metal in the ways noted below:

A. at the back, where flames burn;

B. from the top of hopper assembly when the lid is opened;

C. from the front of the pizza oven when the door is opened;

D. from the top of the chimney.

•Modification of the pizza oven may be dangerous, is not permitted, and

will nullify any warranty.

•Failure to follow the instructions in this manual could result in serious

injury or property damage.

ZPO1BPC

You will need:

PART DESCRIPTION QTY PART DESCRIPTION QTY

A Pizza oven body

assembly

1 J Pizza stone 1

B Chimney pipe 1 K Oven door 1

C Hopper shovel 1 L Door handle 1

D Hopper assembly 1 M Chimney lid 1

E Pellet grid 1 N Ash tray support brackets 1

F Fire box assembly handle 1 O Screw (M4x10) 4

G Fire box assembly 1 P Pizza peel 1

H Ash tray 1 Q Storage/Carry Bag 1

I Poker 1

ZPO1BPC

WHAT’S INCLUDED?

Here’s everything you need

PIZZA OVEN ASSEMBLY

STEP 1 –Unfoldingthe legs

•With assistance, place the pizza oven body assembly (A)

upside down on a soft, level surface.

•Then unfold all four legs (which come pre-assembled),

as illustrated in the diagram below.

ZPO1BPC

PIZZA OVEN ASSEMBLY

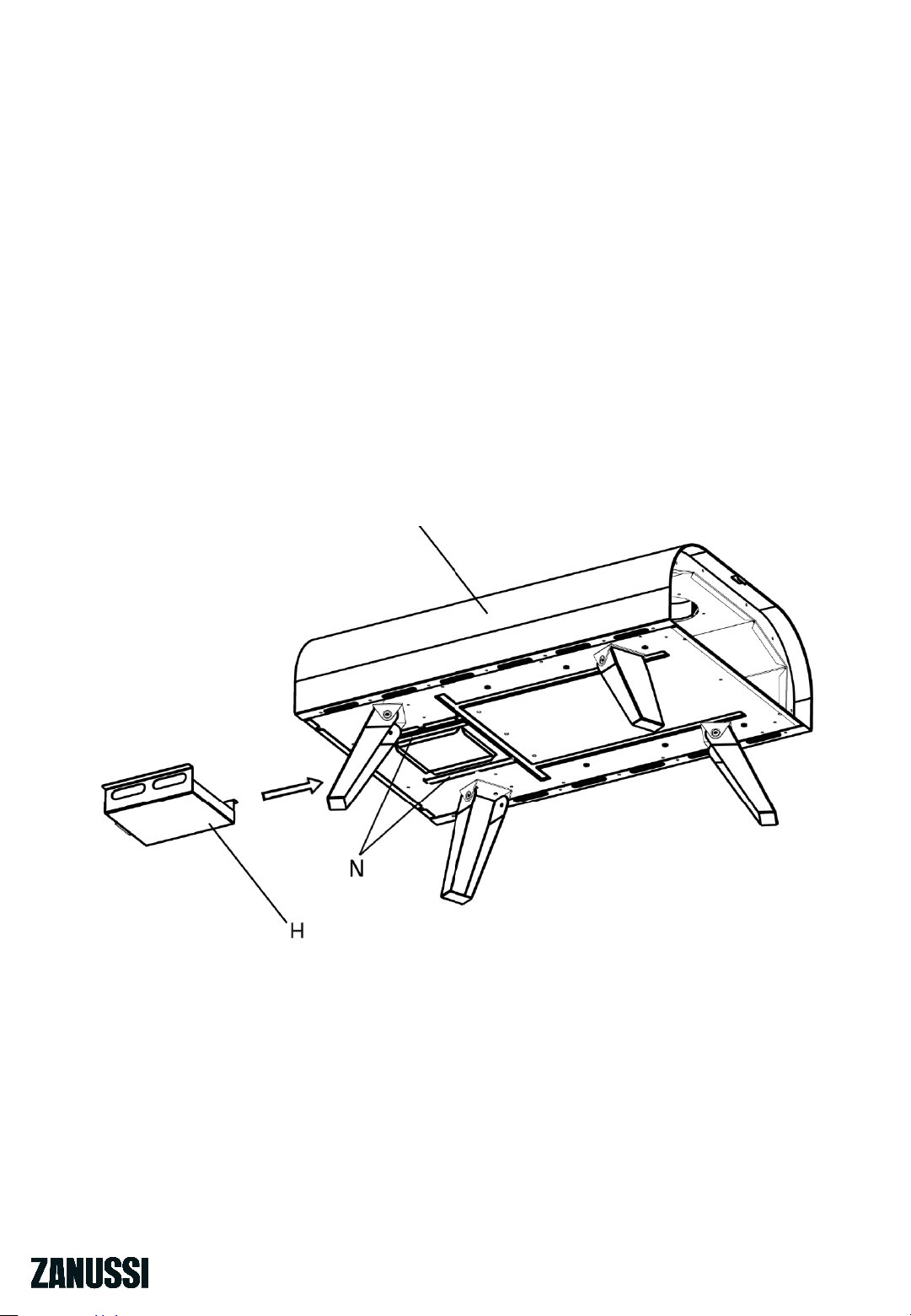

STEP 2 –Attaching the ash tray

•Attach the ash tray (H) to the pizza oven body assembly

(A), by sliding it into the ash tray support brackets (N),

as illustrated in the diagram below.

ZPO1BPC

PIZZA OVEN ASSEMBLY

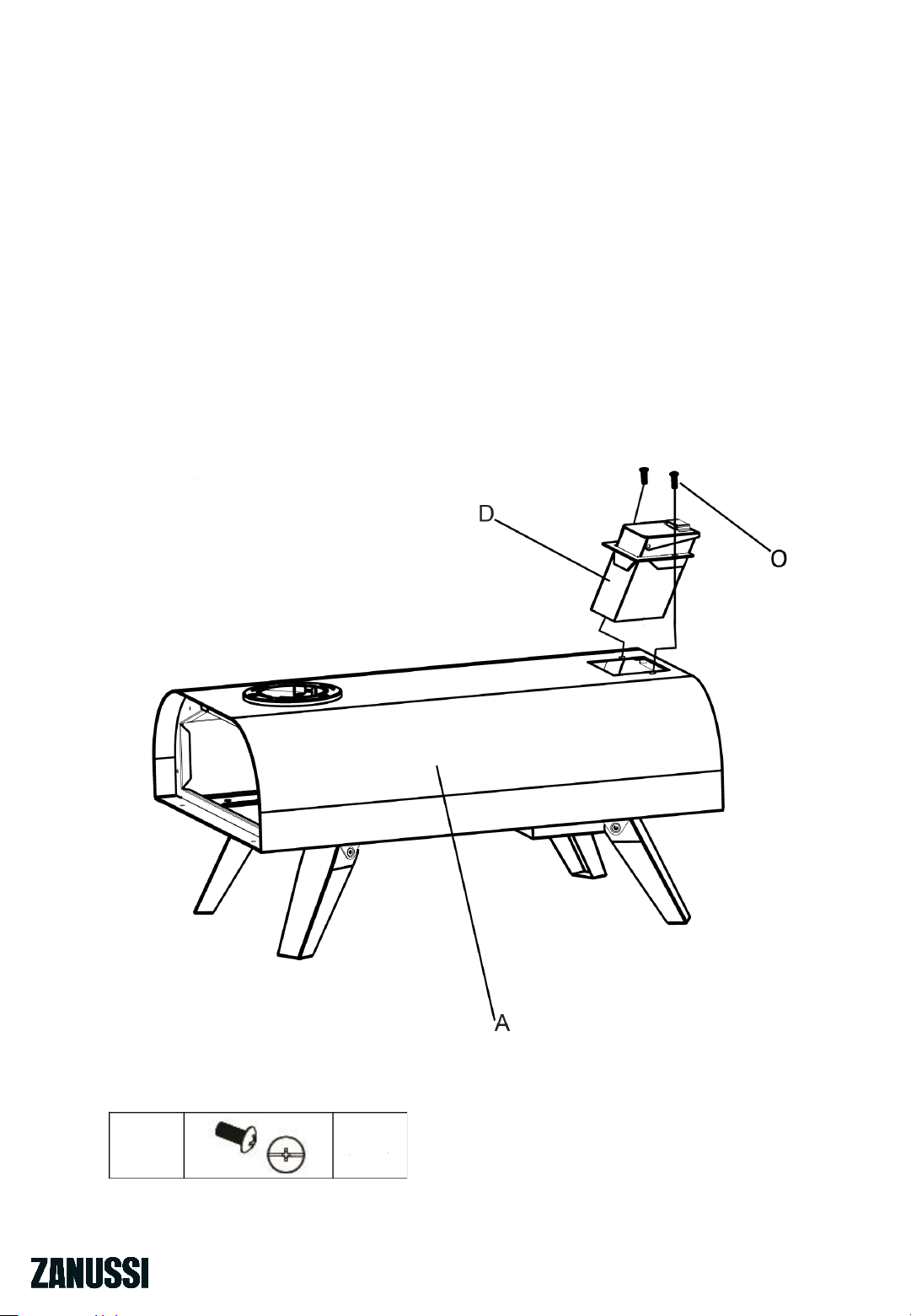

STEP 3 –Installing the hopper assembly

ZPO1BPC

•Flip over the pizza oven body assembly (A), so that the legs

are now placed on a flat level surface.

•Install the hopper assembly (D) to the pizza oven body

assembly (A) with 2 of the screws (O) provided, as illustrated

in the diagram below.

•Tighten the screws with a screwdriver.

OX 2

PIZZA OVEN ASSEMBLY

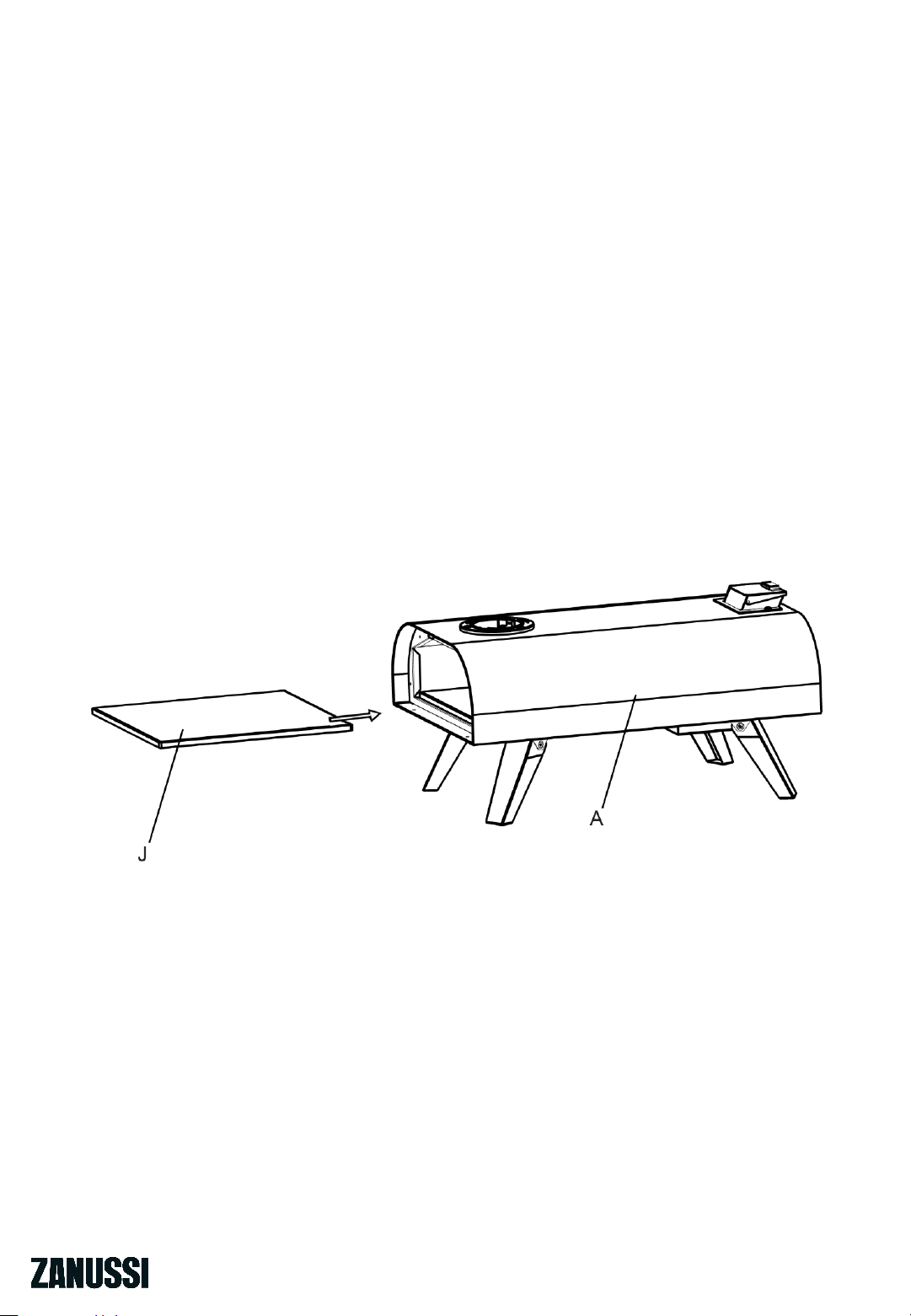

STEP 4 –Inserting the pizza stone

•Slide the pizza stone (J) into the pizza oven assembly

(A) as illustrated in the diagram below.

ZPO1BPC
