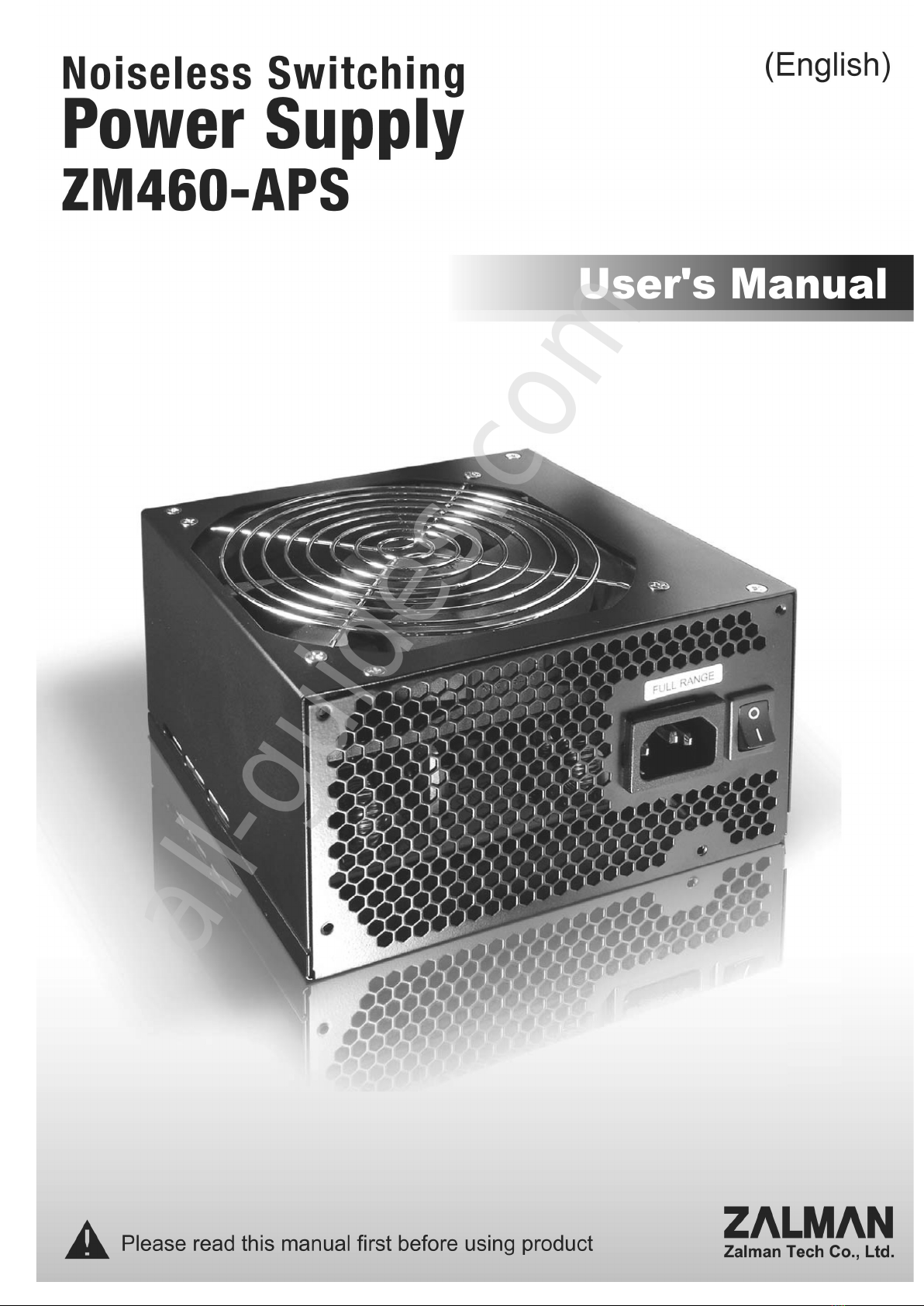

ZALMAN ZM460-APS Manuel utilisateur

All manuals and user guides at all-guides.com

all-guides.com

▣

The following safety precautions and directions for use are meant to prevent accident and injury.

Please read thoroughly before using the product.

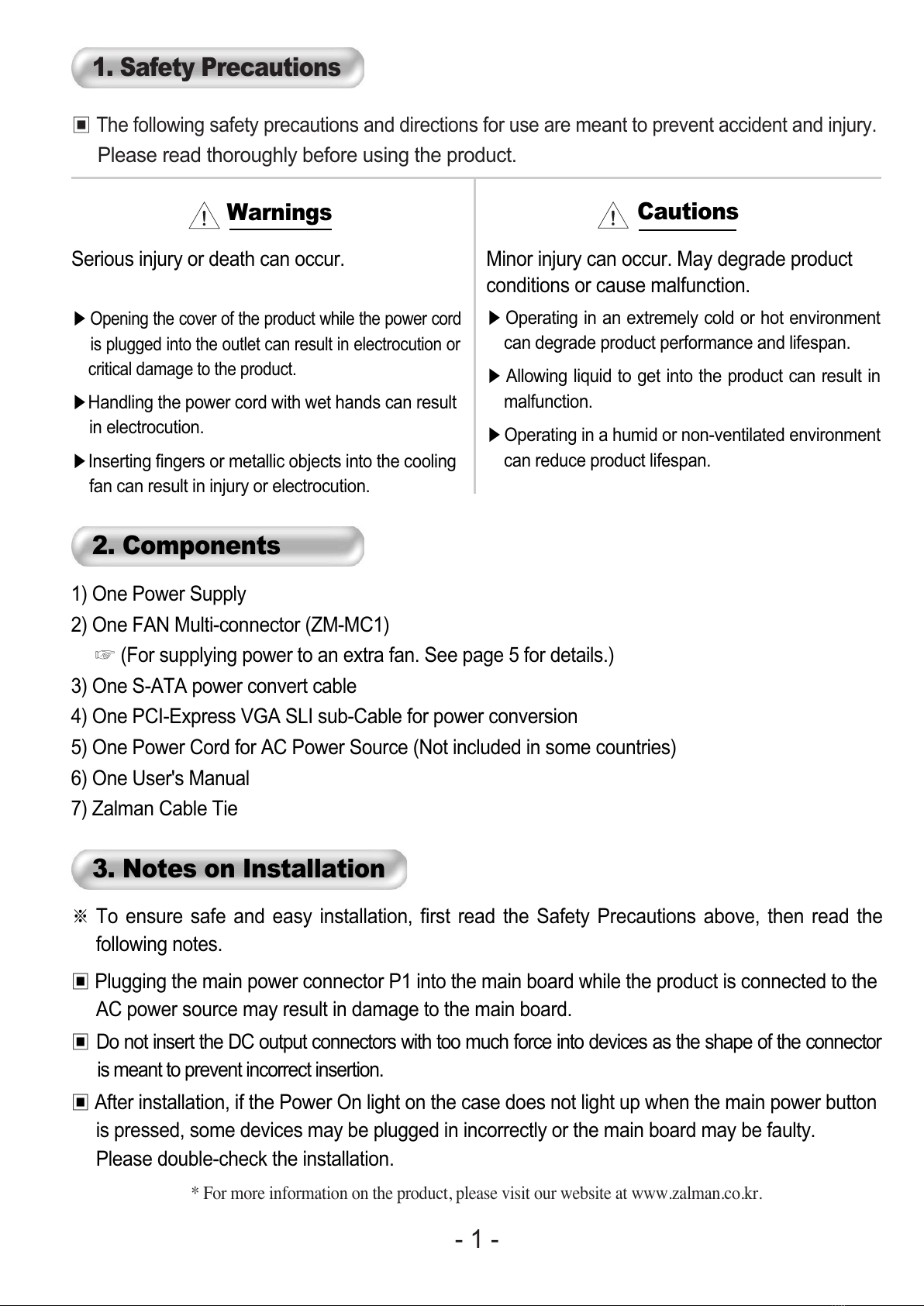

1. Safety Precautions

Warnings

Serious injury or death can occur.

▶

Opening the cover of the product while the power cord

is plugged into the outlet can result in electrocution or

critical damage to the product.

▶Handling the power cord with wet hands can result

in electrocution.

▶Inserting fingers or metallic objects into the cooling

fan can result in injury or electrocution.

Cautions

Minor injury can occur. May degrade product

conditions or cause malfunction.

▶Operating in an e tremely cold or hot environment

can degrade product performance and lifespan.

▶Allowing liquid to get into the product can result in

malfunction.

▶Operating in a humid or non-ventilated environment

can reduce product lifespan.

2. Components

3. Notes on Installation

1) One Power Supply

2) One FAN Multi-connector (ZM-MC1)

󳢹(For supplying power to an e tra fan. See page 5 for details.)

3) One S-ATA power convert cable

4) One PCI-E press VGA SLI sub-Cable for power conversion

5) One Power Cord for AC Power Source (Not included in some countries)

6) One User's Manual

7) Zalman Cable Tie

※To ensure safe and easy installation, first read the Safety Precautions above, then read the

following notes.

▣Plugging the main power connector P1 into the main board while the product is connected to the

AC power source may result in damage to the main board.

▣Do not insert the DC output connectors with too much force into devices as the shape of the connector

is meant to prevent incorrect insertion.

▣After installation, if the Power On light on the case does not light up when the main power button

is pressed, some devices may be plugged in incorrectly or the main board may be faulty.

Please double-check the installation.

* For more information on the product, please visit our website at www.zalman.co.kr.

- 1 -

All manuals and user guides at all-guides.com

- 2 -

* For more information on the product, please visit our website at www.zalman.co.kr.

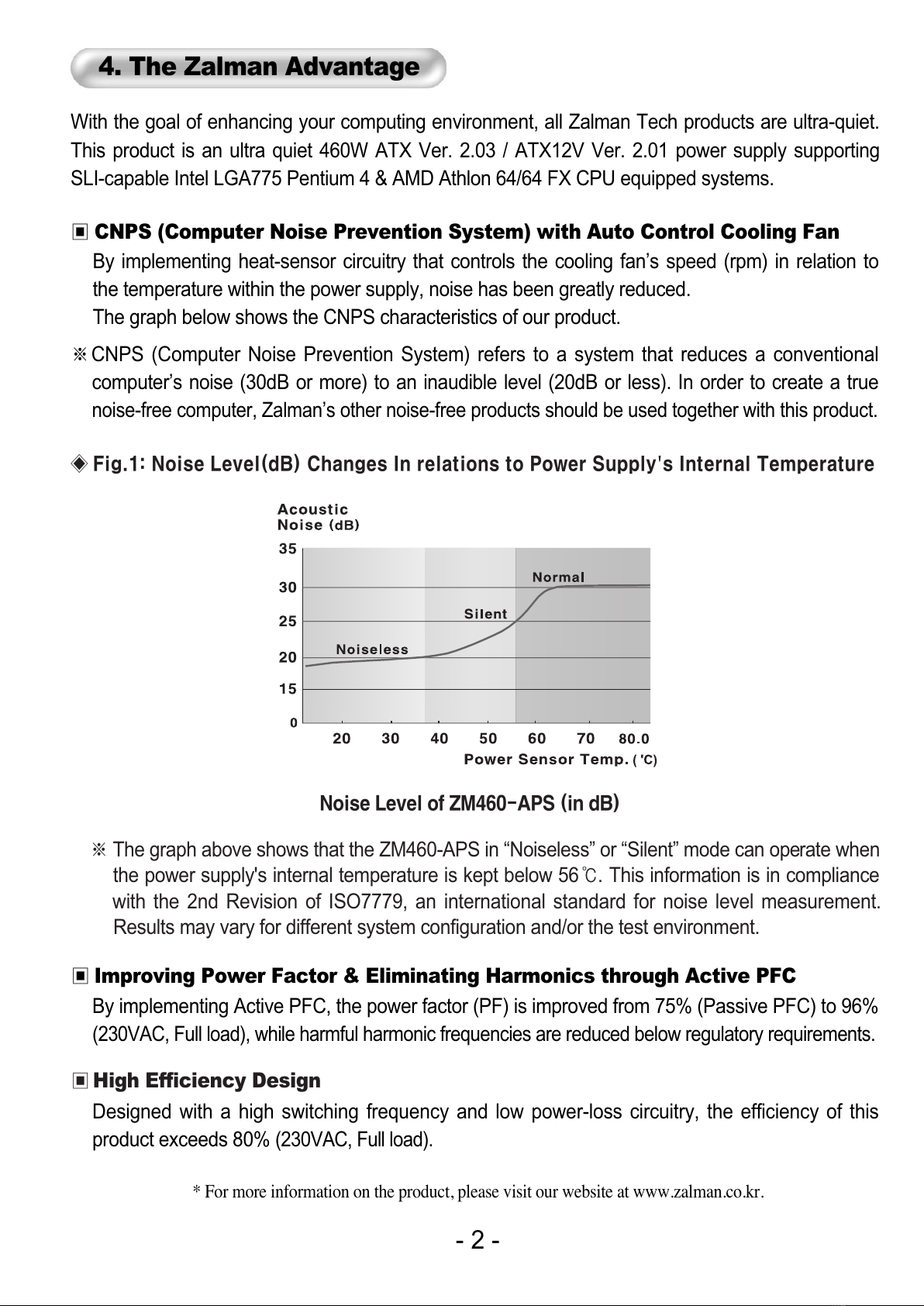

4. The Zalman dvantage

With the goal of enhancing your computing environment, all Zalman Tech products are ultra-quiet.

This product is an ultra quiet 460W ATX Ver. 2.03 / ATX12V Ver. 2.01 power supply supporting

SLI-capable Intel LGA775 Pentium 4 & AMD Athlon 64/64 FX CPU equipped systems.

By implementing heat-sensor circuitry that controls the cooling fan’s speed (rpm) in relation to

the temperature within the power supply, noise has been greatly reduced.

The graph below shows the CNPS characteristics of our product.

※CNPS (Computer Noise Prevention System) refers to a system that reduces a conventional

computer’s noise (30dB or more) to an inaudible level (20dB or less). In order to create a true

noise-free computer, Zalman’s other noise-free products should be used together with this product.

▣CNPS (Computer Noise Prevention System) with uto Control Cooling Fan

By implementing Active PFC, the power factor (PF) is improved from 75% (Passive PFC) to 96%

(230VAC, Full load), while harmful harmonic frequencies are reduced below regulatory requirements.

▣Improving Power Factor & Eliminating Harmonics through ctive PFC

Designed with a high switching frequency and low power-loss circuitry, the efficiency of this

product e ceeds 80%

(230VAC, Full load).

▣

High Efficiency Design

◈

Fig.1: Noise Level(dB) Changes In relations to Power Supply's Internal Temperature

Noise Level of ZM460-APS (in dB)

※

The graph above shows that the ZM460-APS in “Noiseless” or “Silent” mode can operate when

the power supply's internal temperature is kept below 56

℃

. This information is in compliance

with the 2nd Revision of ISO7779, an international standard for noise level measurement.

Results may vary for different system configuration and/or the test environment.

All manuals and user guides at all-guides.com

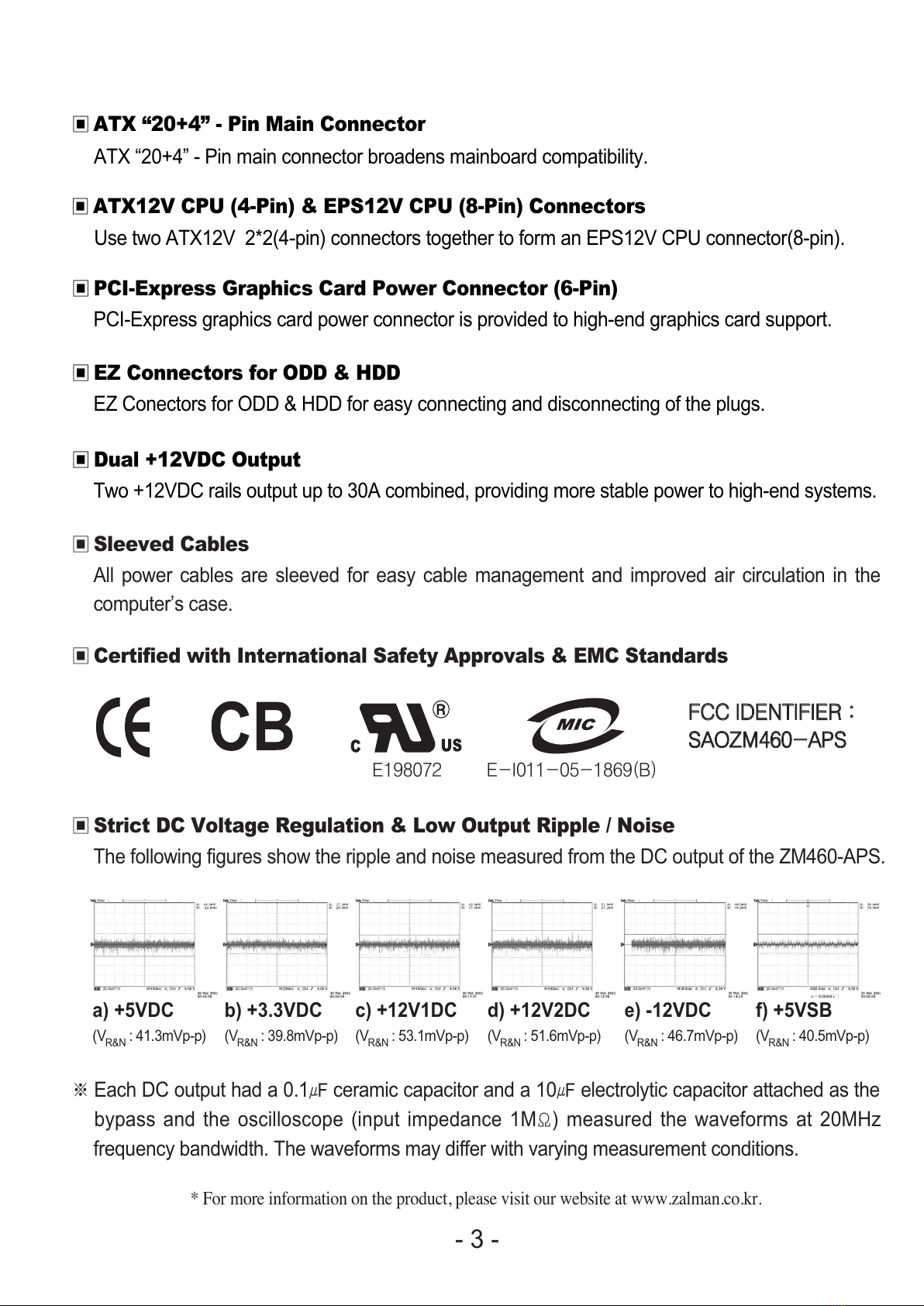

ATX “20+4” - Pin main connector broadens mainboard compatibility.

▣

TX “20+4” - Pin Main Connector

Use two ATX12V 2*2(4-pin) connectors together to form an EPS12V CPU connector(8-pin).

▣

TX12V CPU (4-Pin) & EPS12V CPU (8-Pin) Connectors

PCI-E press graphics card power connector is provided to high-end graphics card support.

▣

PCI-Express Graphics Card Power Connector (6-Pin)

EZ Conectors for ODD & HDD for easy connecting and disconnecting of the plugs.

▣

EZ Connectors for ODD & HDD

Two +12VDC rails output up to 30A combined, providing more stable power to high-end systems.

▣

Dual +12VDC Output

a) +5VDC

(V : 41.3mVp-p)

R&N

b) +3.3VDC

(V : 39.8mVp-p)

R&N

c) +12V1DC

(V : 53.1mVp-p)

R&N

d) +12V2DC

(V : 51.6mVp-p)

R&N

e) -12VDC

(V : 46.7mVp-p)

R&N

f) +5VSB

(V : 40.5mVp-p)

R&N

※Each DC output had a 0.1

μF

ceramic capacitor and a 10

μF

electrolytic capacitor attached as the

bypass and the oscilloscope (input impedance 1M

Ω

) measured the waveforms at 20MHz

frequency bandwidth. The waveforms may differ with varying measurement conditions.

* For more information on the product, please visit our website at www.zalman.co.kr.

- 3 -

All power cables are sleeved for easy cable management and improved air circulation in the

computer’s case.

▣

Sleeved Cables

The following figures show the ripple and noise measured from the DC output of the ZM460-APS.

▣

Strict DC Voltage Regulation & Low Output Ripple / Noise

▣

Certified with International Safety pprovals & EMC Standards

E198072 E-I011-05-1869(B)

FFCCCC IIDDEENNTTIIFFIIEERR ::

SSAAOOZZMM446600--AAPPSS

All manuals and user guides at all-guides.com

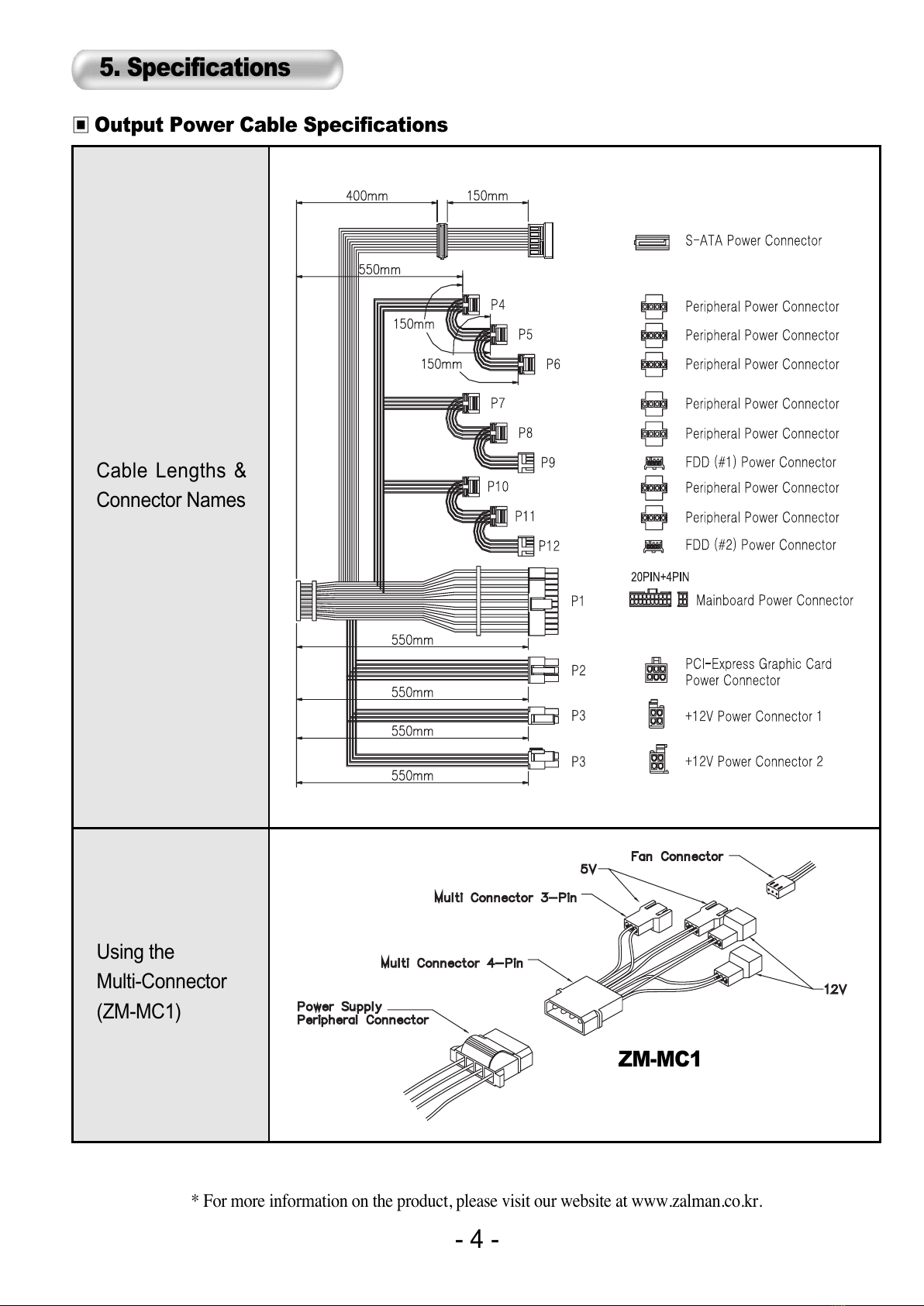

5. Specifications

* For more information on the product, please visit our website at www.zalman.co.kr.

- 4 -

▣

Output Power Cable Specifications

Using the

Multi-Connector

(ZM-MC1)

ZM-MC1

Cable Lengths &

Connector Names

All manuals and user guides at all-guides.com

QQuuiieett CCPPUU CCoooolleerrHHeeaattppiippee HHDDDD CCoooolleerr

UUllttrraa QQuuiieett CCPPUU CCoooolleerrFFaannlleessss NNoorrtthhbbrriiddggee CCoooolleerrNNooiisseelleessss CCaassee FFaann

* For more information on the product, please visit our website at www.zalman.co.kr.

- 5 -

▣

Electrical & Physical Characteristics

AC Input Range

(Rated)

PFC Type

Power Factor

Inrush Current Limit

(@ Cold start at 25℃)

Efficiency

DC output Voltage

Regulations

DC output Voltage

Regulations

Voltage

Freguency

115VAC

230VAC

115VAC

230VAC

Vout

+3.3VDC

+5VDC

+12V 1DC

+12V 2DC

-12VDC

+5VSB

Vout

+3.3VDC

+5VDC

+12V 1DC

+12V 2DC

-12VDC

+5VSB

100VAC ~ 240VAC ±10%

47Hz ~ 63Hz

Active PFC

96% minimum @ 230VAC, Full load

80% minimum @ 230VAC,

Full Load

Regulation Range

Specification

80A

120A

50mV

120mV

50mV

+3.14V ~ +3.45V

+4.75V ~ +5.25V

+11.4V ~ +12.6V

-10.8V ~ -13.2V

+4.75V ~ +5.25V

7.5A

3.5A

±5%

±10%

±5%

DC OUTPUT

at Full

Load

+ 3.3V

+ 5V

+ 12V 1

+ 12V 2

- 12V

+ 5VSB

Ima

28A

30A

16A

18A

0.8A

2.0A

Output Load Rating

Vout

Combined

Power

180W

360W 460W

Protection

Over-Voltage Protection(OVP)

Over-Current Protection(OCP)

Short-Circuit Protection(SCP)

Over-Temperature Protection(OTP)

Under-Voltage Protection (UVP)

Ambient Temperature

Ambient Humidily

Dimensions

at Full

Load

Imin

0.3A

0.5A

0.0A

Ipeak

22A

Operation

Storage

Operation

Storage

℃ ~+50℃

-20

℃ ~+80℃

5% RH

~ 95% RH

5% RH

~ 95% RH

150mm(L) * 140mm(W) * 86mm(H)

6. Zalman CNPS (Computer Noise Prevention System) Products

To create a true noise-free computer, Zalman’s Quiet CPU Cooler, Quiet VGA Cooler, Heatpipe HDD

Cooler, Fanless Northbridge Cooler, and Noiseless Case Fan should be used together with this product.

QQuuiieett VVGGAA CCoooolleerr

All manuals and user guides at all-guides.com

all-guides.com

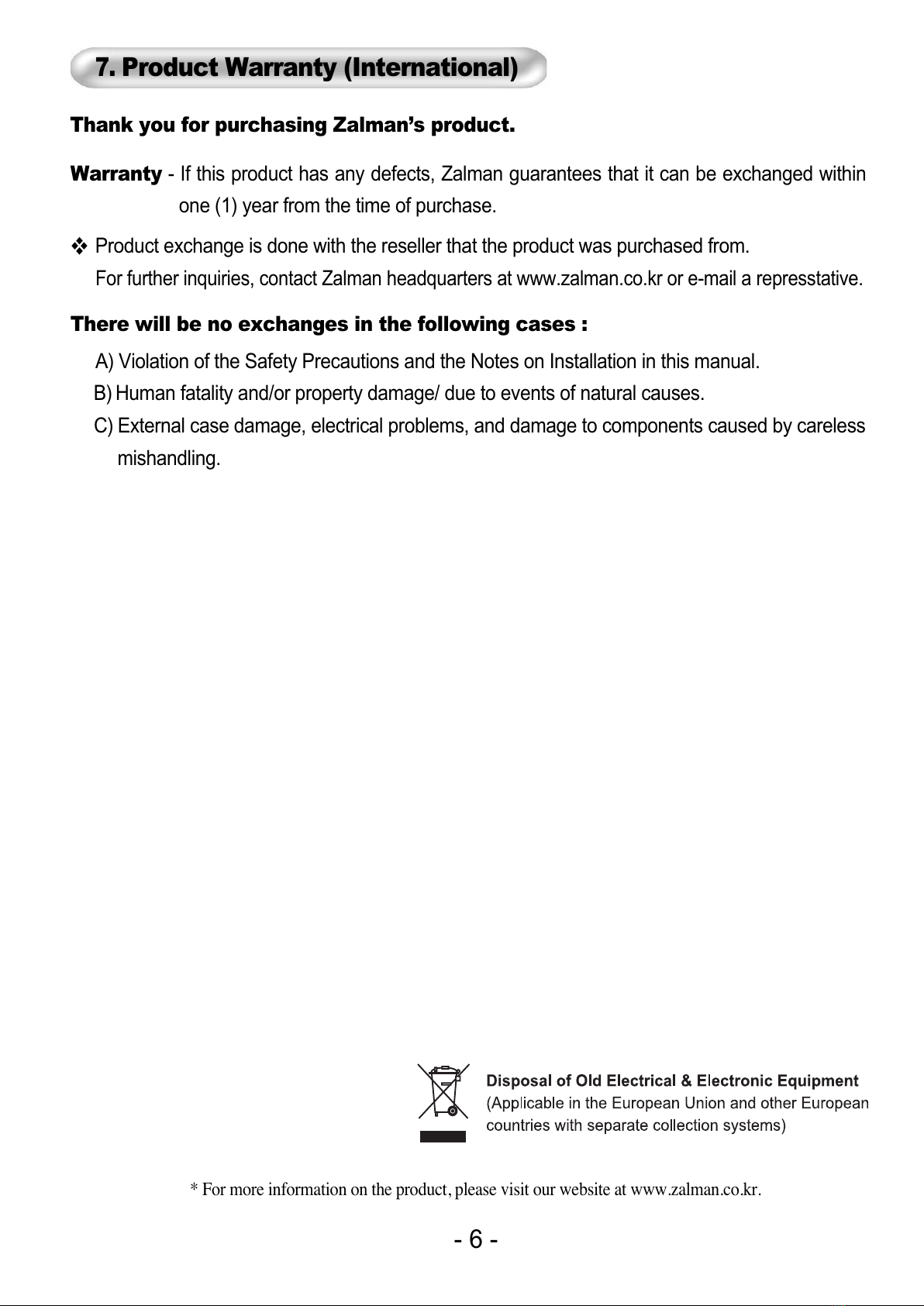

Product Warranty (International)

Thank you for purchasing Zalman’s product.

󳣍

Product e change is done with the reseller that the product was purchased from.

For further inquiries, contact Zalman headquarters at www.zalman.co.kr or e-mail a represstative.

There will be no exchanges in the following cases :

A) Violation of the Safety Precautions and the Notes on Installation in this manual.

B) Human fatality and/or property damage/ due to events of natural causes.

C) E ternal case damage, electrical problems, and damage to components caused by careless

mishandling.

Warranty - If this product has any defects, Zalman guarantees that it can be e changed within

one (1) year from the time of purchase.

* For more information on the product, please visit our website at www.zalman.co.kr.

- 6 -
