YOUYANG ELB Series Manuel

OPERATING & MAINTENANCE MANUAL MODEL : ELB series
YOUYANG AIRPORT LIGHTING EQUIPMENT INC. PAGE 1/34
OPERATION & MAINTENANCE
MANUAL
ELB-TEDL : ELEVATED OMNIDIRECTIONAL LOW INTENSITY LIGHT
YOUYANG AIRPORT LIGHTING EQUIPMENT INC.

OPERATING & MAINTENANCE MANUAL MODEL : ELB series
YOUYANG AIRPORT LIGHTING EQUIPMENT INC. PAGE 2/34
REVISION RECORD
This Revision Record of Manual is written in below Table and we supply new
updated Manual with product.
This Manual can be revised anytime for better improvement of products and its
Revision contents are made by company production process regulation and will
give to customers as newly updated Hard copy and Soft copy by CD.
This Manual not including content for discontinued parts and products.
REVISION RECORD
REVISION NO
CONTENTS
DATE
SIGN
Rev 0
FIRST MADE
2015-02-24

OPERATING & MAINTENANCE MANUAL MODEL : ELB series
YOUYANG AIRPORT LIGHTING EQUIPMENT INC. PAGE 3/34
CONTENTS
1. General
1.1 Knowledge before Operation(use)
1.2 Cautions for Safety
1.3 Quality guaranty
2. Product specification
3. Installation
4. Maintenance & Repair procedure
5. Transportation & Storage
6. Drawings & Parts List
6.1 Ordering Code Information

OPERATING & MAINTENANCE MANUAL MODEL : ELB series
YOUYANG AIRPORT LIGHTING EQUIPMENT INC. PAGE 4/34
1. General
1.1 Knowledge before use
Please read carefully this Manual with below Caution before use and use correctly.
If you do not understand and have any questions, please contact with below
department and make best Installation, Operation and Maintenance after sufficient
knowledge from us.
Please transfer this Manual to person in charge of end user and maintenance person
and Duty maintenance manager.
Please store this Manual where can see easy by person in charge always and use
anytime when required.
Company:
YOUYANG AIRPORT LIGHTING EQUIPMENT INC. KOREA
Department:
Quality Assurance Team
Tel:
+82-31-422-0021
Fax:
+82-31-424-6044
E - Mail
youyang@youyang.co.kr

OPERATING & MAINTENANCE MANUAL MODEL : ELB series
YOUYANG AIRPORT LIGHTING EQUIPMENT INC. PAGE 5/34
1.2 Cautions for Safety
Keep this Caution to use products at safely and correctly to prevent before any
troubles and dangerous cases are occurred.
Use this product function as sufficiently and safely after carefully reading of this
Manual.
The Caution means as below 2 kinds:
WARNING
When user do violate this Introduction of Manual, it
cause serious injury and death to user.
NOTICE
When user do violate this Manual introduction, it
cause light injury to user and made products
troubles.

OPERATING & MAINTENANCE MANUAL MODEL : ELB series
YOUYANG AIRPORT LIGHTING EQUIPMENT INC. PAGE 6/34
WARNING
1. Do not Repair work when Power is ON and electrical circuit operated. This will make
Electric Shock to user.
2. Do not cabling work and disassembly work of products even Power is not connected.
Do period check only by eye. Otherwise this will make Electrical shock.
3. Do not work and touch when any small Water is covered on the product. This will
make Electrical shock to user.
4. Do not use when a Cable is peeled off and damaged. This will make Electrical shock to
user.
5. Do Make sure Fastening and fix after installation of product.
NOTICE
1. Please use input power as allowed range. Otherwise, this will make product damage
and fire reason.
2. Please do not make water input and dust entering to product. This will make product
damages and fire reason.
3. Please use all parts must be correct parts to product. Otherwise, this will make
product damages and fire reason.
4. Please do not make product inside cabling by arbitrary changing. This will make
product damages and fire reason.
5. Please do maintenance by trained technician only. Otherwise, non-qualified persons
make product damages and trouble.

OPERATING & MAINTENANCE MANUAL MODEL : ELB series
YOUYANG AIRPORT LIGHTING EQUIPMENT INC. PAGE 7/34
1.3 QUALITY GUARANTY
The product guaranty under this manual applied is 1 year after supply to site. The
consumable parts are excluded from guaranty period.
The troubles caused by products defects will be free of charge during guaranty period,
but, user mistakes and mis-use will be charged.
PRODUCT GUARANTY RANGE
Div.
A/S charge
Guaranty & support period
Product
defect
free A/S
1 year after supply to site
charge A/S
10-15 years after guaranty finished.
User defect
Free A/S
None
Charge A/S
10-15 years from guaranty finished.

OPERATING & MAINTENANCE MANUAL MODEL : ELB series
YOUYANG AIRPORT LIGHTING EQUIPMENT INC. PAGE 8/34
2. Product Specification
2.1 TEDL: ELEVATED OMNIDIRECTIONAL LOW INTENSITY LIGHT
No
Item
Specification
1
Environme
ntal
Property
Operating temperature
-55 ~ +55℃
Storage temperature
-40 ~ +60℃
Precipitation
IP54
Salt fog
Exposure to a corrosive salt atmosphere
Temperature shock
Exposure of the hot light fixture to cold water spray
Wind Velocity
Exposure to wind velocities of 90m/Sec.
2
Electrical
Property
In put power
6.6A series circuit
Power consumption
28.7VA
Lamp
LED lamp
Lamp type
XP-E(CREE)
Lamp specification
Blue : 1W
Lamp life
>50,000 hour
3
Photometr
ic
Property
Light color
Blue
Main beam angle
Vertical : 0°~ 6°, Horizontal : 360°
Min intensity
Blue : 2 cd
Chromaticity
Blue (x : 0.1322, y : 0.0603)
4
Mechanic
al
Property
Installation height
300mm. Maximum
size
Ø112*300 Maximum
Weight
1.6Kg
Frangibility of coupling
Breakable under 230Kg pressure on 30cm
from breakable points

OPERATING & MAINTENANCE MANUAL MODEL : ELB series
YOUYANG AIRPORT LIGHTING EQUIPMENT INC. PAGE 9/34
No
Item
Specification
Wind velocity
300 knots
5
Surface
Treatment
Treatment
Powder electrostatic painting
color
Aviation yellow
6
Compositi
on
Body
Aluminum die-casting (ADC 6)
Body support
Aluminum die-casting (ADC 6)
Globe
Polycarbonate (Clear)
2 Pole plug
L- 823 , STYLE 6.

OPERATING & MAINTENANCE MANUAL MODEL : ELB series
YOUYANG AIRPORT LIGHTING EQUIPMENT INC. PAGE 10/34

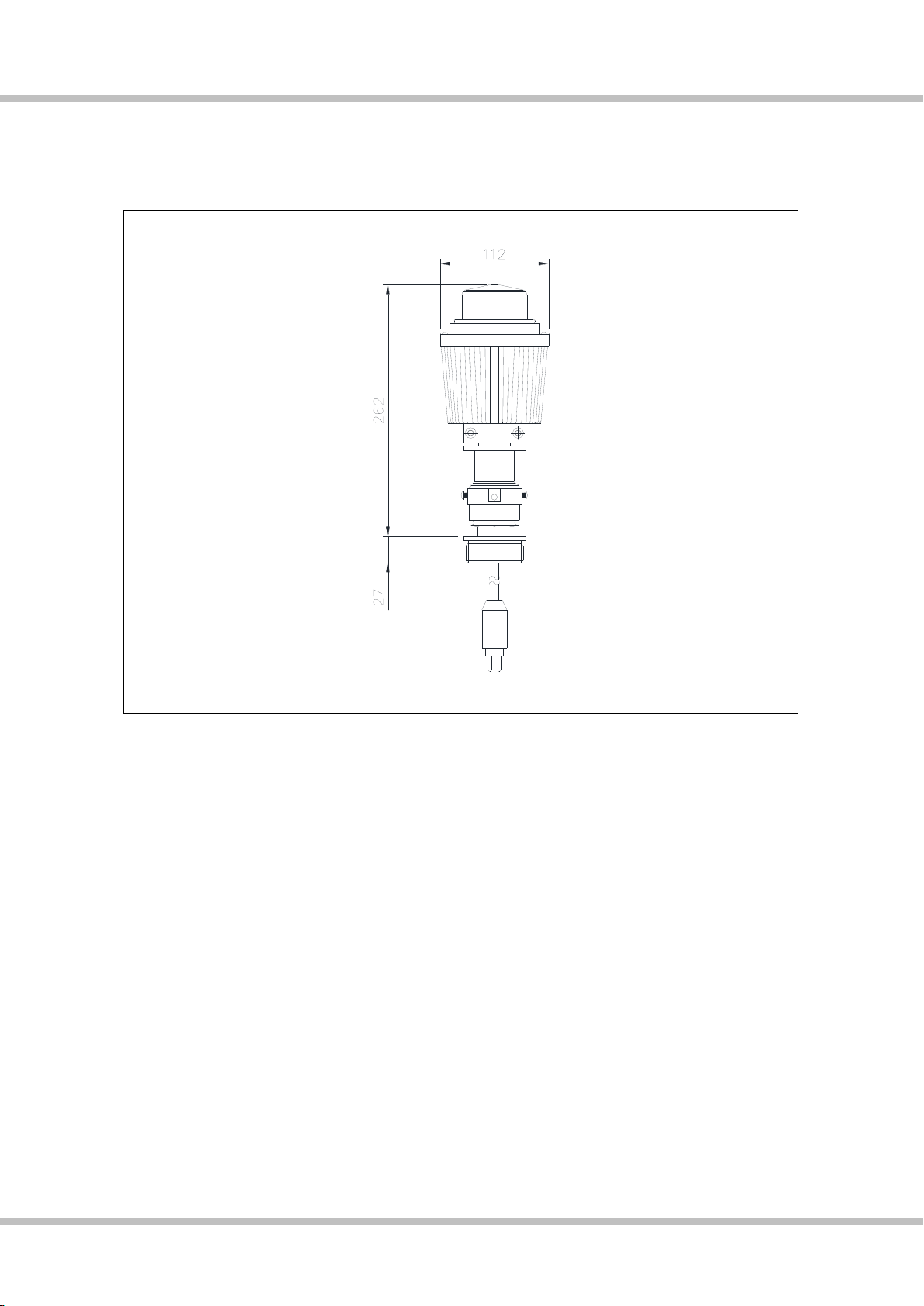

2.2 ELB-TEDL: ELEVATED OMNIDIRECTIONAL LOW INTENSITY LIGHT Outer Drawing
