Youngman TTA02 Guide de référence rapide

youngmangroup.com

Safety

Please ensure you read the Safety section in this manual starting on page 3 before

installing or using the equipment. Your safety and that of others is important.

Use and Care Instructions:

Youngman Telescopic Tower

Youngman Group Ltd

The Causeway, Maldon, Essex, CM9 4LJ, UK

t: +44 (0)1621 745900

e: sales@youngmangroup.com

Introduction

Thank you for purchasing our

product. The Youngman Telescopic

Tower is manufactured in

aluminium with an anodised ﬁnish.

It is built to withstand the toughest

handling and working conditions.

Suitable for home and commercial

use. Spare parts are readily

available.

We recommend you take your time

and read these instructions. They

contain full installation details and

describe how to deploy the ladder

and how to store it after use to

ensure you get the very best

performance from your purchase.

Keep these instructions in a safe

place for future reference.

For more information about the

Youngman Telescopic Tower and

other products, please visit our

website www.youngmangroup.com

Models:

TTA02, TTA02TB

TTG02, TTG02TB

youngmangroup.com

Contents

Introduction 1

Safety 1

Important Safety Information 3

Safety Considerations 3

Servicing and Spare Parts 3

Main Features 4

In the Box 5

Equipment and accessories supplied 5

Getting Started 6

Lock Indicator Buttons 6

Castors/Stabilisers 6

Deploying the ground stabiliser legs 7

Step 1. Erecting the Safety Cage 8

Step 2. Fitting the Platform 11

Step 3. Fitting the Toeboards 13

Step 4. Deploying the Platform Stabalisers 14

Step 5. Setting the Platform Height 16

Platform height 1.00 metre 16

Platform height 1.25 metre 18

Platform height 1.50 metre 19

Platform height 1.75 metre 21

Platform height 2.00 metre 24

Collapsing the Tower 26

Podium 29

Speciﬁcations 32

Warranty 33

Components Identiﬁed 34

youngmangroup.com

Important Safety Information

Warning

For your safety, please read all the safety instructions in this Manual before using

the Youngman Telescopic Tower.

Safety and quality is of paramount importance when manufacturing Youngman

products. All products meet the requirements of the Work at Height Regulations

of 2005.

Important

Read these instructions before installing the Youngman Telescopic Tower.

Important

Install the Youngman Telescopic Tower according the instructions given in this

Manual and on the labels afﬁxed to the equipment.

Safety Considerations

General

• Do not install or use the Youngman Telescopic Tower if damaged in any way.

• Never exceed the maximum load of 150 kg.

• It is recommended that the platform is removed when adjusting the Tower.

• It is recommended that the platform is removed when collapsing the Tower.

• Never release two red buttons at the same time.

• Never place hands or ngers between rungs when collapsing the Tower.

• Always wear a hard hat when erecting or collapsing the Tower.

Cleaning

• Do not use any abrasive or chemical solvents.

• Periodically clean with a soft damp cloth. We recommend occasionally spraying

with a silicon spray.

• The castors should be cleaned using a wet sponge and dried afterwards.

How to Dispose of this Product

When the unit has reached the end of its life, contact your local council regarding

available recycling or disposal options.

Servicing and Spare Parts

A full set of spares are available. Please visit our website for further details for

Servicing and Spare Parts.

youngmangroup.com

Main Features

The main features of the Youngman Telescopic Tower are listed below:

• Manufactured in anodised Aluminum (models TTA02 and TTA02TB)

• Manufactured in Fibreglass (models TTG02 and TTG02TB)

• Can be used as a Tower or a Podium

• Has seven working height from 0.33m to 2m

• Five-position stabiliser legs with locking castors

• Can be erected in less than three minutes by a single person thereby

saving down time and man hours

• Folds down for ease of transportation and storage

• Easily transportable in a small van or estate car thereby reducing fuel costs

• Comprises only three parts (main assembly, platform and Toe boards)

• Conforms to EN1004

youngmangroup.com

In the Box

Carefully remove your Tower from the box it arrived in. It is recommended that you

retain this packaging should the item need to be returned under warranty.

Equipments and Accessories Supplied

There are four models of the Tower: TTA02, TTA02TB, TTG02 and TTG02TB. The

illustrations below apply to model TTA02TB where ‘TB’ indicates toe boards are

supplied.

(1) The main assembly in collapsed form (with folded platform)

(2) Toe boards in carrying case (optional with TTA02 and TTG02)

(3) The Instruction and Reference Manual (This publication)

(4) Four lockable castors with adjustable stabilisers

(x4)

3 4

1 2

youngmangroup.com

Getting Started

Lock Indicator Buttons

The red and yellow buttons are used to show that the lock

mechanisms are engaged or not when erecting the Tower.

At all height settings, the yellow buttons should always be

in the locked position i.e. guard rails should be in place, see

page 8. At the 2 metre height setting, all

yellow and red buttons should be in their locked position.

The locking mechanism of a rung is situated at each end of

the rung immediately below it.

As a rung is lifted, it automatically locks to the frame when

it is in the correct position. When this happens an audible

‘click’ will be heard. At the same time the red or yellow buttons on the rung

immediately below the one being lifted will move to the locked position, see the

example shown right.

Red buttons

The red buttons on the rungs are used to release the locking mechanism during the

time the Tower is being collapsed. There is a red release-button located near

each end of the rungs labelled RUNG 4, RUNG 5, RUNG 6 and RUNG 7. When a

button is activated by sliding it away from the end of the rung, the locking pin at this

position is retracted which allows the rung immediately above (and any rungs and

or structures above this) to move downwards.

Yellow buttons

The yellow buttons act in the same way as the red buttons and are used during the

time the Tower is being collapsed. The yellow release-buttons are located at

each end of RUNG 2 and RUNG 3. These buttons allow the erected safety cage to

be collapsed.

Castors/Stabalisers

A stabiliser leg is an integral part of each castor. In addition to providing a larger

more stabilized foot print, the stabilisers are used to allow the Tower to be used on

an uneven surfaces.

The stabiliser can be rotated through 270 degrees.

It can be locked in one of ﬁve positions set at 45

degree intervals.

The castors and adjustable stabiliser legs are

supplied as a single item.

RUNG 6

RUNG 5

RUNG 4

RUNG 3

THIS POSITION INDICATES

THAT RUNG 4 ABOVE

IS LOCKED

THIS POSITION

INDICATES RUNG

5 IS UNLOCKED

INDICATES RUNG 2

ABOVE IS LOCKED

INDICATES

RUNG 3 IS NOT LOCKED

CASTOR SHAFT

CASTOR STABILISER LEG FOOT

STABILISER

FOOT

RELEASE

LEVER

CASTOR

LOCKING LEVER

ADJUSTER

youngmangroup.com

Getting Started

Fitting the castors

To ﬁt the castors carry out the following:

1. Carefully lay the fully collapsed main assembly (without platform) in a horizontal

position on the ﬂoor or on a bench.

2. Take a castor/stabiliser leg and slide the castor shaft into position on the main

assembly.

3. Push the red button on RUNG 9 away from the castor and push the castor shaft

fully in and rotate until the castor is adjacent to rung 9.

4. Release the button and if necessary rotate it a little further until you hear the

lock-pin click into place, which locks the stabiliser in this position.

5. Push down on the stabiliser release lever and lift the stabiliser foot until it is fully

retracted, and then release the lever. This will allow the stabiliser leg to be clear

of the ground when the main assembly is returned to its upright position.

6. Repeat for the other castors and return the Tower to its upright position.

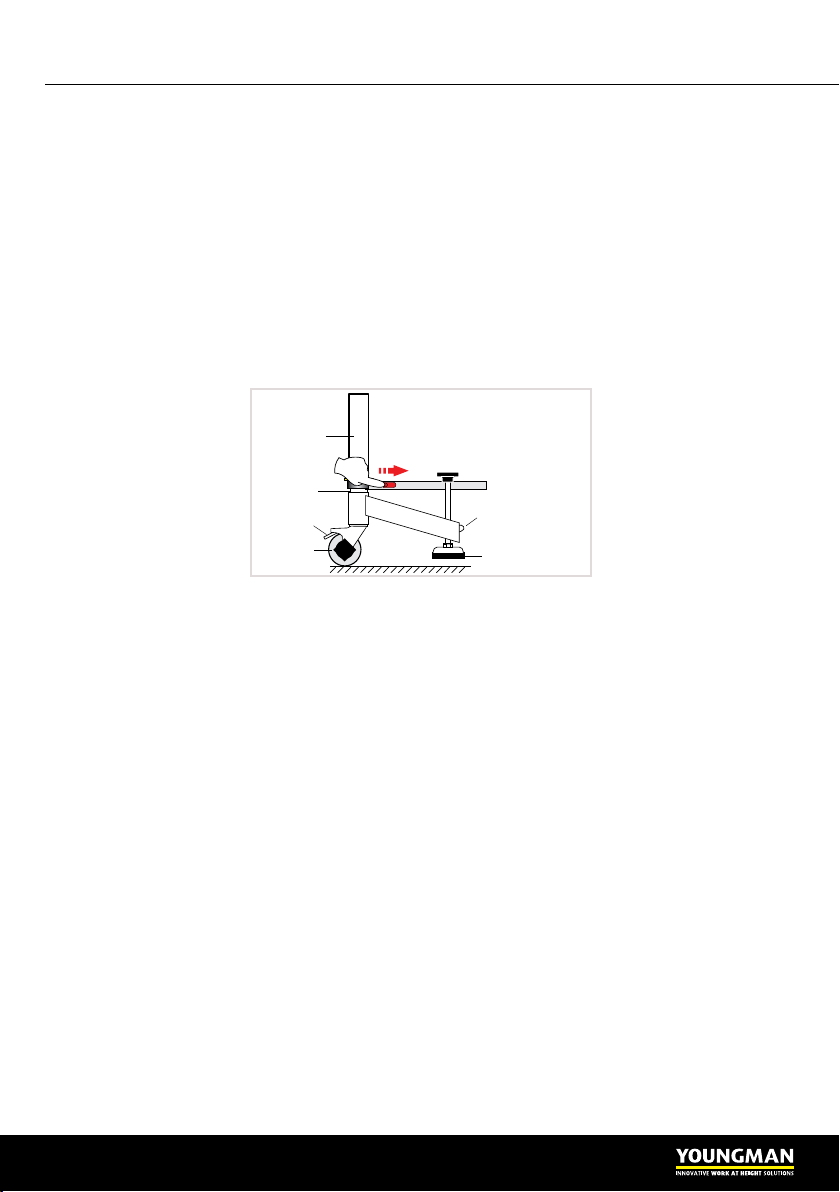

Deploying the Ground Stabiliser Legs

The ground stabiliser legs should be deployed when the Tower has been fully

erected at the required platform height.

1. To move it into place, unlock the castors and push it to the working position.

2. Lock the castors by pushing down on the locking lever with your foot.

3. Slide the red button closest to the ground stabiliser towards the centre of

RUNG 9 and rotate the stabiliser until it is near the required position. Release the

button and rotate a little further either way until you hear the locking mechanism

click in.

4. Deploy a ground stabiliser foot by pressing down on the Adjuster until the foot is

in contact with the surface. Turn the adjuster to tighten it to be in good contact

with the ground. Repeat for the other ground stabilisers as required or allowed.

5. Check that the castors and ground stabiliser legs are secure and locked before

using the Tower.

CASTOR

RELEASE

BUTTON

STABILISER FOOT

RELEASE LEVER

PART OF

FRAME

CASTOR FOOT

CASTOR

LOCKING

LEVER

ADJUSTER

CASTOR

SHAFT

youngmangroup.com

Step 1: Erecting the Safety Cage

This procedure starts from when the Tower is in its fully collapsed arrangement,

with castors ﬁtted as in Figure 1.1.

1. Ensure the castors are unlocked and the wheels are free to rotate.

2. Release the two fabric straps fastened around the legs of the assembly that

hold the two frames together.

3. While keeping the frames together at the back,

push the front legs slightly apart as shown in

Figure 1.2.

4. Lift and withdraw the folded platform and put it

to one side.

5. Unfold the Tower and straighten the yellow gate

keeping the side frames parallel until the gate

locks. You will hear it click-lock. Check that the

gate is locked.

6. Swing the two side frames so they are each at

90 degrees to the gate and then lock the four

castors by using your foot to push the locking

lever down on all four castors.

RUNG 7

RUNG 9

RUNG 8

RUNG 1

RUNG 3

RUNG 4

RUNG 5

RUNG 6

RUNG 2

LOCKING

GATE

ADJUSTABLE HAND-RAIL

ADJUSTABLE KNEE-RAIL

Not Locked

1.2

1.1

youngmangroup.com

Step 1: Erecting the Safety Cage

Lifting

1. Hold both ends of RUNG 1 (Figure 1.3) and place one foot on RUNG 9. Lift

RUNG 1 until it locks in place. A click will be heard when it locks and the yellow

buttons on RUNG 2 should then be in the locked position. This has lifted the

hand guardrail, see Figure 1.3.

2. Now hold both ends of RUNG 2. Place one foot on RUNG 9 and lift RUNG 2 until

it locks in place, Figure 1.4. This is indicated by the yellow but tons on RUNG 3

being in the locked position. This has lifted the hand and knee guard rails into

position, see Figure 1.4.

3. Repeat steps (1) and (2) on the opposite frame of the Tower.

Note. There is a pair of hand rails and a pair of knee-rails on the left and right

frames of the Tower. The lower part of each pair comprises a side rail, RUNG 1 and

RUNG 2 (xed), and the upper parts, adjustable hand-rail and adjustable knee-rail

(movable). The latter is the front rail or the rear rail (rear on the left frame, front on

the right frame).

RUNG 3

RUNG 4

RUNG 5

RUNG 6

RUNG 7

RUNG 3

RUNG 4

RUNG 5

RUNG 6

RUNG 7

RUNG 3

RUNG 4

RUNG 5

RUNG 6

RUNG 7

RUNG 1

RUNG 2

RUNG 1

RUNG 9

RUNG 8

RUNG 1

RUNG 2

LOCKING

GATE

Click Click

Click

Click Click

Locked Locked

Not locked

Locked Locked

LOCKING

GATE

RUNG 9

RUNG 8

LOCKING

GATE

RUNG 9

RUNG 8

RUNG 3

RUNG 4

RUNG 5

RUNG 6

RUNG 7

RUNG 3

RUNG 4

RUNG 5

RUNG 6

RUNG 7

RUNG 3

RUNG 4

RUNG 5

RUNG 6

RUNG 7

RUNG 1

RUNG 2

RUNG 1

RUNG 9

RUNG 8

RUNG 1

RUNG 2

LOCKING

GATE

Click Click

Click

Click Click

Locked Locked

Not locked

Locked Locked

LOCKING

GATE

RUNG 9

RUNG 8

LOCKING

GATE

RUNG 9

RUNG 8

1.3 1.4

youngmangroup.com

Step 1: Erecting the Safety Cage

Front and Rear Rails

1. Hold the yellow cover on the end of an upper handrail using your thumb and

ﬁngers, and push it towards the end of the rail. Hold it in this position while you

lift the end to unfasten it from its anchor point, see Figure 1.5.

2. Rotate the anchor point through 90 degrees to face the opposite side frames,

see Figure 1.6.

3. Rotate the rail end towards the opposite frame.

4. Extend the rail until you hear two clicks. This tells you that the 3-part rail has been

securely locked in its extended position. Carefully let the rail hang down from the

attached end.

Note. You should be able to see the ball-bearings from the locking mechanism

protruding from the side walls of the rail.

5. Repeat steps 1 to 4 for the other guardrails.

6. Lift one of the extended rails above its new anchor point on the opposite frame

and push down to lock in place.

7. Repeat for the other three rails to complete the erection of the Safety Cage,

Figure 1.7.

8. The Safety Cage can remain ‘built’ until the Tower is collapsed.

ROTATE

1.5 1.6

1.6

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Youngman Ordinateur de bureau

Youngman

Youngman Boss Plus Manuel utilisateur

Manuels Ordinateur de bureau populaires d'autres marques

HP m9060n - Pavilion - Elite Fiche technique

Asus

Asus E210 Series Manuel utilisateur

Dell

Dell Inspiron 600m Manuel utilisateur

Dell

Dell Inspiron 3662 Manuel utilisateur

TotalFlow

TotalFlow uFLO Manuel utilisateur

HP Presario SV7000 - Desktop PC Manuel utilisateur

HP ProDesk 400 G5 Manuel

Logitech

Logitech MK320 Manuel utilisateur

Dell

Dell XPS 730 H2C Manuel utilisateur

Sony

Sony Vaio Series Manuel utilisateur

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuel utilisateur

Alto

Alto MD 250 Manuel utilisateur

Lenovo

Lenovo ThinkCentre Edge 72 Manuel

Lenovo

Lenovo ThinkStation D20 Manuel

Arbor Technology

Arbor Technology FPC-7800 Series Manuel utilisateur

Sony

Sony VAIO VGX-TP1 Series Manuel utilisateur

Asus

Asus Eee Box B204 Manuel utilisateur

Dell

Dell Optiplex 9010 All In One Manuel utilisateur
