York 026-36345-002 Manuel utilisateur

This Roof Curb is NRCA approved and is constructed of 14 gauge galvanized steel with a full perimeter 2" X 4"

wood nailer strip. The curb is shipped with the following parts.

026-36345-002 14" HIGH 026-36345-102 24" HIGH

A 1 Side Panel Right, 78 1/2 x 14 A 1 Side Panel Right, 78 1/2 x 24

B 1 Side Panel Left, 78 1/2 x 14 B 1 Side Panel Left, 78 1/2 x 24

C 1 Side Panel Right, 78 1/2 x 14 C 1 Side Panel Right, 78 1/2 x 24

D 1 Side Panel Left, 78 1/2 x 14 D 1 Side Panel Left, 78 1/2 x 24

E 8 Side Panels, 71.75 x 14 E 8 Side Panels, 71.75 x 24

F 3 End Panels, 83 x 14 F 3 End Panels, 83 x 24

G 3 Brace Panels, 83 x 14 G 3 Brace Panels, 83 x 24

H 1 End Panel, 83 x 11 H 1 End Panel, 83 x 21

J 1 Supply Panel, 43 x 14 J 1 Supply Panel, 43 x 24

K 4 Support Rails, 83 x 3 K 4 Support Rails, 83 x 3

L 5 Condenser Panels L 5 Condenser Panels

M 10 Splice Channels M 10 Splice Channels

N 4 Condenser Panel Flashings N 4 Condenser Panel Flashings

P 1 Hardware Package P 1 Hardware Package

(100) .375-16 x 1.00 Hex Bolt w/ Nuts (168) .375-16 x 1.00 Hex Bolt w/ Nuts

(100) .375 Helical Lock washers (168) .375 Helical Lock washers

(100) .375 Flat Washers (168) .375 Flat Washers

(157) 25-14 x .75 Screw Tapping (157) 25-14 x .75 Screw Tapping

(Washer Head Seal Tight) (Washer Head Seal Tight)

(126 Ft) 3/4 x 1 1/4 Foam Gasket (126 Ft) 3/4 x 1 1/4 Foam Gasket

(100 Ft) 3/4 x 1/8 Tacky Tape (100 Ft) 3/4 x 1/8 Tacky Tape

PACKAGED ROOFTOP UNITS

INSTALLATION INSTRUCTIONS NEW RELEASE Form YRK2-N1 (319)

ROOF CURB

70–85 TON FULL PERIMETER

MODEL # 026-36345-002 / 026-36345-102

YORK

FORM YRK2-N1

ISSUE DATE: 03/18/2019

INSTALLATION

1. Layout the curb pieces as shown on Figure 1.

2. Install the 3/8" bolts on both ends of End Panel

(F) and Brace Panel (G) through the designated

holes in Side Panels (E). Make sure the corners

are ush and square as shown in Figure 1.

Place the curb in the proper location.

Make sure the curb section is “IN

SQUARE.”

3. Layout the curb pieces shown at the end of the

previous section.

4. Install the 3/8" bolts on both ends of Brace Panel

(G) through the designated holes on Side Panels

(E). Make sure the corners are ush and square

as shown on Figure 2.

Place the curb in the proper location.

Make sure the curb section is “IN

SQUARE.”

5. Layout the curb pieces as shown at the end of the

previous section.

6. Install the 3/8" bolts on both ends of Brace Panel

(G) through the designated holes in Side Panels

(E). Make sure the corners are ush and square as

shown in Figure 3.

Place the curb in the proper location.

Make sure the curb section is “IN

SQUARE.”

FIGURE 2 - LD08550

M (2 TYP)

SAME PIECE SHOWN

IN NEXT FIGURE

FIGURE 3 - LD08551

M (2 TYP)

SAME PIECE SHOWN

IN NEXT FIGURE

FIGURE 1 - LD08549

RETURN OPENING

48 X 83

M (2 TYP)

SAME PIECE SHOWN

IN NEXT FIGURE

YORK 3

FORM YRK2-N1

ISSUE DATE: 03/18/2019

7. Layout the curb pieces as shown at the end of the

previous section.

8. Install the 3/8" bolts on both ends of End Pan-

els (F) and Supply Panel (J) through the desig-

nated holes on Side Panels (E) and End Panels

(F). Make sure the corners are ush and square

as shown in Figure 4.

Place the curb in the proper location.

Make sure the curb section is “IN

SQUARE.”

9. Layout the curb pieces as shown at the end of the

previous section.

10. Install the 3/8" bolts on both ends of End Panel (H)

through the designated holes on Side Panel Right

(A) and Side Panel Left (B). Make sure the cor-

ners are ush and square as shown on Figure 5.

Place the curb in the proper location.

Make sure the curb section is “IN

SQUARE.”

11. Install Support Rails (K) on the Side Panels (A)

and (B). Attach the Support Rails (K) in place

with .25-14 x 1" screws as shown in Figure 5.

12. Install Support Rails (K) on the Side Panels (C)

and (D). Attach the Support Rails (K) in place

with .25 -14 x 1" screws as shown in Figure 5

Each section of the curb is to be connect-

ed with the provided splice channels as

shown in illustrations.

FIGURE 4 - LD08552

SUPPLY OPENING

43 X 71.61

FIGURE 5 - LD085553

M (4 TYP)

YORK

FORM YRK2-N1

ISSUE DATE: 03/18/2019

Condenser pans must slope downward

toward End Panel (H). Refer to Figure 6.

FIGURE 6 - LD08554

FIGURE 7 - LD08555

L(3) L(2)

L(4)

L(1)

TACKY

TAPE TACKY

TAPE

L(5)

TACKY

TAPE TACKY

TAPE

TACKY

TAPE

KKKKH

1811

5810

11 10

Make sure Support Rails (K) are located

properly so condensation can run off con-

denser panels. Refer to Figure 6.

13. Apply 3/4 x 1/8" Tacky Tape in locations shown

in Figures 7 and 10.

14. Install the Condenser Panels (L) in the order as

shown in Figures 7 and 8. As each panel is in-

stalled in place, attach the lower edge of the Con-

denser Panels (L) with .25-14 x 1" screws.

YORK 5

FORM YRK2-N1

ISSUE DATE: 03/18/2019

FIGURE 8 - LD085556

PLACE TAPE

HERE ON ALL

SUPPORT

RAILS

PLACE TAPE

UNDER EDGE

PLACE TAPE

BY HOLES L (5 TYP)

1 1/2" FLANGE

PLACE TAPE ALONG

ALL CONDENSER PANEL

BETWEEN 1" FLANGE

AND CURB SIDE.

2" CURB EDGE

(4)

(2)

(1)

(3)

(5)

FIGURE 9 - LD08557

Refer to Figure 10

(N)

15. Install the sloped Condenser Panel Flashing (N)

over the curb 2" edge as shown in Figure 9.

16. Install 3/4 x 1-1/4" foam gasket on top of all curb

surfaces.

YORK

FORM YRK2-N1

ISSUE DATE: 03/18/2019

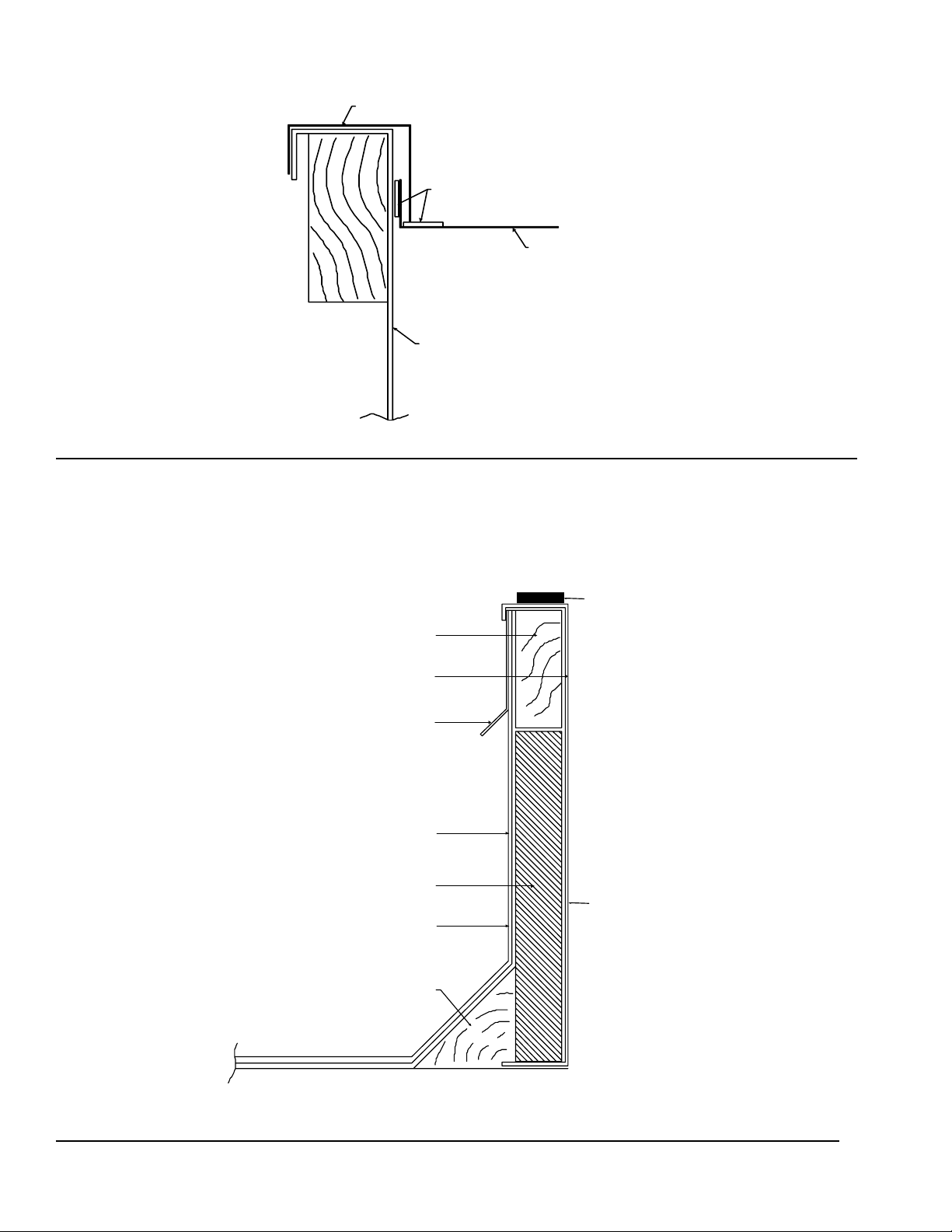

FIGURE 10 -

LD08559

CURB FRAME

WOOD NAILER

COUNTER FLASH ING

(FIELD SUP PLIED)

ROOF ING FELT

(FIELD SUP PLIED)

FLANGE SIDE

ROOF INSTRUCTIONS

RIGID IN SU LA TION

(FIELD SUP PLIED)

CANT STRIP

(FIELD SUP PLIED)

FOAM

GASKET

FLAT SIDE

FIGURE 11 -

LD08558

ROOF CURB (A)

CONDENSER PANEL (L)

TACKY TAPE

CONDENSER PANEL FLASHING (N)

YORK 7

FORM YRK2-N1

ISSUE DATE: 03/18/2019

62.875

71.61

67.125

292

449

Flange Side

Flat Side

2" Flange Width

on Entire Curb

FIGURE 12 - LD08560

All dimensions are critical to ensure prop-

er t of the unit to the curb. All dimen-

sions are from the "Flat Side" of the curb

panels with the exception of "Outside"

curb dimensions.

YORK®IS A REGISTERED TRADEMARK OF JOHNSON CONTROLS
