YOKOGAWA MY10 Manuel utilisateur

IM MY40-S01E

2nd Edition:Feb.2009 (YMI)

MY10, MY40

Insulation Resistance Tester

User’s Supplements

Manual

For EMC Standards

This paper supplements the User’s Manual of MY10 and MY40 Insulation Resistance Tester.

This is to advise the additional explanations for EMC standards and the update postal address

for Yokogawa Europe.

Model

User’s Manual Description

before the revision Revised Content

MY10

IM MY10-E

6th Edition

EMC standard

EN55011 Class B Group 1

EN61326 Class B

Effect of radiation immunity

At the strength of radio-frequency

electromagnetic field of 3V/m

•Insulation resistance measurement

1st effective measuring range: ±10% of rdg

2nd effective measuring range: ±20% of rdg

Infinity and zero indications:

±1.4% or less of scale length

•AC Voltage measurement: ±10% of FS

EMC standards:

Compliant with

EN55011 Class B Group 1,

EN61326-1 Class B,

EN61326-2-2

Effect of radiation immunity

At the strength of radio-frequency

electromagnetic field of 3V/m

•Insulation resistance measurement

1st effective measuring range: ±10% of rdg

2nd effective measuring range: ±20% of rdg

Infinity and zero indications:

±1.4% or less of scale length

•AC Voltage measurement: ±10% of F.S.

MY40

IM MY40-E

6th Edition

EMC standard

EN55011 Class B Group 1

EN61326 Class B

Effect of radiation immunity

At the strength of radio-frequency

electromagnetic field of 3V/m

•Insulation resistance measurement

1st effective measuring range:

±(5% of rdg+12dgt)

2nd effective measuring range:

±(10% of rdg+12dgt)

•AC Voltage measurement:

±(5% of rdg+12dgt)

•Conductor resistance measurement:

±(10% of range)

EMC standards:

Compliant with

EN55011 Class B Group 1,

EN61326-1 Class B,

EN61326-2-2

Effect of radiation immunity

At the strength of radio-frequency

electromagnetic field of 3V/m

•Insulation resistance measurement

1st effective measuring range:

±(5% of rdg+12dgt)

2nd effective measuring range:

±(10% of rdg+12dgt)

•AC Voltage measurement:

±(5% of rdg+12dgt)

•Conductor resistance measurement:

±(10% of range)

YOKOGAWA EUROPE B. V. (THE NETHERLANDS)

Euroweg 2, 3225HD, Amersfoort THE NETHERLANDS

Phone: 31-88-4641000 Facsimile: 31-88-4641111

User's

Manual

補遺票

Supplement

Insulation Resistance Tester

MY10 and MY40

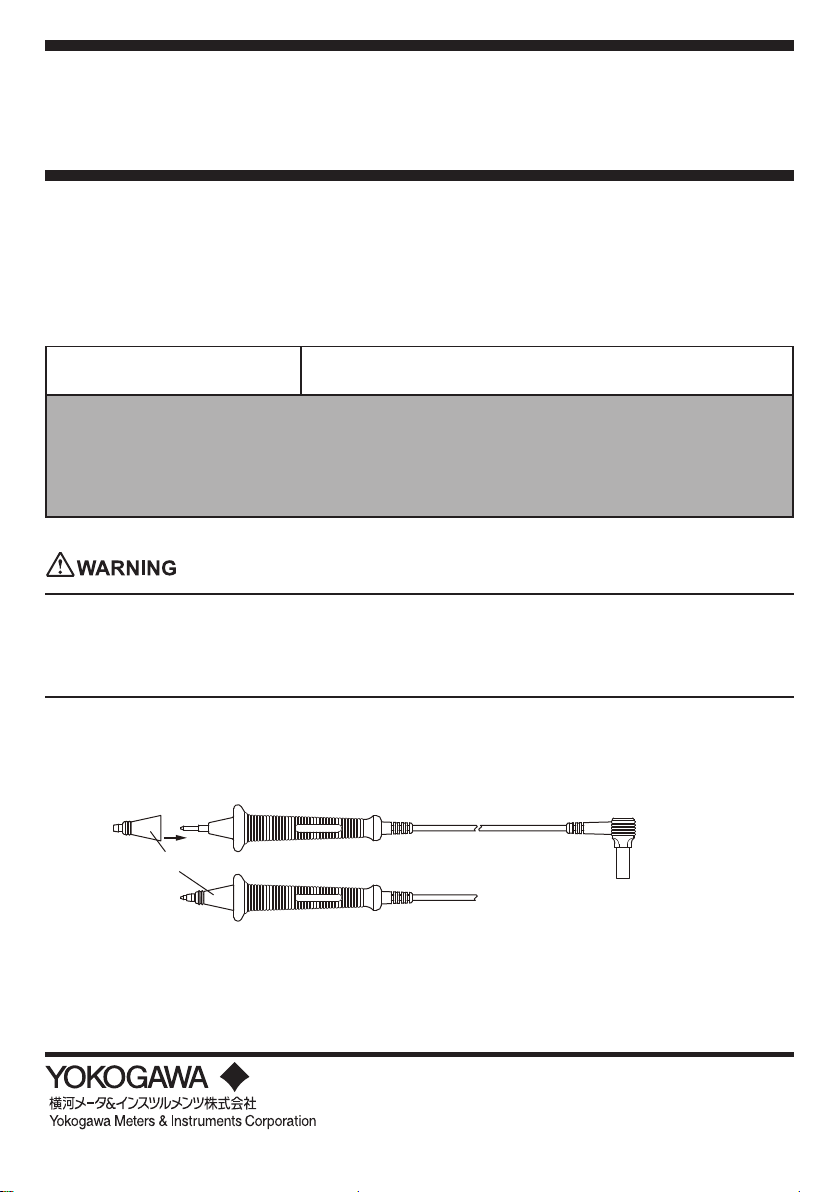

This paper supplements the User’s Manual of Insulation Resistance Tester.

MY10 (IM MY10-E) and MY40 (IM MY40-E)

This paper explains a change (safety standard) in the product accessory (Line probe)

and obsolete accessories (Replaceable-type line probe and spare probe tips).

Line probe: Model 98001

(Without the model No. change)

Safety standard: EN 61010-031

With Cap*: 600V CAT. III, Without Cap*: 600V CAT. II

■ Obsolete Accessories

4. Replaceable-type line probe (MY10: 98005 and MY40: 98052)

Spare probe tips

5.General-purpose (B9600GN), 6.Hook-shaped (B9600NW), 7.Extension purpose (B9600NX),

8.Sharp-pointed (B9600NZ), 9.Pickax-shaped (B9635JK)

There are caps at the end of the Line probe.

To ensure safety (safety standard EN 61010-031), be sure to put the caps on the Line

probe when you use them.

[NOTE]

If the breakerpin (99011) is attached on the Line probe, detach the cap from Line probe.

*Cap of Line probe

Line probe 98001 (NEW)

IM MY40-S02E

1st Edition: June 2011(YMI)
