1.2 About this manual

This manual describes the cloudPanel HA1-L1A41-0 from VIPA. It contains a description

of the structure, project engineering and deployment.

Product Order number as of state:

HW FW OS

TP 110-CL HA1-L1A41-0 01 V1.0.0 LinuxÒ 3.12

The manual is targeted at users who have a background in automation technology.

The manual consists of chapters. Every chapter provides a self-contained description of a

specific topic.

The following guides are available in the manual:

nAn overall table of contents at the beginning of the manual

nReferences with page numbers

The manual is available in:

nprinted form, on paper

nin electronic form as PDF-file (Adobe Acrobat Reader)

Important passages in the text are highlighted by following icons and headings:

DANGER!

Immediate or likely danger. Personal injury is possible.

CAUTION!

Damages to property is likely if these warnings are not heeded.

Technical support

Objective and contents

Target audience

Structure of the manual

Guide to the document

Availability

Icons Headings

VIPA HMI General

About this manual

HB160 | TP-cloud | HA1-L1A41-0 | en | 18-02 5

Supplementary information and useful tips.

VIPA HMI

General

About this manual

HB160 | TP-cloud | HA1-L1A41-0 | en | 18-02 6

2 Hardware description

2.1 Safety information for users

VIPA modules make use of highly integrated components in MOS-Technology. These

components are extremely sensitive to over-voltages that can occur during electrostatic

discharges. The following symbol is attached to modules that can be destroyed by elec-

trostatic discharges.

The Symbol is located on the module, the module rack or on packing material and it indi-

cates the presence of electrostatic sensitive equipment. It is possible that electrostatic

sensitive equipment is destroyed by energies and voltages that are far less than the

human threshold of perception. These voltages can occur where persons do not dis-

charge themselves before handling electrostatic sensitive modules and they can damage

components thereby, causing the module to become inoperable or unusable. Modules

that have been damaged by electrostatic discharges can fail after a temperature change,

mechanical shock or changes in the electrical load. Only the consequent implementation

of protection devices and meticulous attention to the applicable rules and regulations for

handling the respective equipment can prevent failures of electrostatic sensitive modules.

Modules must be shipped in the original packing material.

When you are conducting measurements on electrostatic sensitive modules you should

take the following precautions:

nFloating instruments must be discharged before use.

nInstruments must be grounded.

Modifying electrostatic sensitive modules you should only use soldering irons with

grounded tips.

CAUTION!

Personnel and instruments should be grounded when working on electro-

static sensitive modules.

Handling of electrostatic

sensitive modules

Shipping of modules

Measurements and altera-

tions on electrostatic sen-

sitive modules

VIPA HMI Hardware description

Safety information for users

HB160 | TP-cloud | HA1-L1A41-0 | en | 18-02 7

2.2 Properties

The VIPA cloudPanel allows you to visualize and alter operating states and recent

process values of a connected PLC. The cloudPanel is a compact and modular

embedded PC based on LinuxÒ. WEB-based projects are displayed via a WEB browser.

Here the cloudPanel can simply be configured, controlled and remoted.

nOperating system LinuxÒ 3.12

nProcessor ARM Cortex A8 1GHz

nFlash memory 4GB, RAM 512MB DDR

nRS232/RS422/RS485 interface (not available for WebVisu projects),

USB-A and Ethernet interface

nRobust plastic case

nDisplay resolution 600 x 1024 / 1024 x 600, 64K colors

nBattery backed clock

nResistive analog touch screen

nEasy mounting via mounting clips

nProtection class IP66, Type 2 and 4X (Front) / IP20 (Back)

Order data

Type Order number Description

TP 110-CL HA1-L1A41-0 10'' TFT color, RS232/RS422/RS485, USB-A, Ethernet RJ45

General

VIPA HMI

Hardware description

Properties

HB160 | TP-cloud | HA1-L1A41-0 | en | 18-02 8

2.3 Structure

2.3.1 Overview

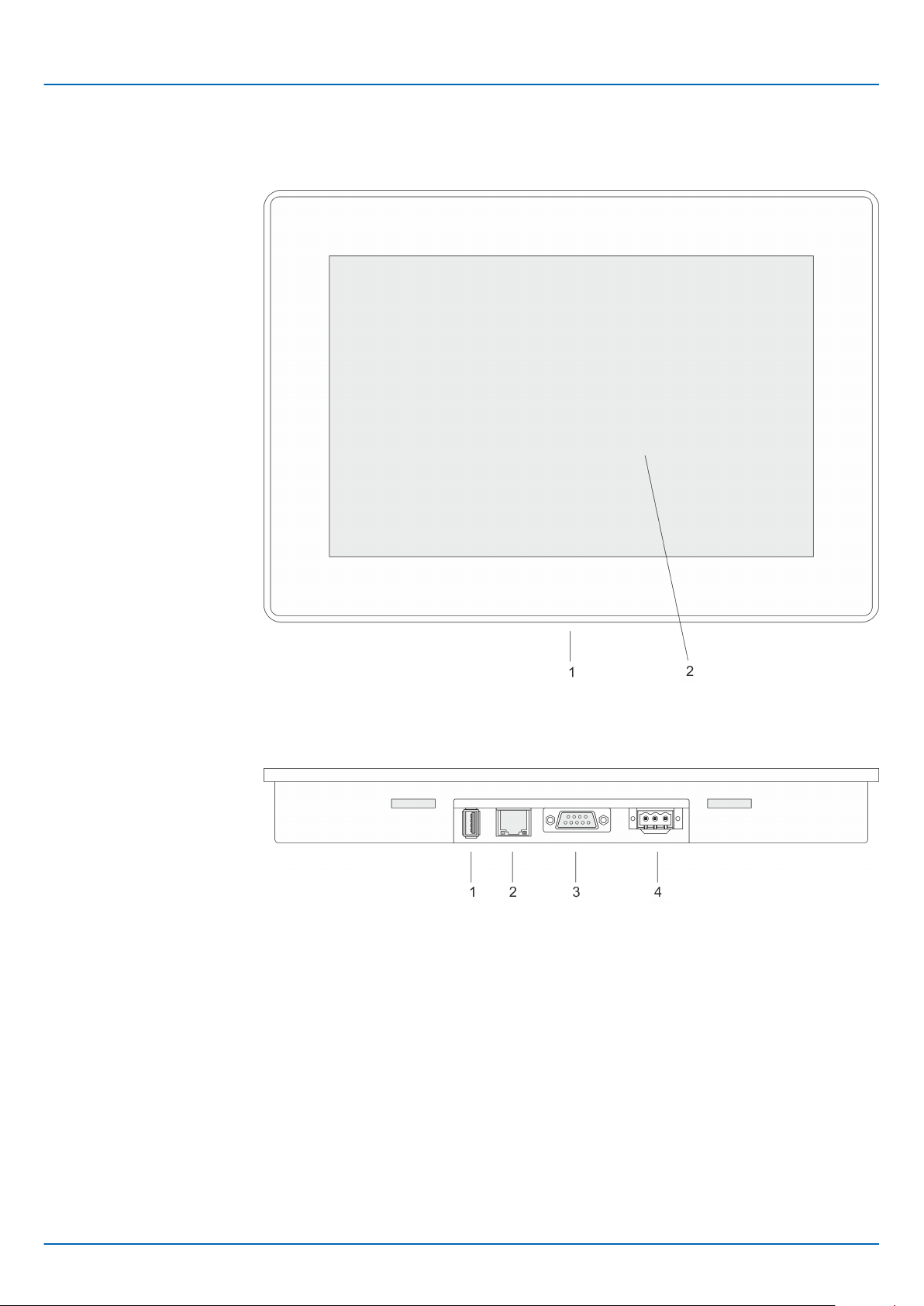

1 Interfaces

2 Display with touch sensitive area (Touch-Screen)

1 USB-A interface USB 2.0

2 RJ45 jack for Ethernet communication LAN

3 RS232/RS422/RS485 interface COM

4 Slot for DC 24V voltage supply

Front view

Bottom view

VIPA HMI Hardware description

Structure > Overview

HB160 | TP-cloud | HA1-L1A41-0 | en | 18-02 9

2.3.2 Interfaces

Using the "Host"-USB-A interface USB mouse, keyboard, stick or USB hard discs can be

connected.

The RJ45 jack provides the interface to the twisted pair cable, required for Ethernet. The

Ethernet interface has got two LEDs for status display.

LEDs

green yellow

Description

on off no link

blinks on 100Mbit/s link

blinks off 10Mbit/s link

9 pin SubD plug

nInterface is compatible to the COM interface of a PC

nLogical signals as voltage levels

nPoint-to-point links with serial full-duplex transfer in two-wire technology up to 15m

distance

nData transfer rate up to 115.2kbit/s

"Host"-USB-A

Ethernet connection

RS232 interface

VIPA HMI

Hardware description

Structure > Interfaces

HB160 | TP-cloud | HA1-L1A41-0 | en | 18-02 10

Table des matières

Autres manuels YASKAWA Écran tactile

YASKAWA

YASKAWA PP010 ES Manuel utilisateur

YASKAWA

YASKAWA VIPA TP-ECO Manuel utilisateur

YASKAWA

YASKAWA TP 606C Manuel utilisateur

YASKAWA

YASKAWA TP-smart HA1-71A41-0 Manuel utilisateur

YASKAWA

YASKAWA HMI TP-smart Manuel utilisateur

YASKAWA

YASKAWA VIPA HMI PPC021 ES Manuel utilisateur

YASKAWA

YASKAWA TP 606C Manuel utilisateur

YASKAWA

YASKAWA VIPA HMI TP 608C Manuel utilisateur

YASKAWA

YASKAWA VIPA 62H-MHC0 Manuel utilisateur

YASKAWA

YASKAWA VIPA HMI TP 62I-JIDR Manuel utilisateur

YASKAWA

YASKAWA PPC010 ES Manuel utilisateur

YASKAWA

YASKAWA PPC015 ES Manuel utilisateur

YASKAWA

YASKAWA 62P-NHC0 Manuel utilisateur

YASKAWA

YASKAWA VIPA HMI Manuel utilisateur

YASKAWA

YASKAWA 67K-PNL0 Manuel utilisateur

YASKAWA

YASKAWA VIPA PPC015 CE Manuel utilisateur

YASKAWA

YASKAWA TP 610C Manuel utilisateur

YASKAWA

YASKAWA PPC021 IE Manuel utilisateur

YASKAWA

YASKAWA VIPA PPC010 CE Manuel utilisateur

YASKAWA

YASKAWA 67S-RTP0-KB Manuel utilisateur

YASKAWA

YASKAWA VIPA HMI TP 62I-JID0 Manuel utilisateur

YASKAWA

YASKAWA TP304-SM Manuel utilisateur

YASKAWA

YASKAWA 67P-PNL0-JB Manuel utilisateur

YASKAWA

YASKAWA 62P-PNJ0 Manuel utilisateur

Manuels Écran tactile populaires d'autres marques

FlowLine

FlowLine Data loop Manuel utilisateur

ALPEX

ALPEX AEx-8 P Series Manuel utilisateur

Ltech

Ltech E5S Manuel utilisateur

Harman

Harman AMX MODERO S MSD-701-L2 Manuel utilisateur

Acnodes

Acnodes PC 1150 Manuel utilisateur

AIS

AIS IP10IA99 series Manuel utilisateur

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manuel utilisateur

B&R

B&R Power Panel C Series Manuel utilisateur

Beijer Electronics

Beijer Electronics X2 control Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT321W-521 Manuel utilisateur

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manuel utilisateur

Qomo

Qomo QIT1386 Manuel utilisateur

DFI

DFI KS104-CD Manuel utilisateur

AMX

AMX AXP-PPC Mode d’emploi

Sartorius

Sartorius X3 PR 5410 Manuel utilisateur

AMX

AMX Modero X Series Manuel utilisateur

Advantech

Advantech TPC-30 Series Manuel utilisateur

B&R Industries

B&R Industries MAPPC900-ENG Manuel utilisateur
