Yamaha NS-10MT Manuel utilisateur

Thank you for selecting the Yamaha NS-10MT speaker system.

NS-10MT Natural Sound

Bass-Reflex Type

2-Way Speaker System

PRECAUTIONS

Read these precautions carefully before operating

your speaker.

●When using an amplifier with a rated output power

higher than the nominal input power of the speaker,

care should be taken never to exceed the speaker’s

maximum input.

●Anytime you note distortion, reduce the volume con-

trol on your amplifier to a lower setting. Never allow

your amplifier to be driven into “clipping”.

●Do not place the speaker where it will be exposed to

direct sunlight or excessive humidity to prevent it

from being damaged.

●Do not attempt to clean the speaker with chemical

solvents as this might damage the finish. To clean,

wipe with a dry, soft cloth.

●Placing the speaker on the same shelf or rack as

the turntable can result in feedback.

●Do not place the speaker where it is liable to be

knocked over or struck by falling objects. Stable

placement will also ensure better sound perfor-

mance.

●Secure placing is the owner’s responsibility.

YAMAHA shall not be liable to any accident

caused by an improper placing of the speaker.

Note

Do not let the bare speaker wires touch each other

as this could damage the speaker and/or the

amplifier.

* Banana Plug connections are also possible. First

tighten the terminal knobs, and then insert the

Banana Plug connector into the corresponding ter-

minal hole.

BEFORE MAKING CONNECTIONS, MAKE SURE

THAT THE AMPLIFIER IS SWITCHED OFF.

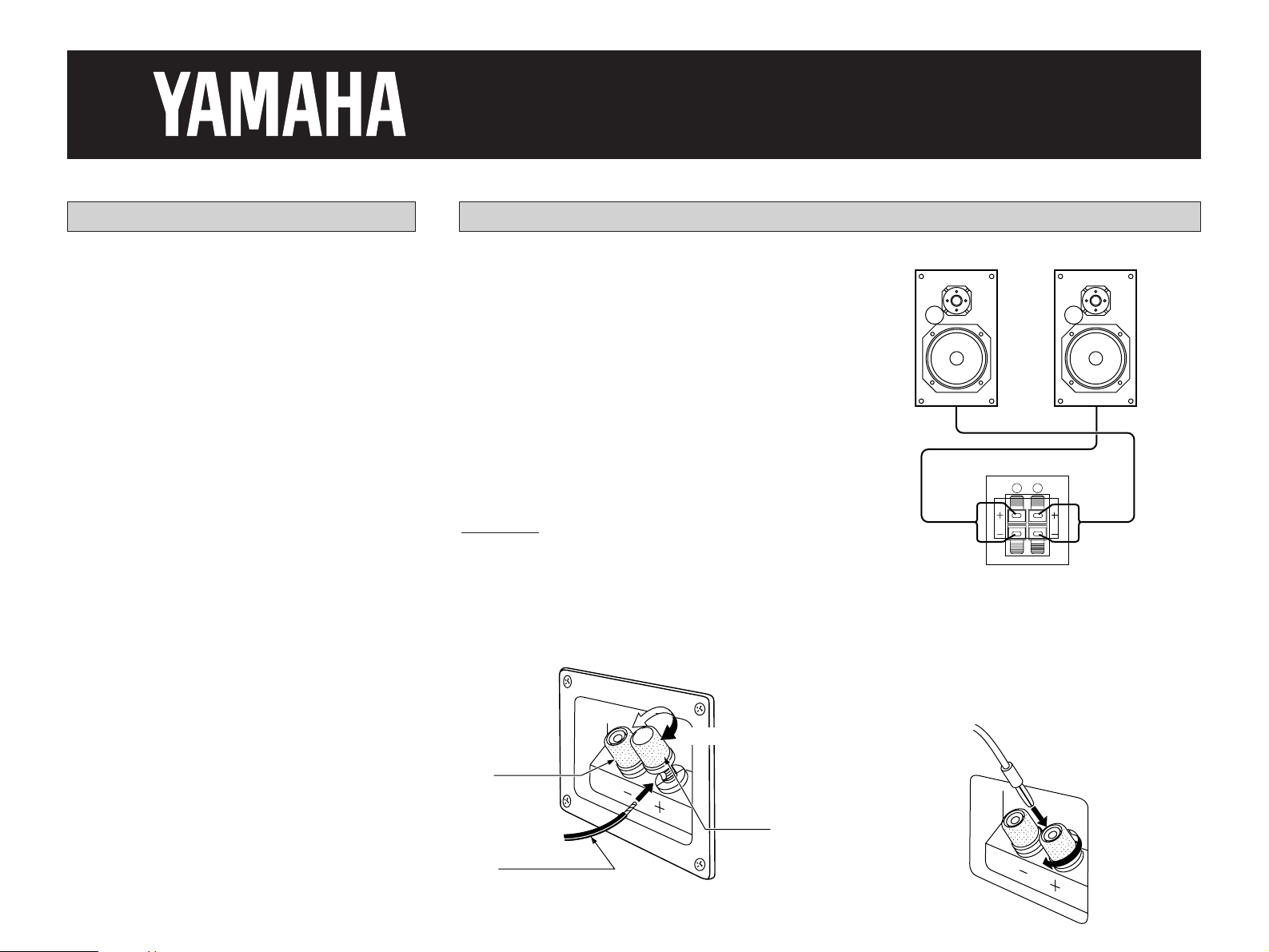

■CONNECTIONS

●Connect the screw-type input terminals at the rear

of the speaker to the speaker output terminals of

your amplifier with the provided speaker cables.

●One side of the speaker cable is marked by a white

line. Connect the (+) terminals on both the amplifier

and the speakers using this white-marked side.

Connect the (–) terminals on both components

using the unmarked side of the cable. If connected

with reversed polarity, the sound will be unnatural

and lack bass.

Procedures:

➀Loosen the terminal knob.

➁Insert the bare wire end properly into the terminal

hole. [Remove approx. 10 mm (3/8”) insulation

from the speaker cable.]

➂Tighten the knob.

➃Test the security of the connection by tugging

lightly on the cable at the terminal.

Black(–)

Loosen Tighten

Red (+)

White line

CONNECTION TO YOUR AMPLIFIER

Left Right

Amplifier

SPECIFICATIONS

Type ......................2 way bass-reflex speaker system

Magnetic-shielding type

Speaker Unit...........................18 cm cone woofer x 1

3 cm dome tweeter x 1

Nominal Impedance.........................................6 ohms

Frequency Response...........43 Hz – 30 kHz (–10 dB)

Nominal Input Power............................................60W

Maximum Input Power .......................................180W

Sensitivity ...................................................90 dB/w/m

Dimensions (WxHxD)..................215 x 382 x 255 mm

(8-7/16” x 15 x 10)

Weight............................................7 kg (15 lbs. 7 oz.)

Accessories..........................Speaker cable (10m) x 1

* Specifications subject to change without notice due

to product improvements.

* Care should be taken not to exceed the input power

values noted above.

●Place the speaker on a sturdy, vibration-free sur-

face.

If you cannot obtain good bass quality when the

speaker is placed directly on the floor, insert a block

etc. between the speaker and the floor.

●Better stereo images will be obtained when the

speakers are slightly angled in towards the listener.

Note

Though this speaker is a magnetic shielding type,

there may be an influence on TV picture accord-

ing to the type of TV or the placement of the

speaker. In such a case, place the speaker apart

from the TV so that there is no influence on TV

picture.

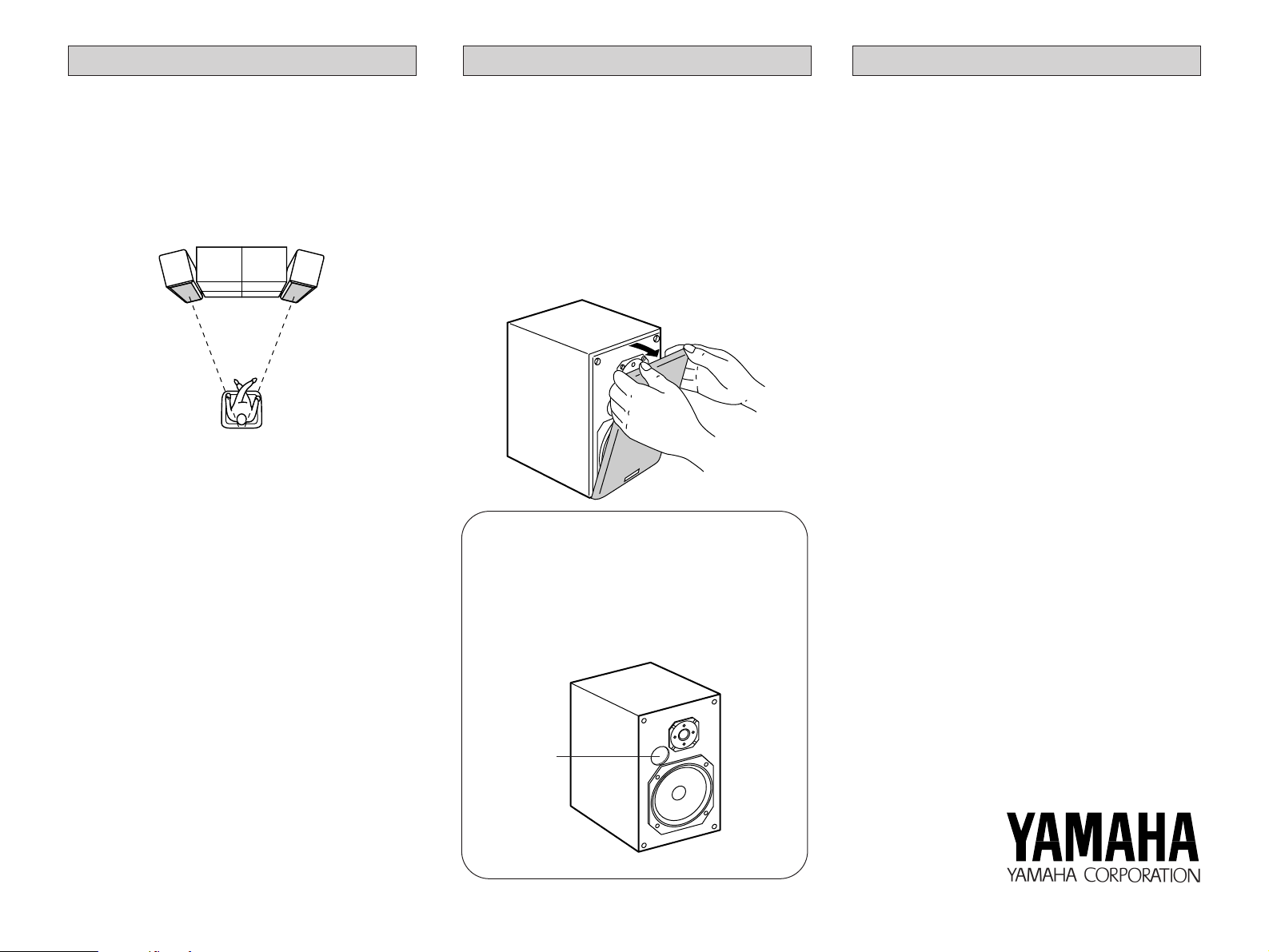

PLACING THE SPEAKER REMOVING THE FRONT COVER

The front cover is fastened to the enclosure at four

points, and can be removed if desired. To remove the

cover, hold on to both sides and slowly pull straight

away from the speaker. To reattach, line up the four

pegs on the inside surface of the cover with the four

corresponding holes on the speaker and push gently.

Note

When the cover is removed, take care not to touch

the speaker units with your hands or to exert exces-

sive force with tools.

This bass-reflex type speaker has an opening on

the front panel.

Be careful not to obstruct the opening or put some

objects into it. If doing so, the sound will be unnat-

ural or it may cause damage to the speaker

and/or amplifier.

Opening

VU58660
