Yamaha ATS-1070 Manuel utilisateur

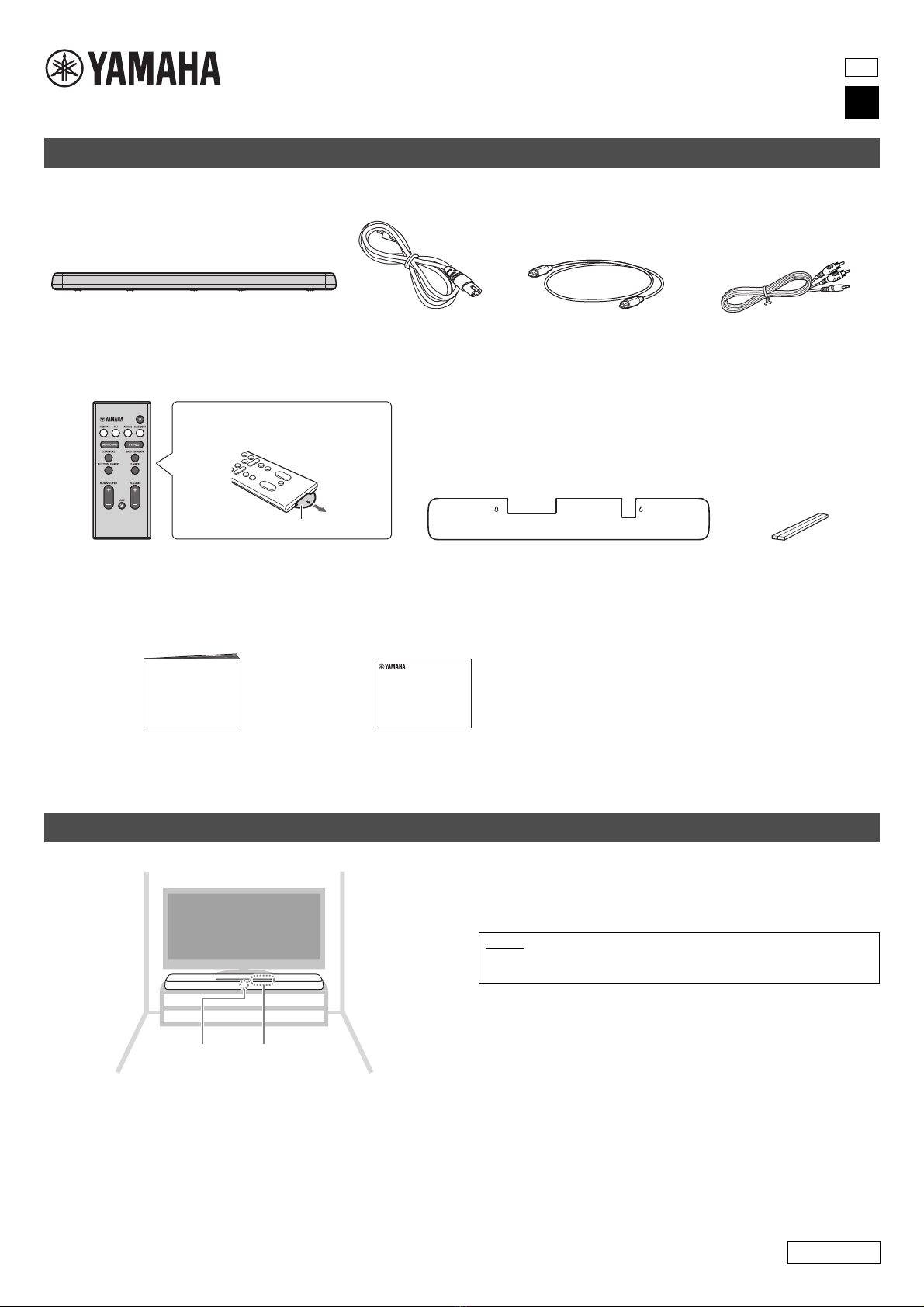

Before using the sound bar, make sure you have received all of the following items.

Install the sound bar on the TV stand, etc.

The sound bar can also be mounted on a wall, using the included

mounting template and commercially available screws. Refer to the

Owner’s Manual for additional installation instructions.

Supplied items

ATS-1070 Quick Start Guide UA

Sound bar (ATS-1070)

Remote control

A CR2025 Lithium battery

has already been inserted

into the remote control.

Optical digital audio cablePower cable

Mounting template

Use when mounting the sound bar on a wall

Spacers × 2

Use when mounting the

sound bar on a wall

Owner’s Manual

Analog audio cable

(RCA plug (L/R)-3.5 mm

mini plug cable)

Quick Start Guide

(This sheet)

Preparing the remote control

Remove the battery’s insulating strip before

attempting to use the remote control.

Battery’s insulating strip

Installation

Touch panelRemote control sensor

NOTICE

• Do not stack the sound bar and a BD player or other device directly on each other.

Doing so may cause a malfunction due to vibrations.

Published 04/2017 KS-A0

Manual Development Group

AV16-0019

— 1 —

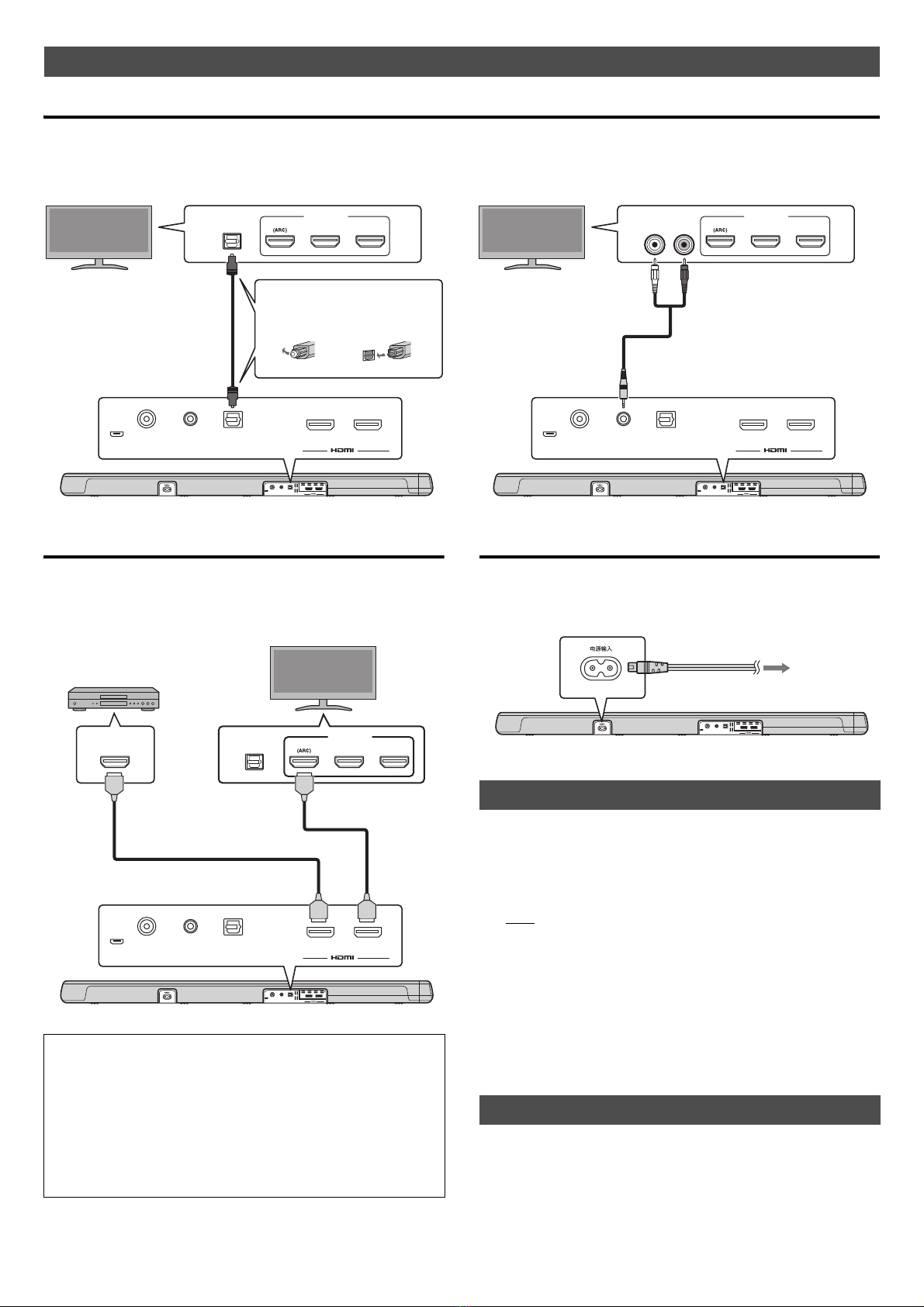

When only a TV will be connected to the sound bar, connect the two using one of the two methods shown below. An optical digital audio cable and an

analog audio cable (RCA plug (L/R)-3.5 mm mini plug cable) are supplied with the sound bar.

TV and a set-top box, or BD/DVD player

When a TV and a playback device will be connected to the sound bar,

connect the three as shown below. HDMI cables are not supplied with the

sound bar. Use third-party HDMI cables.

Power cable

After all connections are complete, connect the supplied power cable to

the AC IN jack on the sound bar and plug the power cable into an AC wall

outlet.

1Press z(power) key on the remote control to turn on

the sound bar.

2Press the TV key on the remote control to select TV as

the input source.

NOTE

• Press the ANALOG key on the remote control if the sound bar and TV are

connected as shown with “2nd choice” above. Press the HDMI key on the remote

control to watch a TV program received via set-top box.

3Select the desired input source on the TV.

4Press the VOLUME (+/–) keys on the remote control to

adjust the volume.

For details, refer to the Owner’s Manual.

– “HOME THEATER CONTROLLER” sound bar control app

– Bluetooth connection

– Clear voice

The sound bar is equipped with a number of other functions not

described in the Quick Start Guide. See the Owner’s Manual for details.

Connection

1st choice 2nd choice

ANALOG TV

SUBWOOFER

OUT

UPDATE

ONLY

ACIN OUT(ARC)IN

ANALOG TV

OUT(ARC)

SUBWOOFER

OUT IN

UPDATE

ONLY

HDMI INPUT

123

OPTICAL

OUTPUT

1. Remove

the cap

2. Check the

direction of

the plug

ANALOG TV

SUBWOOFER

OUT

UPDATE

ONLY

ACIN OUT(ARC)IN

ANALOG TV

OUT(ARC)

SUBWOOFER

OUT IN

UPDATE

ONLY

HDMI INPUT

ANALOG

OUTPUT

123

When a TV that supports Audio Return Channel (ARC) will be

connected, the sound bar can only play audio from the TV when it is

connected as shown above.

What is Audio Return Channel (ARC)?

In order for the sound bar to play audio from a TV, the TV must usually

be connected to the sound bar via an audio cable as well as an HDMI

cable. If, however, the TV supports Audio Return Channel (ARC), TV

audio signals can be input to the sound bar via the HDMI cable that

outputs video signals from the sound bar to the TV.

ANALOG TV

SUBWOOFER

OUT

UPDATE

ONLY

ACIN OUT(ARC)IN

ANALOG TV

OUT(ARC)

SUBWOOFER

OUT IN

UPDATE

ONLY

HDMI INPUT

123

OPTICAL

OUTPUT

HDMI OUTPUT

Cable, satellite or

network set-top box, or

BD/DVD player

Watching TV

... and more features!

ANALOG TV

SUBWOOFER

OUT

UPDATE

ONLY

ACIN OUT(ARC)IN

AC IN

To an AC wall outlet

— 2 —
