DM1000 Editor—Owner’s Manual

Special Notices

•The software and this owner’s manual are the exclu-

sive copyrights of Yamaha Corporation.

•Copying of the software or reproduction of this man-

ual in whole or in part by any means is expressly for-

bidden without the written consent of the

manufacturer.

•Copying of the commercially available music

sequence data and/or digital audio ﬁles is strictly pro-

hibited except for your personal use.

•Yamaha makes no representations or warranties with

regard to the use of the software and documentation

and cannot be held responsible for the results of the

use of this manual and the software.

•This disc is a CD-ROM. Do not attempt to play the

disc on an audio CD player. Doing so may result in

irreparable damage to your audio CD player.

•The screen displays as illustrated in this owner’s man-

ual are for instructional purposes, and may appear

somewhat different from the screens which appear on

your computer.

•Future upgrades of application and system software

and any changes in speciﬁcations and functions will

be announced separately.

•The company names and product names in this

Owner’s Manual are the trademarks or registered

trademarks of their respective companies.

Yamaha Pro Audio Global Site

http://www.yamahaproaudio.com/

Contents

Getting Started ......................................... 2

Overview of DM1000 Editor ................................ 2

Configuring DM1000 Editor ................................ 2

Synchronizing DM1000 Editor ............................ 4

Offline Edit Function ............................................ 4

Working with Sessions ......................................... 4

Undo/Redo Function ........................................... 5

Other Functions .................................................... 6

Using DM1000 Editor Windows ............... 7

Master Window .................................................... 7

Layer Windows ..................................................... 8

Selected Channel Window ................................. 12

Library Window .................................................. 17

Patch Editor Window ......................................... 19

Surround Editor Window .................................. 24

Timecode Counter Window .............................. 25

Effect Editor Window ......................................... 25

Meter Window .................................................... 27

Keyboard Shortcuts ................................ 28

Index ....................................................... 29

*Speciﬁcations and descriptions in this owner ’s manual

are for information purposes only. Yamaha Corp.

reserves the right to change or modify products or

speciﬁcations at any time without prior notice. Since

speciﬁcations, equipment or options may not be the

same in every locale, please check with your Yamaha

dealer.

Owner’s Manual

DM1000 Editor

Owner’s Manual

Description of menus and buttons

In the event that menu and button names on a Windows system are different from those on a Macintosh, this manual

uses the Windows menu and button names followed by the Macintosh menu and button names in parentheses.

Using DM1000 Editor

Windows

Getting Started

Keyboard Shortcuts

Index

DM1000 Editor—Owner’s Manual

Windows

Getting Started

Overview of DM1000 Editor

DM1000 Editor enables you to remotely control the Yamaha DM1000 mixing console and to save

the parameter settings on your computer. To use DM1000 Editor, you must ﬁrst perform the fol-

lowing operations:

Start and conﬁgure Studio Manager.

Start and conﬁgure DM1000 Editor.

Synchronize DM1000 Editor with your DM1000 console (see page 4).

For more information on using Studio Manager, refer to the Studio Manager Owner’s Manual.

Conﬁguring DM1000 Editor

You must conﬁgure the following settings for each open Editor.

❏

System Setup

To open the System Setup window, choose [System Setup] from the [File] menu.

Be sure to specify the Input port and Output port.

Input port/Output port:

From the ports you speciﬁed in Studio Manager, select the ports that

the editor will use to communicate with the DM1000 console.

Console Device ID:

DM1000 Editor can control any one of up to eight DM1000 consoles, each

with its own exclusive ID. Select the ID of the console you want to control.

Note:

•Specify MIDI ports in the Setup window of Studio Manager before making the following settings.

•To open each Editor, double-click the icon of the console or device you want to edit.

Using DM1000 Editor

Windows

Getting Started

Keyboard Shortcuts

Index

DM1000 Editor—Owner’s Manual

Windows

Channel Select:

These options determine whether or not channel selection is linked.When the

PC->Console option is on, selecting a channel in DM1000 Editor selects the same channel on the

console. When the Console->PC option is on, selecting a channel on the console selects the same

channel in DM1000 Editor.

Conﬁrmation:

These options determine whether or not a conﬁrmation dialog box appears

when storing, recalling, or patching.

Layer Select:

These options determine whether or not Layer selection is linked. When the

PC->Console option is on, selecting a Layer in DM1000 Editor selects the same Layer on the con-

sole. When the Console->PC option is on, selecting a Layer on the console selects the same Layer

in DM1000 Editor.

Window Control from Console:

This option determines whether or not using the USER

DEFINED KEYS on the console enables you to remotely open and close the DM1000 Editor win-

dows.

Level Meter:

This option determines whether or not the level meters in DM1000 Editor are

enabled.

❏

Console Setup

To open the Console Setup window, choose [Console Setup] from the [File] menu.

Surround Mode:

Select a Surround mode from STEREO, 3-1, 5.1, and 6.1.

Pair Mode:

These options determine whether the fader pair is Horizontal or Vertical.

Channel Copy Parameter:

Select desired parameters to copy from channel to channel.

Using DM1000 Editor

Windows

Getting Started

Keyboard Shortcuts

Index

DM1000 Editor—Owner’s Manual

Windows

Synchronizing DM1000 Editor

When DM1000 Editor starts up, the parameter settings on the console and the parameter settings

in DM1000 Editor may be different. Therefore, you must ﬁrst match the parameter settings on the

console with those in DM1000 Editor. This operation is called “synchronization.” Follow the steps

below to synchronize DM1000 Editor.

Select [Synchronize], then [Total

Recall...].

The following window opens.

Select whether you want to transfer

your settings to DM1000 Editor, or vice

versa.

At this time, the All Libs option determines whether or not Scene and Library data is synchronized.

PC -> Console:

Transfers the current parameter settings in DM1000 Editor to your console.

Console -> PC:

Transfers the current parameter settings of your console to the DM1000 Editor.

Click [OK].

Ofﬂine Edit Function

If you do not want to synchronize your console with DM1000 Editor, select [Ofﬂine Edit] from the

[Synchronization] menu. To apply your off-line edits to your console, select [Re-Synchronize]

from the [Synchronization] with the PC->Console option to synchronize the console with

DM1000 Editor.

The Ofﬂine Edit function is also activated when you click the [ONLINE]/[OFFLINE] button in the

Master window.

Working with Sessions

All of your console’s mix settings in DM1000 Editor, including Scene and library data, are called

Sessions. The following table describes how to handle Sessions.

Do not operate the console while synchronization is in progress.

Note:

If you use the “Total Recall” function in Studio Manager, all selected Editors in Studio Manager

are synchronized with the corresponding devices.

Note:

Some effect parameters in the console change their displayed values depending on the sampling

frequency. If you switch DM1000 Editor from OFFLINE to ONLINE,displayed parameter values may

change because DM1000 Editor loads the sampling frequency from the console and updates the dis-

play.

Creating a new Session Choose [New Session] from the [File] menu.

Opening a previously saved Session Choose [Open Session] from the [File] menu.

Saving the current Session Choose [Save Session] from the [File] menu.

Saving the current Session with a new name Choose [Save Session] As from the [File] menu.

Note:

In order to save the current Automix, or the settings of an optional Y56K card, in a Session,

you must ﬁrst resynchronize DM1000 Editor by selecting the Console->PC option.

Using DM1000 Editor

Windows

Getting Started

Keyboard Shortcuts

Index

DM1000 Editor—Owner’s Manual

Windows

If you save a Session in an Editor, only that Editor’s settings are saved in a ﬁle. The Editor’s settings

are saved in either the Studio Manager V2 format (ﬁle extension “.YSE”) or a format that is com-

patible with earlier versions of Studio Manager (ﬁle extension “.D1X”). Note that earlier versions

of Studio Manager cannot open a Session saved in the “.YSE” format.

If you save a Session in the Studio Manager window, all selected Editor settings are saved in a ﬁle

with a ﬁle extension of “.YSM.”

Undo/Redo Function

In DM1000 Editor, you can cancel the latest operation (Undo) and also cancel the cancellation of

the latest operation (Redo). If you perform an Undo operation twice in a row, you can cancel the

two most-recent operations. If you perform an Undo operation three times in a row, you can can-

cel the three most-recent operations. In this way, you can cancel multiple recent operations. The

following table describes how to use the Undo/Redo function.

Please note, however, that after you perform one of the following operations, you cannot success-

fully undo or redo any previous operation:

•Operations on the console

•Closing Studio Manager

•Changing Surround mode (Stereo/3-1/5.1/6.1)

•Changing Pair mode (Horizontal/vertical)

•Synchronizing the console with DM1000 Editor

•Creating a new Session

•Saving a Session

•Copying and pasting a channel

•Creating or cancelling a channel pair

•Storing or recalling a scene or library

•Turning on or off the GATE: [LINK] button in the Selected Channel window

•Turning on or off the COMPRESSOR: [LINK] button in the Selected Channel window

•Turning on or off the [LINK] button in the Surround Editor window

•Changing Aux Send mode (Fixed/variable) on the console

•Starting automix recording or playback on the console

•Changing the sampling frequency (operated on the device)

•Changing the User Assignable Layer settings (operated on the device)

Undo Choose [Undo] from the [Edit] menu.

Redo Choose [Redo] from the [Edit] menu.

Note:

You cannot Undo or Redo the following operations:

•Edits in the Setup window

•Synchronization

•Opening and closing the windows

•Resizing the windows

Note:

In the Library window, you can Undo or Redo only the most recent operation.You cannot cancel

the preceding operations.

Using DM1000 Editor

Windows

Getting Started

Keyboard Shortcuts

Index

DM1000 Editor—Owner’s Manual

Windows

Other Functions

❏

Copy & Paste Function

You can copy and paste the channel parameters.

In the Console Setup window (page 3), you can also specify the parameters to be copied.

The following table describes how to use the Copy & Paste function.

❏

Resetting to the default value (Ctrl ( ) + click)

Move the cursor to a control or a parameter value, then hold down the <Ctrl> key ( ) and click

the mouse button to reset the value to the default (e.g., to reset an Input Channel fader to –

∞

, or

reset a pan setting to Center).

❏

Ctrl( )+Shift+Click

Move the cursor to a fader or AUX Send control, then hold down the <Ctrl> key ([ ]) and

<Shift> key and click the mouse button to reset the value to the nominal level.

Copying a channel Right-click (<control>+click) a copy source channel, then choose [Copy].

Pasting a channel Right-click (<control>+click) the copy destination channel, then choose

[Paste].

DM1000 Editor—Owner’s Manual

Getting Started

Keyboard Shortcuts

Index

Windows

Using DM1000 Editor Windows

Master Window

The Master window enables you to switch between layers and control Stereo Out sig-

nals. To open this window, choose [Master] from the [Windows] menu.

[ONLINE]/[OFFLINE] button

Repeatedly clicking this button toggles between online and ofﬂine status.

This indicator is displayed when DM1000 Editor is connected to the

DM1000 correctly. If the connection is correct, the DM1000 Editor

parameters will work in unison with the DM1000 parameters.

This indicator is displayed when DM1000 Editor is not connected or

is not communicating with the DM1000, or when you have selected

Ofﬂine Edit. If the connection is incomplete, the DM1000 Editor

parameters will not work in unison with the DM1000 parameters.

Meters

These meters display the output level of the

Stereo Out when Surround mode is set to

“STEREO,” or the Bus Outs used for sur-

round processing when Surround mode is

set to 3-1, 5.1 or 6.1. The meters in 3-1, 5.1

and 6.1 Surround modes are shown on the

right.

LAYER buttons

These buttons are used to select the Layers.

PAN CONTROL

These buttons are used to select either

“STEREO” (Stereo display mode) or

“SURR” (Surround display mode). The

Pan control on the Input Channels is a rotary control when “STEREO” is

selected, and a dot on a pan graph when “SURR” is selected. If Surround mode is

set to Stereo, the [SURR] button will be disabled.

Scene number display

This display indicates the currently-recalled scene’s number.

[AUTO] button

This button displays the Automix status of the Stereo Out.

[SELECT] button

This button is used to select the Stereo Out.

[ON] button

This button turns the Stereo Out on and off. It appears orange while the Stereo

Out is on.

Master fader

This is the Stereo Out fader.

Fader value indicator

This indicator indicates the fader position in decibels (dB).

Note: If DM1000 Editor is not connected or is not communicating with the

DM1000, clicking this button will not switch the unit from ofﬂine to online.

3-1 5.1 6.1

Using DM1000 Editor

Windows

Getting Started

Keyboard Shortcuts

Index

DM1000 Editor—Owner’s Manual

Windows

Layer Windows

The Layer window displays 16 channel strips. You can select a layer using the LAYER buttons in the

Master window. To open the Layer window, choose [Layer] from the [Windows] menu.

❏

Input Channels

Selecting the 1-16, 17-32, or 33-48 button in the Master window displays the corre-

sponding Input Channel strips.

SOURCE parameter

This parameter is used to select an Input source. To select an Input source, click the

parameter and choose from the list that appears.

Routing buttons

These buttons are used to route the Input Channel to the Bus Outs.

[STEREO] button

This button is used to route the Input Channel’s signal to the Stereo Out.

[DIRECT] button

This button turns on and off the Input Channel’s routing to its Direct Out.

Direct Out parameter

This parameter is used to select the Direct Out destination. To select a destination,

click the parameter and choose from the list that appears.

[PHASE] button

This button is used to reverse the signal phase of the channel.

[INSERT] button

This button is used to turn on and off the Input Channel’s Insert.

[GATE] button

This button is used to turn on and off the Input Channel’s Gate.

Gate open/close indicators

These indicators display whether the Gate is open (green) or closed (red).

Gate threshold

This displays the Gate Threshold, which can be set by dragging.

[COMP] button

This button is used to turn on and off the Input Channel’s Compressor.

Compressor curve

This display shows the Compressor’s curve.

[EQ] button

This button is used to turn on and off the Input Channel’s EQ.

EQ curve

This display shows the Equalizer’s curve, which can be set by dragging.

[DELAY] button

This button is used to turn on and off the Input Channel’s Delay function.

Note:

•You can selectively turn on or off some of channel strips by using the [View] menu.

•You can open multiple Layer windows by choosing [Windows] menu -> [Layer] -> [Additional View].

The titles of these windows will indicate [Locked]. Windows that are indicated as [Locked] will not

reﬂect layer changes made on the console or in the Master window. If you want the Layer windows to

reﬂect the changes, right-click each window (Macintosh: <control> + click),then select the desired layer

using the LAYER buttons.

Using DM1000 Editor

Windows

Getting Started

Keyboard Shortcuts

Index

DM1000 Editor—Owner’s Manual

Windows

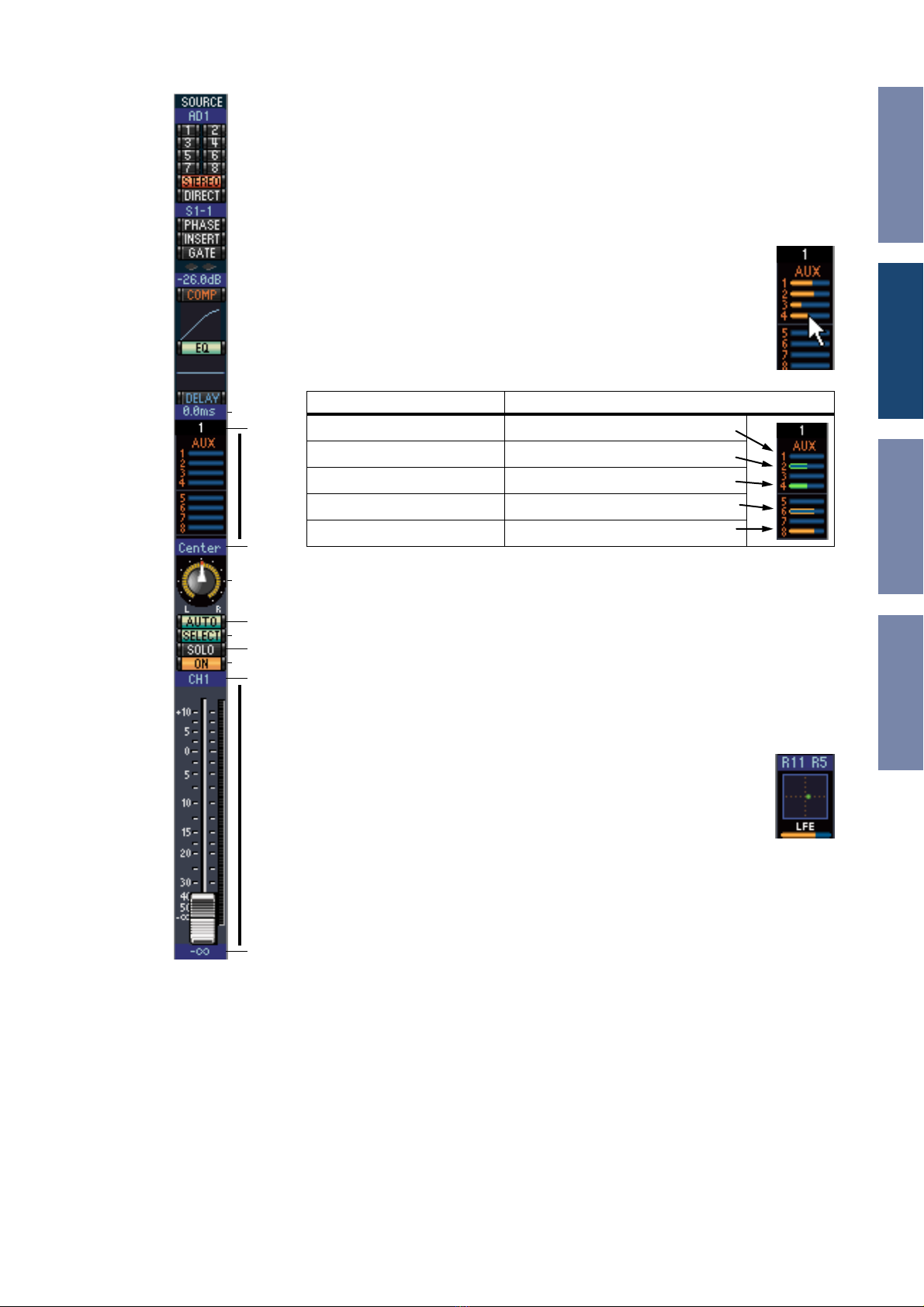

PDelay parameter

This parameter is used to set the delay time of the Delay function. Delay times can be

set by dragging.

QChannel number

This is the channel number. Double-click the channel number to open the Selected

Channel window.

RAUX section

These controls are used to set the levels of the Aux Sends. To set an Aux

Send level, drag its bar or click a point along the length of the bar. To turn

an Aux Send on or off, click its number.

The following table shows how the Aux Send controls appear depending

on the Aux Send On/Off and Pre/Post settings. Aux Sends can be set to

pre-fader or post-fader on the Selected Channel window (see “AUX

SEND section” on page 13).

SPan/Aux Send display

This display shows the stereo or surround pan position or, while setting an Aux Send,

the Aux Send level in dB.

TPAN control

This control is used to set the Input Channel’s stereo or surround pan position.

When the PAN CONTROL in the Master Window is set to “STEREO,” the Pan con-

trol appears as a rotary control, and when set to “SURR,” the control appears as dot

on a pan graph. The surround pan position can be set by dragging the dot.

ULFE control

When 5.1 or 6.1 Surround mode is selected, this control is used to set the

surround LFE Channel level. It appears when the PAN CONTROL in the

Master Window is set to“SURR.” To set the Channel level, drag the end of

its bar or click a point along the length of the bar.

V[AUTO] button

This button displays the Automix status of the Input Channel.

W[SELECT] button

This button is used to select the Input Channel.

X[SOLO] button

This button solos the Input Channel. It appears orange while the channel is soloed.

Y[ON] button

This button turns the Input Channel on and off. It appears orange while the channel

is on.

ZShort channel name

This is the channel’s short name. To edit the name, click it and type.

aChannel fader and channel meter

This is the Input Channel fader. The channel meter to the right of the fader displays

the Input Channel signal level.

bFader value indicator

The fader value indicator indicates the fader position in decibels (dB).

Aux Send status Appearance

On or off but no level set Dark blue bar

Off, pre-fader Green bar outline displays level

On, pre-fader Green bar displays level

Off, post-fader Orange bar outline displays level

On, post-fader Orange bar displays level

DM1000 Editor—Owner’s Manual

Getting Started

Keyboard Shortcuts

Index

Windows

❏Output Channels

When you select the Master LAYER button in the Master window, the Bus Out and

Aux Send channels are displayed. The Aux Send channel appears the same as the Bus

Out channels except that the Bus Out channels feature a [STEREO] button.

A[STEREO] button (Bus Out only)

This button is used to route the Bus Out to the Stereo Out.

B[INSERT] button

This button is used to turn on and off the Bus Out’s Insert.

C[COMP] button

This button is used to turn on and off the Bus Out’s Compressor.

DCompressor curve

This display shows the Compressor’s curve.

E[EQ] button

This button is used to turn on and off the Bus Out’s EQ.

FEQ curve

This display shows the Equalizer’s curve, which can be set by dragging.

G[DELAY] button

This button is used to turn on and off the Bus Out’s Delay function.

HDelay parameter

This parameter is used to set the delay time of the Delay function. Delay times

can be set by dragging.

IChannel number

This is the channel number. Double-click the channel number to open the

Selected Channel window.

J[AUTO] button

This button displays the Automix status of the Bus Out.

K[SELECT] button

This button is used to select the Bus Out.

L[SOLO] button

This button solos the Bus Out. It appears orange while the Bus Out is soloed.

M[ON] button

This button turns the Bus Out on and off. It appears orange while the Bus Out is

on.

NShort channel name

This is the channel’s short name. To edit the name, click it and type.

OChannel fader and channel meter

This is the Bus Out fader. The meter to the right of the fader displays the Bus Out

signal level.

PFader value indicator

The fader value indicator indicates the fader position in decibels (dB).

Autres manuels pour DM 1000

Table des matières

Autres manuels Yamaha Logiciel

Yamaha

Yamaha LS9 Editor Manuel utilisateur

Yamaha

Yamaha disklavier MX-100A Manuel utilisateur

Yamaha

Yamaha Add-On Effects Manuel utilisateur

Yamaha

Yamaha Loopfactory DX200 Manuel utilisateur

Yamaha

Yamaha mLAN Patchbay Manuel utilisateur

Yamaha

Yamaha Clavinova CVP-210 Manuel utilisateur

Yamaha

Yamaha Acoustic Manuel utilisateur

Yamaha

Yamaha USB Manuel utilisateur

Yamaha

Yamaha CL3 Manuel utilisateur

Yamaha

Yamaha mLAN mLAN Driver Manuel utilisateur

Yamaha

Yamaha PM1D Manager V2 Instructions et recettes

Yamaha

Yamaha DM 2000 Version 2 Manuel utilisateur

Yamaha

Yamaha Sound Edge Manuel utilisateur

Yamaha

Yamaha M7CL StageMix V1.5 Manuel utilisateur

Yamaha

Yamaha S03 voice editor Manuel utilisateur

Yamaha

Yamaha Sound Editor ver. 2.10 Manuel utilisateur

Yamaha

Yamaha Studio Manager Manuel utilisateur

Yamaha

Yamaha HUB Manuel utilisateur

Yamaha

Yamaha Clavinova CVP-309 Manuel utilisateur

Yamaha

Yamaha RS7000 Ver.1.2 Instructions d'installation et d'utilisation

Yamaha

Yamaha CL1 Manuel utilisateur

Yamaha

Yamaha S90 Manuel utilisateur

Yamaha

Yamaha S08 Voice Editor Manuel utilisateur

Yamaha

Yamaha mLAN Driver Manuel utilisateur

Manuels Logiciel populaires d'autres marques

COMPRO

COMPRO COMPROFM Manuel utilisateur

Muratec

Muratec OFFICEBRIDGE ONLINE Manuel utilisateur

Oracle

Oracle Contact Center Anywhere 8.1 Manuel utilisateur

Adobe

Adobe 65007312 - Photoshop Lightroom Manuel

Avaya

Avaya NULL One-X for RIM Blackberry Manuel utilisateur

HP ProLiant BL420c Manuel utilisateur

PS Audio

PS Audio PowerPlay Manuel du propriétaire

Brady

Brady LOCKOUT PRO 3.0 Manuel de service

Avaya

Avaya Interaction Center Manuel utilisateur

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manuel

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manuel utilisateur

Oracle

Oracle Application 9i Manuel utilisateur

Acer

Acer RDM Manuel utilisateur

Canon

Canon Vixia HF21 Manuel utilisateur

Canon

Canon ZR950 Manuel utilisateur

Samsung

Samsung Auto Backup Manuel utilisateur

Polycom

Polycom Vortex EF2201 Instructions d'installation et d'utilisation

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manuel utilisateur
